TPA6120 Headphone Amplifier Board HIFI TPA6120A2 Enthusiast Headphones AMP Amplificador Zero Noise | Электроника

Характеристики

Feature: The TPA6120A is a HIFI-class stereo headphone amplifier from TI that provides 80mW to 600Ω at a ±12V voltage at (THD+N) of 0,00014%.
Current feedback architecture; dynamic range greater than 120dB; SNR is 120dB;The output noise at a gain of 2V/V is 5μV;Conversion rate: 1300V/MS; built-in short circuit and thermal protection;

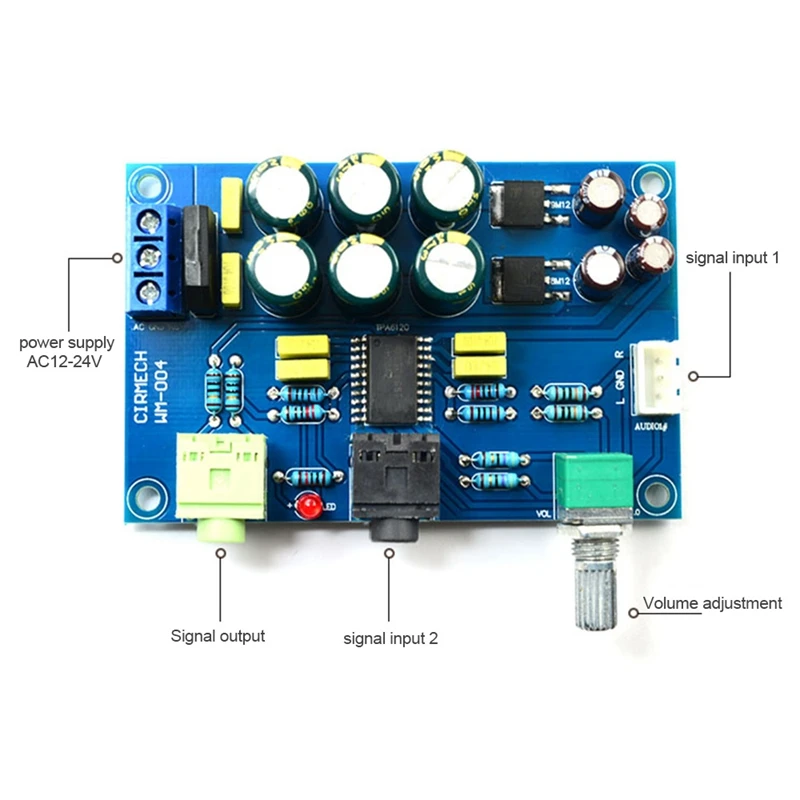

Compatible with 3.5mm and 2.54 3P two input sockets, no noise and current sound, suitable for small space installation.
The amp board AC and DC dual power supply 12-24V is available, the thrust is very large, 600 Euro headphones are not to mention.
1% precision resistor, high-quality fever capacitor, ultra-low noise and wide sound field, good separation of left and right channels.
Product description:
Output Type: LINE OUT (O OUT)
Input Type: LINE IN (O IN)
Built-in Battery: No
Recommended Headphone Maximum Impedance: 501-600 Ohm
DSD (Direct Stream Digital): No
PCM: No
Bluetooth: No
Body Material: Metal
Model Number: TPA6120
Output Power: 80mW
Type: Mini Amplifier
Operational Amplifier Chips Model: TPA6120A
Channels: 2 (2.0)
Signal To Noise Ratio: 120
WIFI: No

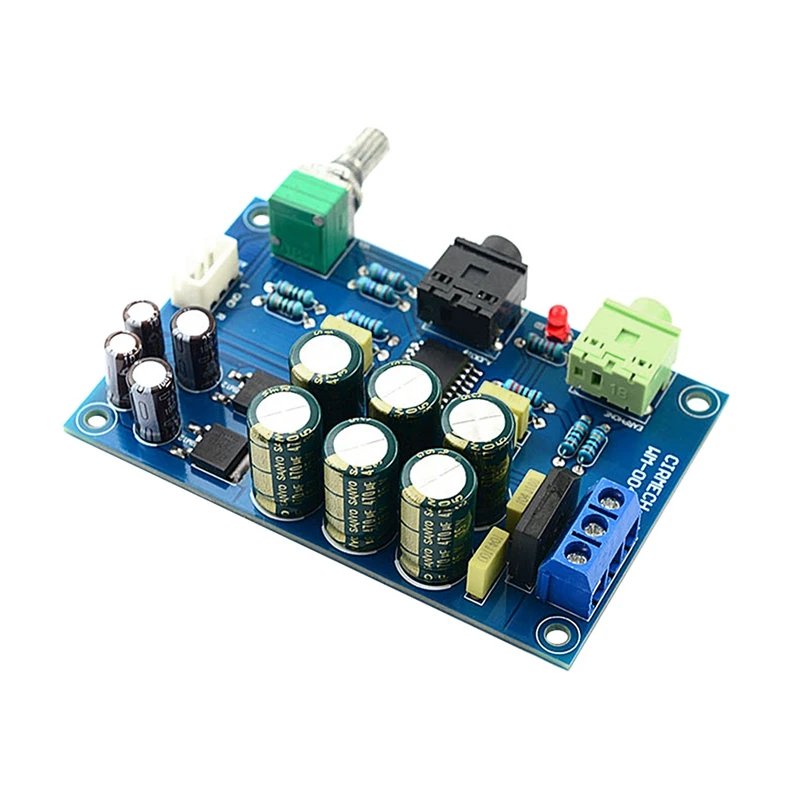

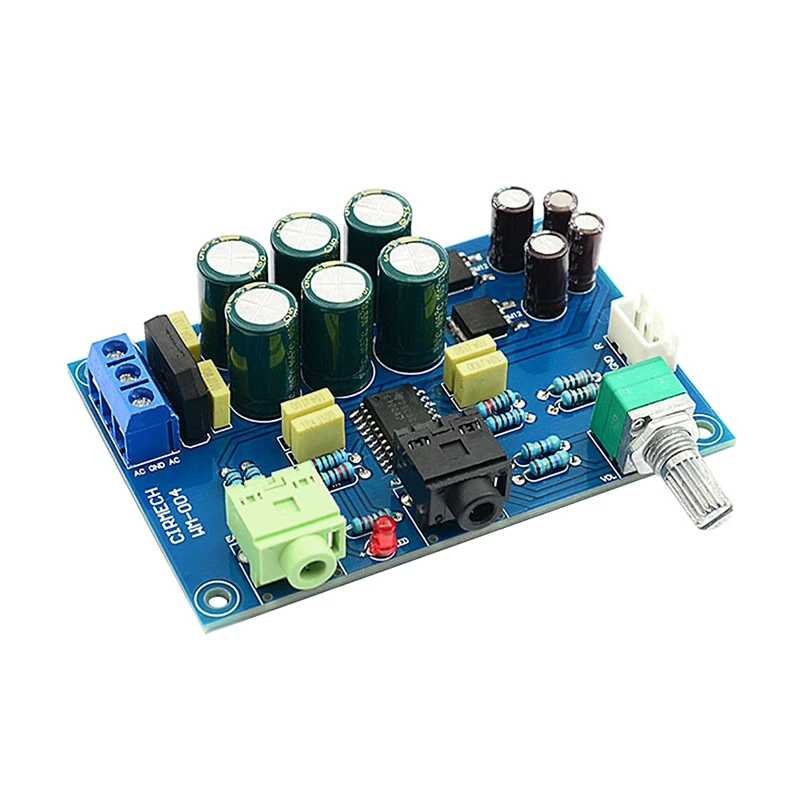

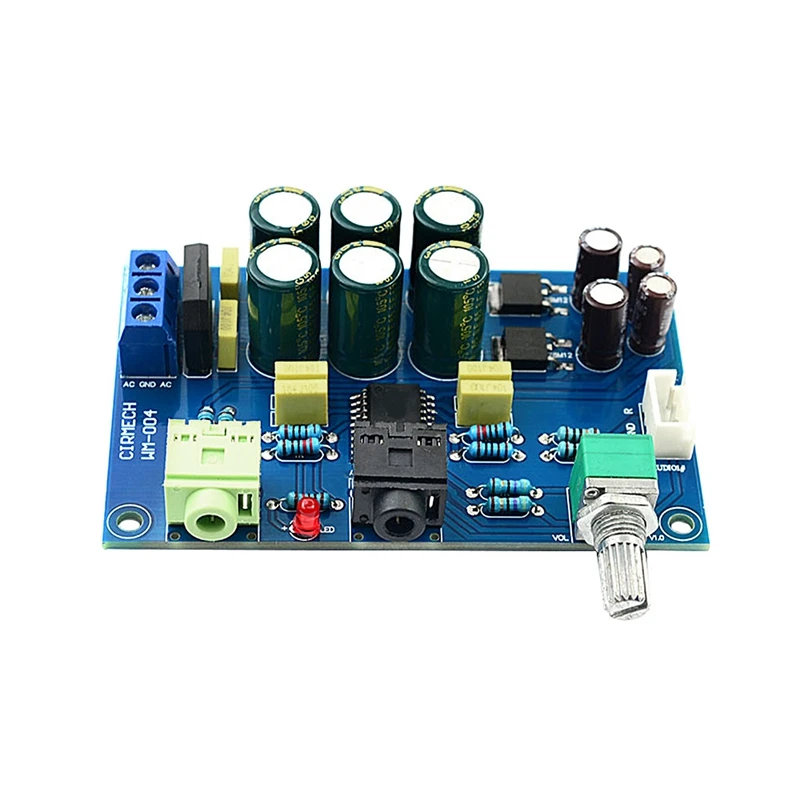

Product Name: TPA6120 Headphone Amplifier Board
Input voltage: Dual AC12-24V(recommend dual AC12V 30W)
Output impedance: 8-600 Ohm
Protection function: short circuit protection, over temperature protection

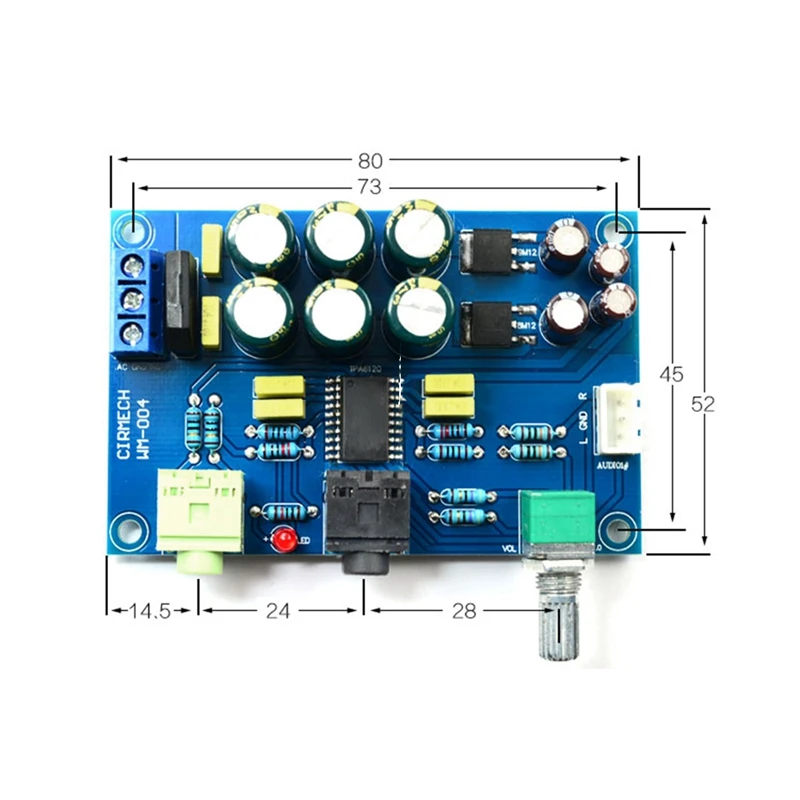

Size: 80 * 52 * 19MM
color: blue
material: metal
The product is a finished product
Package Contents:
1 * TPA6120 Headphone Amplifier Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
