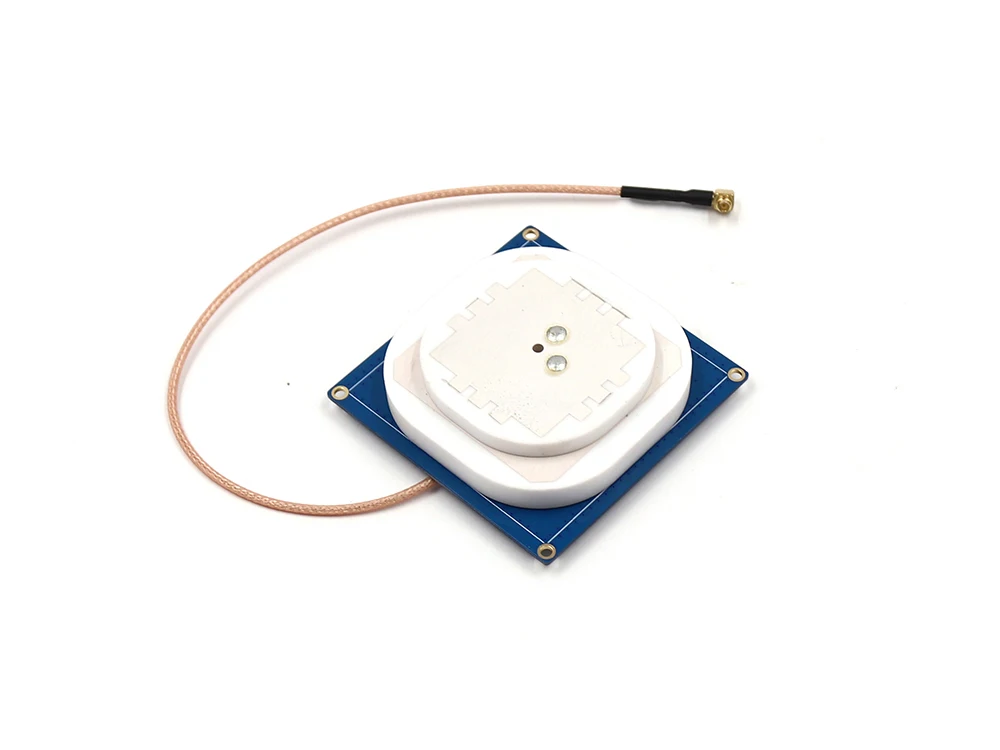

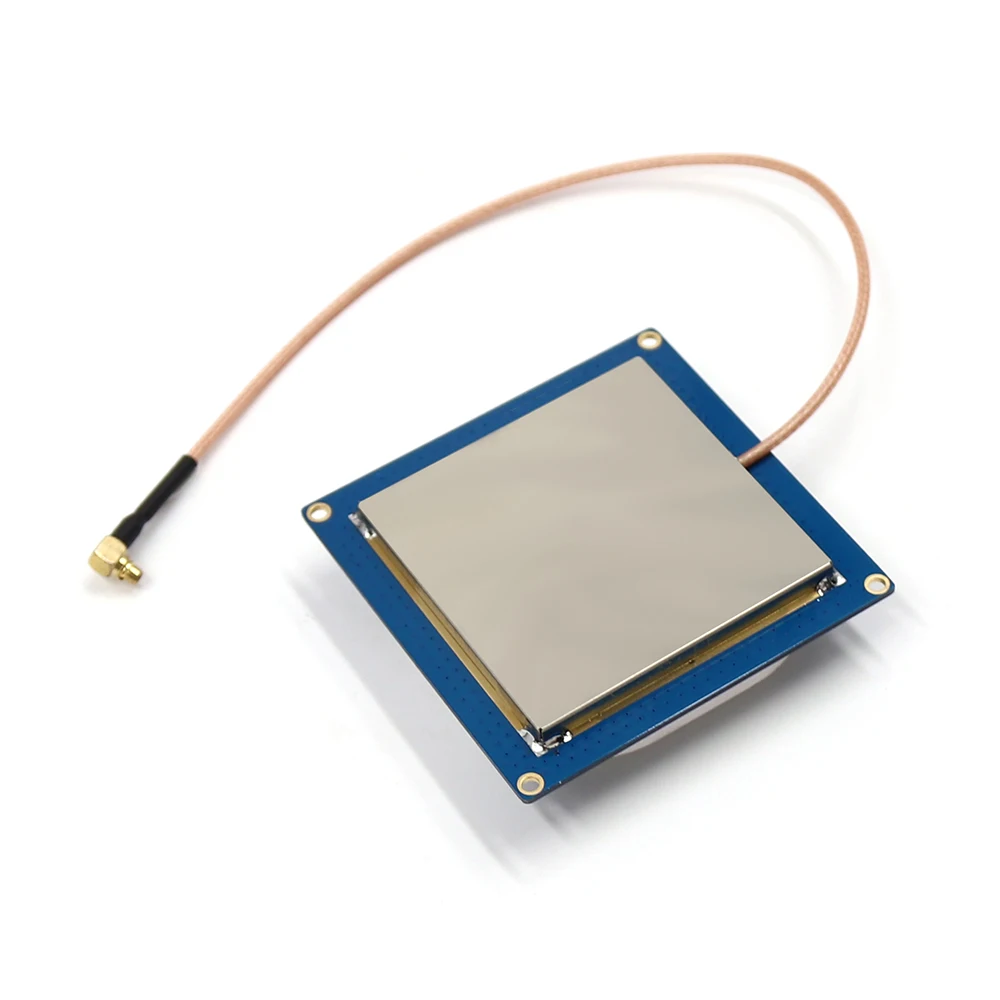

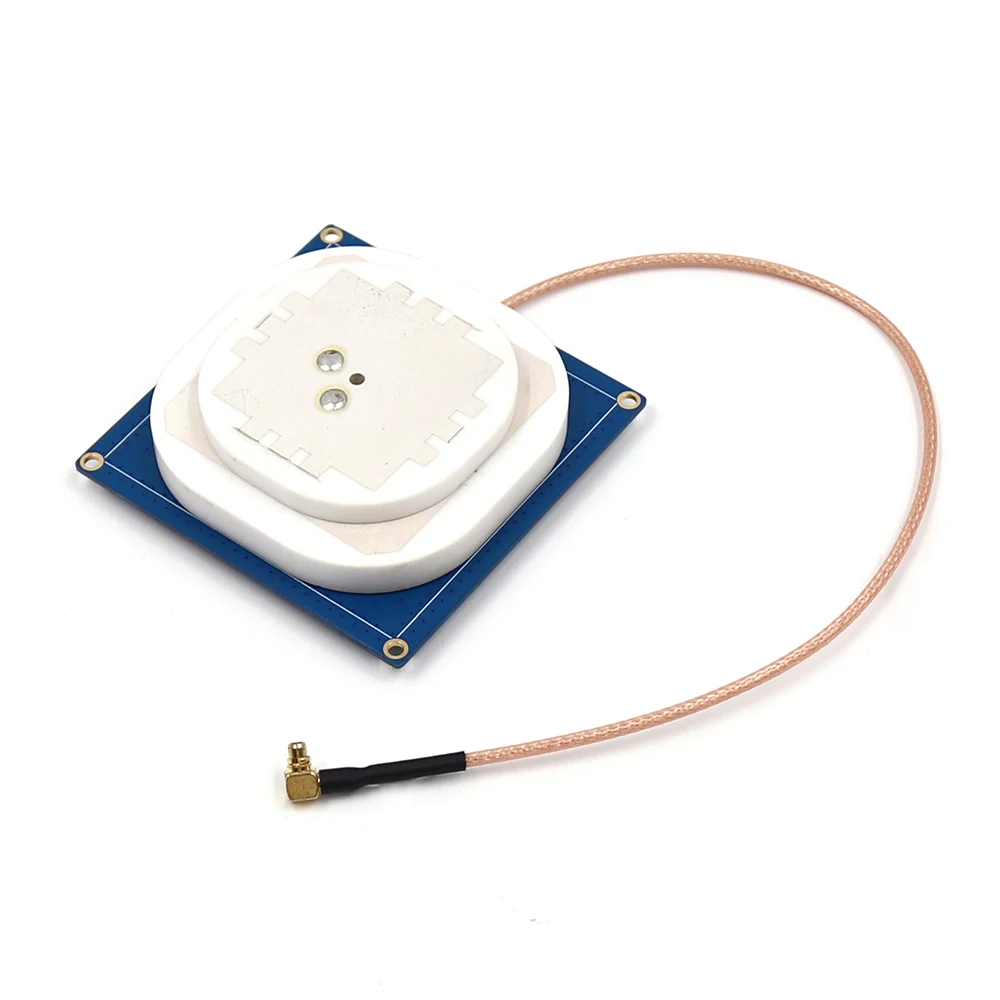

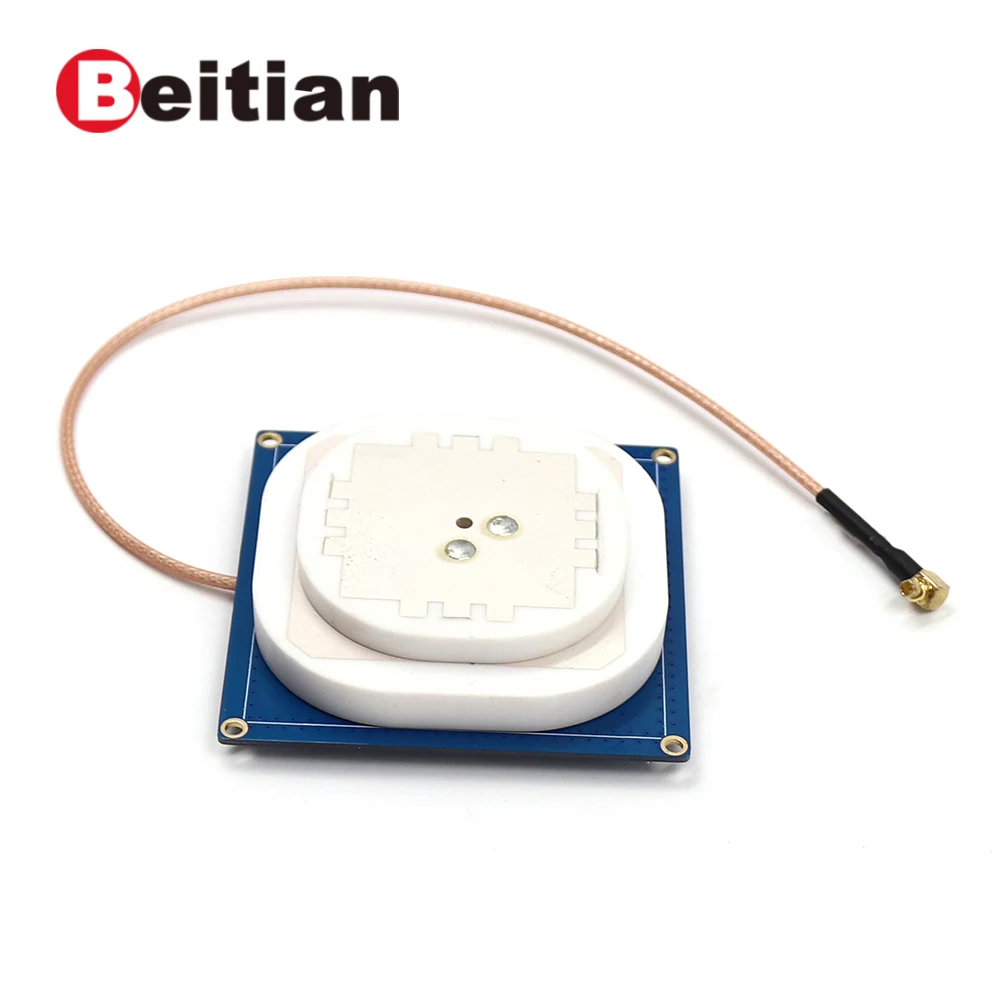

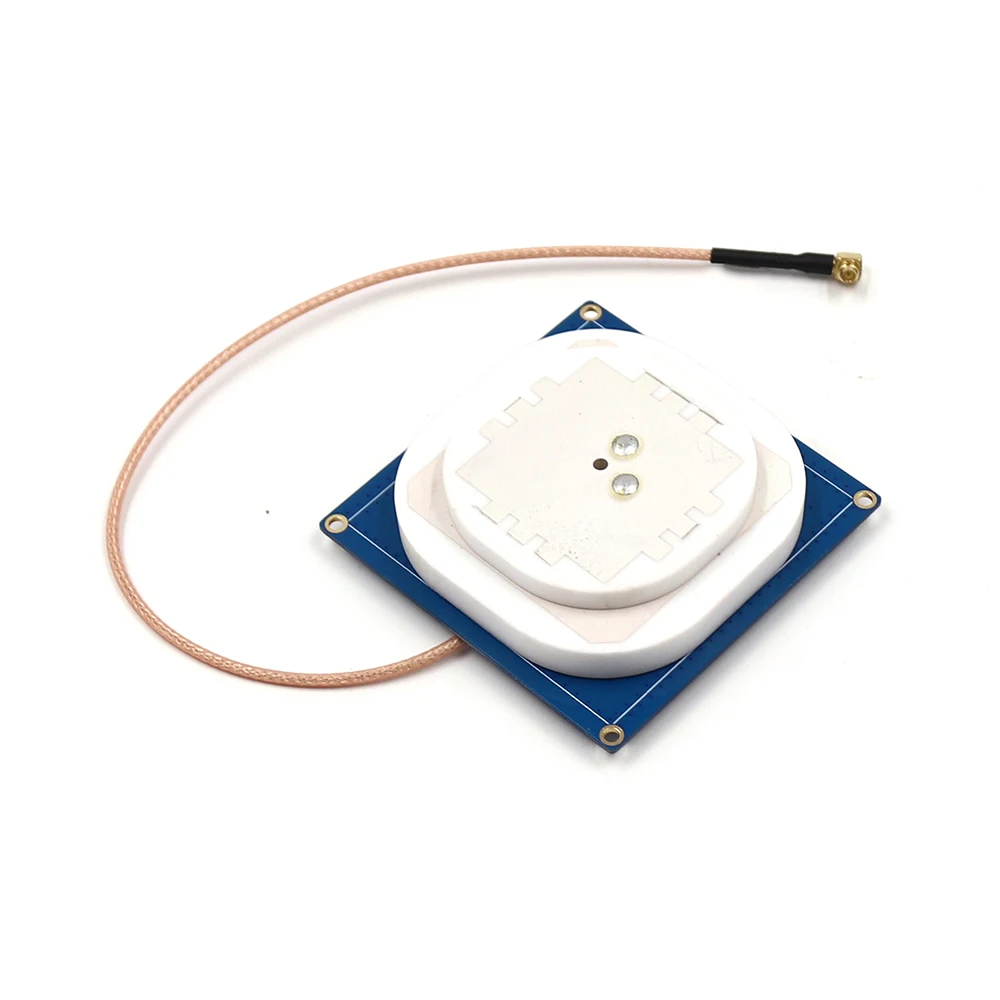

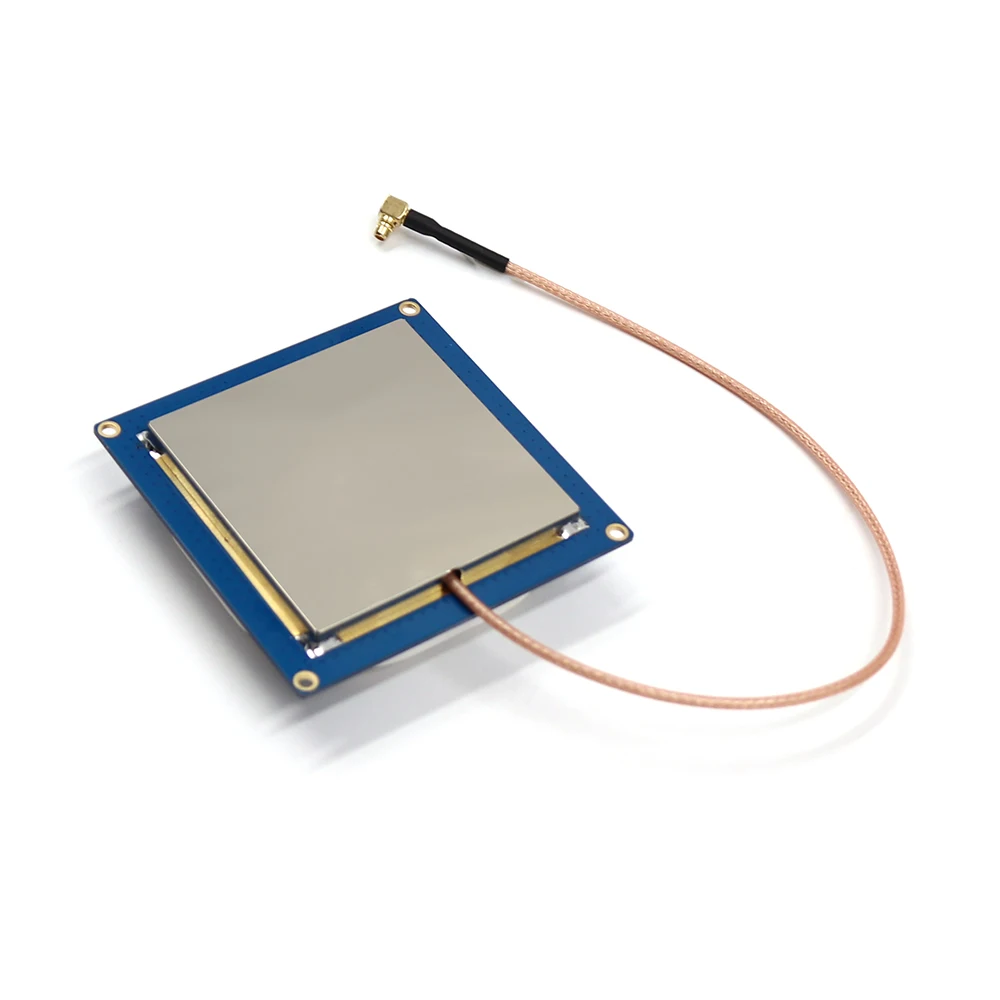

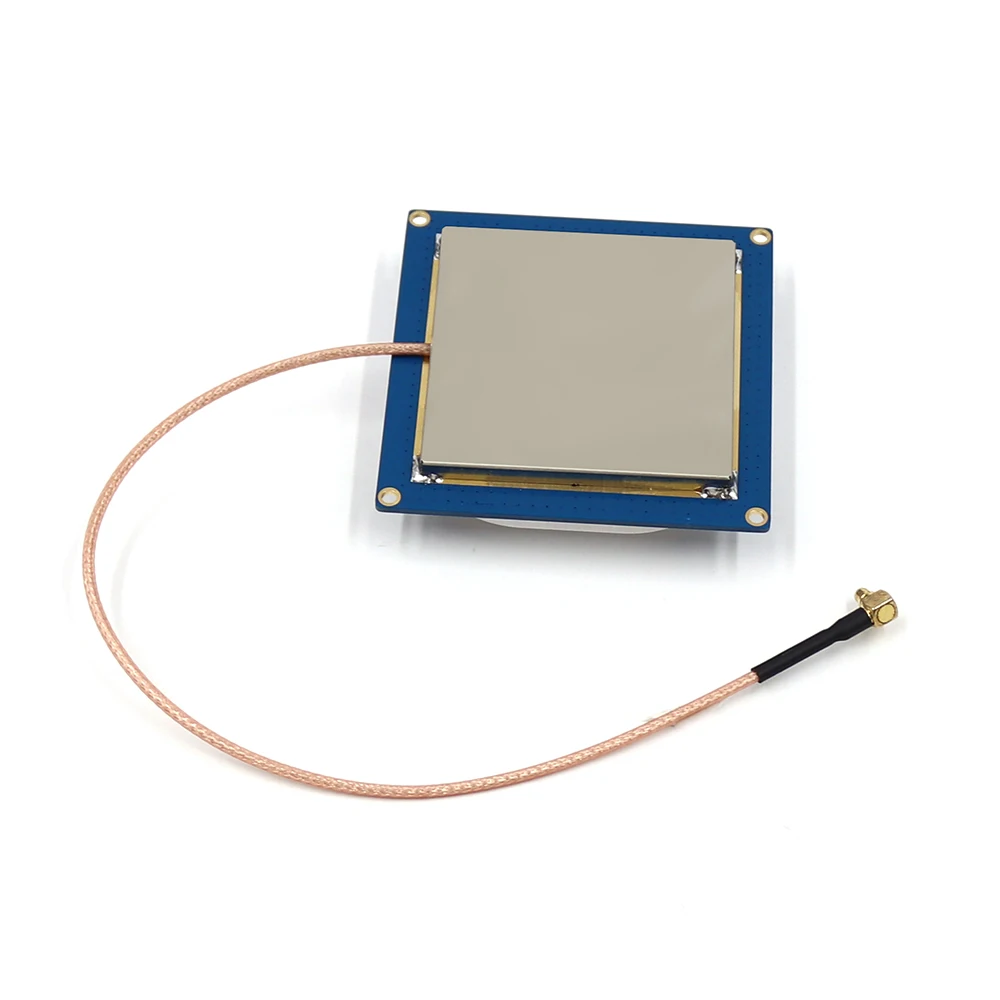

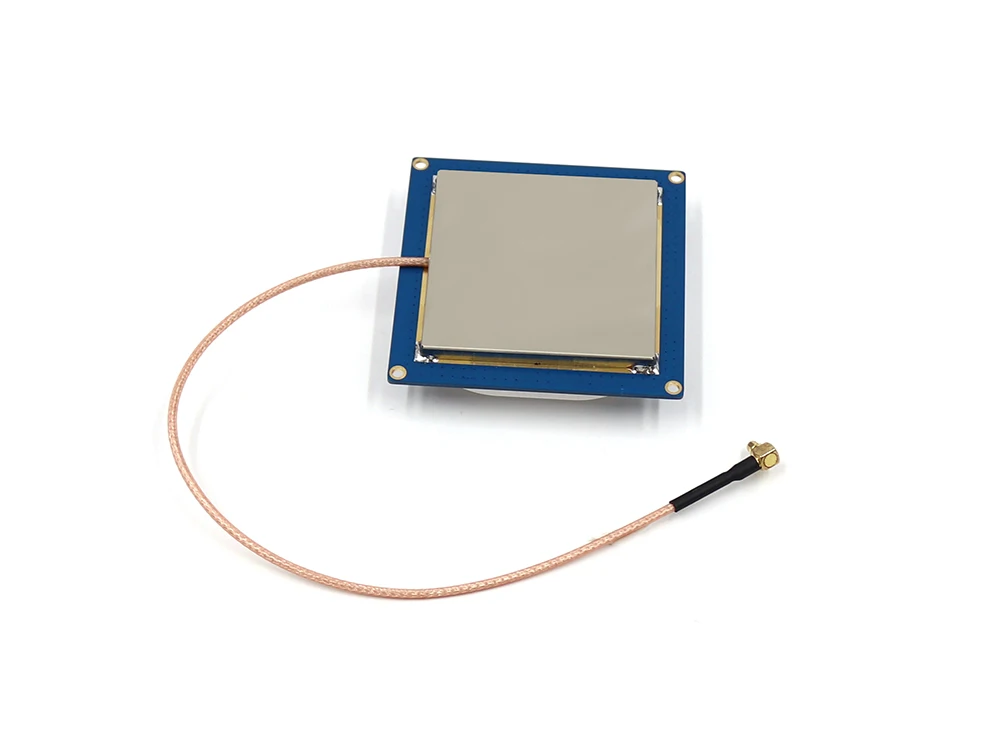

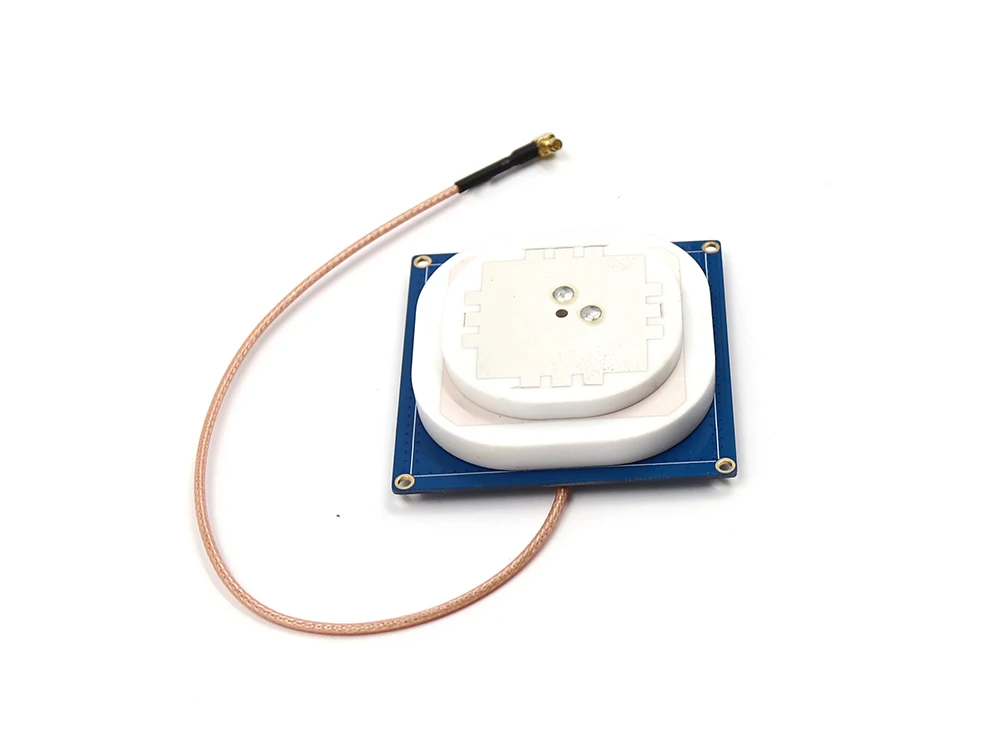

Model: BMW-5620C

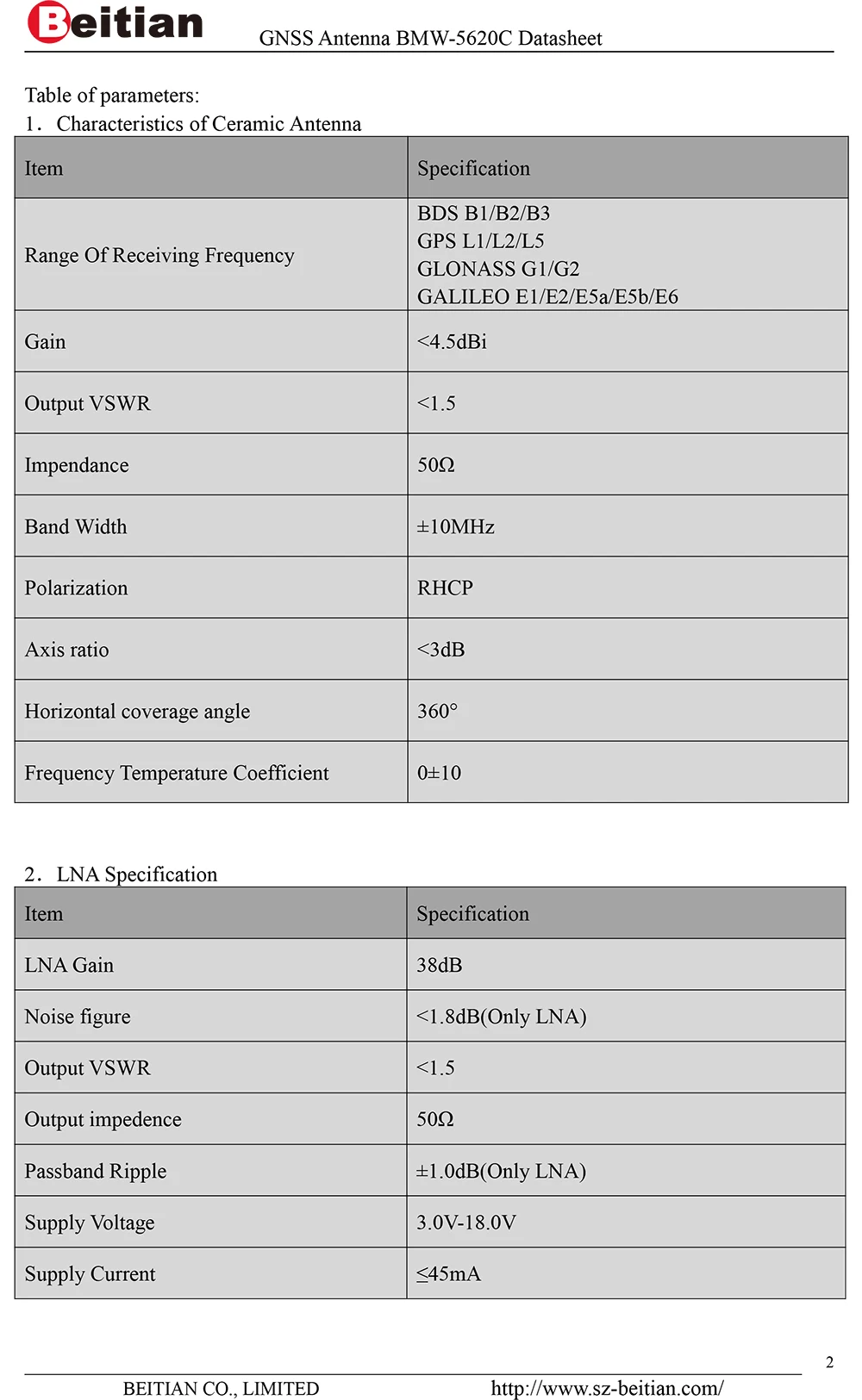

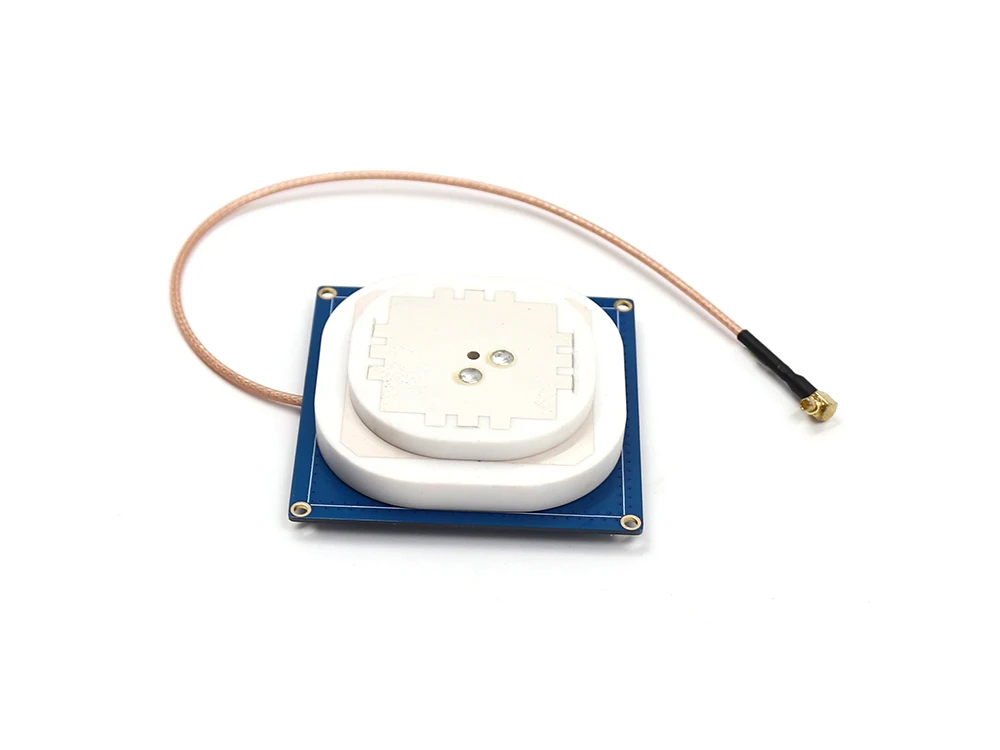

1．Characteristics of Ceramic Antenna

Item Specification

Range Of Receiving Frequency BDS B1/B2/B3 GPS L1/L2/L5 GLONASS G1/G2 GALILEO E1/E2/E5a/E5b/E6

Gain <4.5dBi

Output VSWR <1.5

Impendance 50Ω

Band Width ±10MHz

Polarization RHCP

Axis ratio <3dB

Horizontal coverage angle 360°

Frequency Temperature Coefficient 0±10



2．LNA Specification

Item Specification

LNA Gain 38dB

Noise figure <1.8dB(Only LNA)

Output VSWR <1.5

Output impedence 50Ω

Passband Ripple ±1.0dB(Only LNA)

Supply Voltage 3.0V-18.0V

Supply Current ≤45mA



3．Work environment

Item Specification

Operational Temperature -40℃ - +85℃

Storage Temperature -40℃ - +85℃

Wet degree 40% - 95%

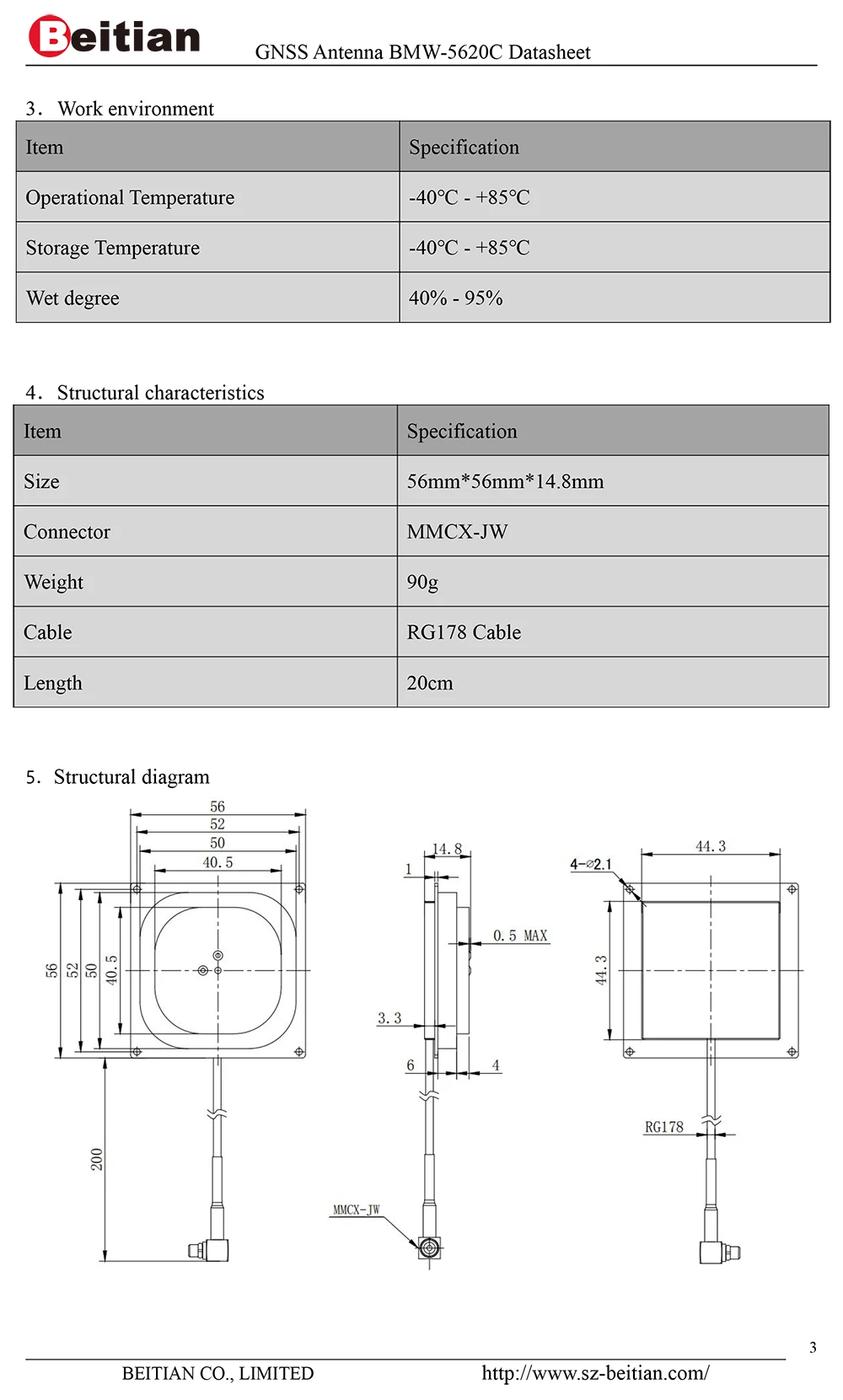

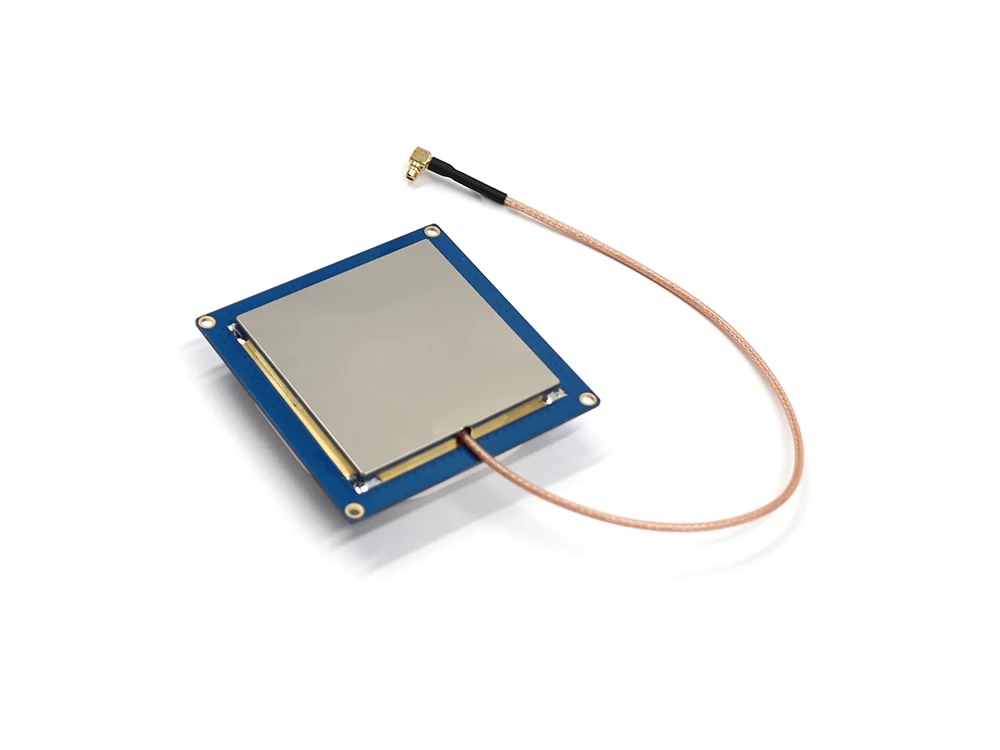

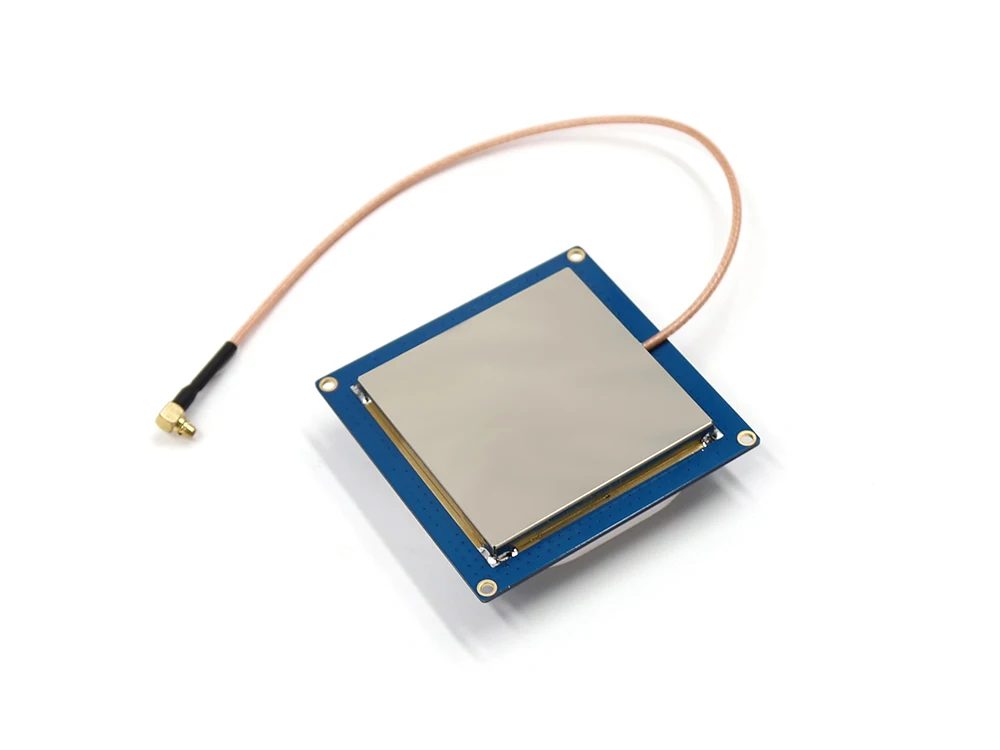

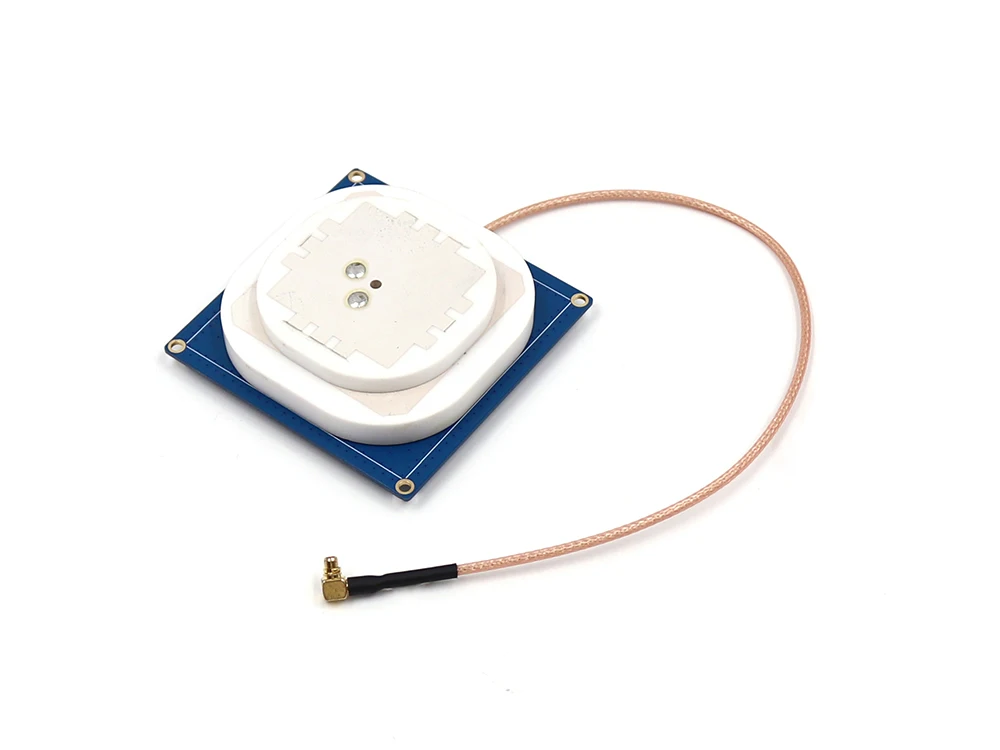

4．Structural characteristics

Item Specification

Size 56mm*56mm*14.8mm

Connector MMCX-JW

Weight 90g

Cable RG178 Cable

Length 20cm



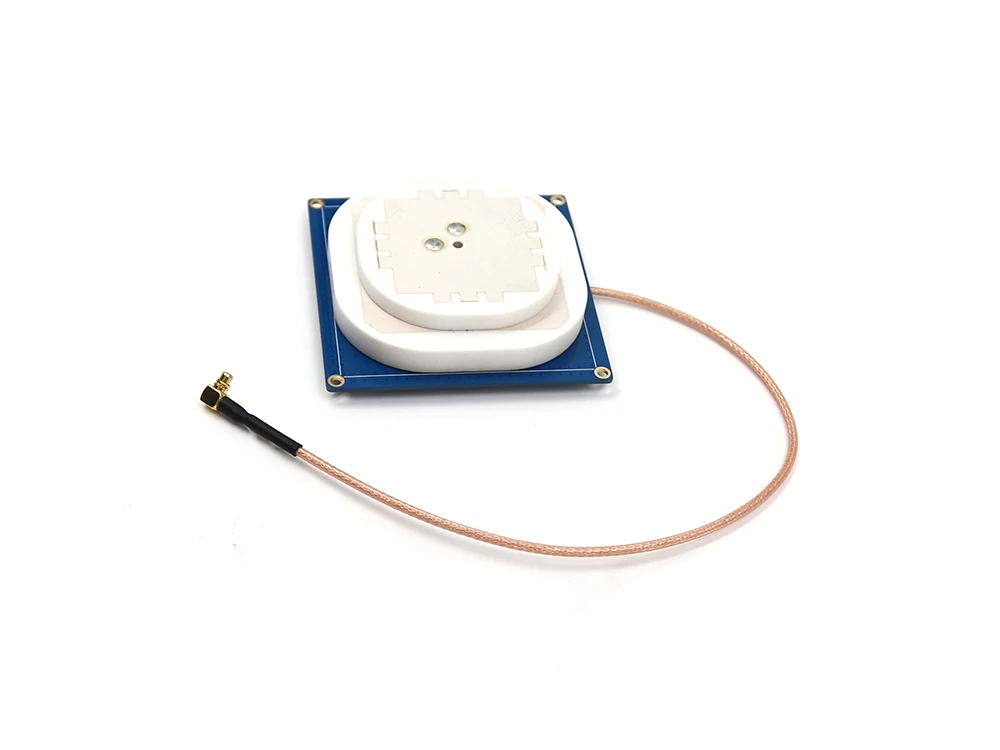

1x GNSS Antenna BMW-5620C
