BC-701 Waterproof IP67 PWM signal constant current LED Dimming Driver 350mA to 680mA a low voltage led driver | Освещение

Характеристики

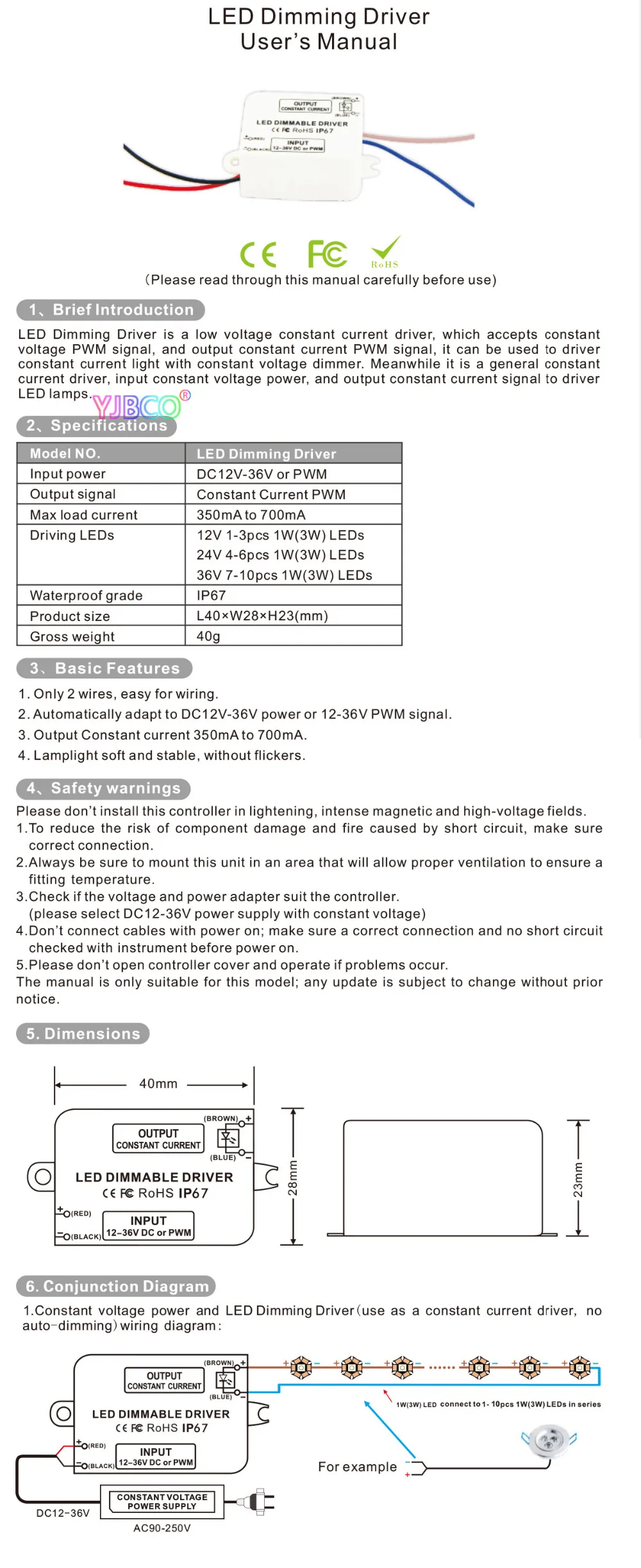

               LED Dimming Driver is a low voltage constant current driver,which accepts constant voltage PWM signal,and output constant current PWM signal,it can be used to driver constant current light with constant voltage dimmer.Meanwhile it is a general constant current driver,input constant Voltage power,and output constant current  signal to driver.

Basic Features
1.Only 2 wires,for wiring.
2.Automatically adapt to DC12V-36V power or 12-36V PWM signal.
3.Output Constant current 350mA to 680mA.
4.Lamp light soft and stable,without fliskers.

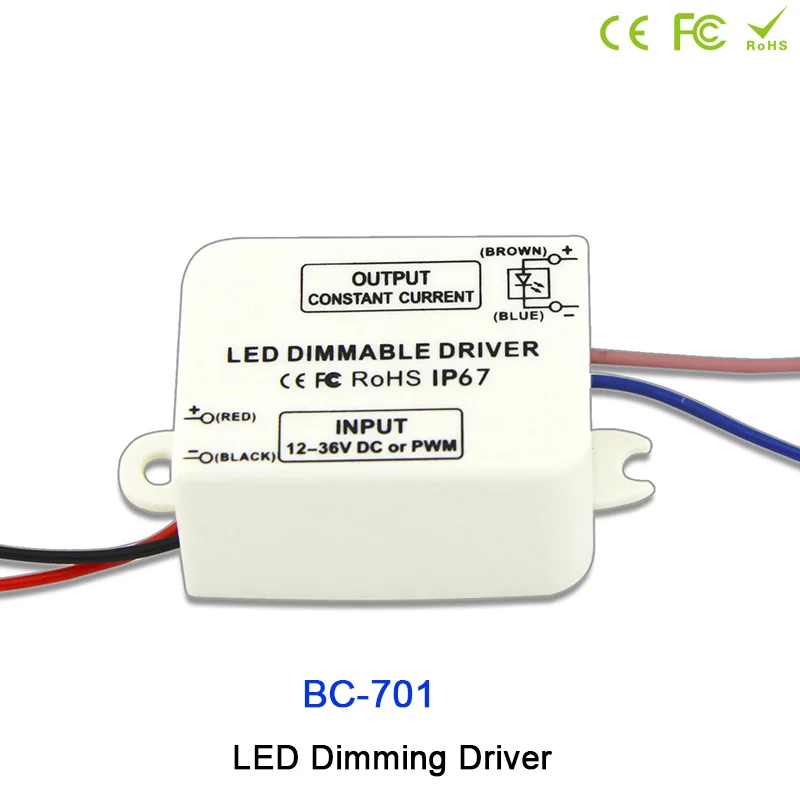

Model:  BC-701 LED Dimming Driver
Input Power:  DC12V-36V or PWM
Output signal: Constant Current PWM
Max load current: 350mA to 680mA
Driving LEDs: 12V 1-3pcs 1W(3W) LEDs
                       24V 4-6pcs 1W(3W) LEDs
                       36V 7-10pcs 1W(3W) LEDs
Waterproof grade: IP67
Packing size: L40×W28×H23(mm)
Gross weight: 40g



Package:

1 pcs BC-701 LED Dimming Driver
