Kinco MT4532T MT4532TE HMI Touch Screen 10 Inch Human Machine Interface Panel without Ethernet Port | Электроника

Характеристики

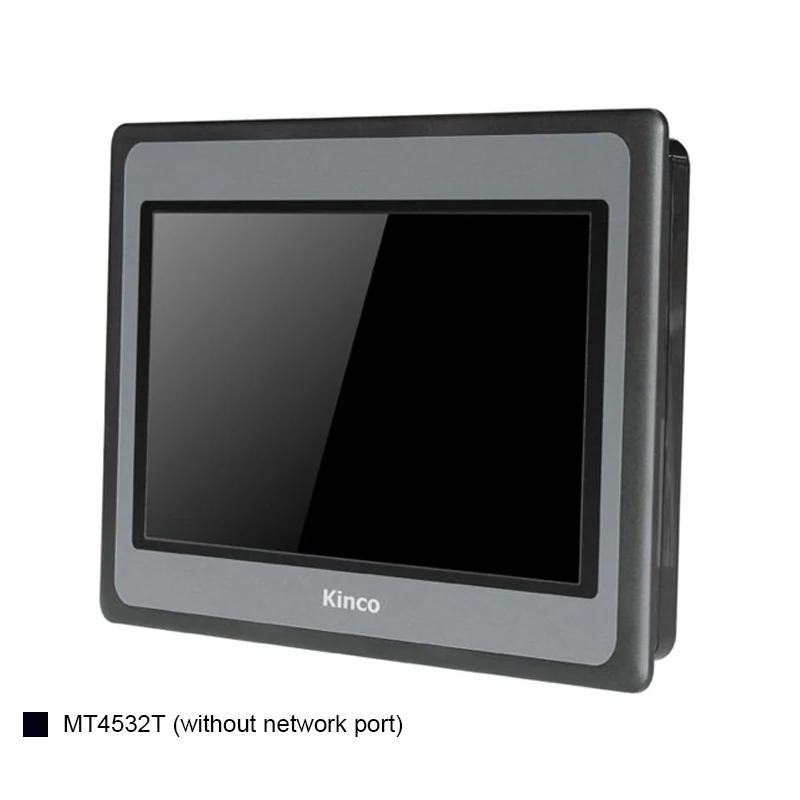

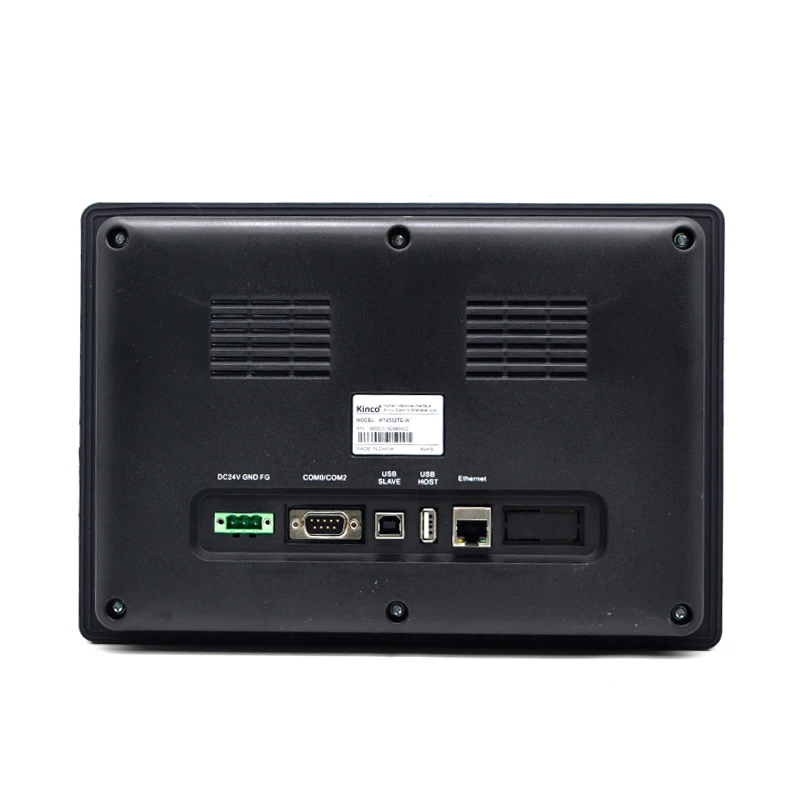

Kinco MT4532T MT4532TE HMI Touch Screen 10 Inch Human Machine Interface Touch Panel without Ethernet Port

Performance Specification:

Display Size: 10.1" TFT (wide panel) Resolution: 1024*600 pixel Display Color: 65536 color Brightness: 200cd/m² Backlight: LED Touch Panel: 4-wire, precision resistance network (surface hardness 4H) LCD Life: 50000 hours CPU: 800MHz RISC Memory: 128MB FLASH + 64MB RAM Recipe Memory & RTC: 512KB + RTC Expandable Memory: 1 USB Host (≤16G) Printer Port: USB Host/Slave/Serial port Ethernet: not support Program Download: USB/serial port COM Port: COM0:RS232/RS485-2/4; COM2:RS232

Electrical Specification:

Rated Power: 5W Rated Voltage: DC 24V Input Range: DC 12V~DC 28V Power Down Allowed: <3ms Insulation Resistance: greater than 50MΩ@ 500V DC Dielectric Strength Test: 500V AC 1 minute

Structure Specification:

Shell Color: black Shell Material: engineering plastics Dimensions (mm): 280 x 193 x 36mm Cutout size (mm): 261 x 180mm Weight: 0.89kg

Environment Specification:

Working Temperature: 0～50℃ working Humidity: 10～90% RH (non-condensing) Storage Temperature: -10～60℃ Storage Humidity: 10～90% (non-condensing) Shockproof test: 10～25Hz (X, Y, Z direction, 2G/30 minutes) Cooling Method: natural air cooling

Certification:

Panel Protection Grade: IP65 (4208-93) CE Certification: EN61000-6-2:2005, EN61000-6-4:2007 + A1:2011 FCC Compatibility: comply with FCC Class A

Package List:

1 Set of Touch Screen
