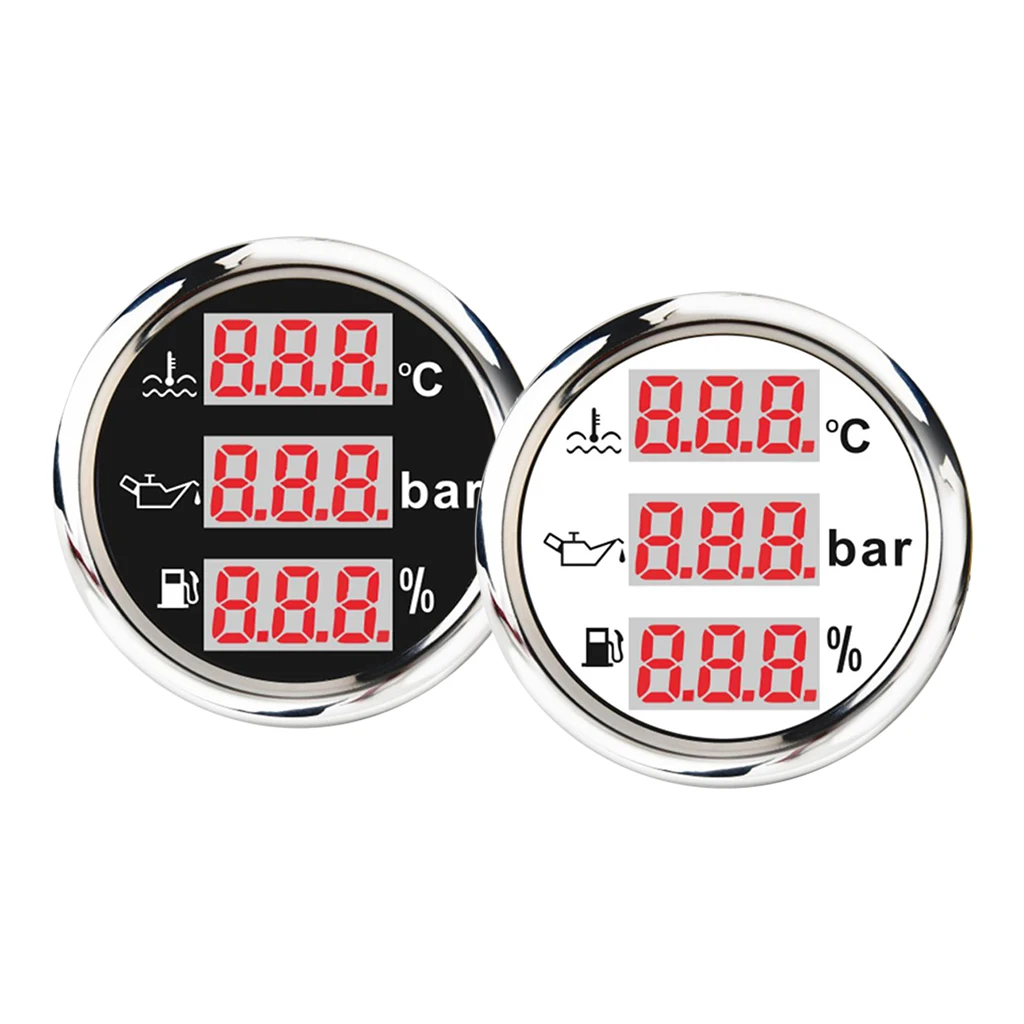

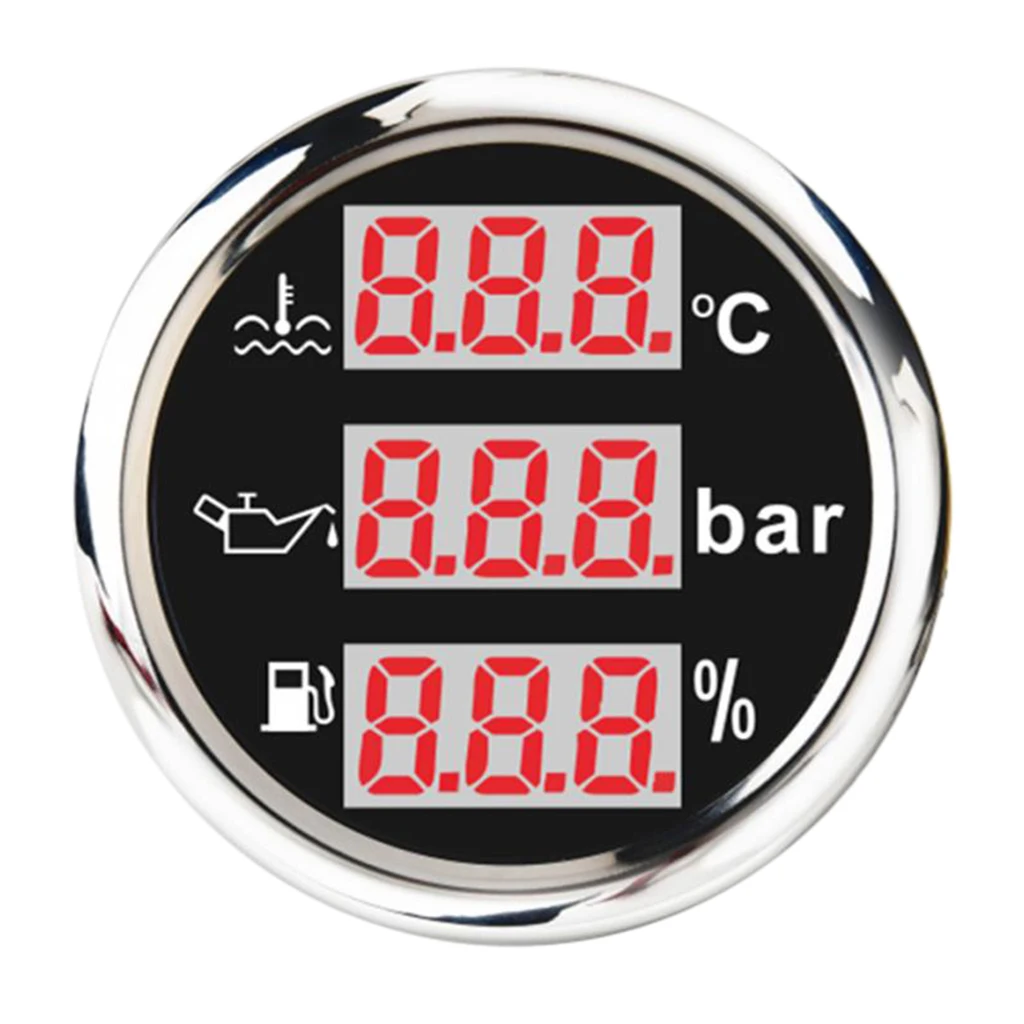

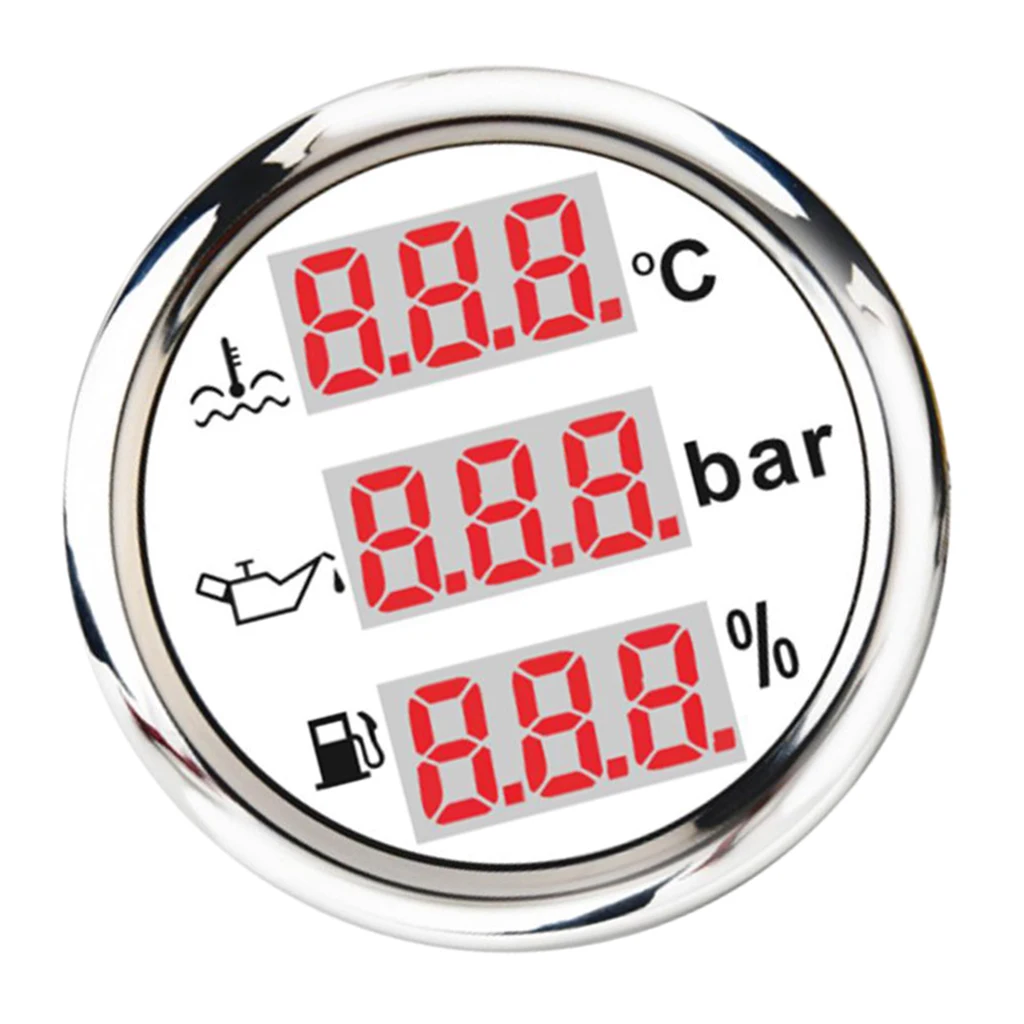

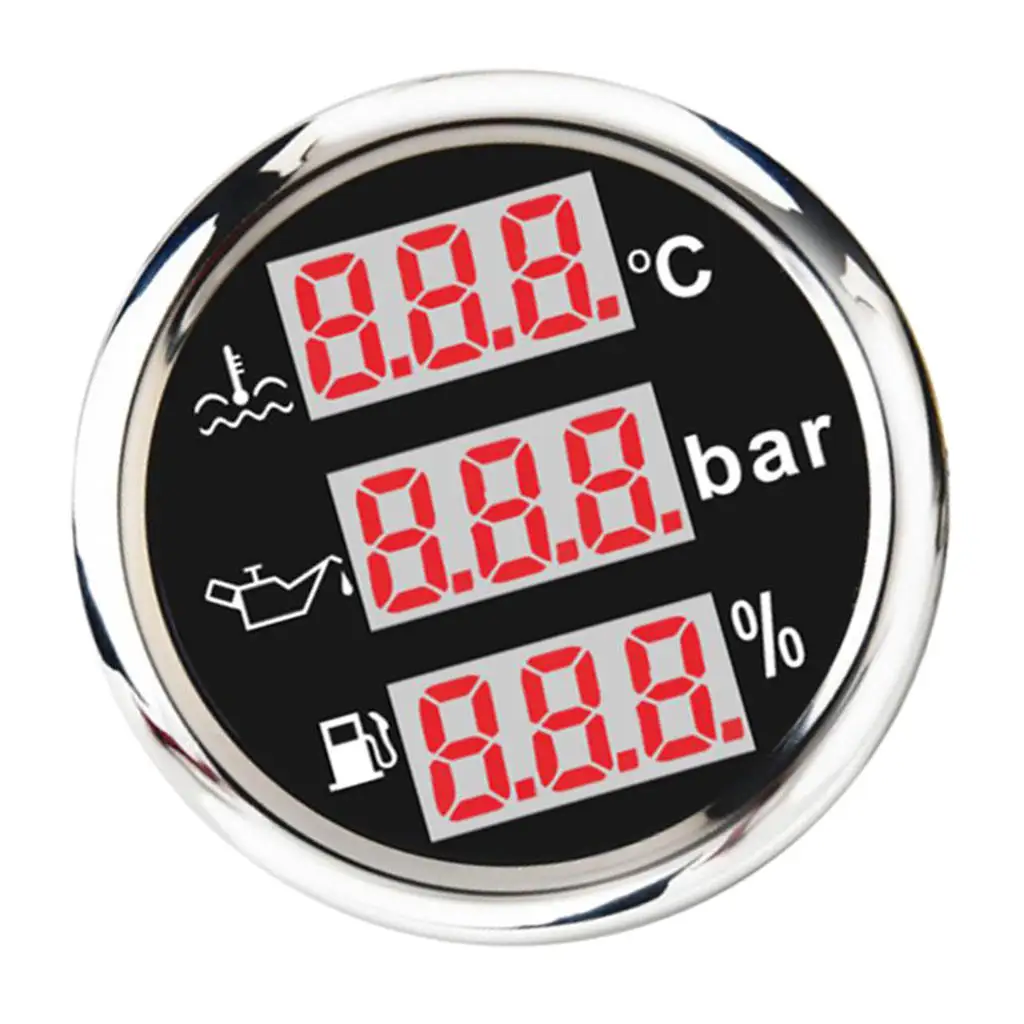

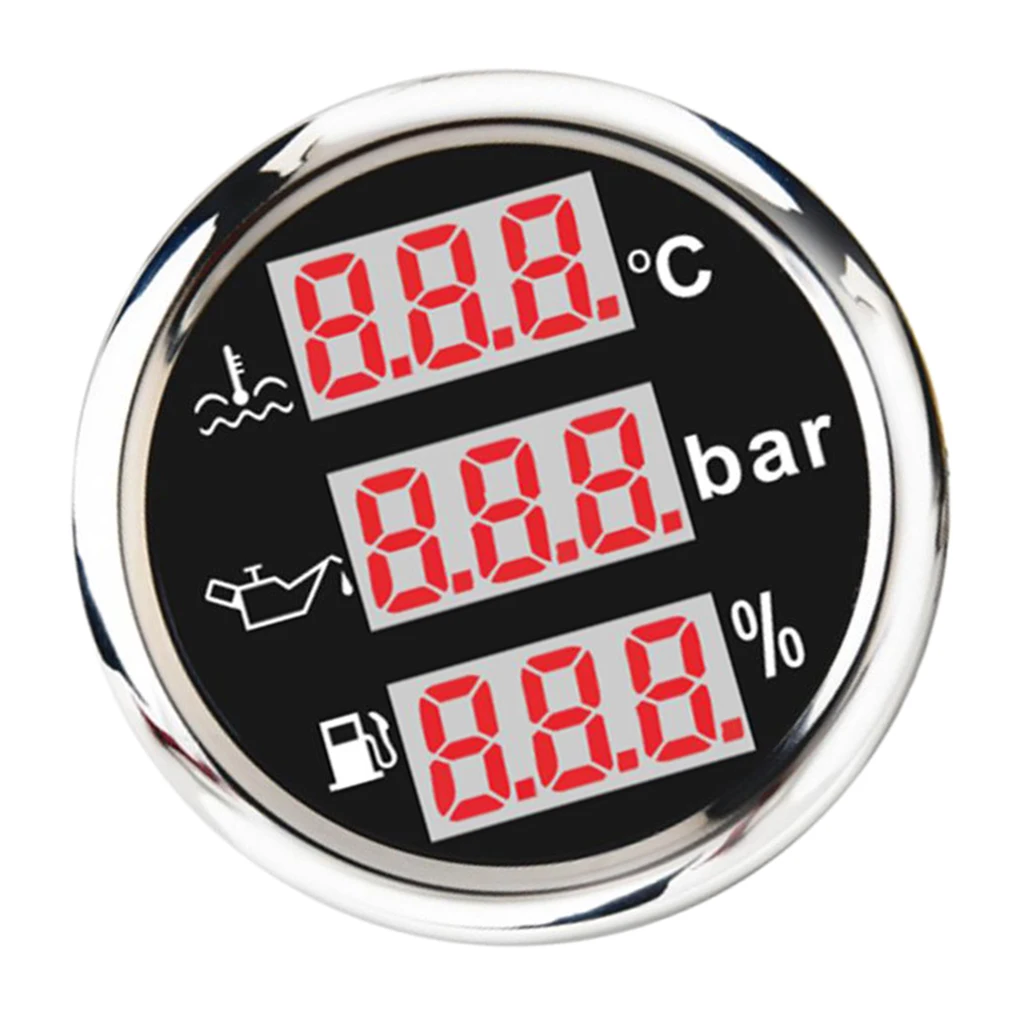

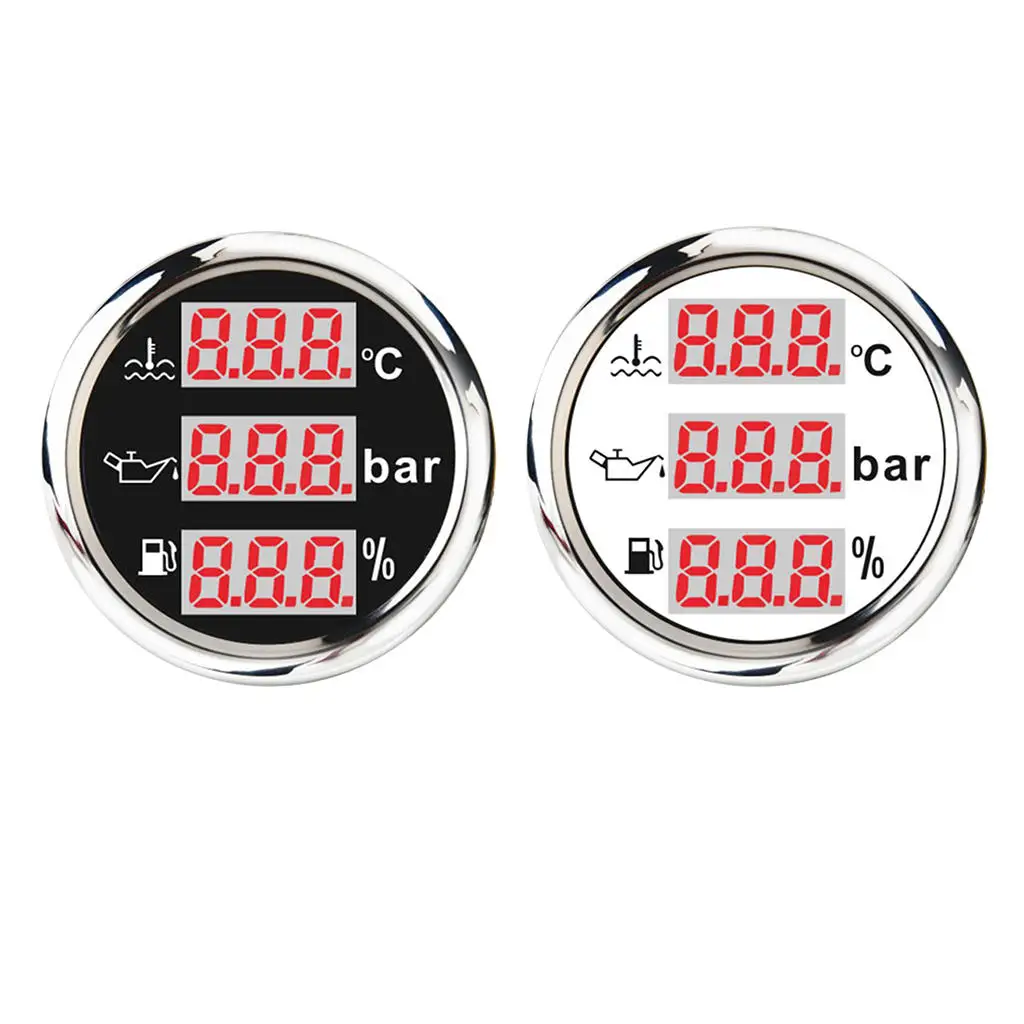

2" Boost Vacuum Water Oil Temp Press Fuel Level Tacho EGT Air/Fuel Gauge | Автомобили и мотоциклы

Характеристики

Description:

100% imported MCU, stable performance.
316 stainless steel for long-term use even in acid-base, humid environment .
IP67 waterproof and dustproof grade
It can an match many kinds of sensor signals, in addition to 0 ~ 190 Ω / 240 ~ 33 Ω, 0 ~ 5 V / 0.5 ~ 4.5 V, 4 ~ 20 ma, it can also connect to any analog signal.
The instrument has its own alarm signal, and no need additional alarm signal by the sensor.
Equipped with sensor disconnect alarm function, sensor disconnect display "OFF".
High brightness LED backlight, high brightness and long life.
It can be customized according to customers' requirements.
Applying latest LCD movement technology with display of precision.

Specification:

Material:316 Stainless Steel(Front Cover)+PBT+GF20%(housing)+Tempered Glass+PC
Size:8x8x7cm/3.15x3.15x2.76inch
Hole Diameter：52mm/2''
Waterproof:IP67
Speed：0-999 kmh，MPH, Knots
RPM：0-9999 rpm
Oil Level, Water Level：0~100%，0~190ohm，240-33ohm，10-180ohm，0-180ohm
Water Temperature：40~120℃，287.4~22.4Ω
Oil Temperature：50~150℃ ，316-19Ω
Voltage：8-32V
Voltage：5bar，10bar（10~184Ω），30bar（0.5~4.5V)

Package Includes:

1 Piece Instrument
1 Piece Wiring
1 Piece Rubber Plug
1 Piece Instruction Manual
