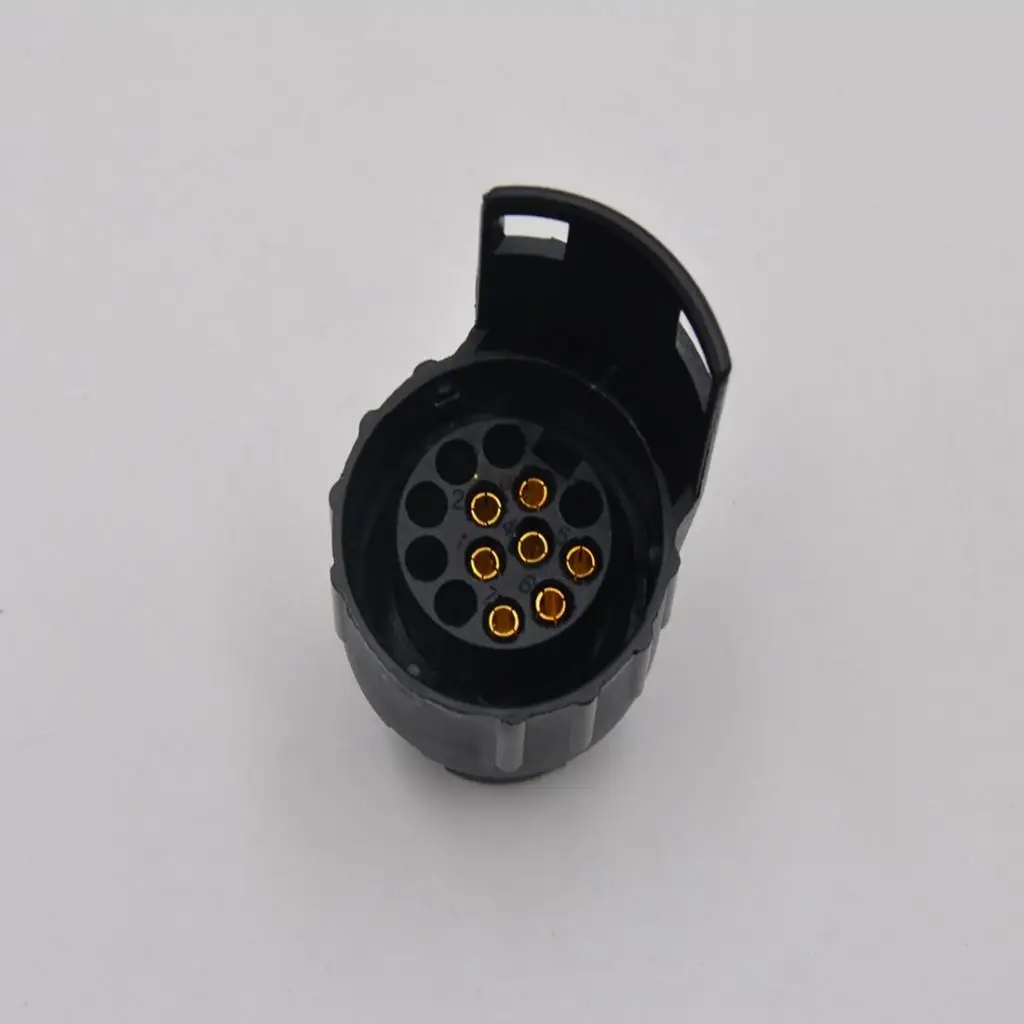

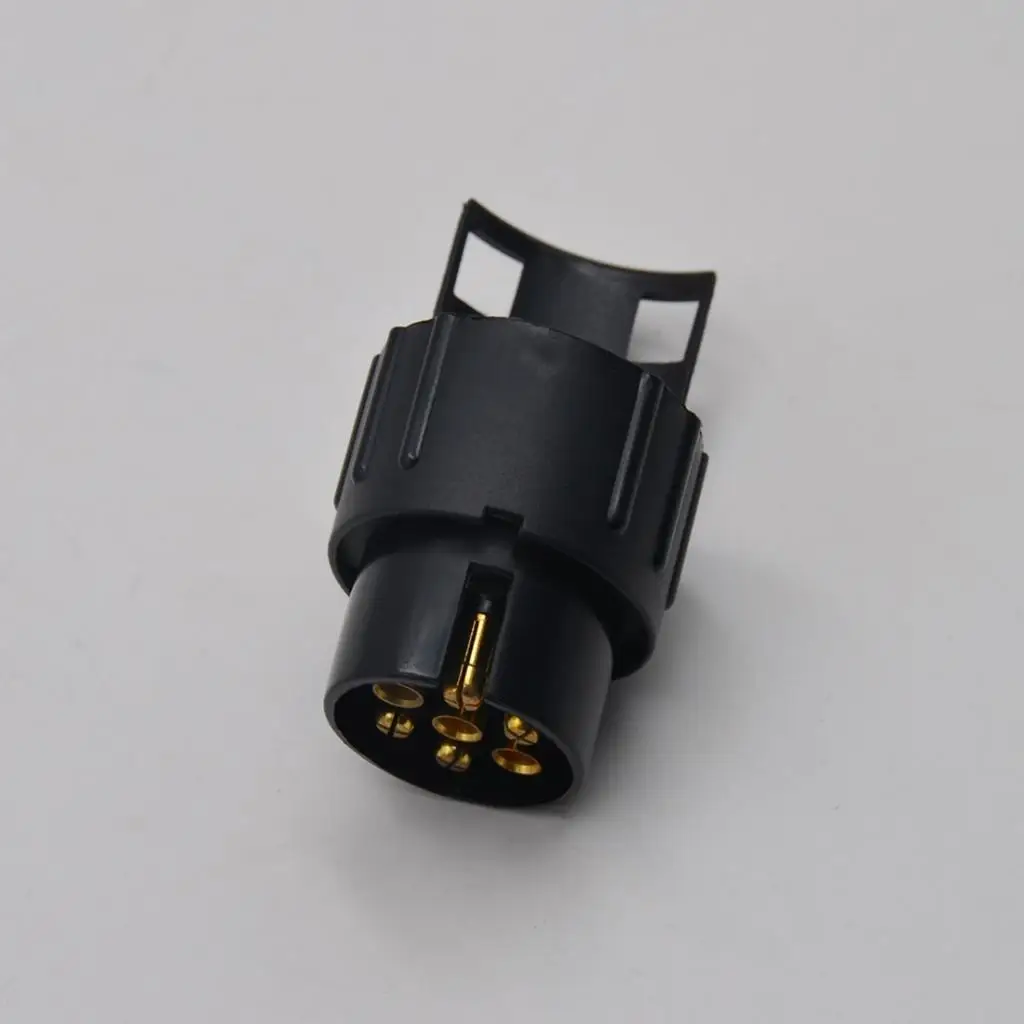

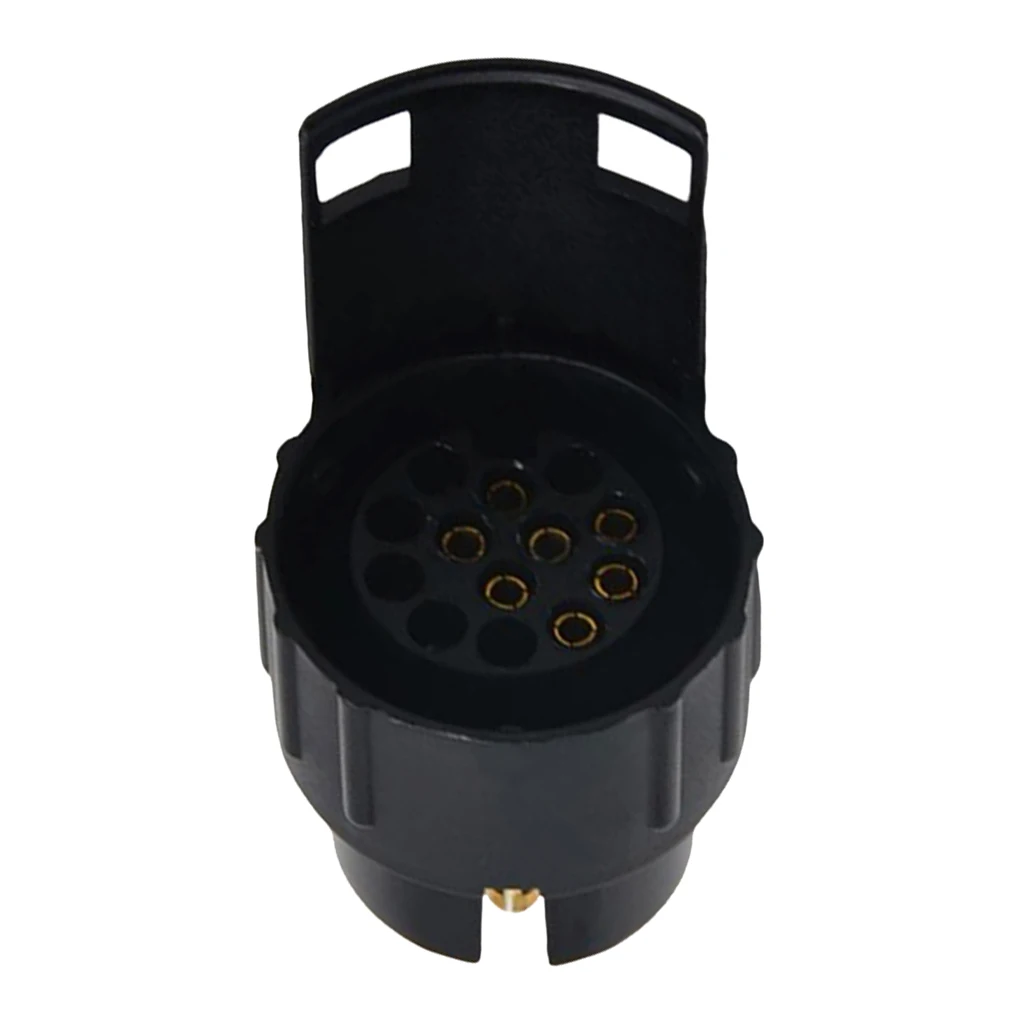

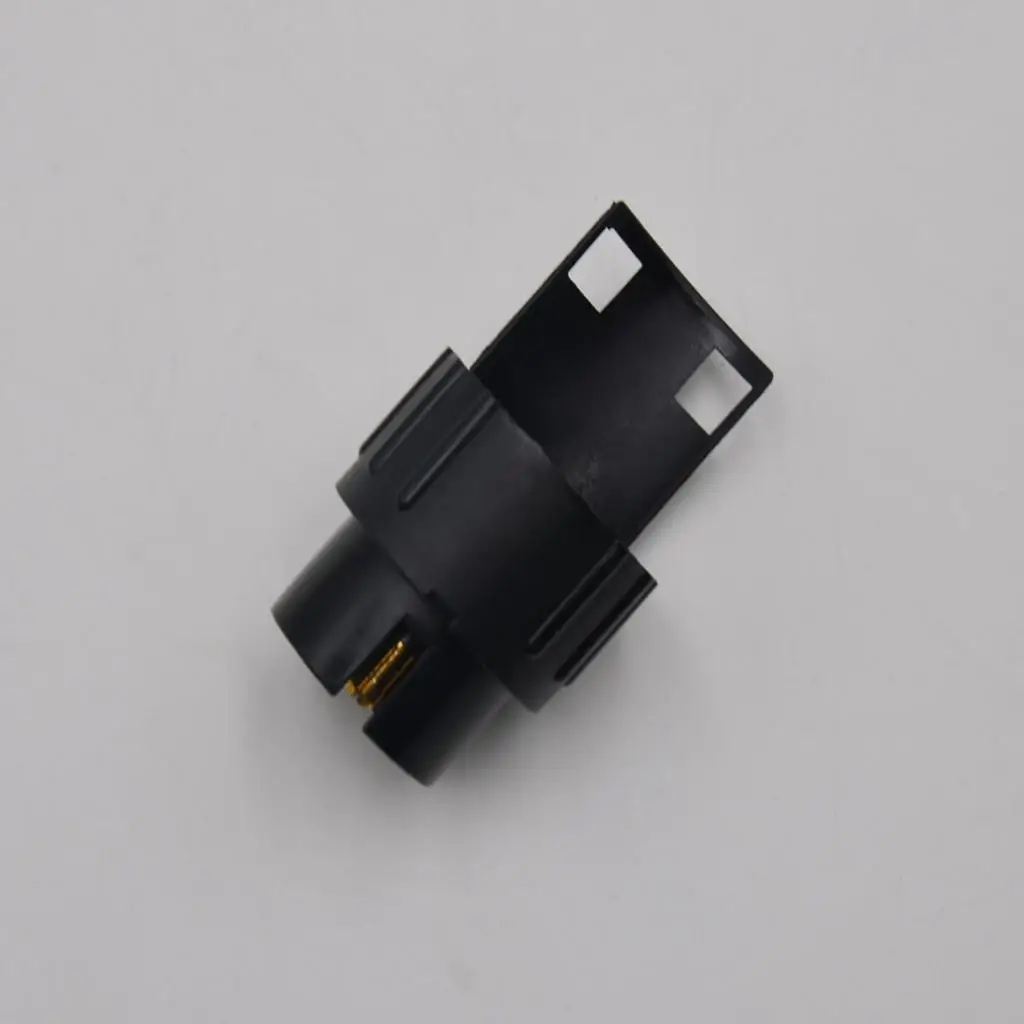

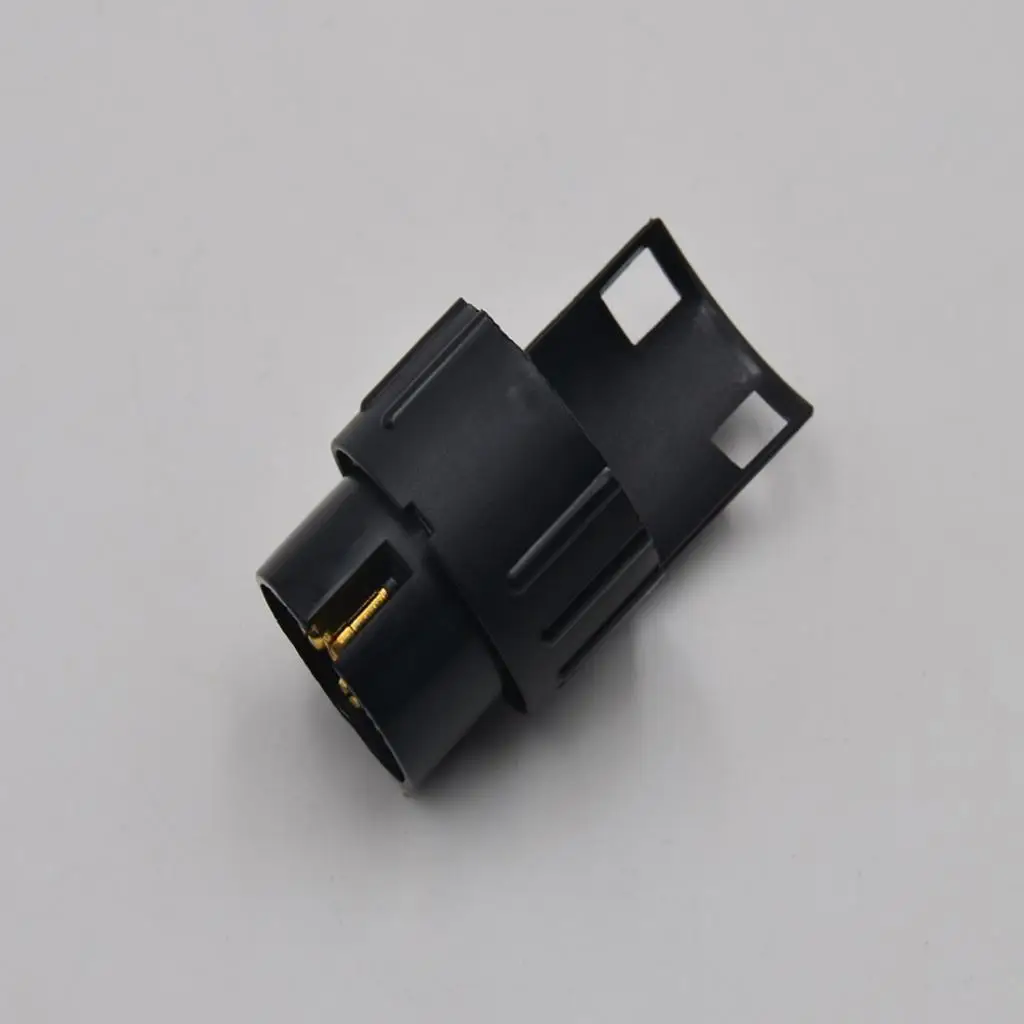

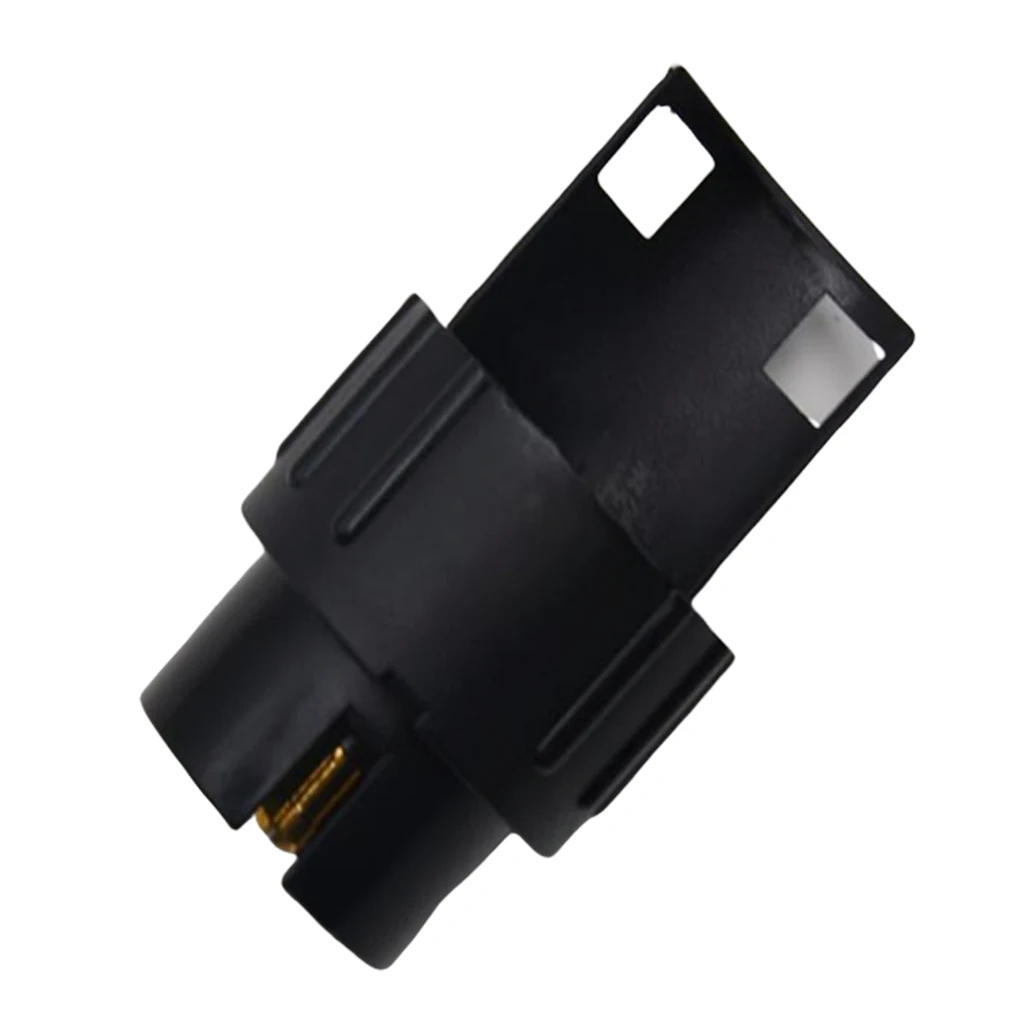

7 To 13 Pin Trailer Truck Socket Electric Towing Converter Caravan Plug Adapter | Автомобили и мотоциклы

Характеристики

Description:

Design for European standard trailer.

Converts the 7-pin socket on your car to the 13-pin female socket.

Establishes a secure connection between your major vehicle and the additional trailer; Transfers the electronic signal lights from the vehicle to trailer.

Supplies power to your caravan, towing and truck.

Slim line design: same diameter as a normal trailer plug and just over half the length.

Plastic housing prevents rusting and enhances appearance.

Waterproof for all road and w eather conditions.

Specification:

Item Type: Electrical Plug & Sockets

Item Name: 7 To 13 Pin Adapter

Material: Plastic

Color: Black

Input: 12V

Item size: 4.5(D) * 8(H)cm / 1.8(D) * 3.1(D)in

Wiring configuration:

7 Pin Lighting Connections - 12 N Black Cable Function

Pin Wire Color Function

1 Yellow L / H Direction Indicator

2 Blue Rear Fog Lamps

3 White Earth Return

4 Green R / H Direction Indicator

5 Brown R / H Tail & No. Plate Lamp

6 Red Stop Lamps

7 Black L / H Tail & No. Plate Lamp

13 Pin Lighting Connections - Cable Function

Pin Wire Color Function

1 Yellow Left Indicator

2 Blue Fog Light

3 White Earth Return

4 Green Right Indicator

5 Brown Right tail / Side Light

6 Red Brake / Stop Lights

7 Black Left tail / Side Light

8 Pink Reversing Light

9 Orange 12V Permanent power from battery

10 Grey 12V Ignition on (Battery charging or Fridge)

11 White / Black Earth for Teminal 10

12 White / Blue NOT usually used

13 White / Red Earth for Teminal 9

Package Includes:

1 x 7 To 13 Pin Adapter
