For Great Wall Haval H5 H3 New Interior Glass Lifts Pinch Module Genuine Original Accessories | Автомобили и мотоциклы

Характеристики

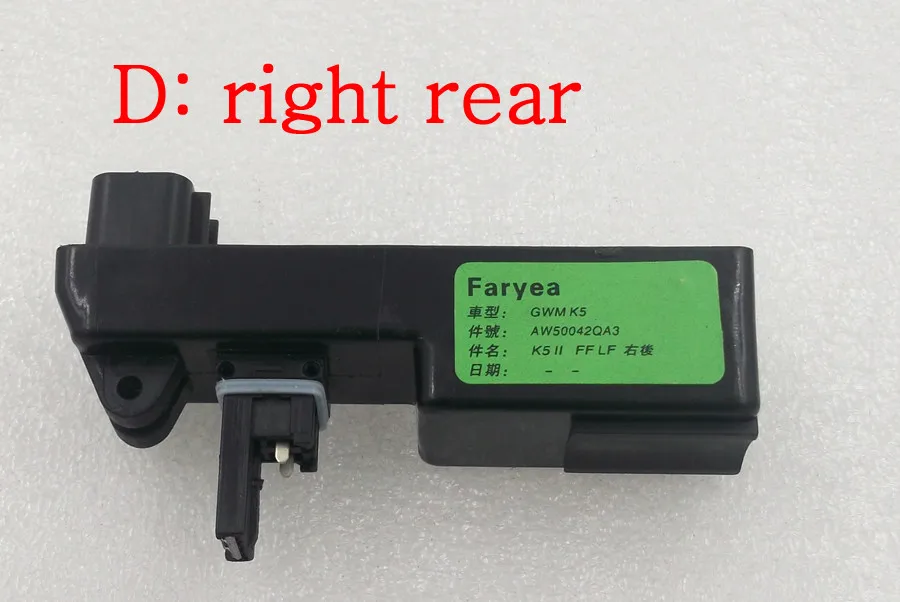

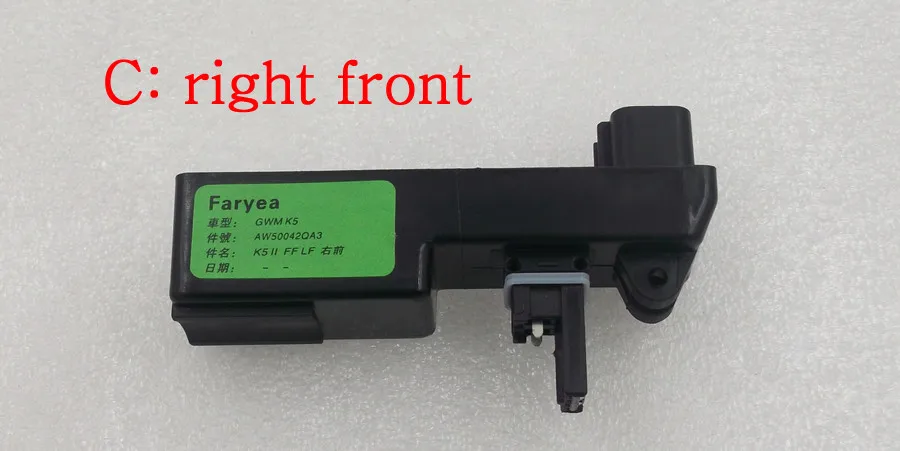

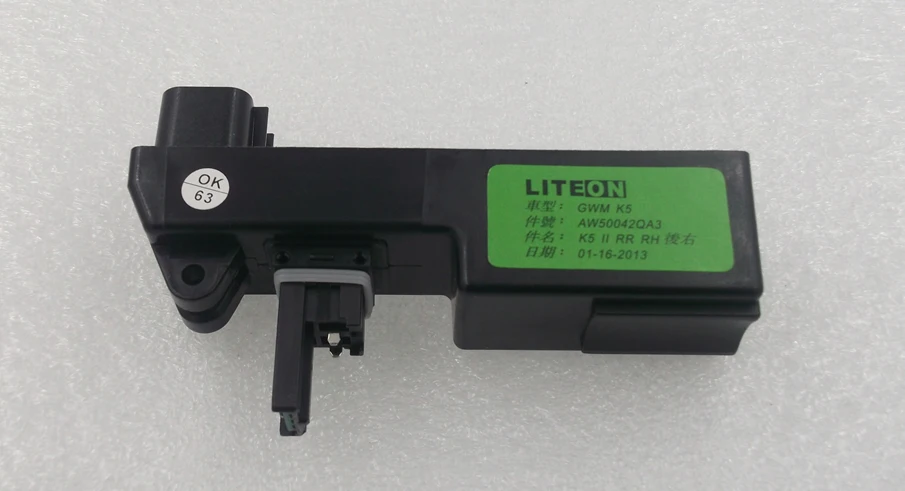

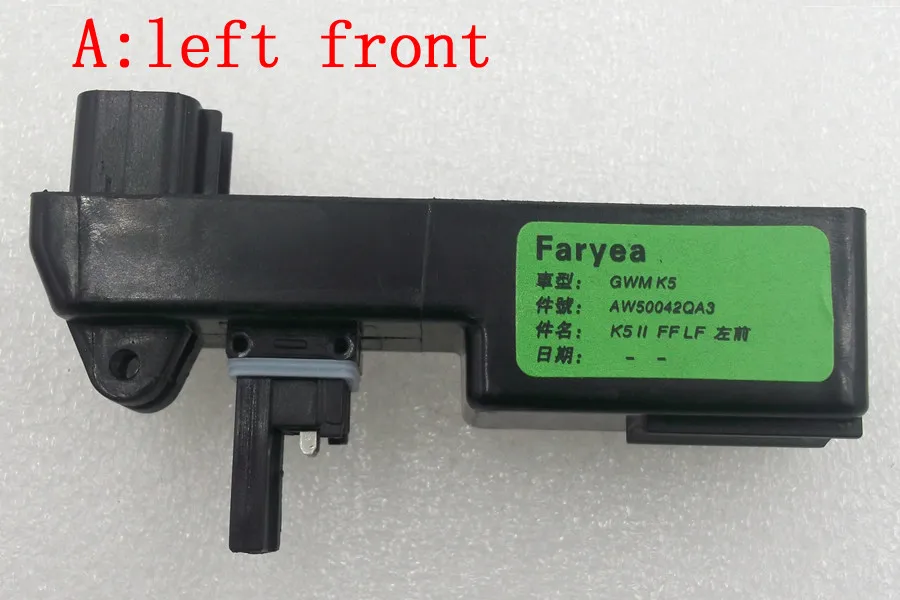

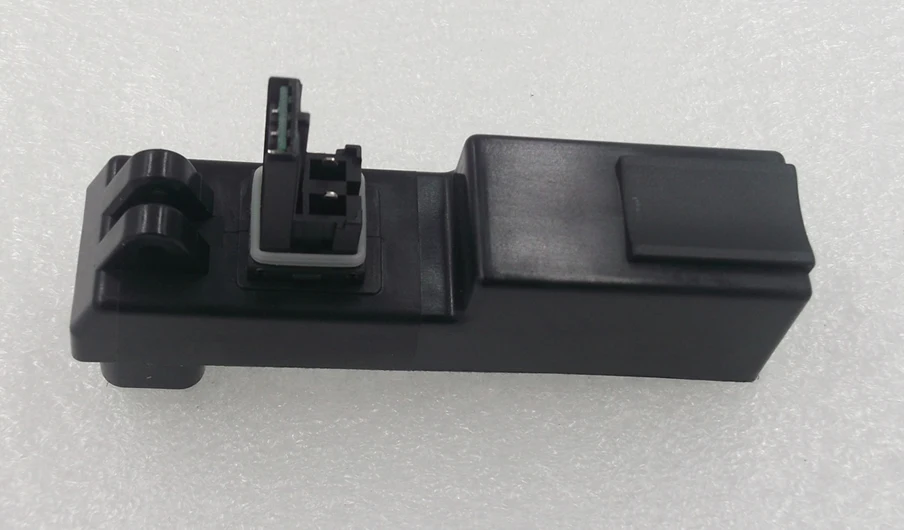

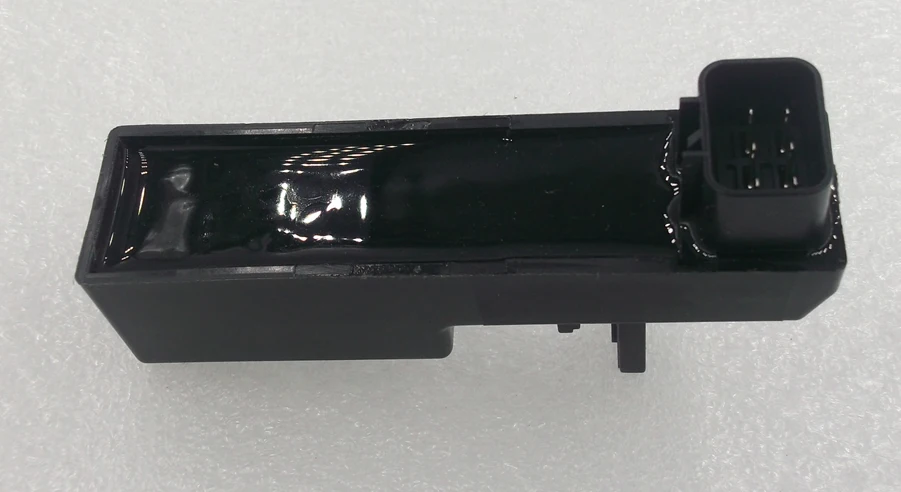

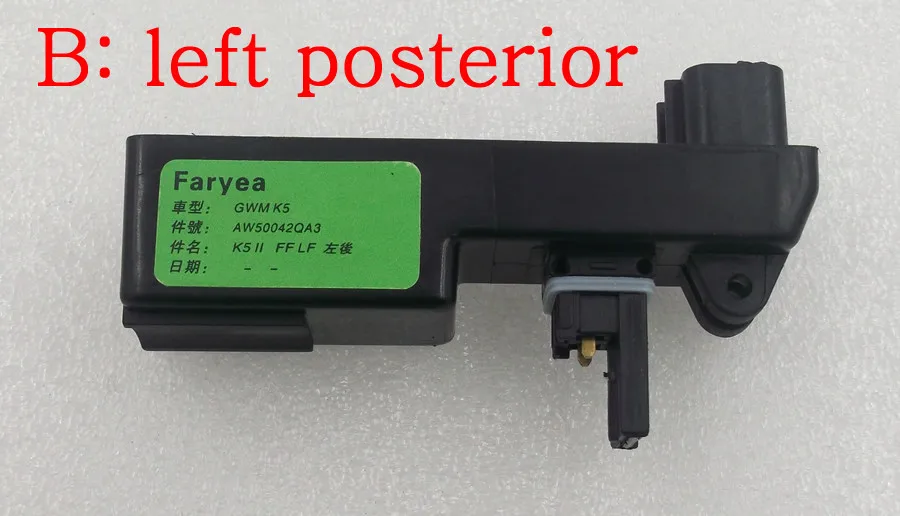

Name of commodity:  glass anti clamping module

[apply]: the Great Wall Haval H3 H5

[size]: Harvard H3 corresponding old interior as white label, H3 new interior and H5 for green

This product divides around, not universal. The price for the single price

If your car windows encounter obstacles in the rising process (such as: inverted hand) will automatically stop,that is with the anti pinch function.Note: anti clamping module and lift switch no different,anti clamping module is responsible for the anti pinch,lifter switch is responsible for lifting glass.

White label applicable models: the old H3  before 2010

Green applicable models: H5 and the new H3 after 2010

Pure  original car factory accessories of this module is green targets for h3 and h5 new interior use . And white label can not be universal .

Module initialization: just loading, does not have theautomatic up function, need to hold down rising key, at least 2 seconds.

Note:

The original factory anti clamping module factory is a memory function (according to the initial data will be anti clamp lifting memory, and is not now the data anti clamping lifting memory), if the window glass up to half, or down to half the time, no matter use, is the need to re learn.

1 first of all, the whole car power off for about 15 minutes (if not lifting put anti clamping module removed, new old anti clamping module), the first to rise to the top, press and hold the lifter switch, do not let go, there are about 5-10 seconds, hear "Di Di alarm sound", so anti clamping module memory success.

2 up function after the completion of learning, and then decreased learning and memory function, the same way, let the glass fall to the bottom, also heard the alarm sound after the memory of success,thus completing the whole learning process, can use normally.

3 if appear after locking the vehicle glass cannot rise automatically check for other reasons, see is nota wire connected in reverse, this situation does not belong to the anti clamping module problem.Because the main role of anti clamping module is function of the hand clamping proof, no relationship with lifting.
