This is 48v 500w hub motor kit for ebike, can assemble on to all regular bicycle to change any bicycle to ebike .

You will get speed, power when ride it, which will save your time and help you riding Farer.

Specification

Rated voltage/power 48V 500W
Rated speed 25-40km/h
Max speed 40km/h
Dropout 100mm/135mm
Assemble Postion Front/rear
Brake available V brake /disk brake
Suitable controller 48V22A/25A
Suitable rim 16-29inch ,12G/13G
Max torque 50Nm
Available voltage 24-48V

What the motor kit include?

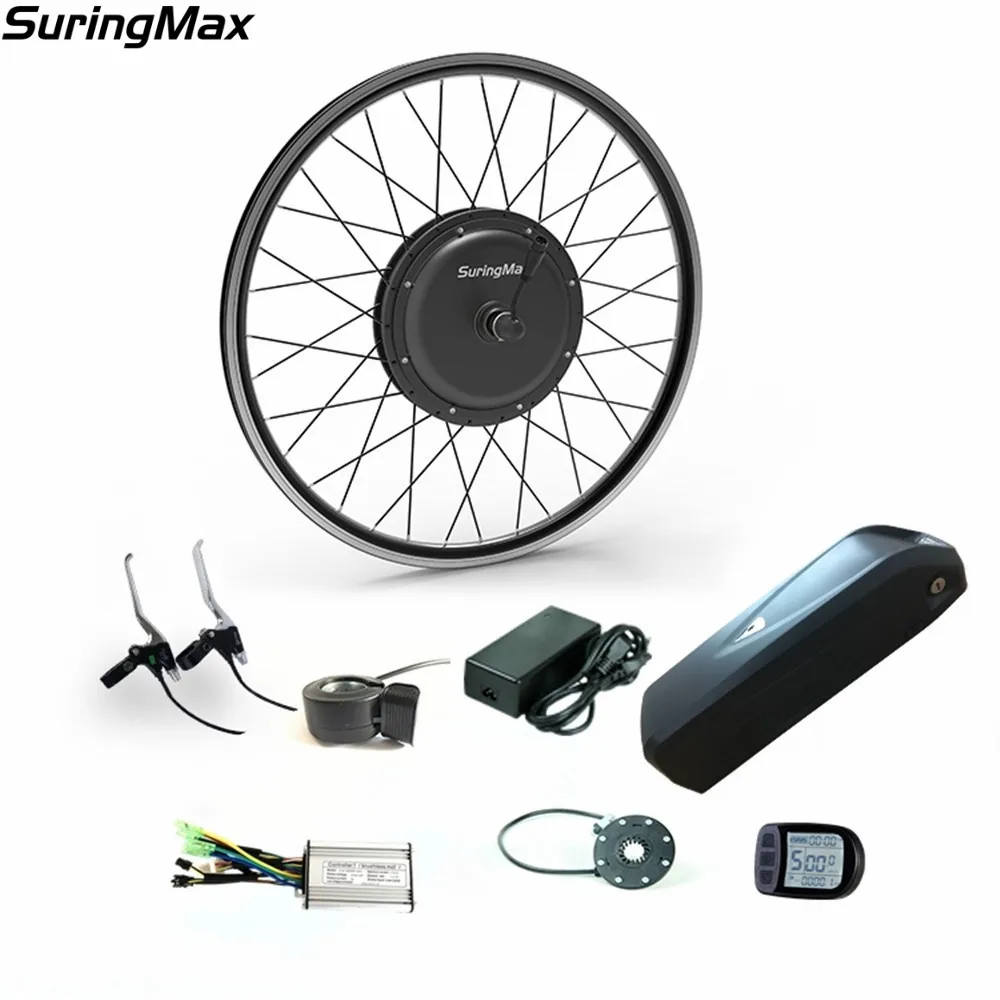

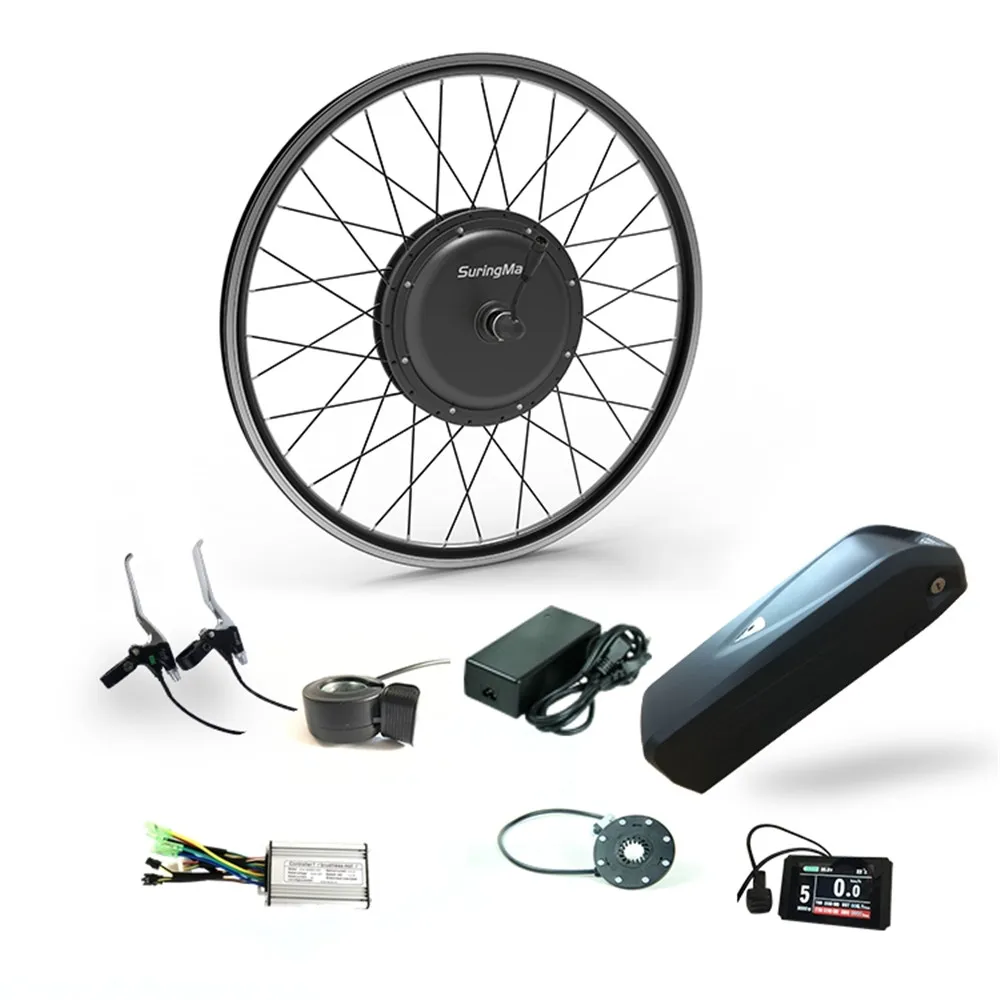

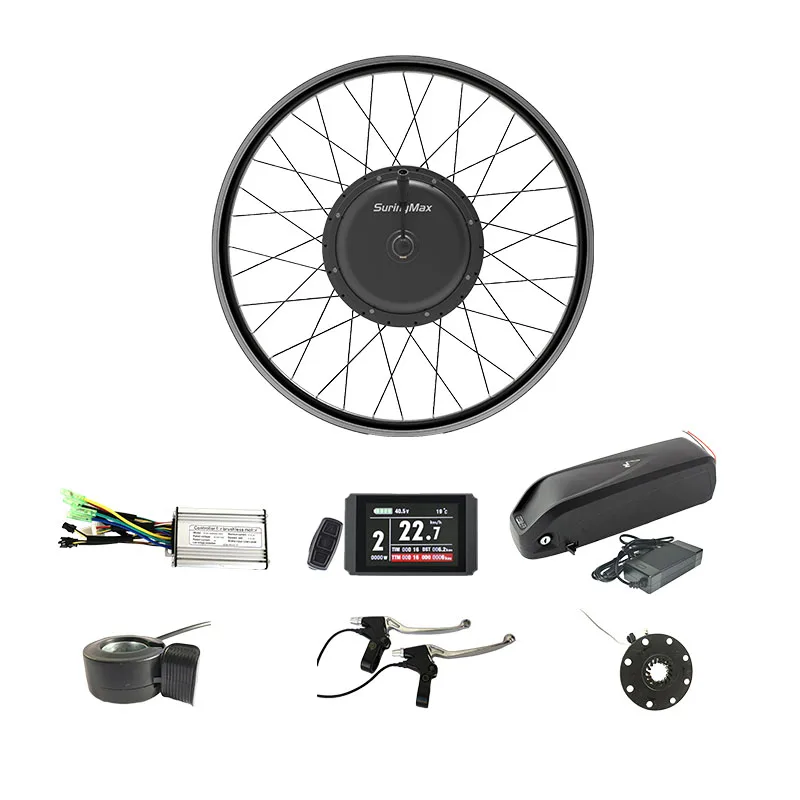

This 500w hub motor kit includes:

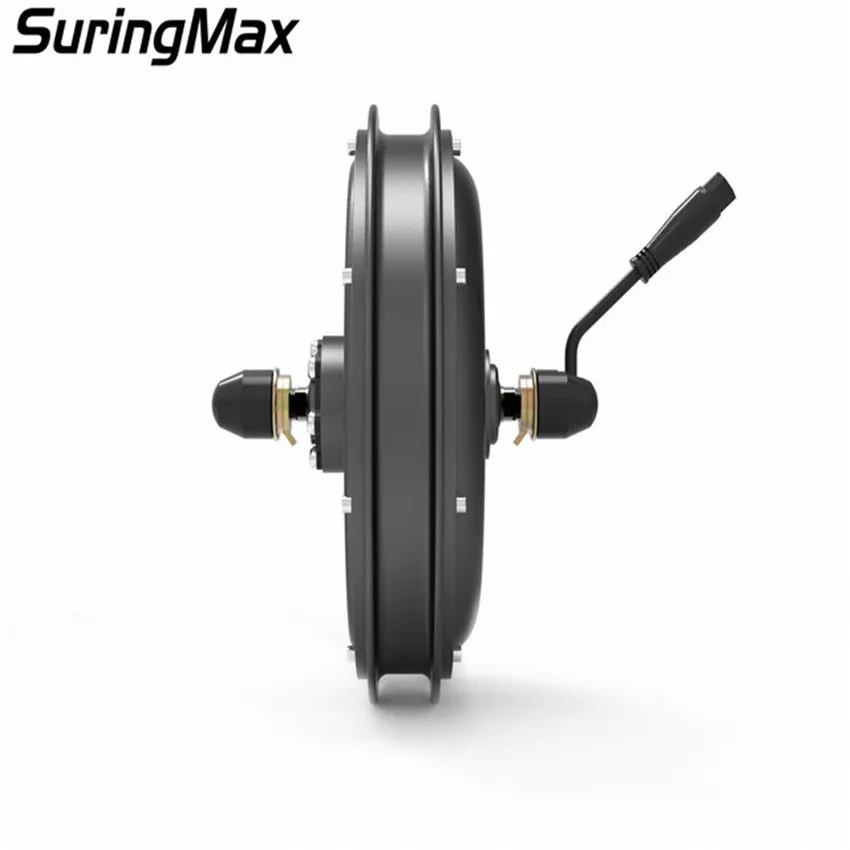

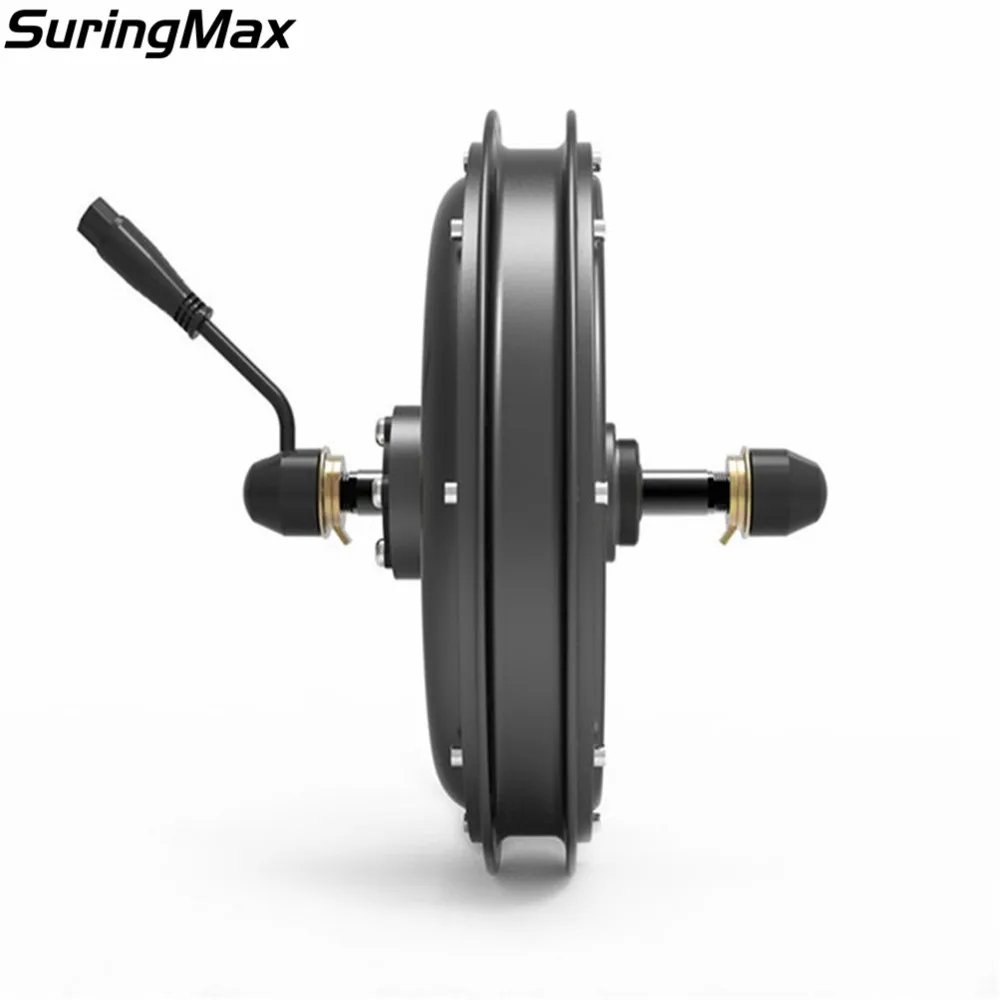

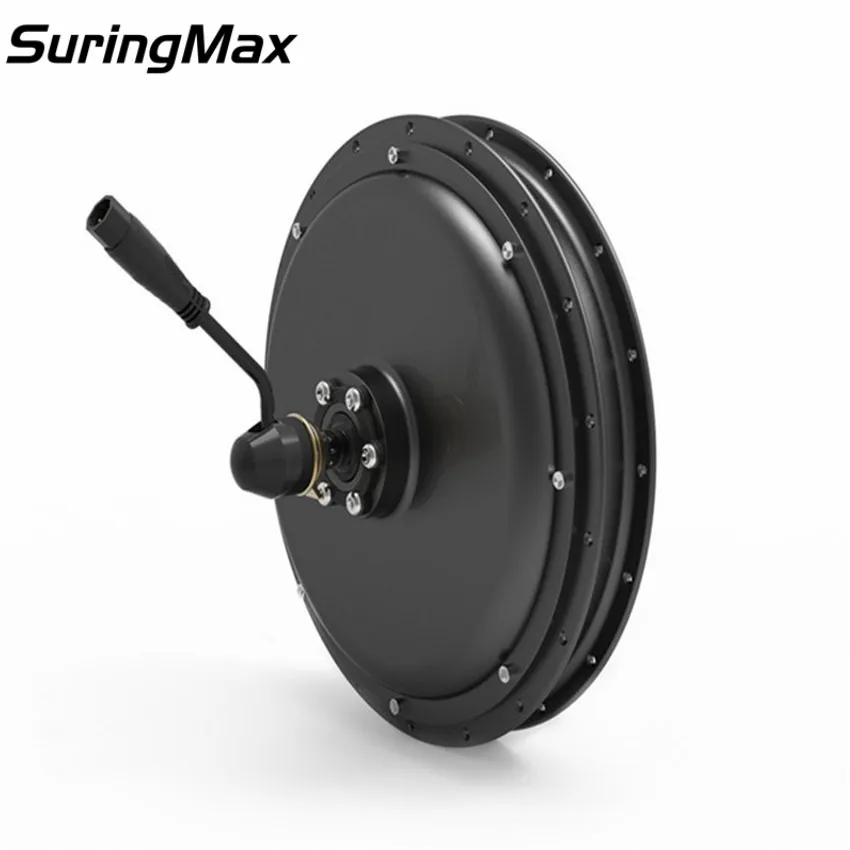

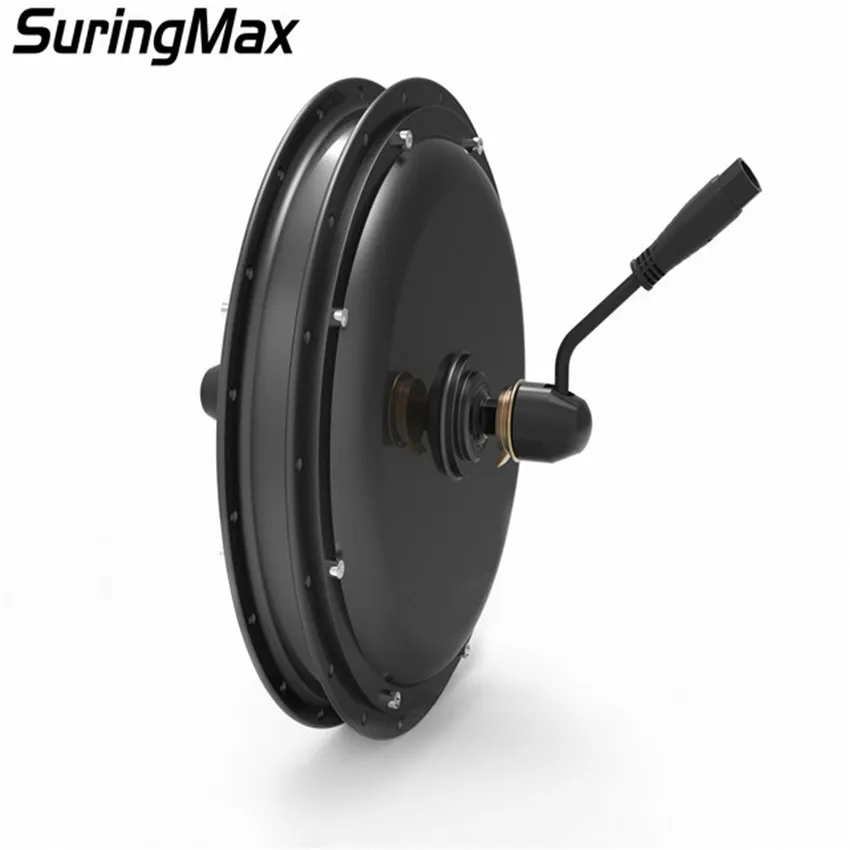

* 48V 500W gearless dc brushless hub motor

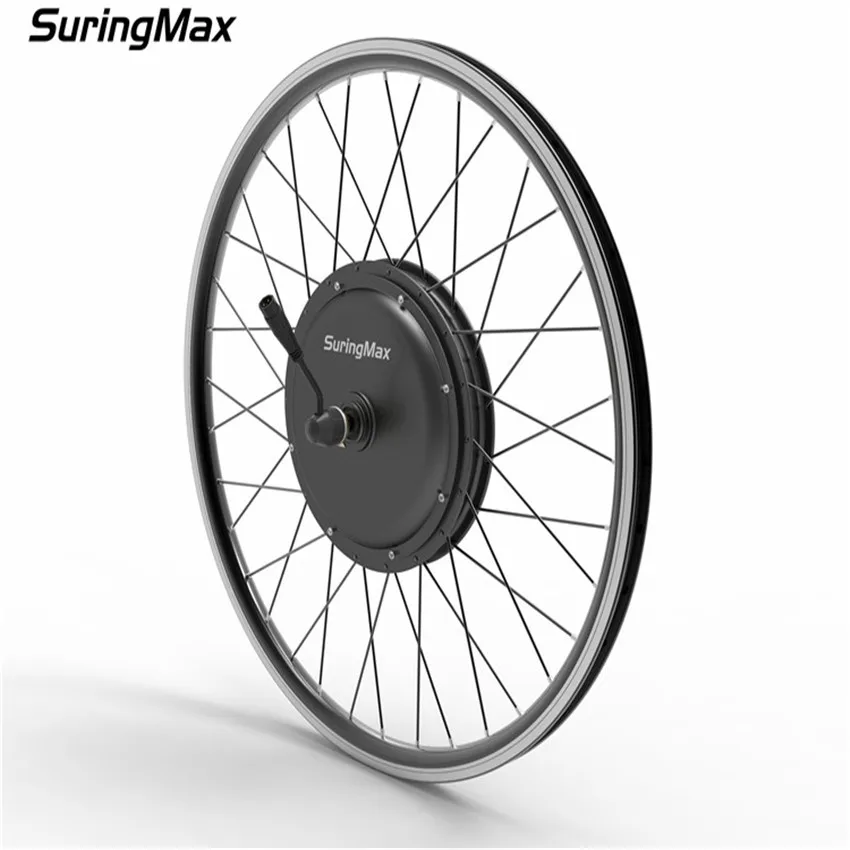

* 16-29'' rim and spokes assemble as default.

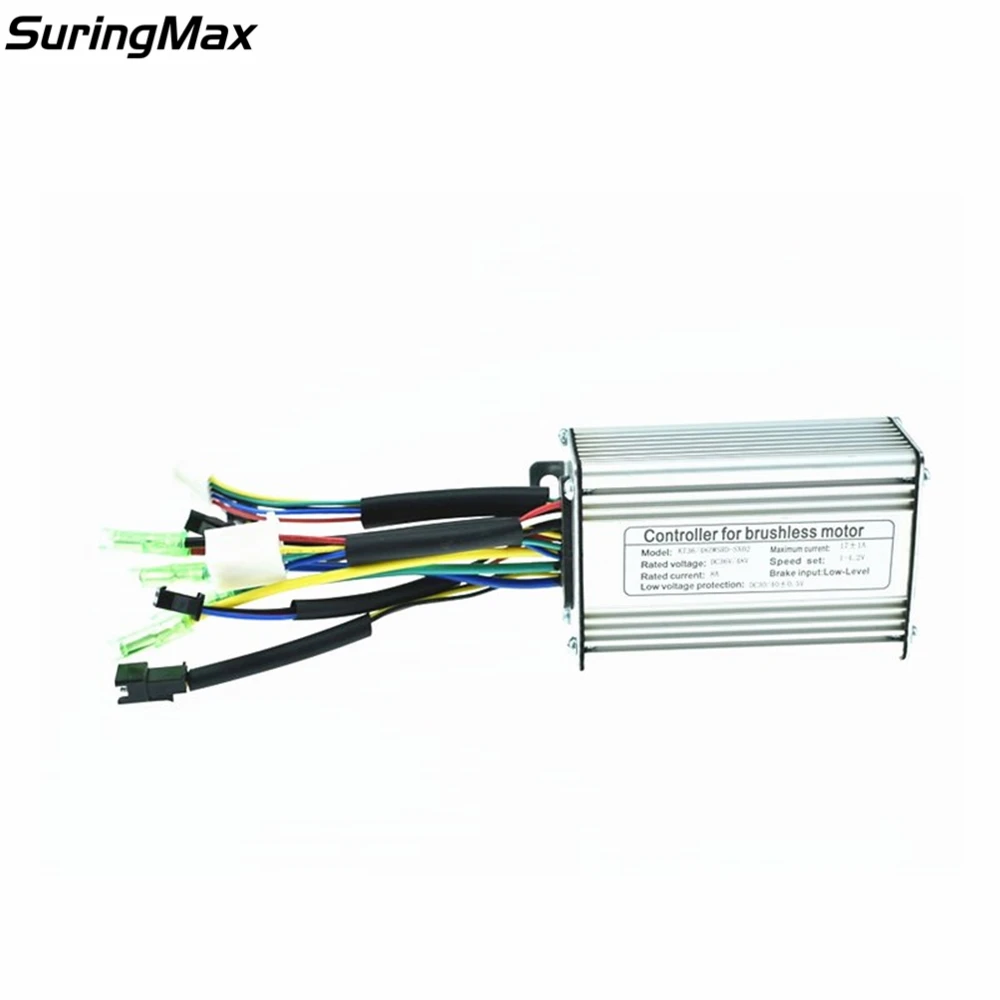

* 48v 22a/25a standard square wave controller

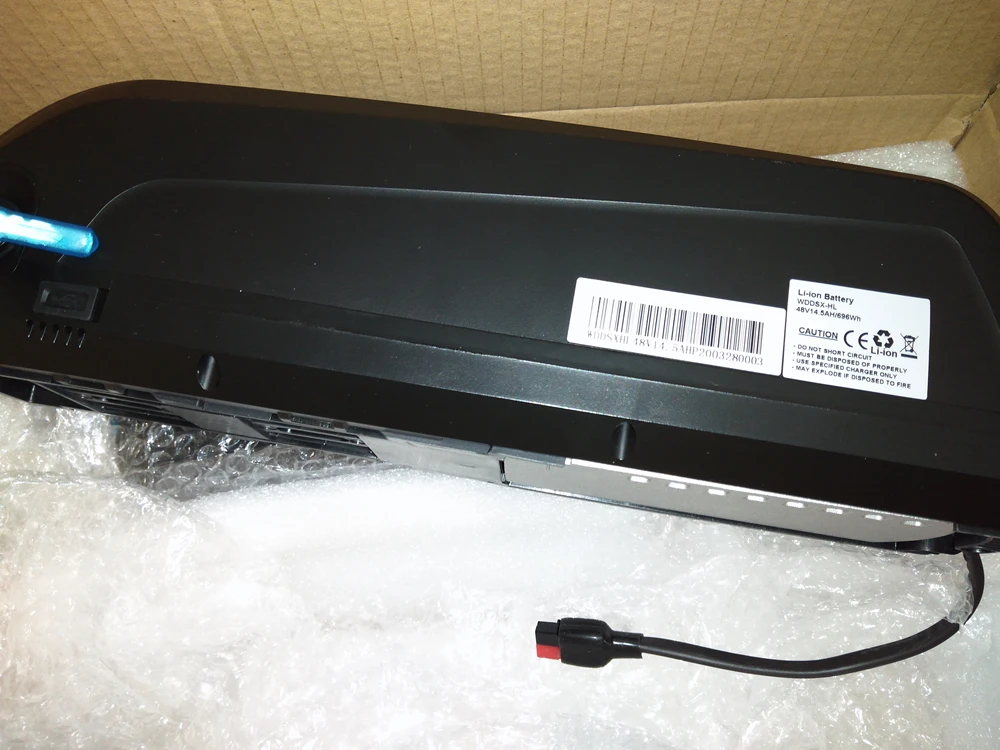

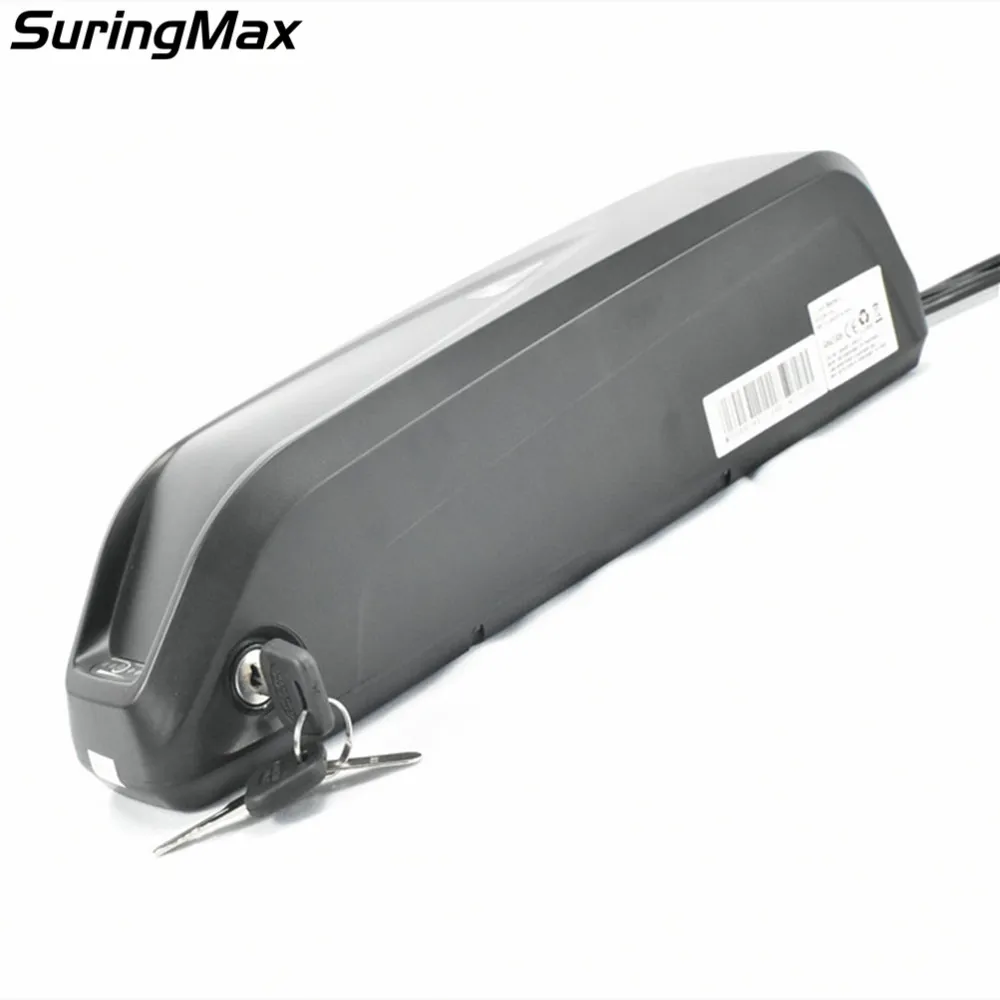

* 48V 11.6Ah lithium battery with charger
* 8/10 magnets PAS
* Wuxing electric brake lever

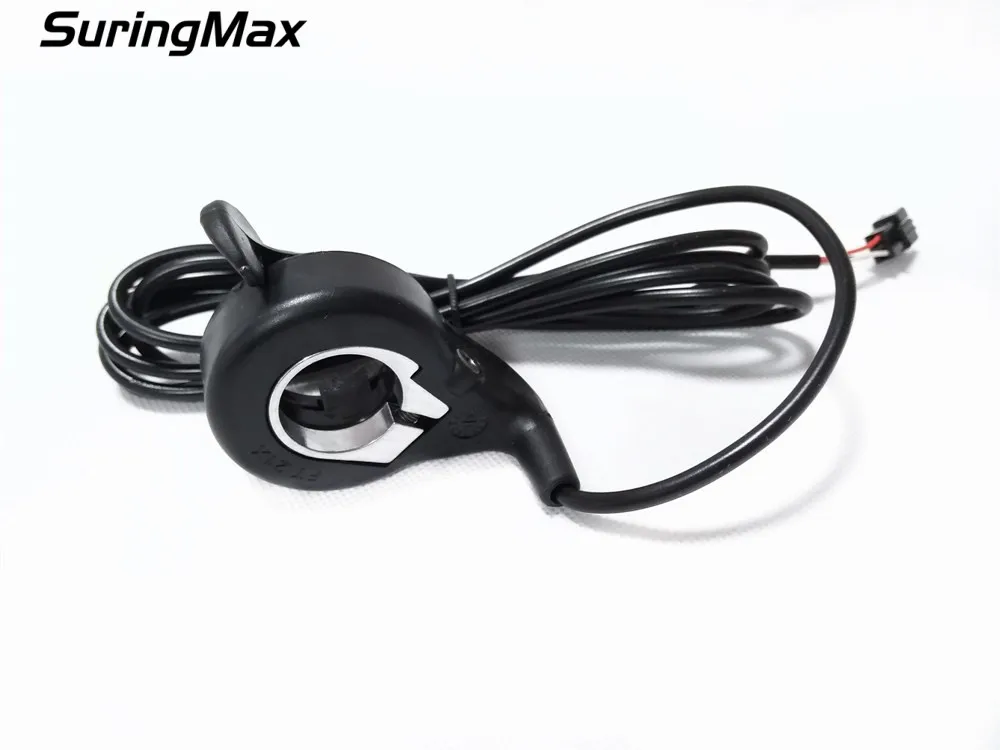

* Wuxing hall thumb throttle

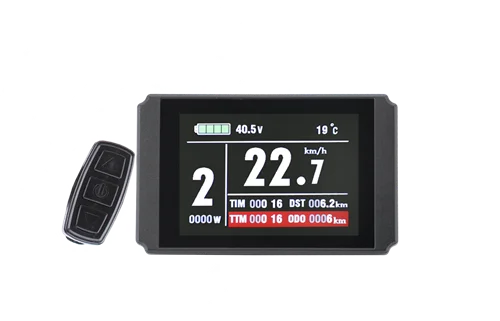

* KUNTENG LCD 8 display

All these are not waterproof connection but regular connectors

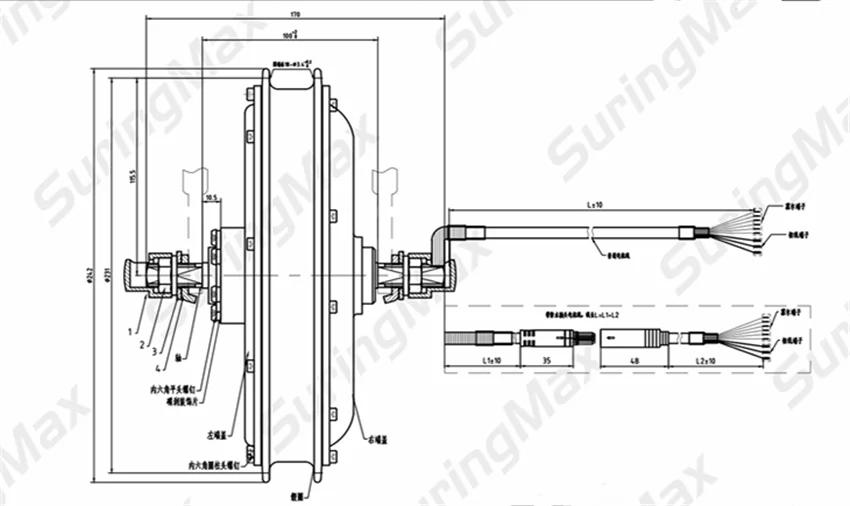

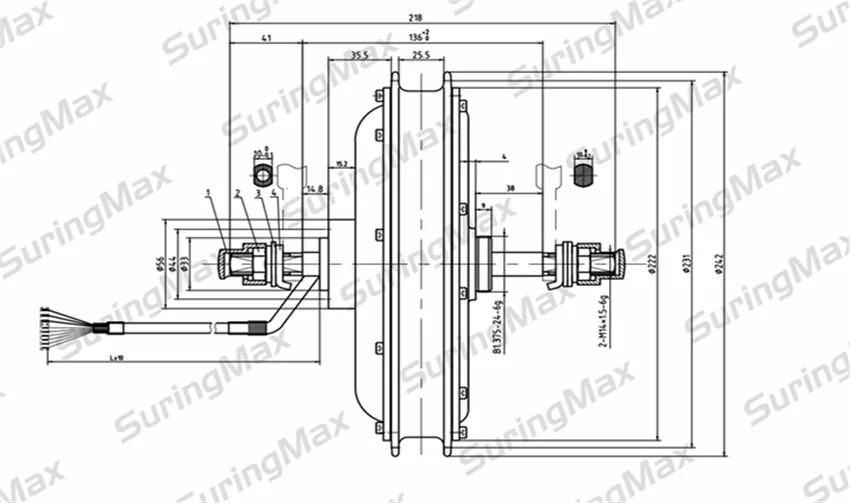

Diagram

Diagram of 100mm dropout front drive

Diagram of 135mm dropout rear drive

What you should ask yourself if you want to order this motor kit?

1)What's the size of wheel?( 20inch----29inch rim)

2)Which color do you like?

3)What loaded speed do you need ?

4)Other special requirement.....

Note: Please leave message about these information, if nothing information, we will send you 26 inch motor, at regular25km/h.

Package

Each kit will be packed in one 5-layer good quality 5-layer good quality carton lined with foam and plastice bag.

Battery will be [packed and shipped alone with good package.

Warranty:

Motor---3 years
Battery--2 years
The others--1 year
You only need to send us the video or pic to show the problem and the series number ,we will ship the new one or the repair parts together with the next shippment. Also will be post by air if need urgent!

Accordning to your experience , the defective pecentage is only about 1‰.
