Характеристики

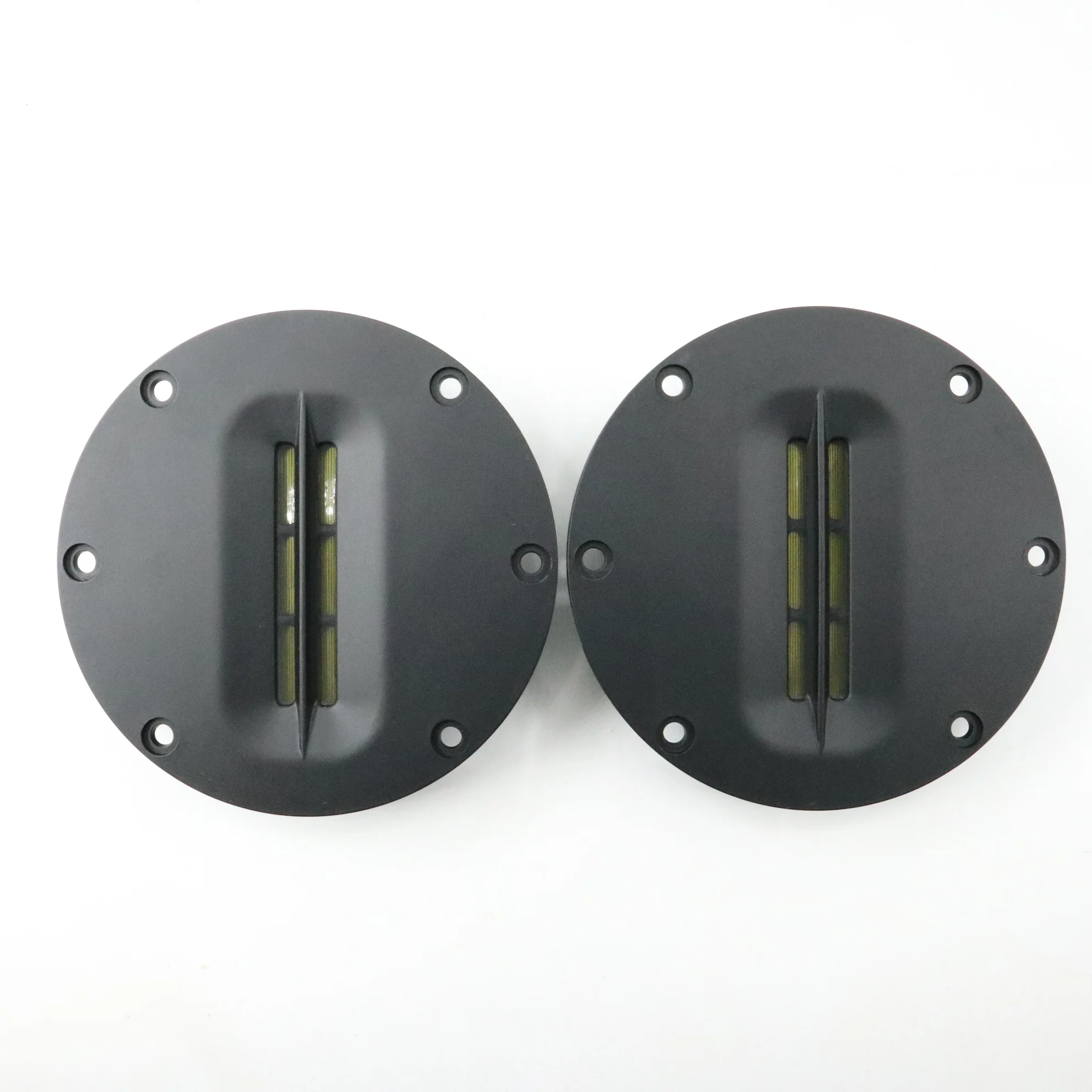

1PCS OR 2 PCS TO CHOSE

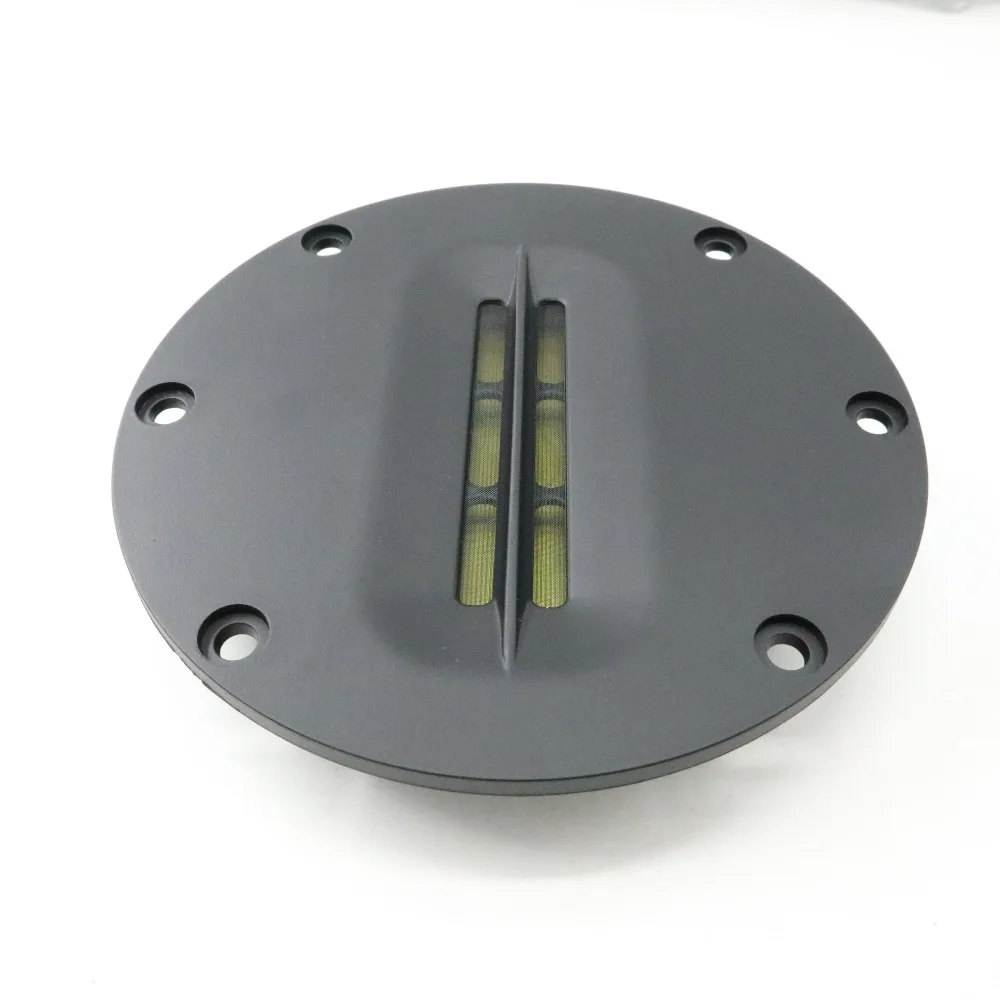

Planar AMT Ribbon tweeterSome loudspeaker designers use a planar-magnetic tweeter, sometimes called a quasi-ribbon. Planar magnetic tweeters are generally less expensive than true ribbon tweeters, but are not precisely equivalent as a metal foil ribbon is lighter than the diaphragm in a planar magnetic tweeter and the magnetic structures are different. Usually a thin piece of PET film or plastic with a voice coil wire running numerous times vertically on the material is used. The magnet structure is less expensive than for ribbon tweetersRated Impedance | 8Ω+/-20% | Front Panel | Aluminum | |||
Sensitivity | 94dB | Finish of Panel | Powder coat | |||
Frequency Range | 1500k~40k Hz | Diaphram | KAPTON | |||
RMS Power | 15W | Conductive Line | Alumium foil | |||
Max Power | 30W | Magnet | Neodymium | |||
Lowest crossover | 3.5k Hz(recommend) | Terminal (mm) | 5.5*0.5(+,-) |
DC resistance: 6-8Ω
FEATURES
• ABS Plastic faceplate provides secure, stable mounting
• Low- mass pleated Kapton diaphragm
• Very fast transition, high power handling with Strong Neodymium
• High detailed and dynamic output, very low distortion
•Linear impedance
• Clear & Nature high frequency
PARAMETER | |
Impedance | 8ohms |
Power Handling | 15watts(RMS),30watts( max) |
Sensitivity | 93dB@1W/1m |
Frequency Response | 1,500 - 33,000Hz |
Diaphragm | Kapton&Alumium foil |
Magnet System | Neodymium |

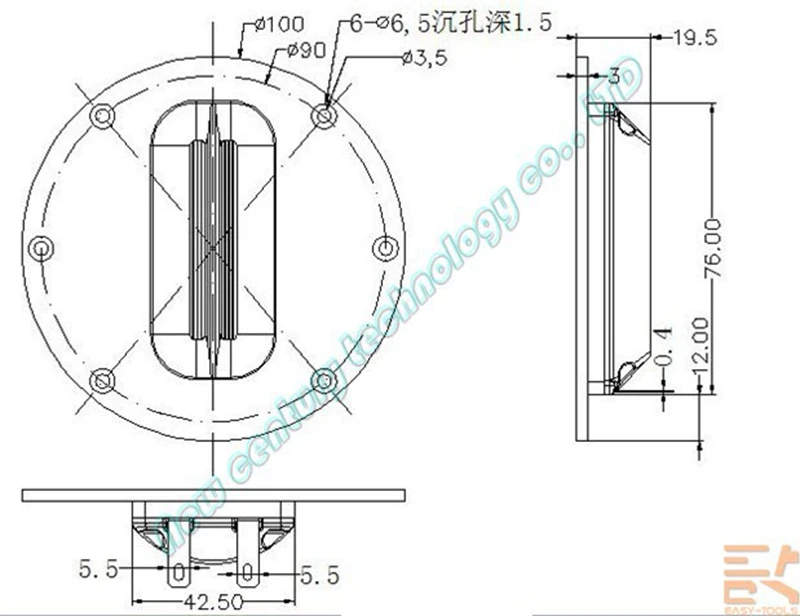

Dimensions | Overall Outside Diameter4" x 0.76" |
Net. Weight | 115gram |

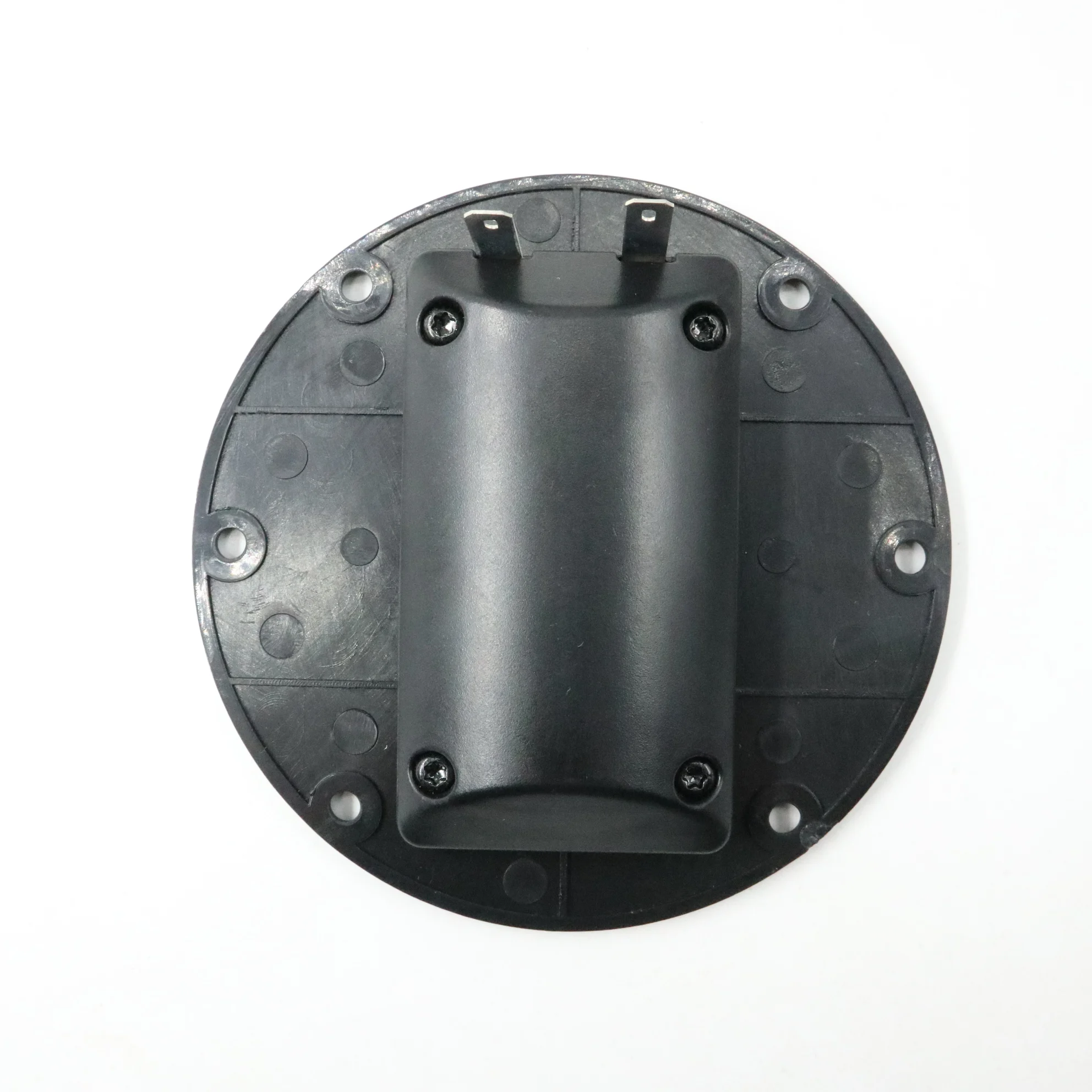

NOTE: the item made by machine， there is Scratches on the item back ,It does not affect the use
Payment
1. Please make sure your payment account is available before you bid the item.
2. All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item, please contact us firstly, we will help to solve it.
3.If you have any special request about the details of item, please leave a note in your order.
4.If youA large number of purchasing pls contact us ,will give you a best price
Shipment1. We can ship the products all the world.
2. DHL, TNT FedEx, EMS, China Post, singapore post ,Hongkong Post are all available. all have tracking number
3. The item will be sent out with 3days after receiving the payment.
4. Please make sure your delivery address and contact telephone number are correct when you bid the item.
5. You can track the situation of your product on website after they are shipped out.
Warranty
1. One year guarantee.
2. If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).
3. We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
Feedback1. your feedback is very important to our development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. Thanks a lot for your time.
2. Our program will leave back the same feedback to you after your positive feedback.
3. Please contact us before you leave a neutral or negative feedback, we will try our best to solve the problems
