OPQ-NEO-M8N Flight Controller GPS Module with On-Board Compass M8 Engine PX4 Pixhawk TR for OCDAY Drone | Электроника

Характеристики

Made from qualified material with exquisite workmanship, it is reliable and safe to use.
With compass GPS module is convenient to use.
With fast satellite searching speed and high precision.
Supported aerial active and passive.
These are Pre-configured, Flashed with the correct settings, and tested.
Descriptions:
Anti jamming Active CW detection and removal.
Extra onboard SAW band pass filter (NEO-M8N/Q).
Data-logger For position, velocity, and time (NEO-M8N).
With sticker, it is easy and quick to install.
Specifications:
Concurrent GNSS: up to 10 Hz
tracking sensitivity: -161dBm
Capture sensitivity: -148dBm
Cold start time: 38s average
Warm start time: 35s average
Hot start time: 1s average
Capture time: 0.1s Average
Temperature: 40 to +80
Sensitivity2 Tracking & Nav: -167 dBm
Cold starts: -148 dBm
Hot starts: -156 dBm
RTC crystal: Built-In
wide power supply voltage: +3.5V~+5.5V
Ublox GPS Module V2.0
Colour:Black
Material:plastic

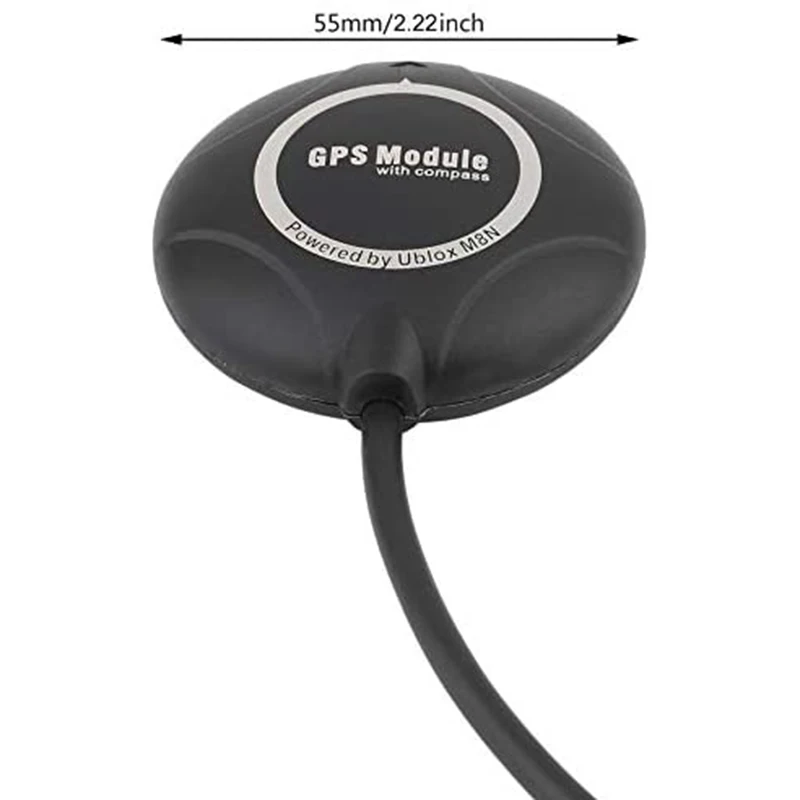

Size:55mm
Package Contents:

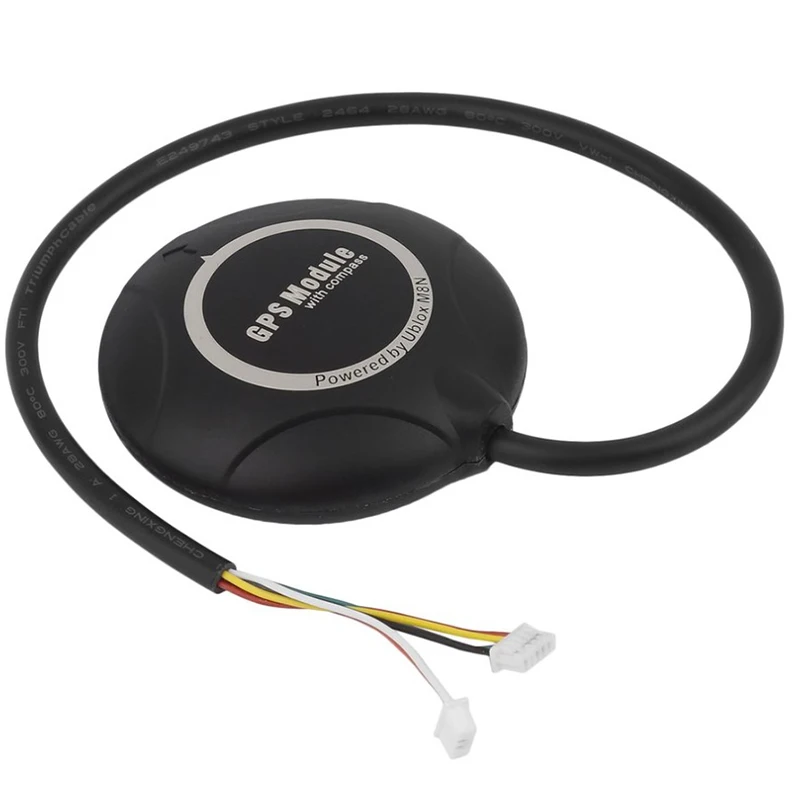

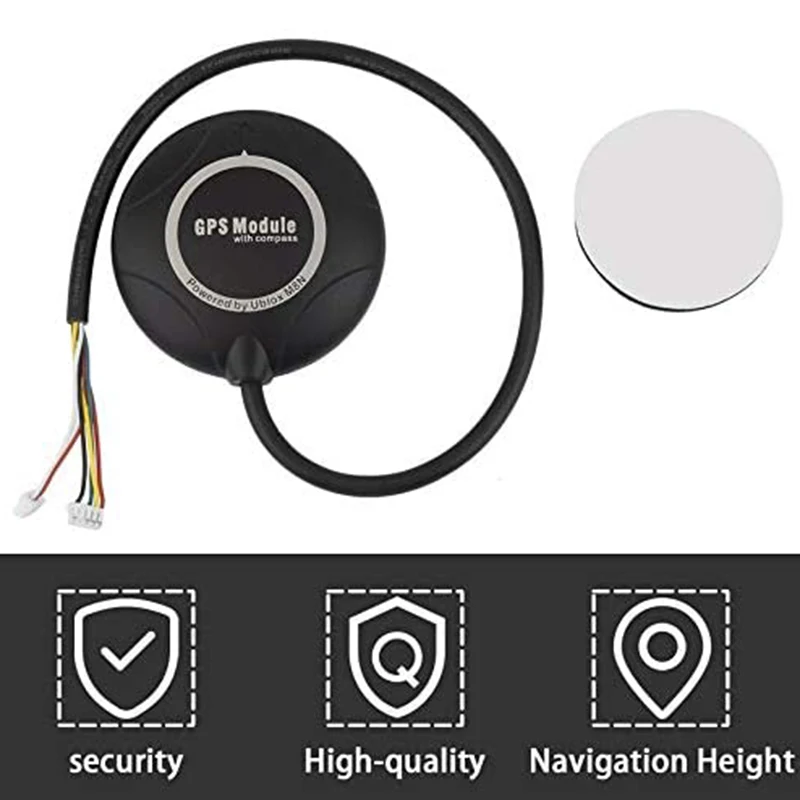

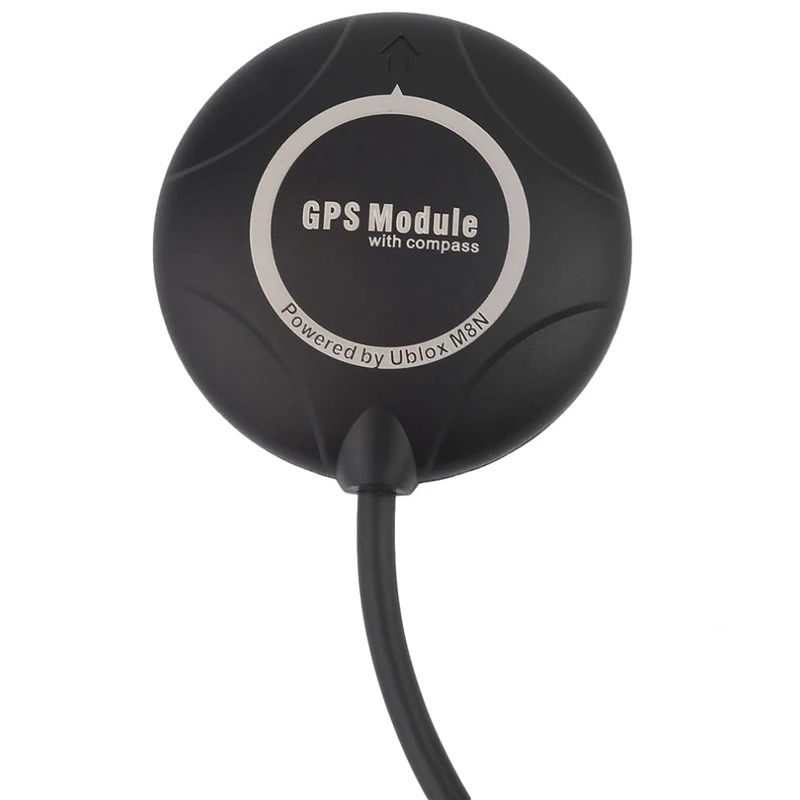

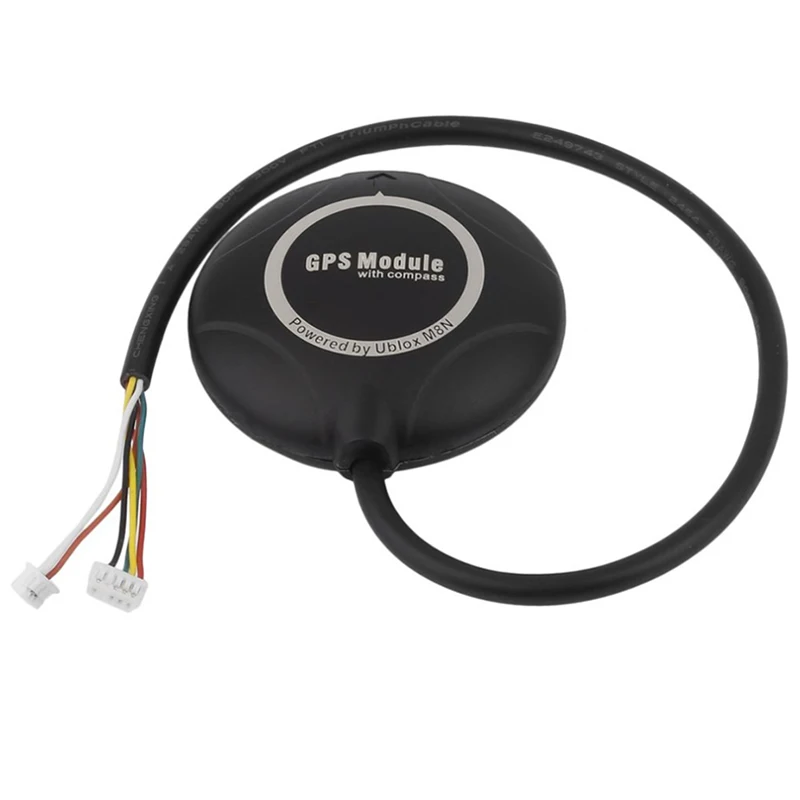

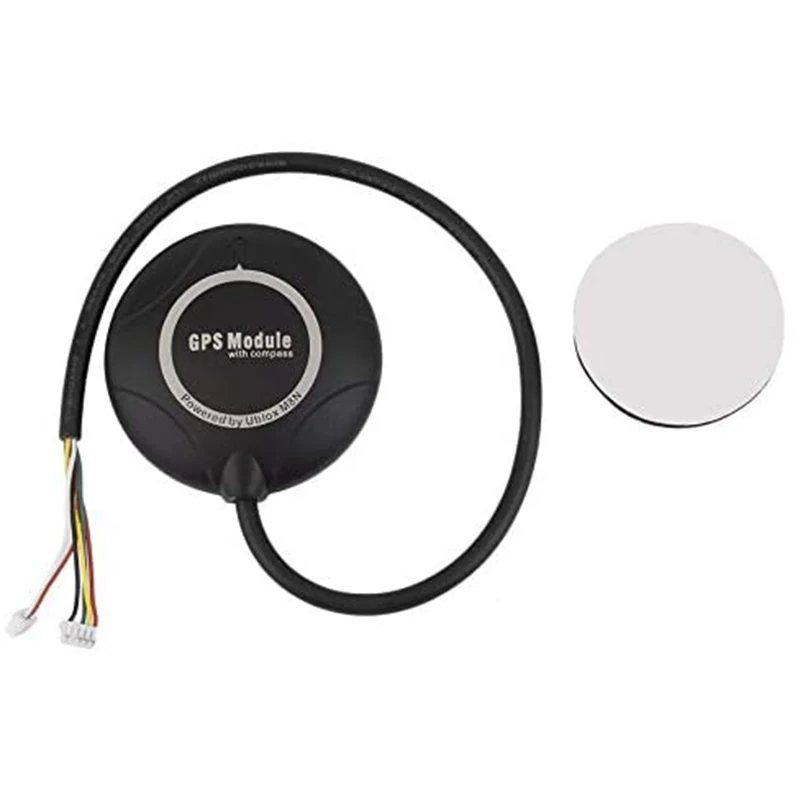

1 x NEO-M8N GPS Module
1 x sticker
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
