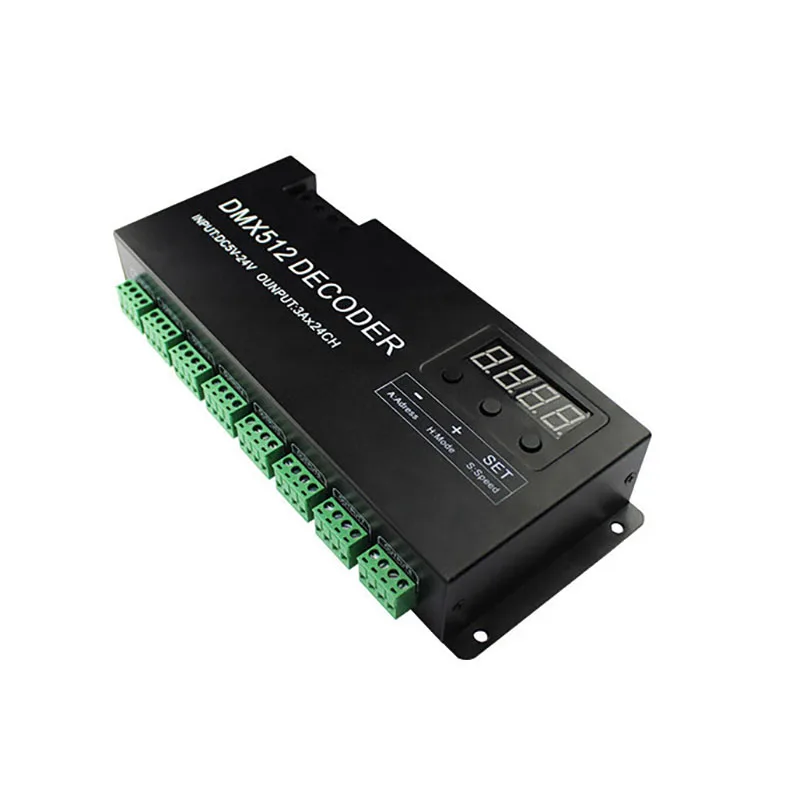

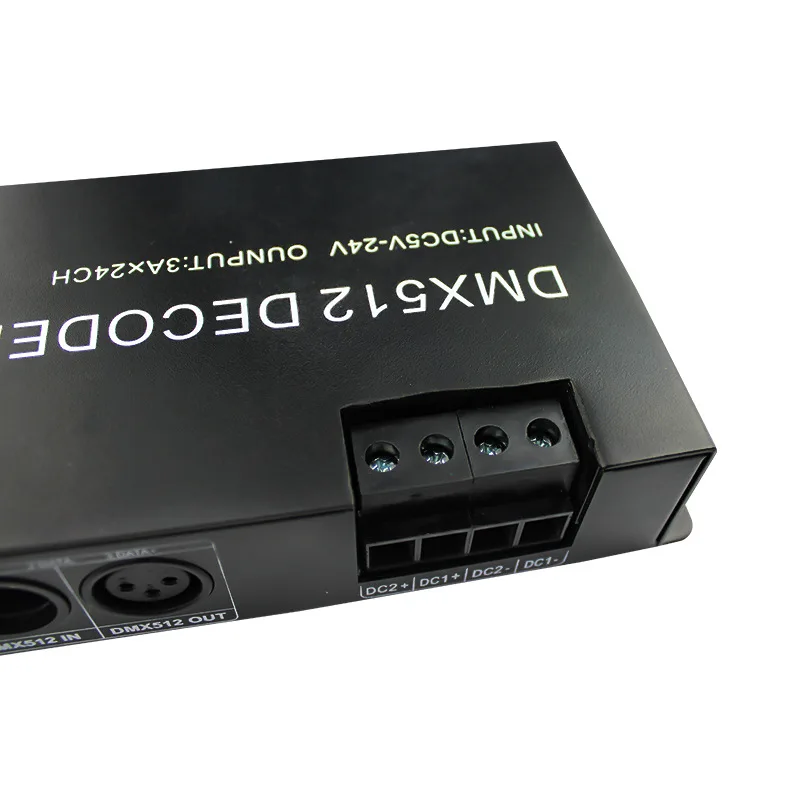

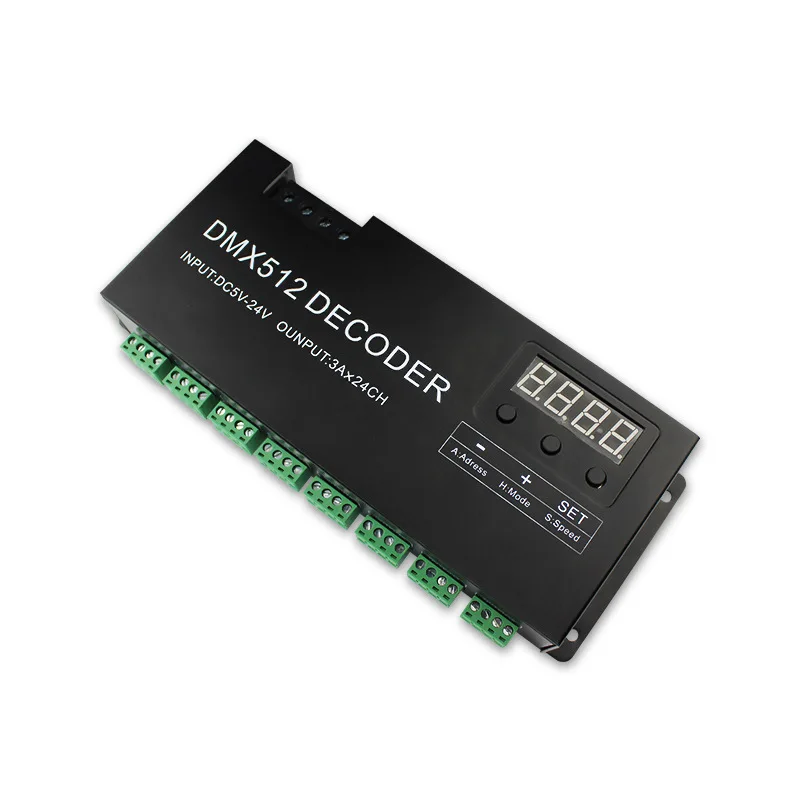

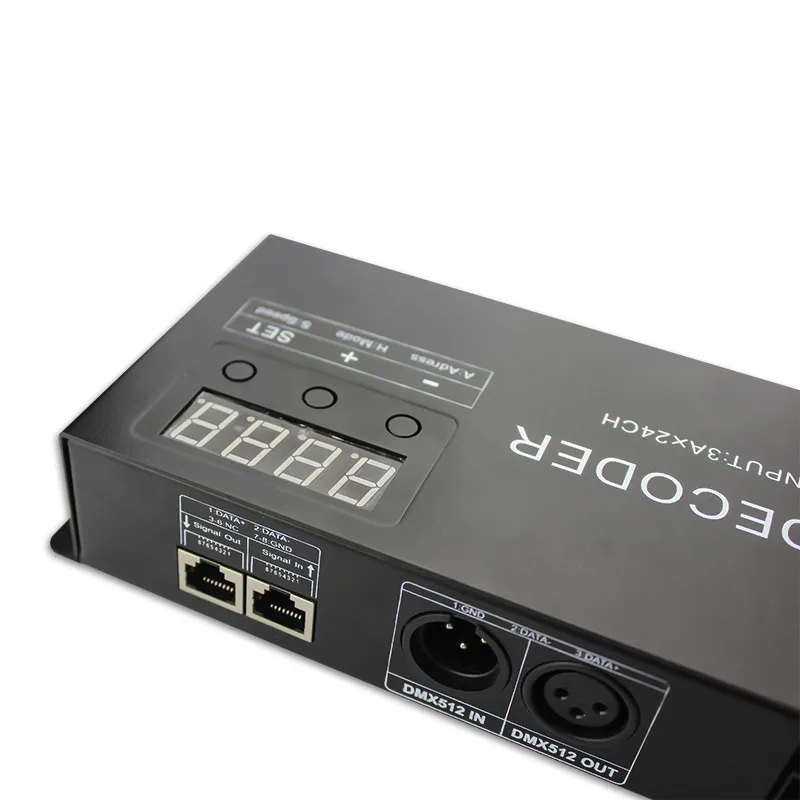

24 Channel Dmx Decoder Dmx512 Constant Voltage Ch Cv Pwm 3A X | Электроника

Характеристики

24 output channels, 3A per channel which can connect RGB ful l-color l ights.
0-100% smooth brightness adjusting, 256 grey steps per channel.
Universal standard DMX512 input protocol; addresses can be set up by DIP switch
10 self-changing modes, 8 speed levels.
Input voltage DC12V-24V
Max load current 3A/CH×24
Max output power 860W/1720W(12V/24V )
Output Scale level 256 levels
Input signal DMX512/1990
Output DMX Channel 24Ch CV PWM
working temperature -30-65 Celsius
Weight (G.W) 920g
colour:black
Material:plastic

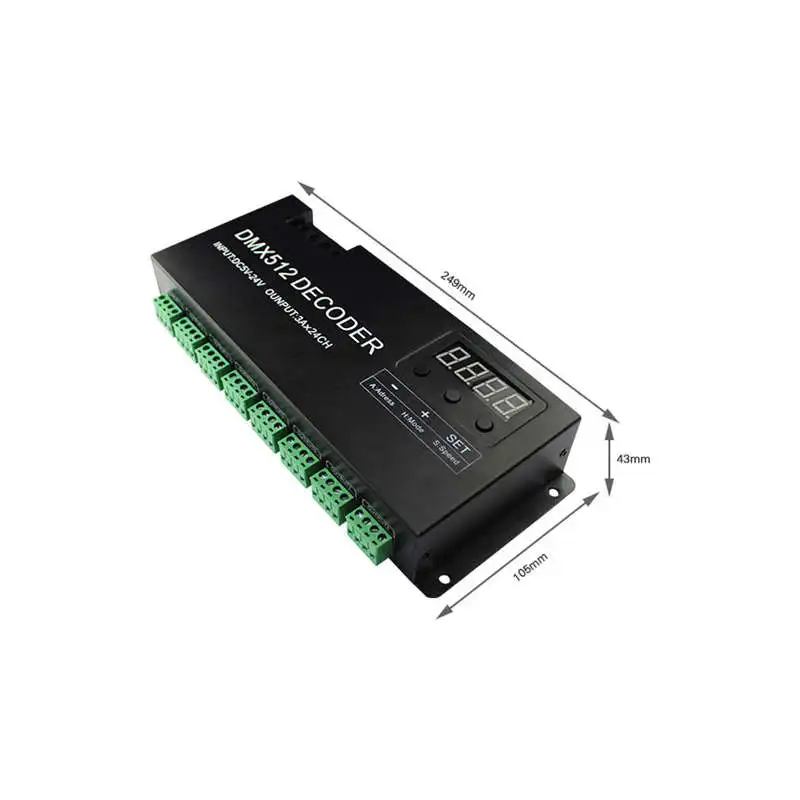

size:249*105*43mm
Package Contents:
1*DMX512 decoder

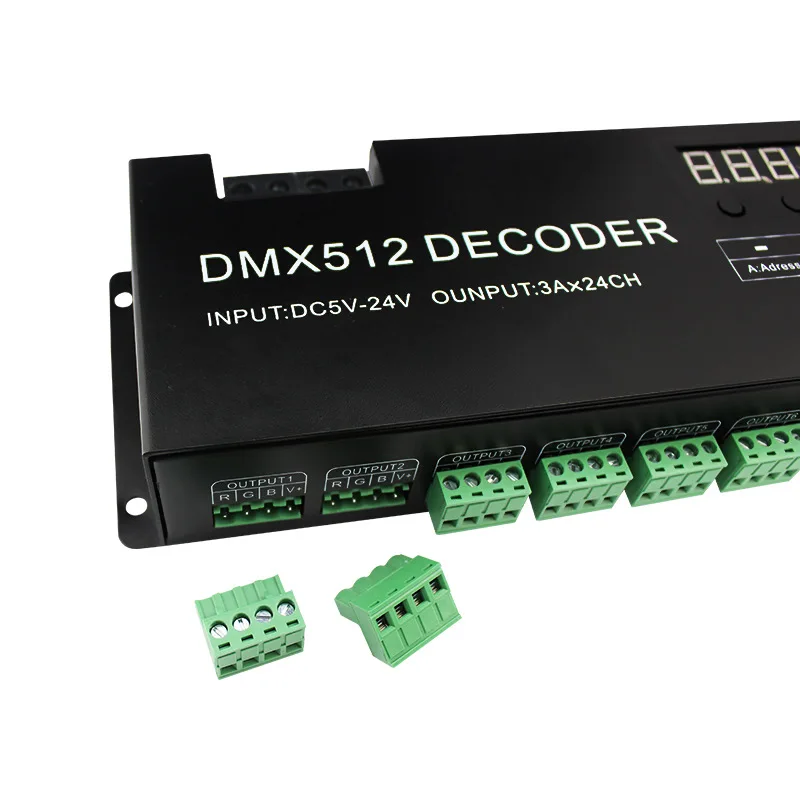

2*card plugs
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
