52MM Fuel Level Gauge Marine Boat Yacht 0-190ohm Sensors Water Oil Liquid Tank 200 250 300MM | Автомобили и мотоциклы

Характеристики

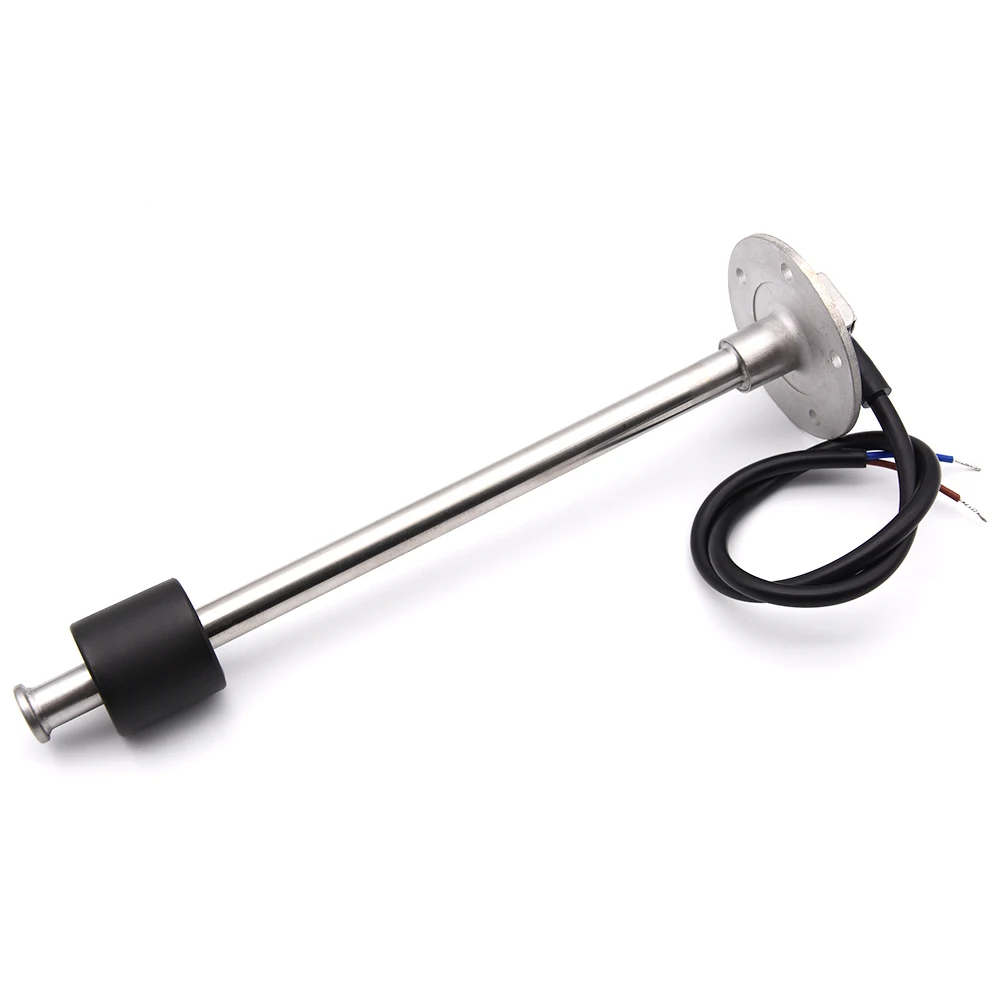

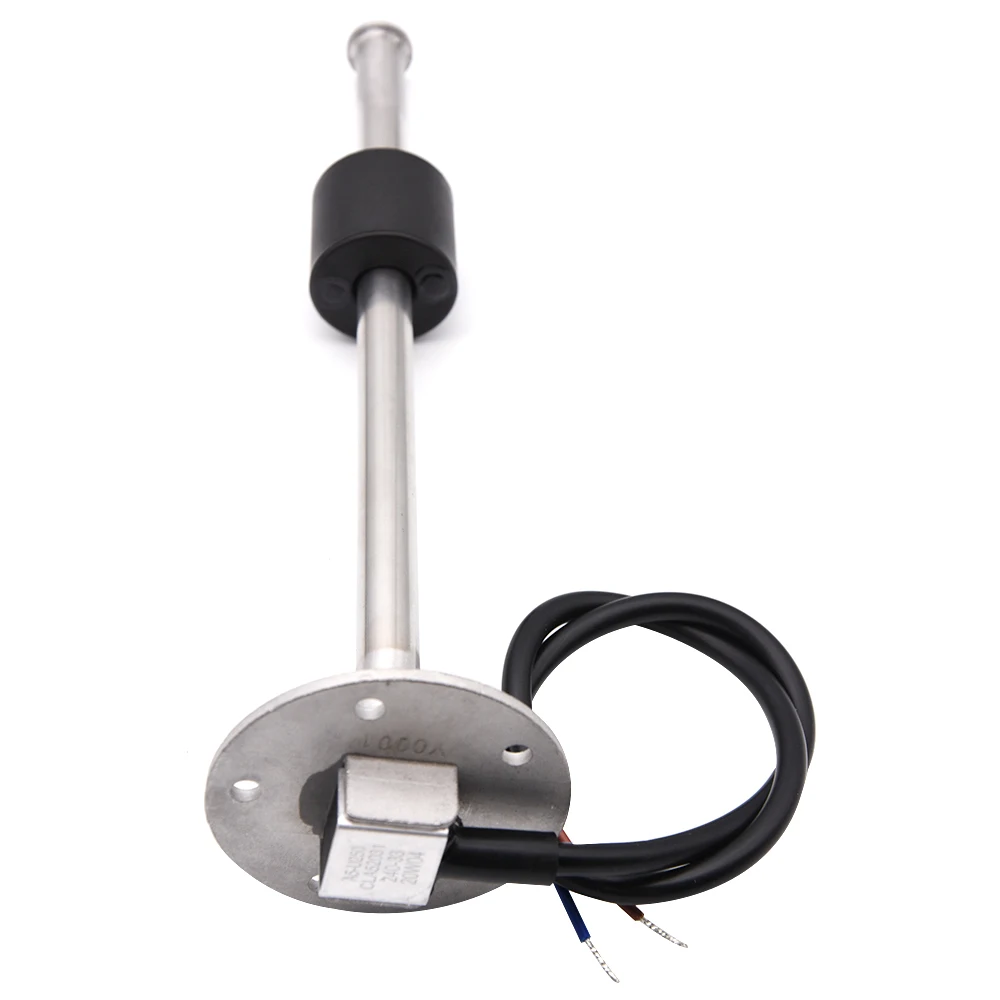

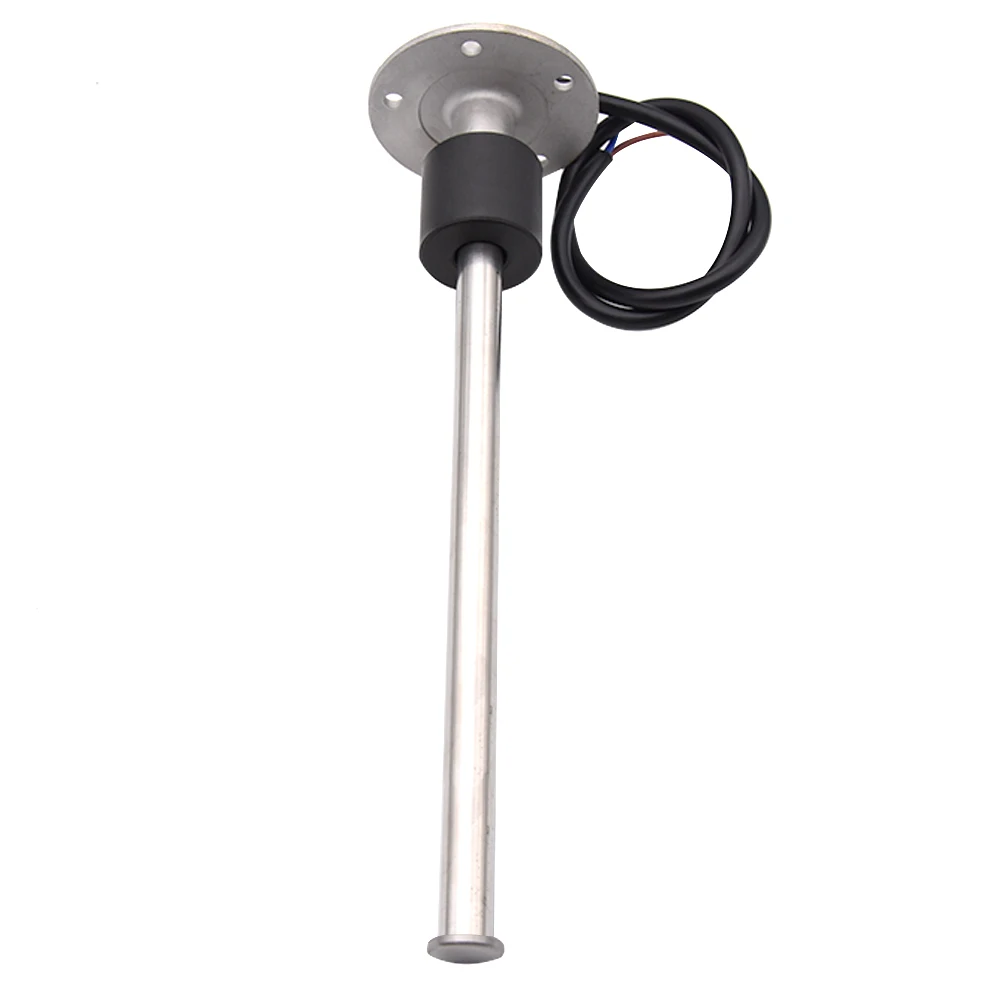

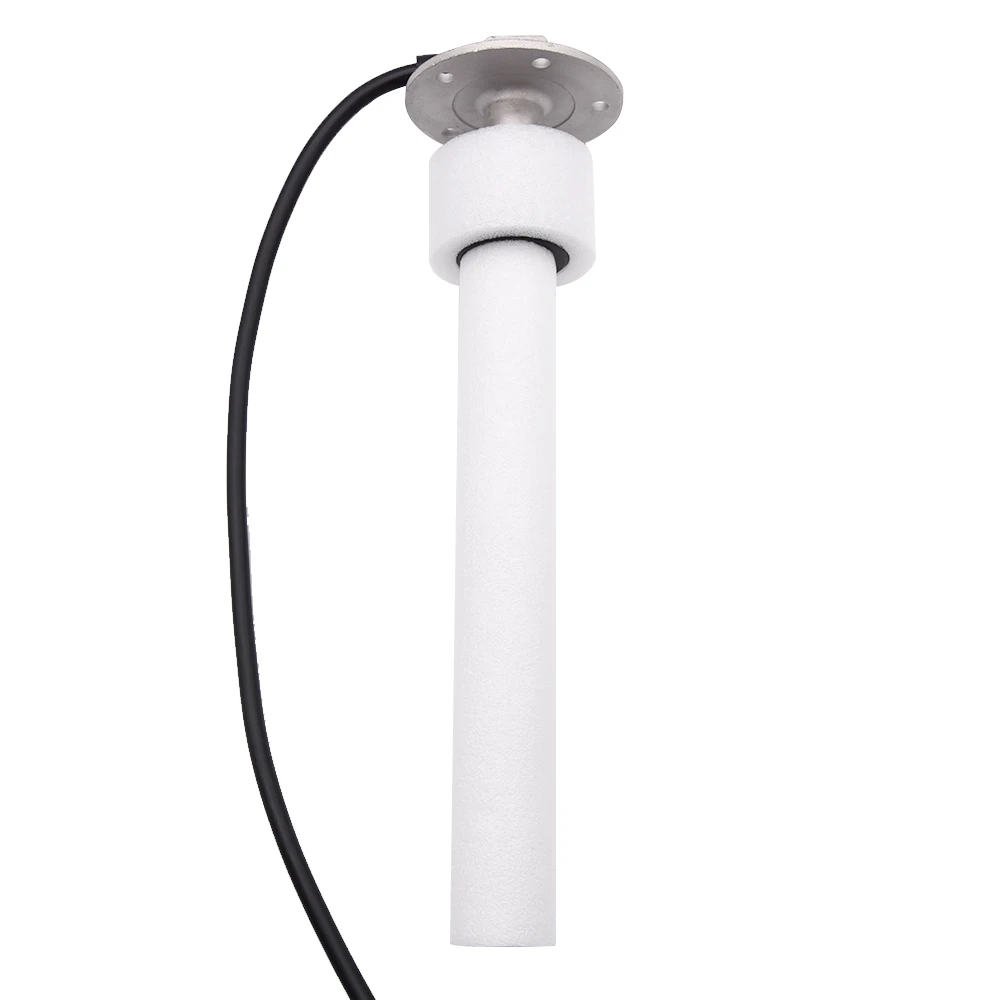

52MM Fuel Level Gauge for Marine Boat Yacht Fuel Level Sensors Water Level Sensors 0-190ohm 240-33ohm Oil Liquid Tank Fuel Level Sensors

Specification:

- Protection ank: IP67
- Resolution range: 21 mm

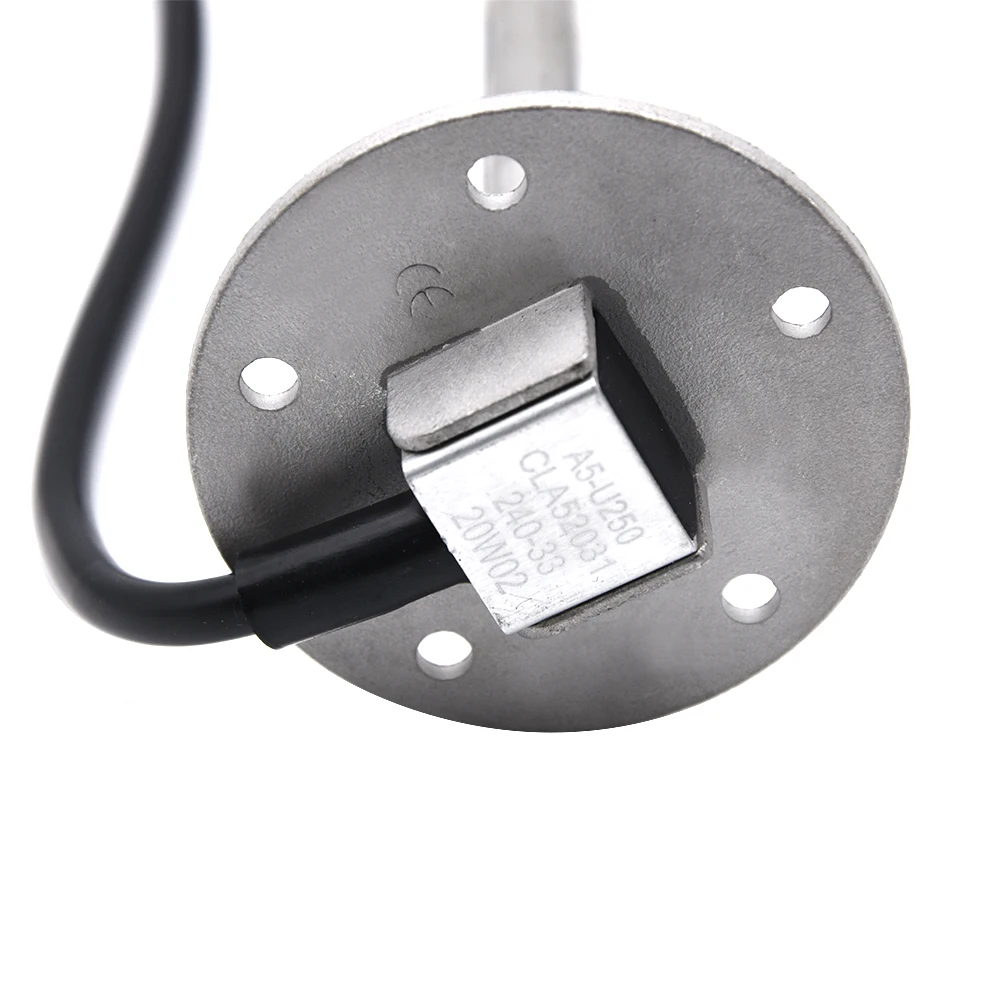

- Assembly: SAE standard 5 holes
- Rated current for alarm switch: 500mA
- Operating temperatures: - 40 to 85 Celsius
- Fit for Fuel Level Gauge and Water Level Gauge
- Sensor Length :150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm - Mounting: 5 pieces of M5 screws and 2 mm thick gasket
- Output signal: 0~190 ohm (Standard European), 240~33 ohm (Standard American)
-Fuel Level Gauge: 0-190ohm

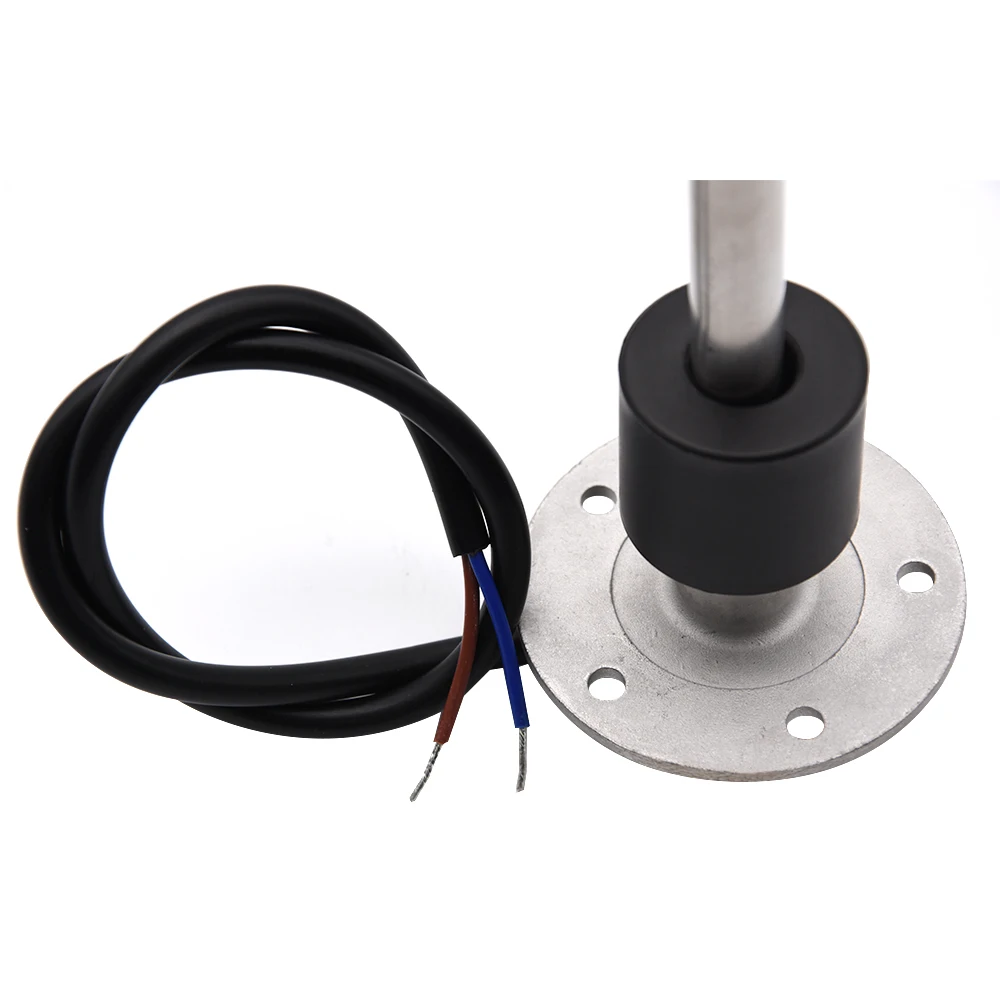

- the blue wire of sensor is connect the Ground line,
- the brown wire of sensor is connect the gauge

Attention:

- Empty oil level : 0 ohm / 240 ohm
- Full oil level : 190 ohm / 33 ohm

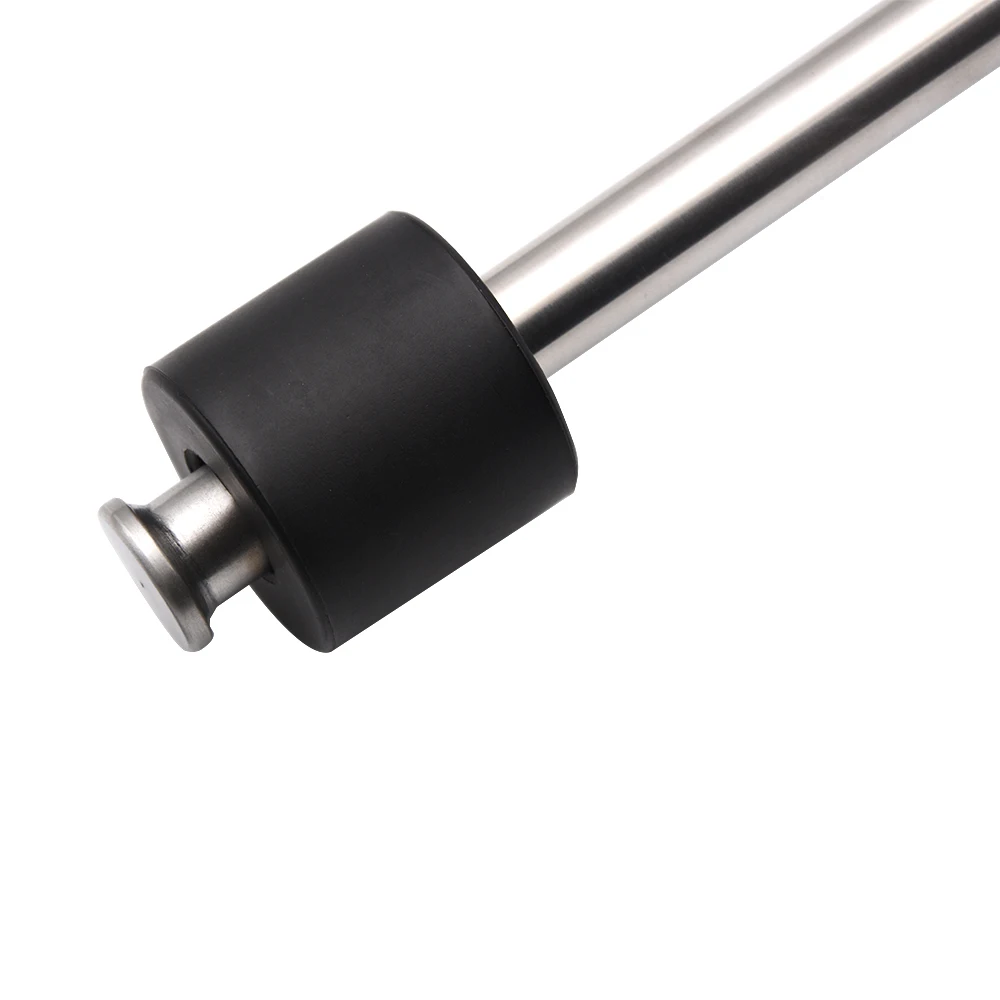

- When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~

Package:

1 x Sensor
1 x Gasket 5 x Screws

or 1pcs Gauge
