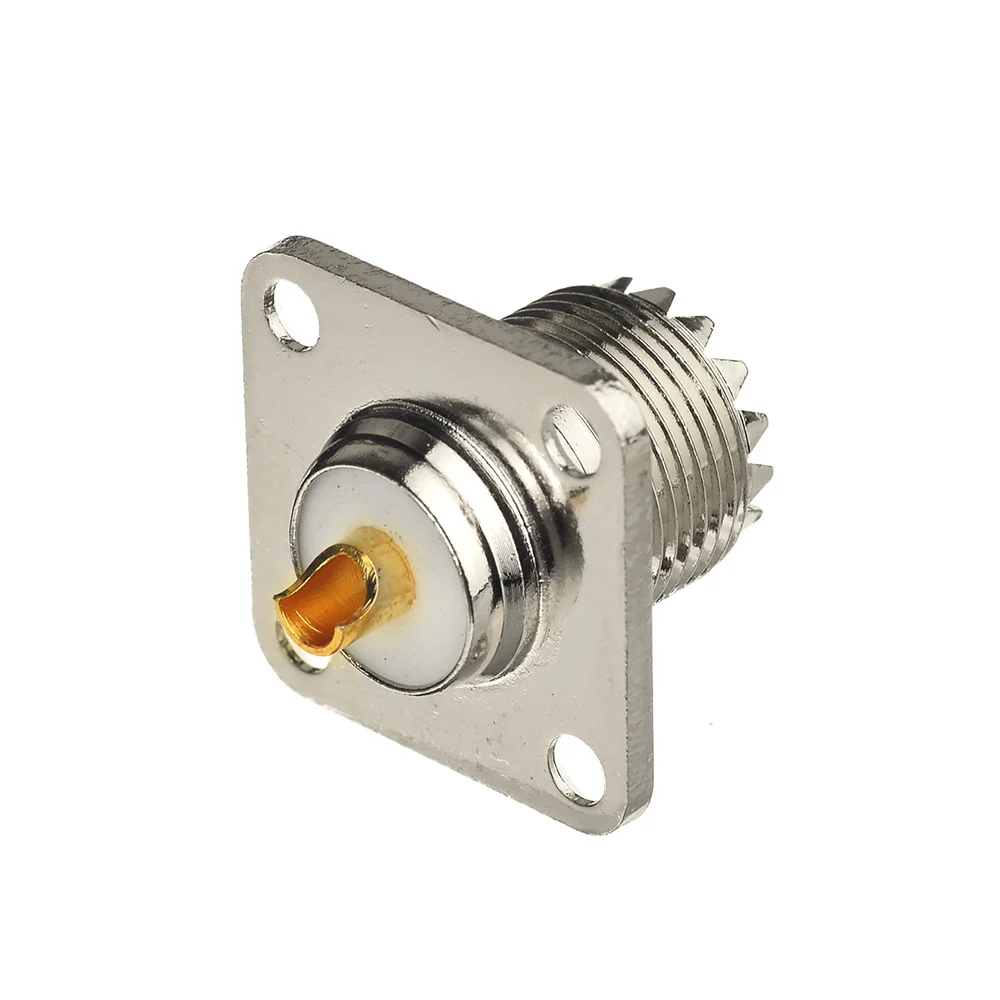

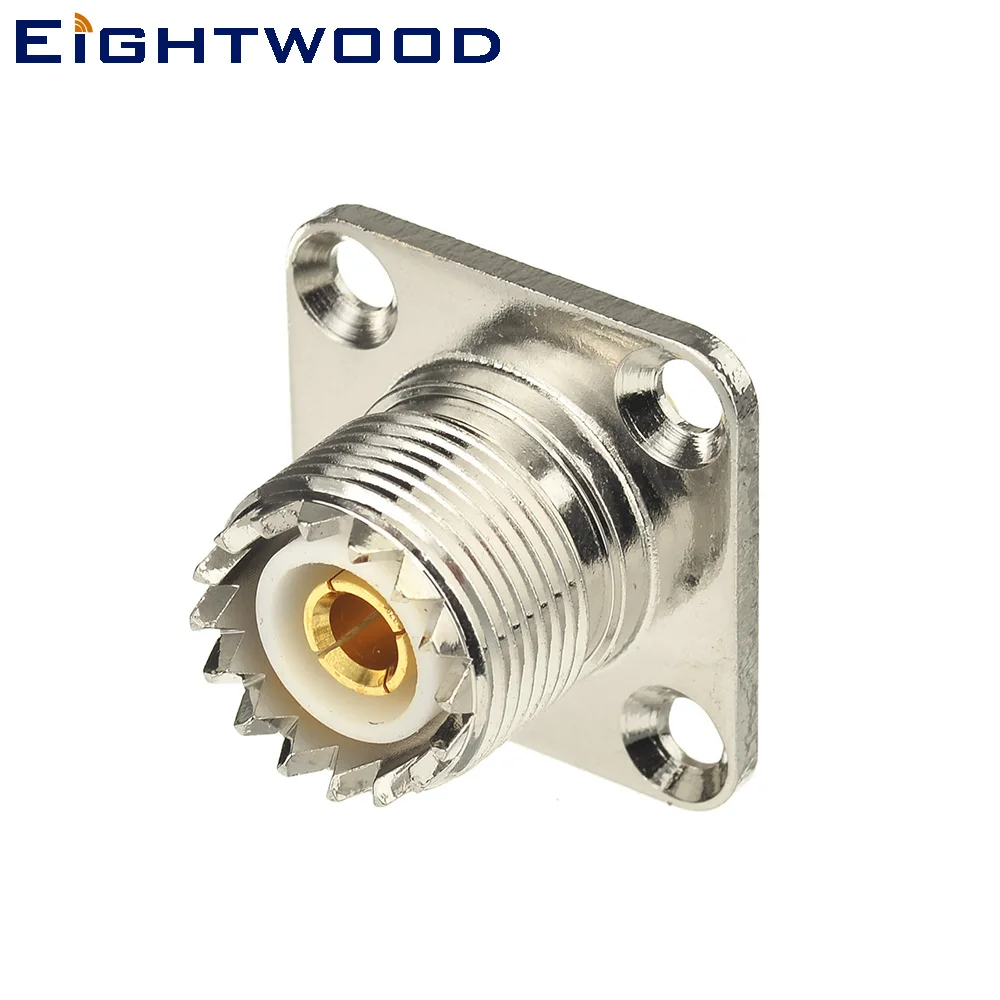

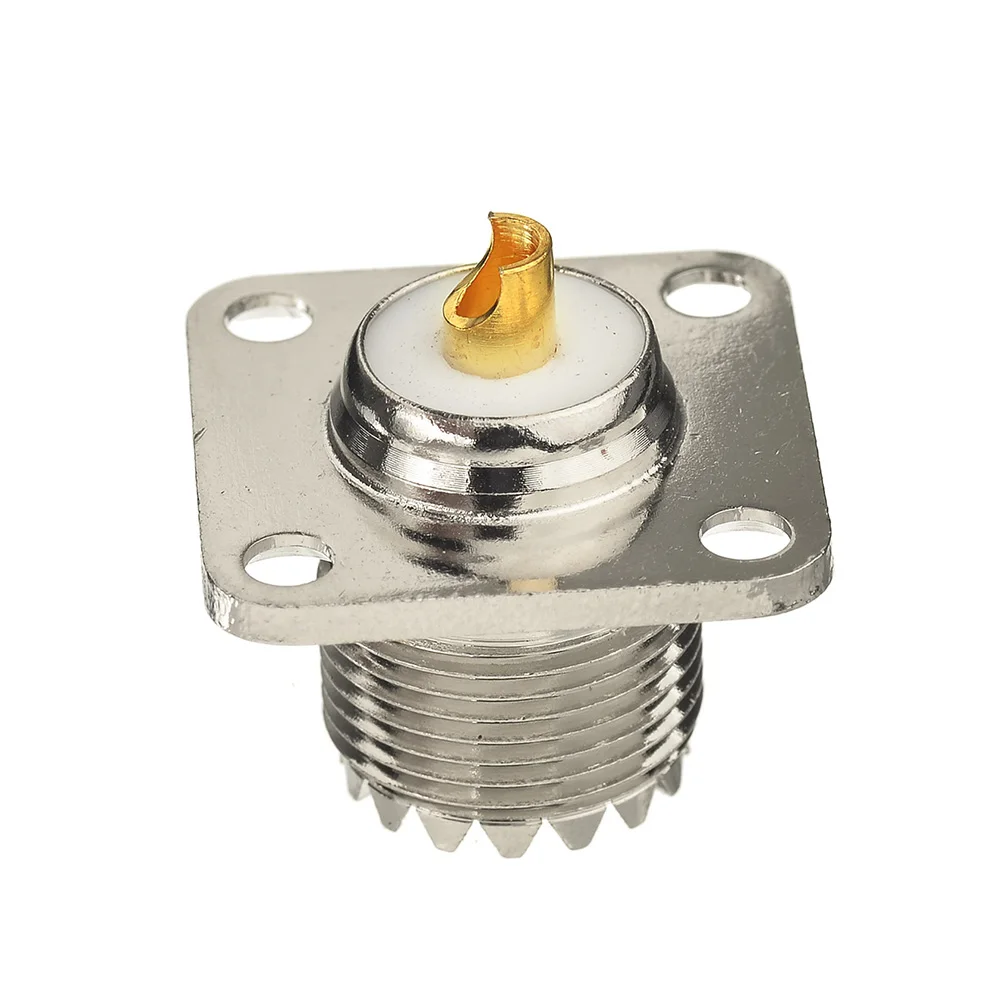

Eightwood 5PCS UHF/SO239 Jack Female RF Coaxial Connector 4-Hole Panel Mount with Solder Cup for Antenna Radio Wi-Fi
Clink Here to 10PCS Link
| Product Series: | UHF |
| Product Type: | 4 Hole Panel Mount |
| Body Plating: | Nickelplated |
| Connector Body Style: | Straight |
| Connector Material: | Brass |
| Contact Plating: | Nickelplated |
| Gender: | Jack |
| Impedance: | 50 Ohm |
Originally intended for use as a video connector in radar applications, UHF coaxial connectors are general purpose units developed for use in low frequency systems from 0.6 - 300 MHz. Invented for use in the radio industry in the 1930’s, UHF is an acronym for Ultra High Frequency because at the time 305 MHz was considered high frequency.
UHF connectors feature a threaded coupling. UHF connectors are popularly used because of its ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools.
Great for many projects which involves UHF Type connector. Widely used for Antennas, Broadcast, Radios, Wi-Fi, Telecom, Coaxial cable, Wireless LAN Devices, CCTV, Microwave Applications and Digital Communication System
Features and Benefits
Optional reducing adapters accommodate a wide range of popular coaxial cables
Solder termination types require no special assembly tools
Crimp termination types provide a lower cost installation method
Large-size threaded coupling is a rugged design
Non-demanding specifications and low cost
Applications
Antennas
Military
Public Address Systems
Low-Frequency Applications
Package included: 5PCS RF Connector
Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution. Please contact us.
