Лазерный гравировальный станок с ЧПУ 12 В 7 Вт|3D принтеры| |

Характеристики

Подставка для мебели

Note:

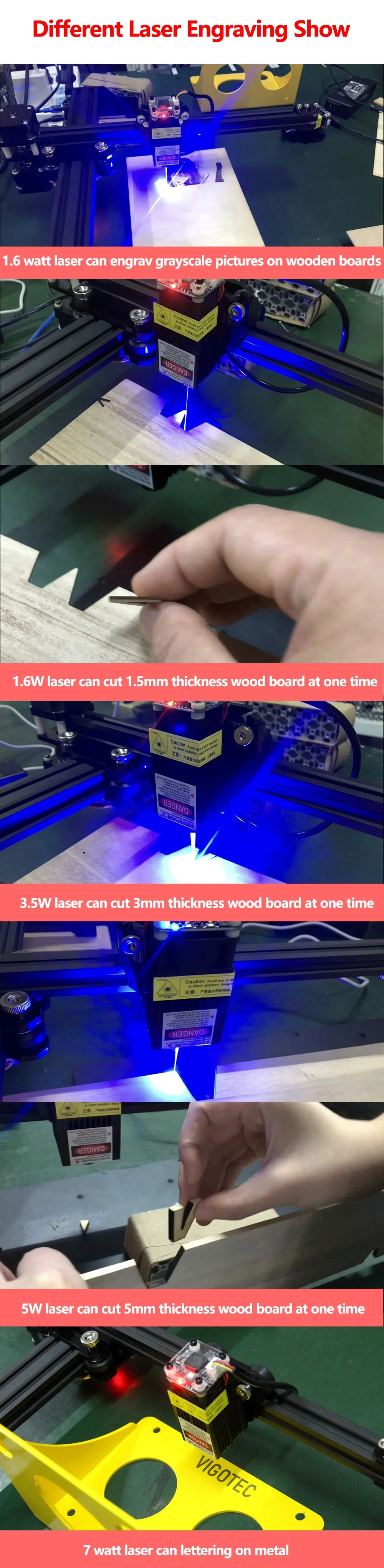

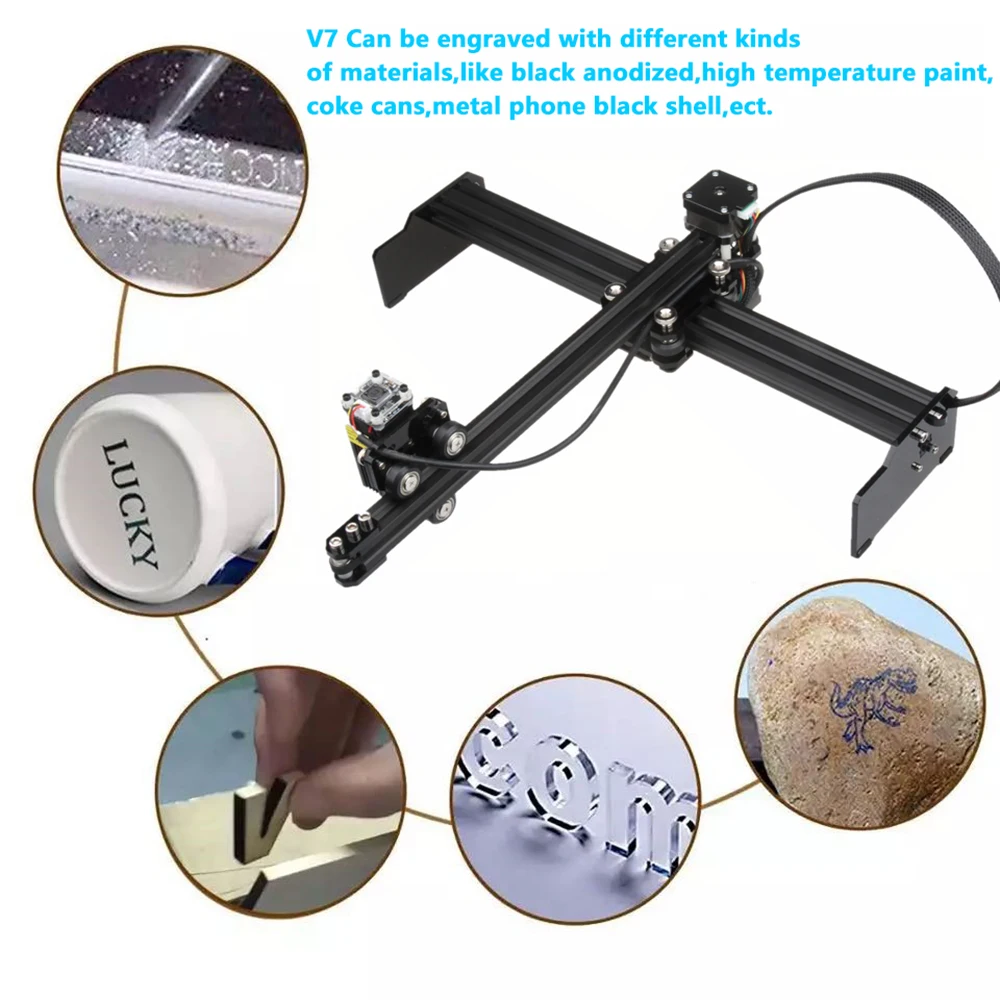

---1.Can Not Carve Objects: All metals without any surface finished, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material. ---2.Can Carve Objects: All wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc. ---3.Can Cut Objects: Paper, wood, leather, non-woven fabric, paper velvet cloth, kt board, foam, self-adhesive sheet, etc. within 5mm, non-transparent plastic sheet within 3mm, black acrylic within 2mm, etc.

Feature:

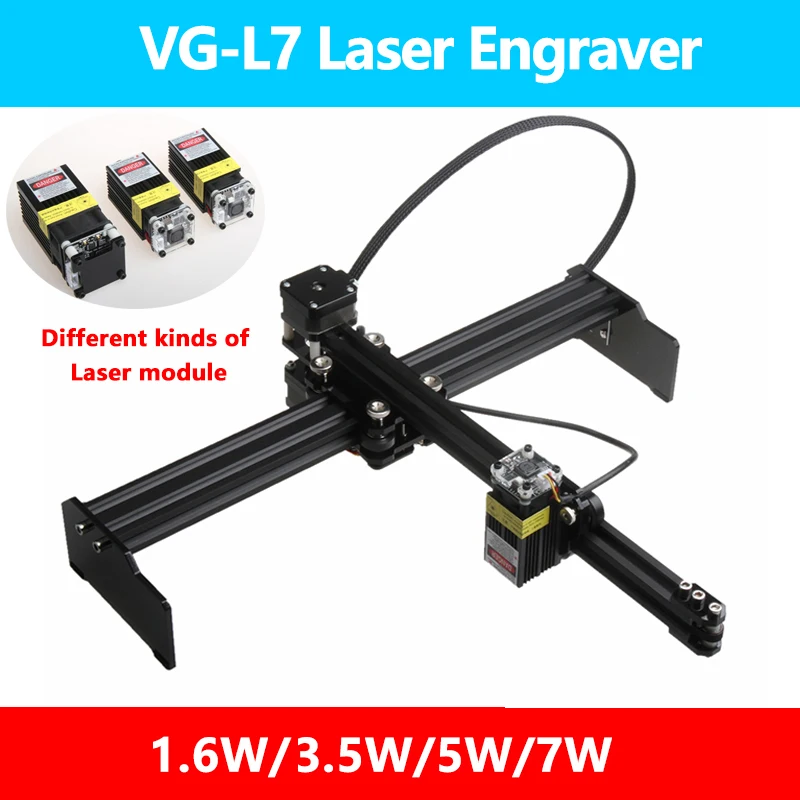

This brand new VG-L7 is especial designed for DIY Laser Engraving Machine with professional control software,from control board development to software and hardware organization,we have a team of hardware and software engineers to provide you with the ultimate portable experience. This laser engraving machine features the function of carving & cutting. It supports adjustable laser power,convenient and suitable for all kinds of easy carving materials.

Specifications:

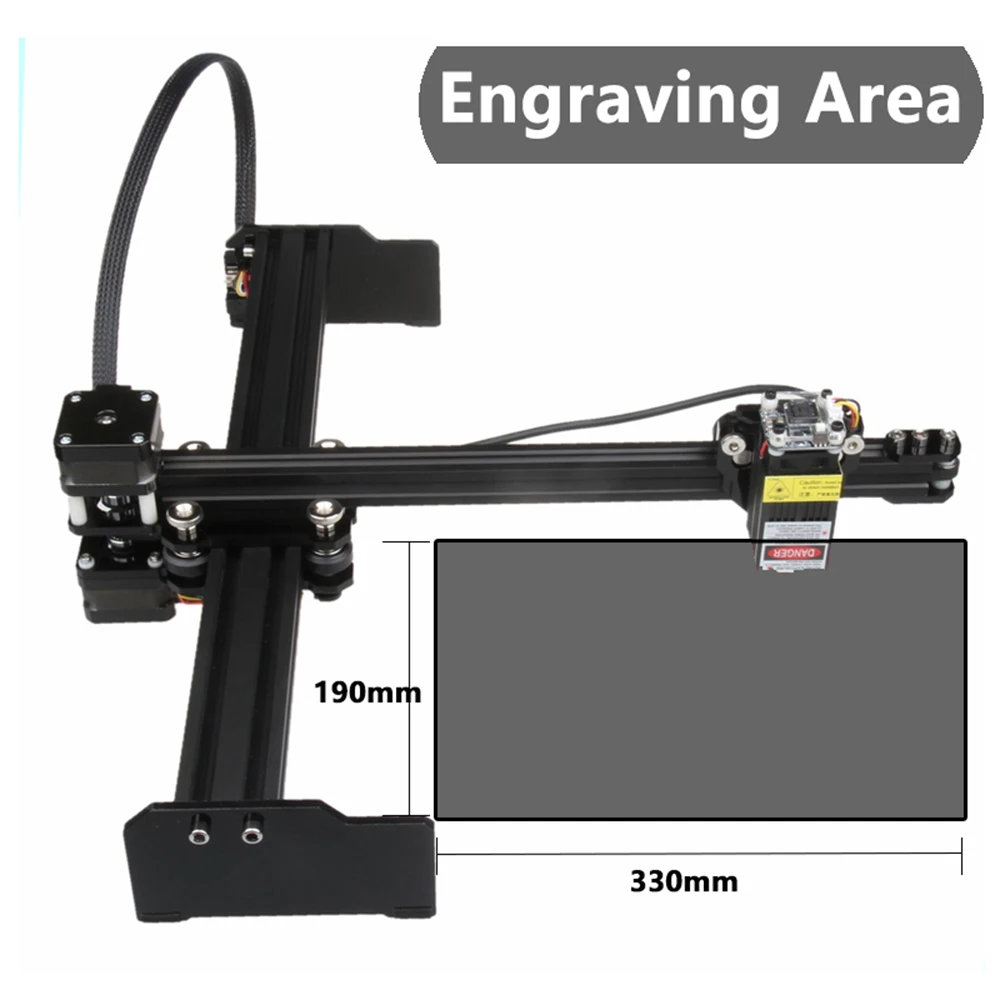

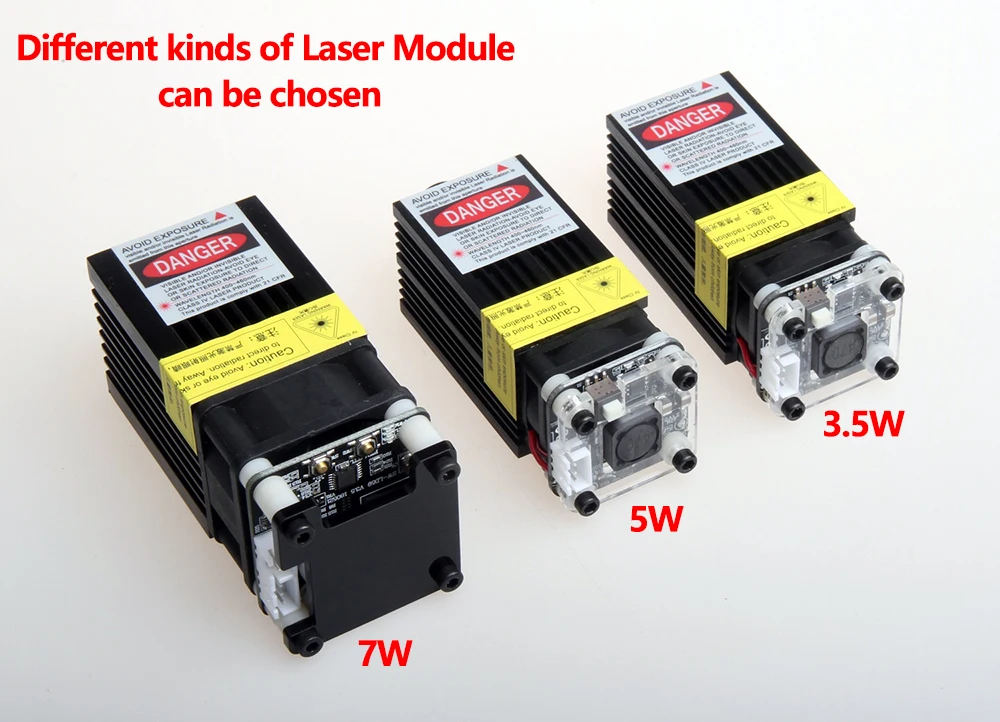

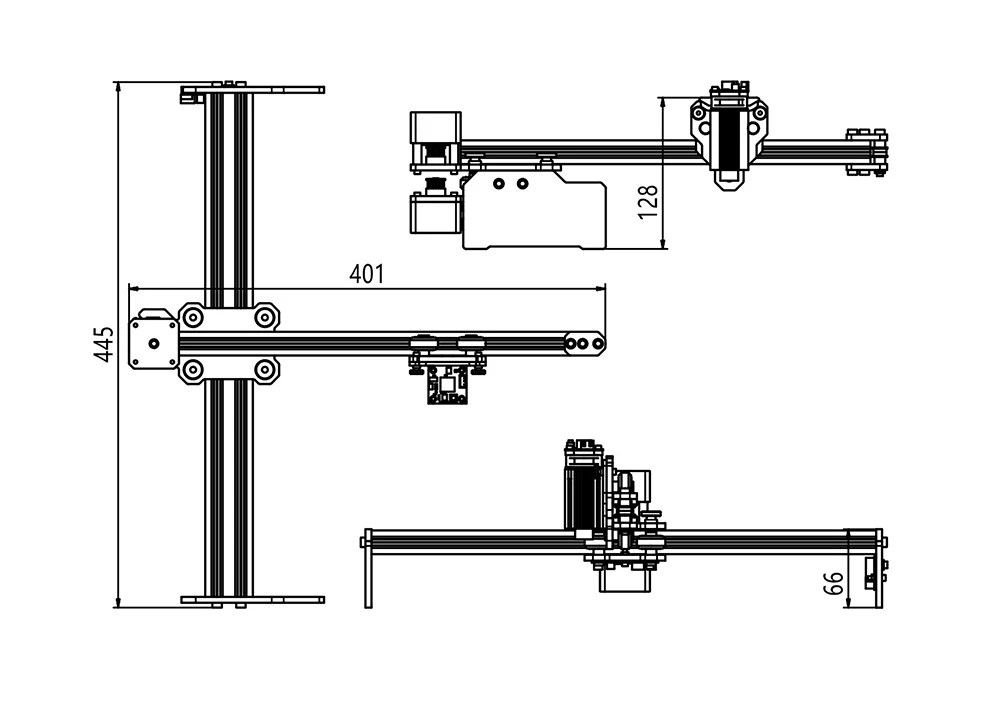

【Material】Aluminum Alloy + Acrylic 【Main Color】 Black 【Power Supply】 AC 100-240V Output 12V 5A 【Plug Type】EU Plug/US Plug 【Laser specifications】1.6w/3.5w/5w/7w 【Laser Wavelength】405nm,445nm 【Supported OS】 Win 7 and above( not support XP and below system, not support Apple MacOS system) 【Controller Board】VigoTec 【Communication Port】Mini USB 【Stepper Motor】42 Stepper motor, Step Angle 1.8°. 【Supported Software】Engraving machine software uses VigoEngraverL7, Support GRBL, benbox, elekscam, if you have firmware you can use. 【Supported Formats】jpg / bmp / DXF / G-code 【Print Size】Recommend Print Size 330x190mm 【Engrave Mode】 For Image and Text input, there are Line Scanning, Point Scanning, Grayscale, Black- White, and Contour carving. For dxf file, vector carving. 【Laser Quick Replace】 Support 【Continuous Work Time】 Sustainable Working (With Heat Dissipation Fan) 【Working Voltage】 DC 12V 【Working Current】 ≦DC 5A Normal operation depends on the laser power installed. 【Engraving Accuracy:】0.05mm 【Engraving Area】 330 * 190mm / 13.0 * 7.5in 【Laser Focus Distance】about 5-8cm 【Item Size】445*401*128mm / 17.52 * 15.79 * 5.04in 【Package Size】480*200*100mm / 18.90 * 7.78 * 3.94in 【Package Weight】2202g / 4.85lb

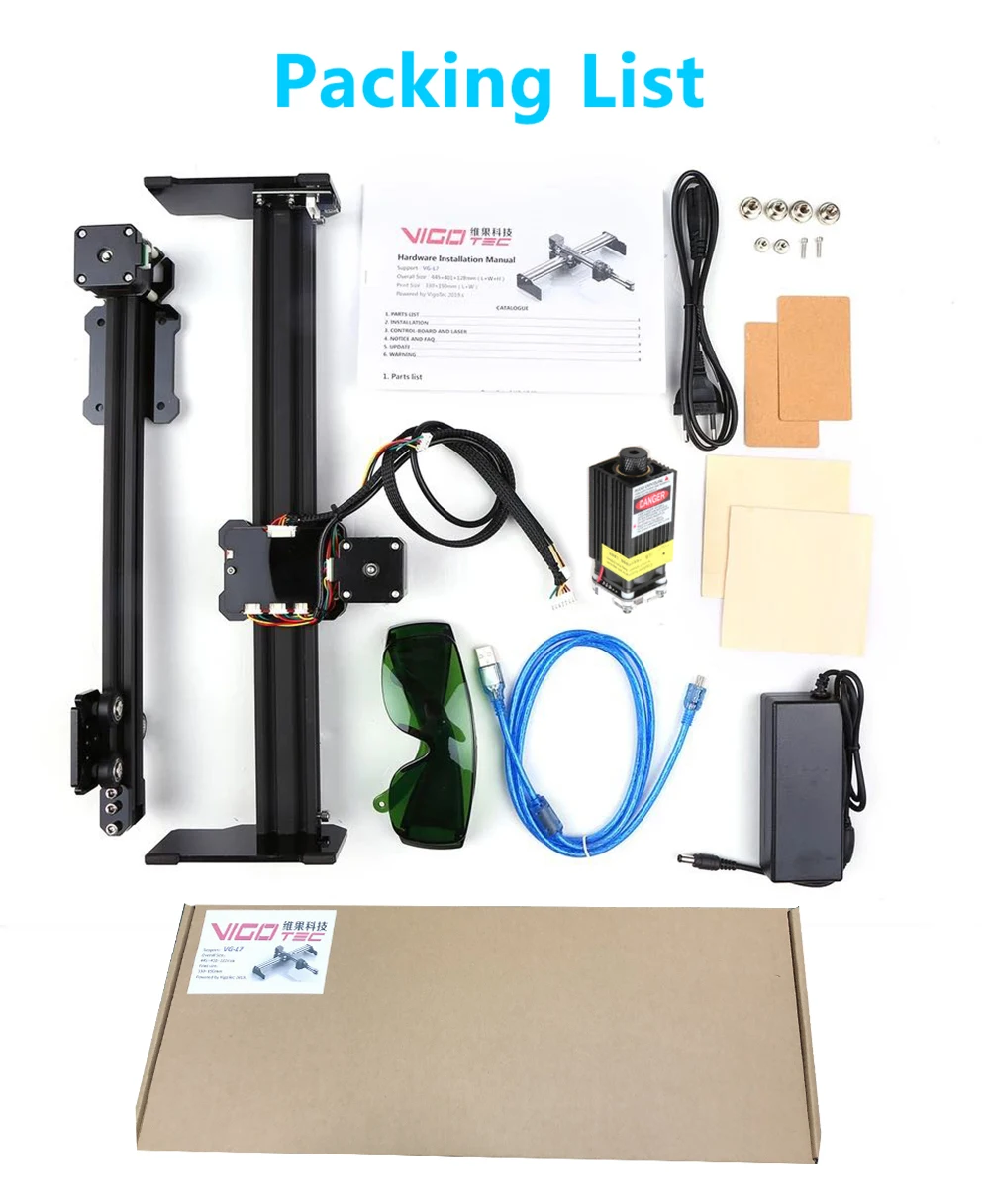

Package List:

1 * Frame Part A(Lower part) 1 * Frame Part B(Upper part) 1 * Laser Head 2 * Stepper Motor Wire 1 * Laser Wire 1 * Side to Main Control Board Wire 1 * USB Cable 1 * Power Supply 1 * Protective Glass 1 * Hardware Installation Manual 4 * M5 Nut(For frame fixed) 2 * M3x12 Screw(For frame fixed) 2 * M3 Nut(For laser fixed) 2 * Wood Block 2 * Paper
