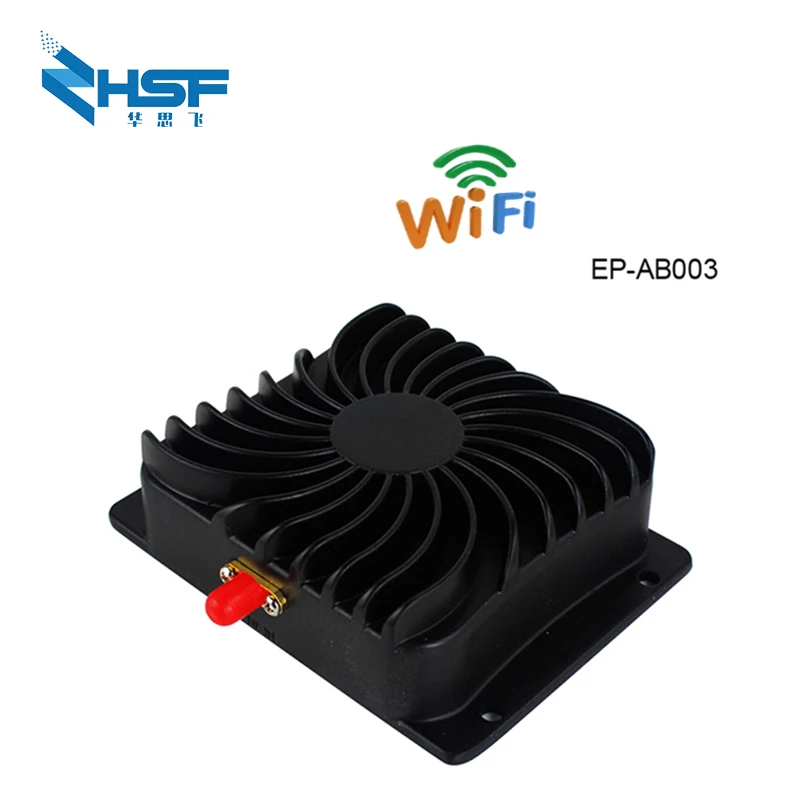

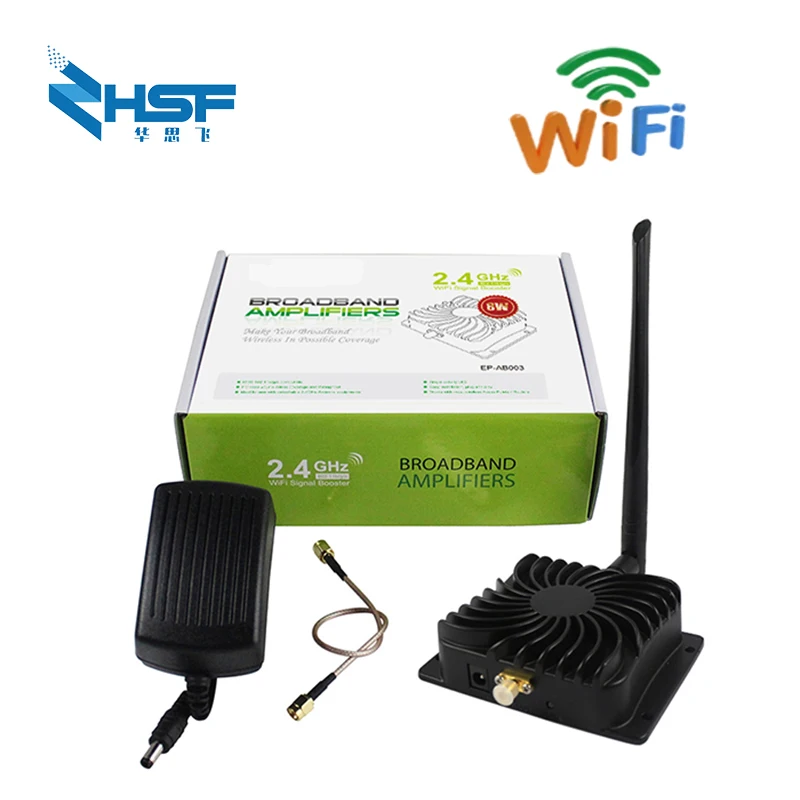

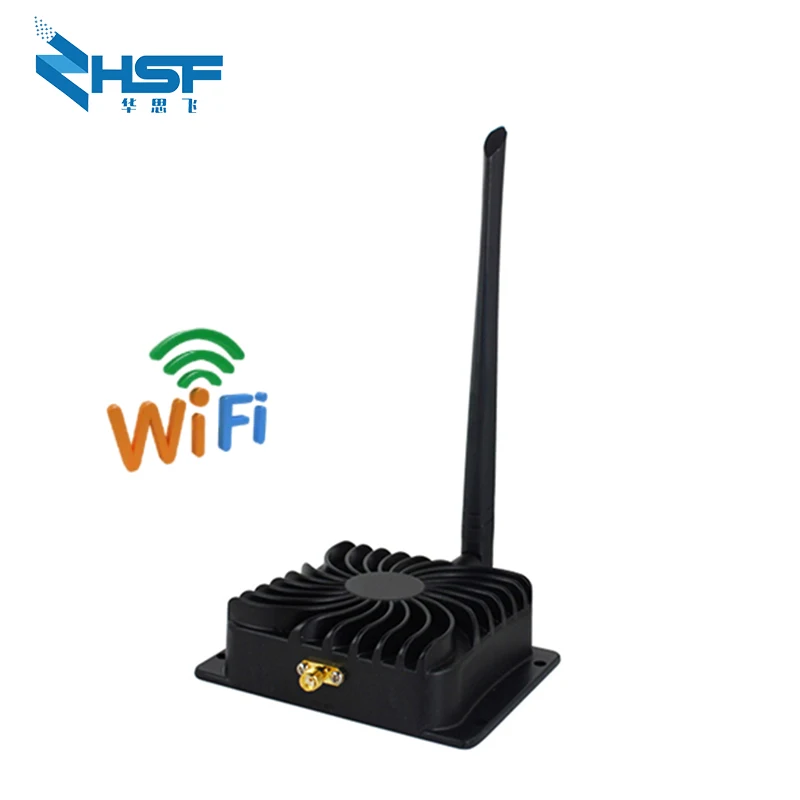

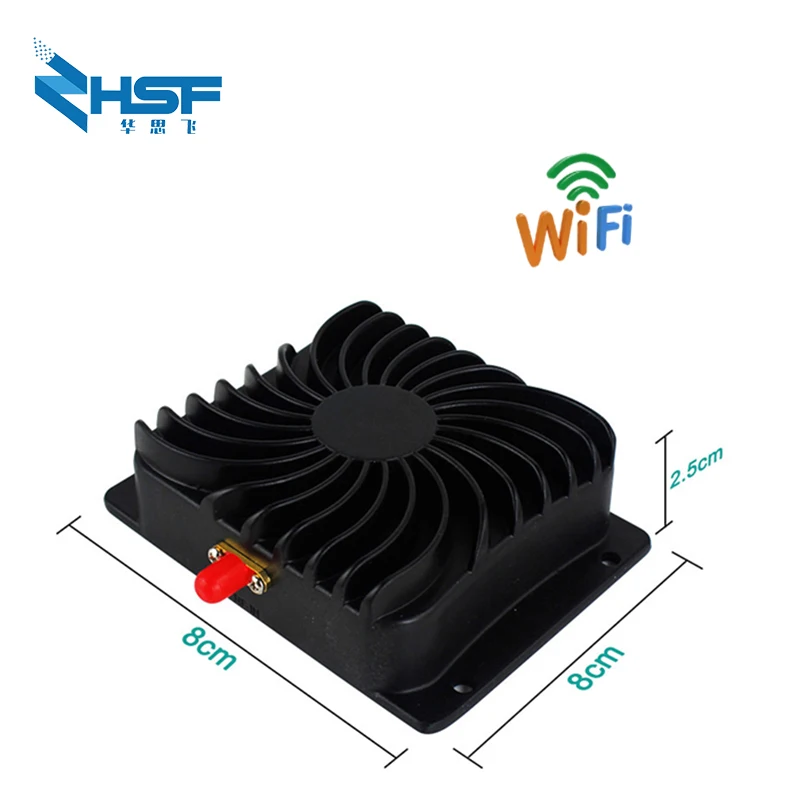

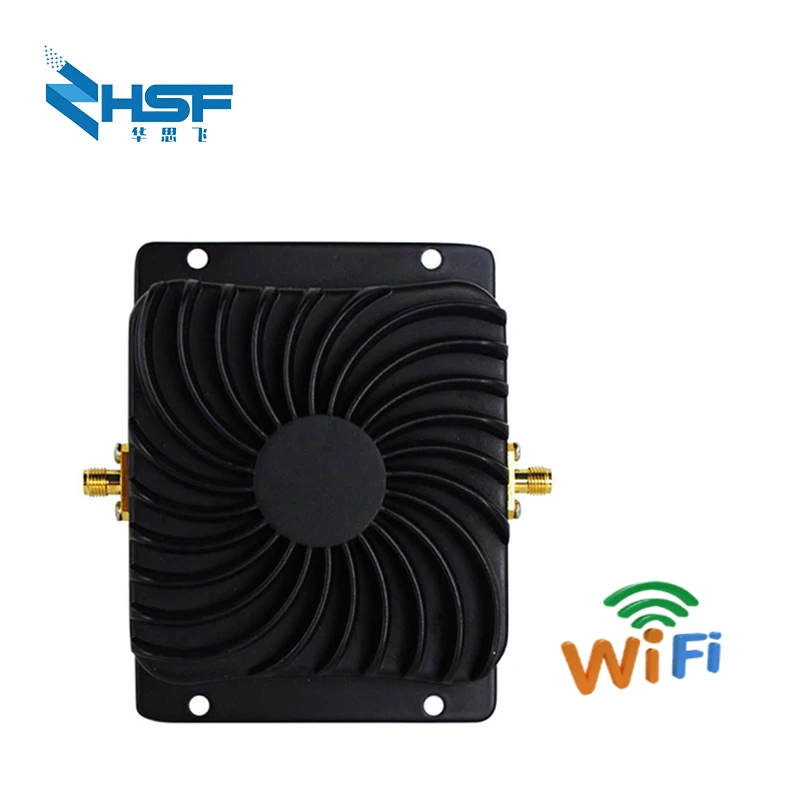

8W wireless WIFI signal booster broadband amplifier

product description 1. Brand new and high quality. 2. Low noise receiving gain. 3. Signal activity indicator. 4. High gain, high value, high performance. 5. The maximum output power of Booster is 8000mW. 6. Plug and play, easy to install, no driver required. 7. It is an ideal choice for adding 2400-2500 MHz frequency equipment. 8. Increase the effective range and coverage of the Wi-Fi network. 9. Just install the booster between the standard antennas on the wireless router or wireless access point to observe the expansion of the range. 10. The amplified wireless signal may even penetrate complex environments with many walls and obstacles. 11. Very suitable for use with 2.4GHz wireless LAN, supporting 802.11b, 802.11g, 802.11n (only 2.4Ghz mode).

Wireless Wifi signal booster broadband amplifier function:

1. It is recommended that the input power of the RFIN port be between 7dBm and 15dBm. 2. Before removing or replacing the antenna, make sure to disconnect all power to the booster and AP / router unit. 3. After completing the connection between the booster and the AP / router, please restore the power of the booster before returning to the AP / router. 4. Outdoor antenna should be installed with waterproof and lightning protection equipment. 5. Keep away from heat sources and maintain ventilation. 6. Please observe the local electromagnetic radiation regulations. Note: This project needs to be connected with the access point router before it can work, and does not include the access point router.

Operation Range: 2400-2500 MHz. Operation Mode: Bi-directional, half-duplex, Auto-Switching via carrier sensing. Frequency Response: ± 1dB over operation range. Input Power: 3dBm (Min.)-20dBm (Max.). Input Power 5 ~ 20 dBm. Optimal Input Power 9 ~ 15 dBm. Output Power: 8000mW/39dBm nominal for 802.11b/11Mbps. Connector: SMA Receptacle, 50ohm. Transmit Gain: 17dBm nominal. Receiver Gain: 11dBm. Receive Noise Figure: 3.0dBm nominal. Operating Temperature: -40 to 70 degree. Operating Humidity: Up to 95% relative humidity. Material: Cast Aluminum
