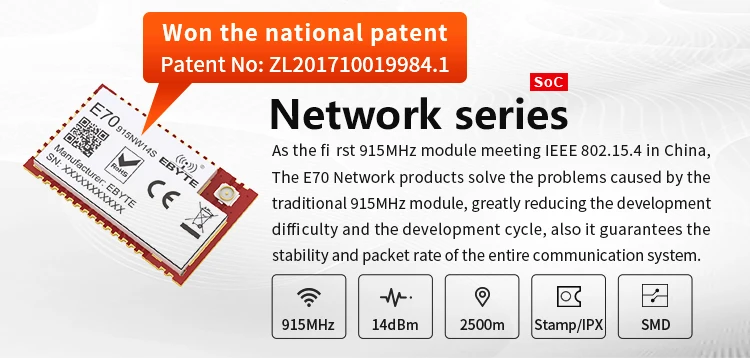

E70-915NW14S 915MHz Module IoT UART SMD Star Network SoC 14dBm IPEX Stamp Hole uhf Wireless Transceiver Transmitter and Receiver | Мобильные

RF Parameter

Value

Remark

Working frequency

915 MHz

-

Transmitting power

14 dBm

-

Receiving sensitivity

-110 dBm

-

Reference distance(PCB/IPX)

2500m

-

Hardware Parameter

Value

Remark

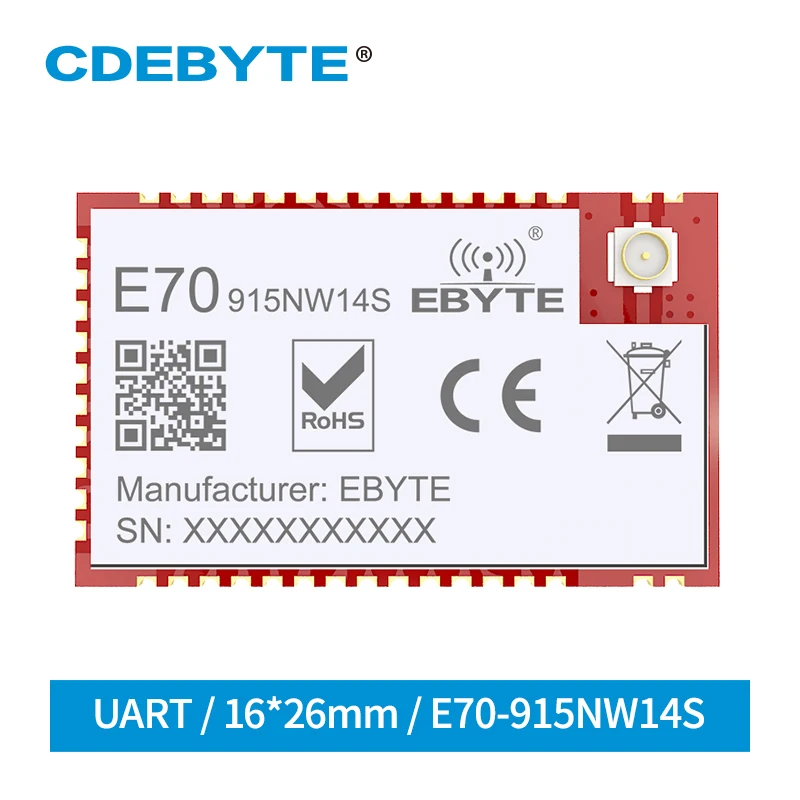

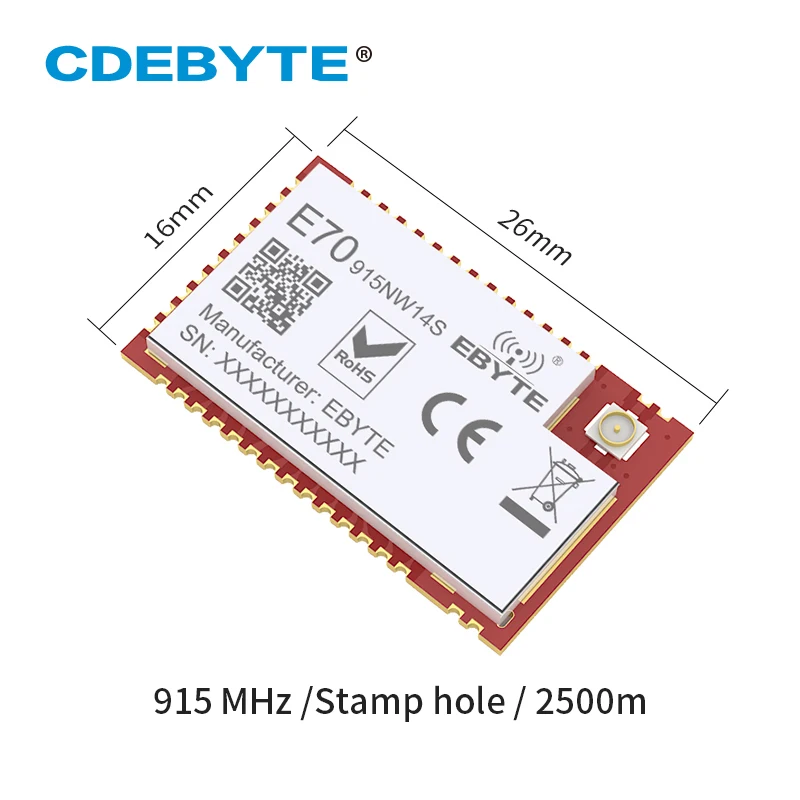

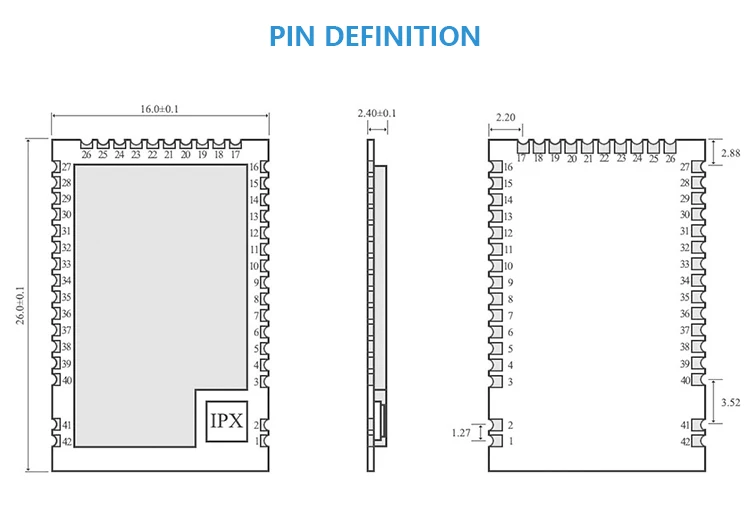

Size

16 * 26 mm

-

Net weight

1.65±0.1g

-

Antenna type

IPEX/Stamp hole

-

Package

SMD

-

Electronic parameter

Min.

Typ.

Max.

Unit

Condition

Transmit current

-

27

-

mA

-

Receiving current

7

8

10

mA

-

Sleep current

0.5

1

2

µA

-

Supply voltage

2.2

3.3

3.8

V DC

-

Communication level

2.5

3.3

3.6

V DC

-

Transmit power

13

14

15

dBm

-

Receiving sensitivity

-109

-110

-111

dBm

-

Coverage

1200

1500

1800

m

-
