2X Jura Capresso SS316Repair Security Tool Key Open Oval Head Screws Special Bit Removal Service for coffee machine | Обустройство

Характеристики

Note  1. Shipping costs shown include fuel surcharges. But Import duties, taxes and other customsrelated charges are not included. Buyers bear all responsibility for all extra charges incurred (if any).Shipment to United States,United Kingdom,South Korea,Japan,Australia,Singapore will  NO EXTRA CHARGES
              2. The picture is only for reference,the price is 2 Pieces

Characteristic

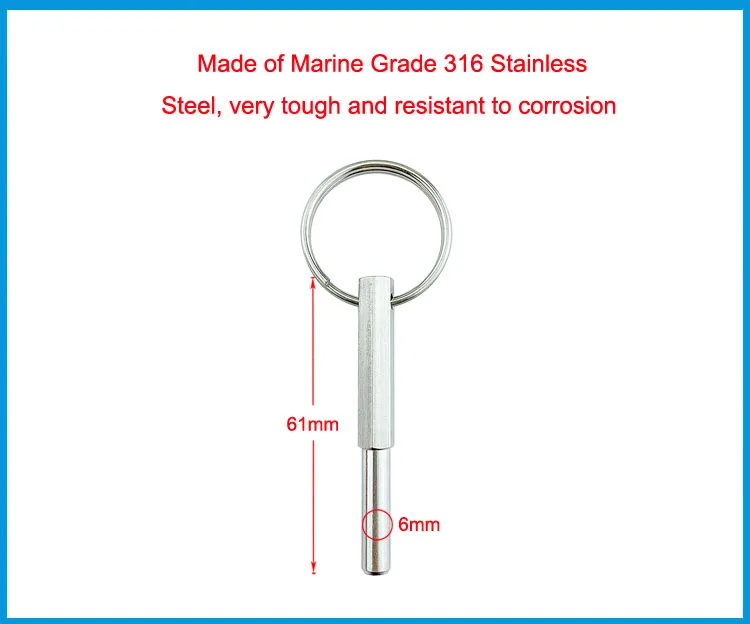

Made of Marine Grade 316 Stainless Steel, very tough and resistant to corrosion

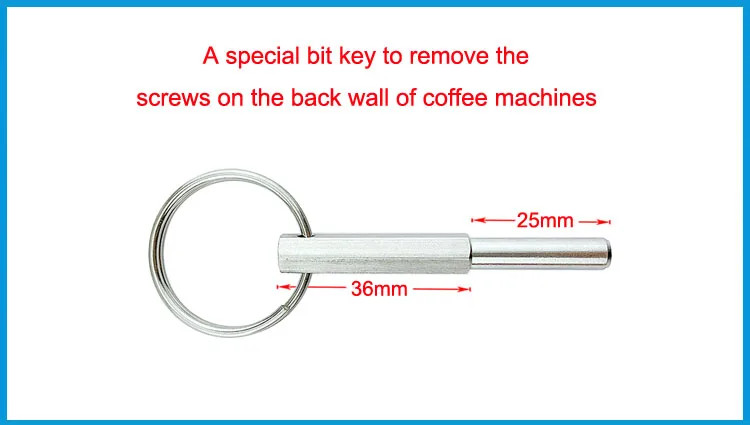

A special bit key to remove the screws on the back wall of coffee machines

Extra long (2.4 inch)

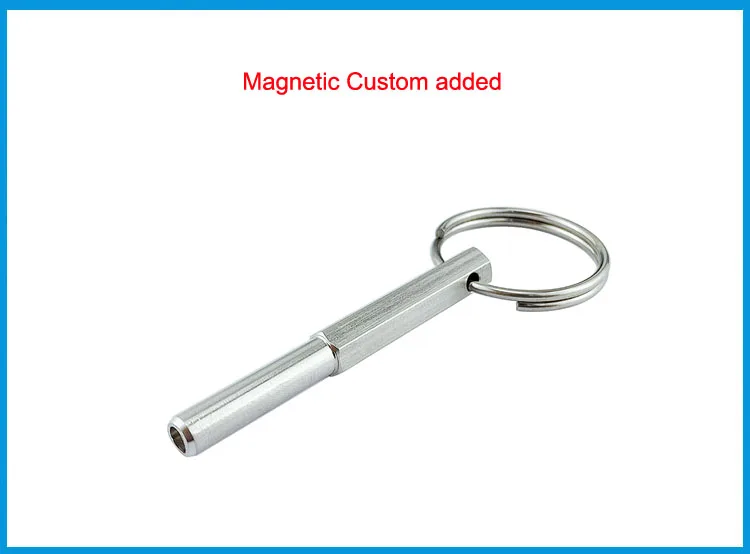

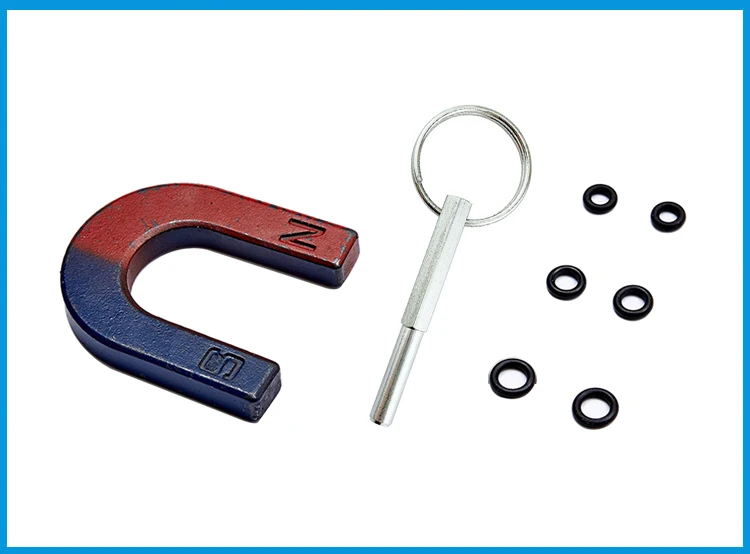

Magnetic (custom added

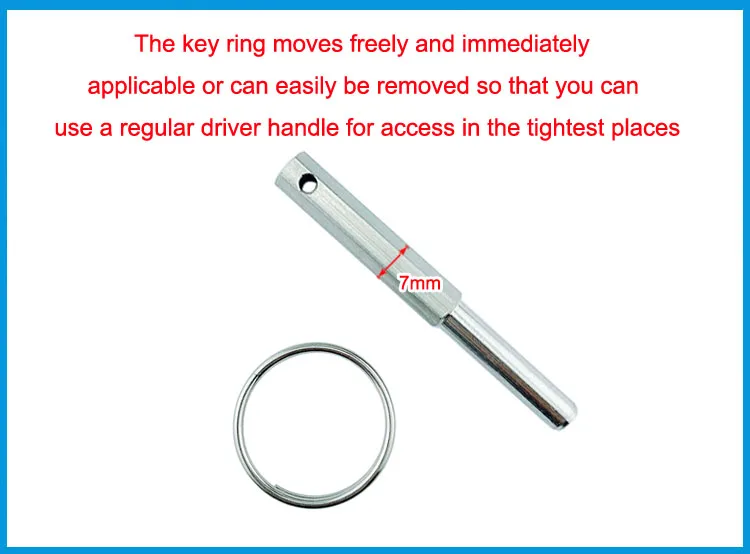

The key ring moves freely and immediately applicable or can easily be removed so that you can use a regular driver handle for access in the

tightest places.

Traditionally the screws are obvious and appear as black "rivets". However, on many of the more recent models Jura has hidden the screws

which makes it less obvious how to disassemble the machines. You may find this additional info helpful:

J-series, Z-series, and X5: There are two hidden security screws behind the Jura logo in the back. Turn the logo an eight of a turn clockwise (Z-series/X5) or counter-clockwise (J-series) to release it and you will find the screws.


ENA-series: These machines are secured with a locking mechanism. There is a security screw behind the Jura logo in the back. Turn the logo to counter-clockwise release it and you will find the screw. Remove the screw and then push the gray plate upwards to release the locking mechanism in the back. Likewise, there's another oval head screw in the front that will be visible when you pull out the tray. The locking mechanism in the front needs to be pulled down (in contrast to the one in the rear that moves upwards)

Fit for Jura, Capresso, Krups, Franke, AEG ,Orchestro, Siciliana, Toscana, and all Nespresso machines


The bit will fit the proprietary oval head security screws in the following machines:


Jura-Capresso: A1, A5, A7, A9, C5, C50, C55, C65, C70, C75, C9, C90, D6, E5, E8, E9, E10, E25, E30, E40, E45, E50, E55, E6, E60, E65, E70, E74, E75, E80, E85, ENA3, ENA4, ENA5, ENA7, ENA9, ENA Micro 1, ENA Micro 5, ENA Micro 8, ENA Micro 9, ENA Micro 90, ENA Micro Easy, F5, F50, F60, F70, F90, F7, F9, F900, Giga 5, Giga X3, Giga X7, Giga X8, Giga X9, XF50, XF70, S50, S55, S70, S75, S85, S90, S95, S7, S8, S9, J5, J6, J9, Z5*, Z6*, Z7*, Z8*, Z9*, X5*, X6*, X7, X9, X30, X70, X90, X95, Ultra, Cappuccinatore, M30, Scala, Scala Vario, Evolution, 201, 300, 401, 500, 601, 801, 2000, 3000, 4000, 5000, 6000


Capresso: C1000, C1300, C1500, C2000, C3000


AEG Cafamosa: CF 80, CF 81, CF 85, CF 90, CF95, CF 100, CF 120, CF 200, CF 300, CF 400, CF 500


Krups: Orchestro, Siciliana, Toscana, and all Nespresso machines.


Franke: Saphira


In short, it will fit all Jura-machines. We don't know of any Jura machine that it does not fit. As for other brands, please check list above or contact us.


Please beware that the tool does not fit the 5.8x4.8mm oval head bolts found in Krups drip coffee makers
