Характеристики

1pcs adjustable buck regulator module & 1pcs DC-DC Step Up Boost Module:Size:43 x 21mm & 43 x 20 x 12mm/1.7 x 0.8 x 0.47 inch(L*W*T), Output Voltage : DC 5-35V & DC 1.25V to 35V voltage continuously adjustable, high efficiency (maximum 92%) Maximum output current of 3A.Input Voltage : DC 3-32V & DC 3.2V to 46V (input voltage must be higher than the output voltage of 1.5V or more. Can not boost)

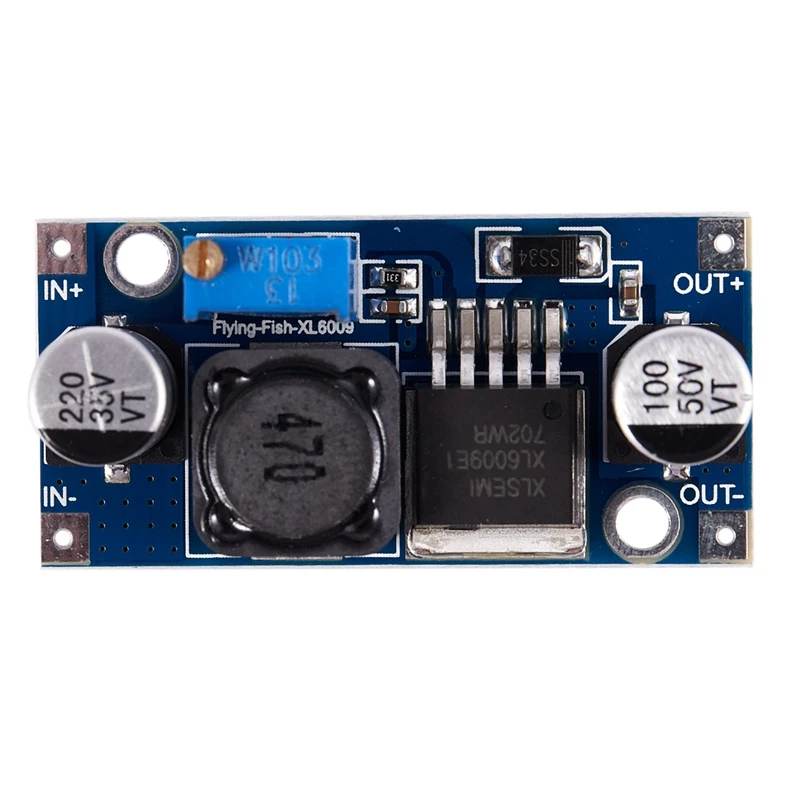

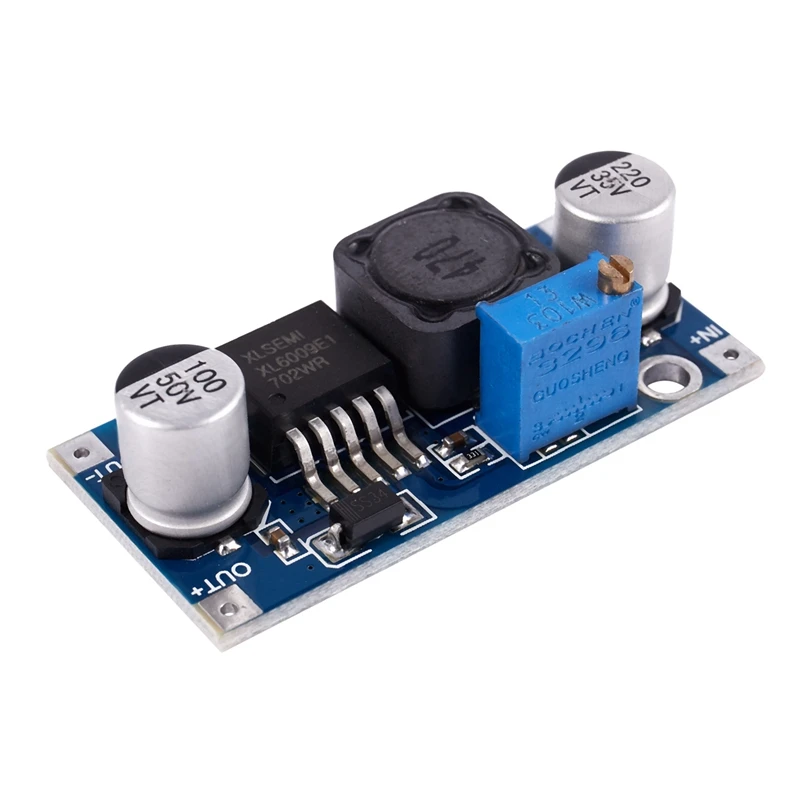

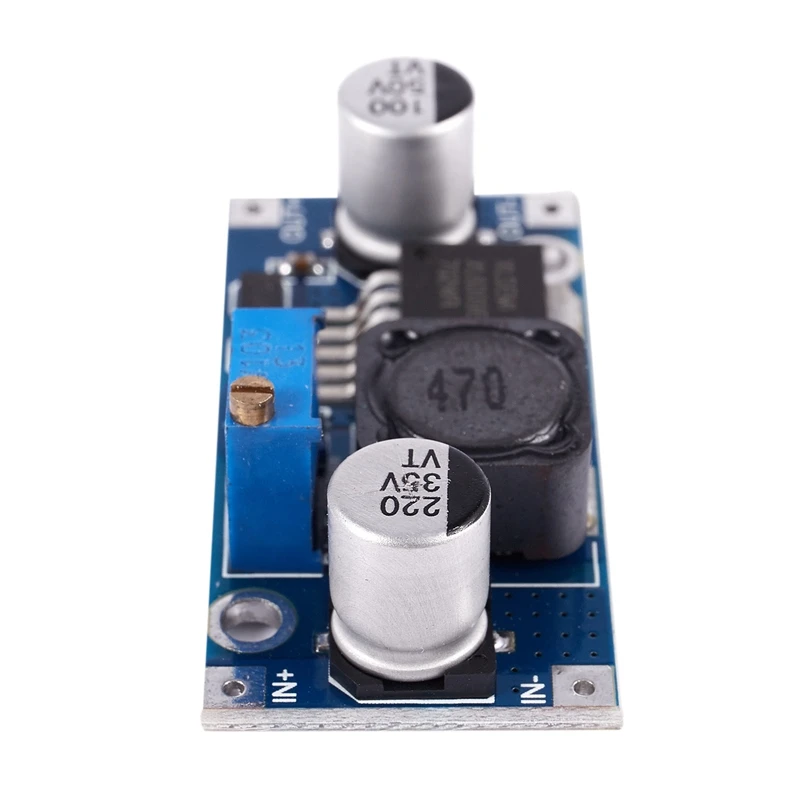

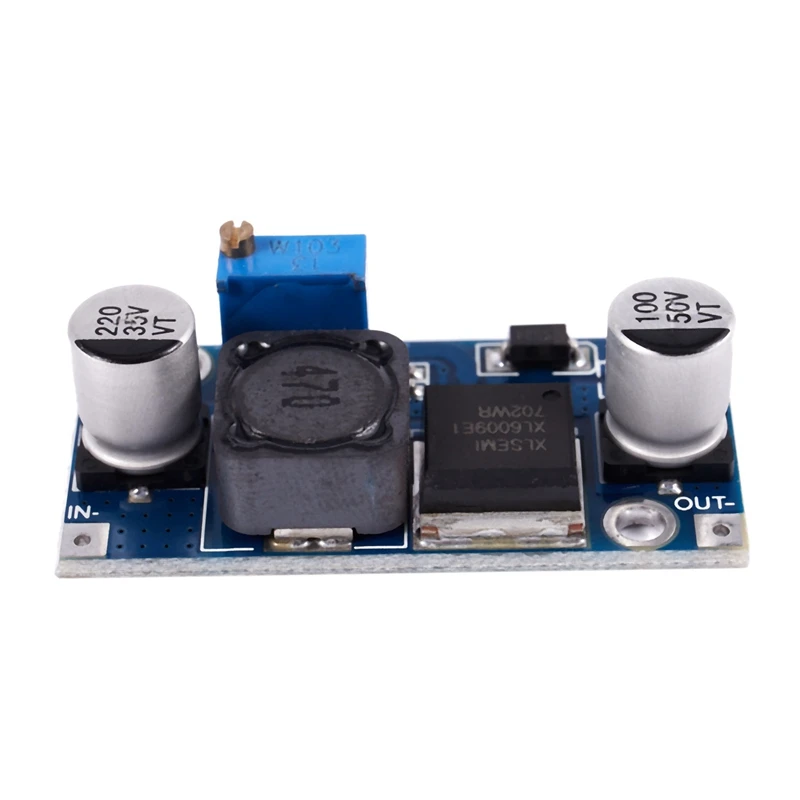

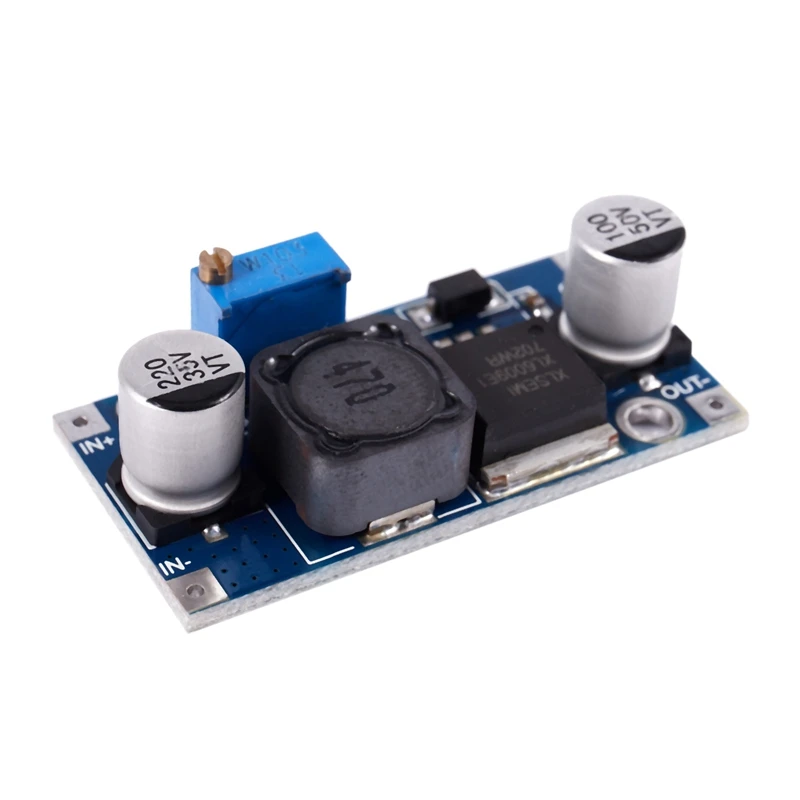

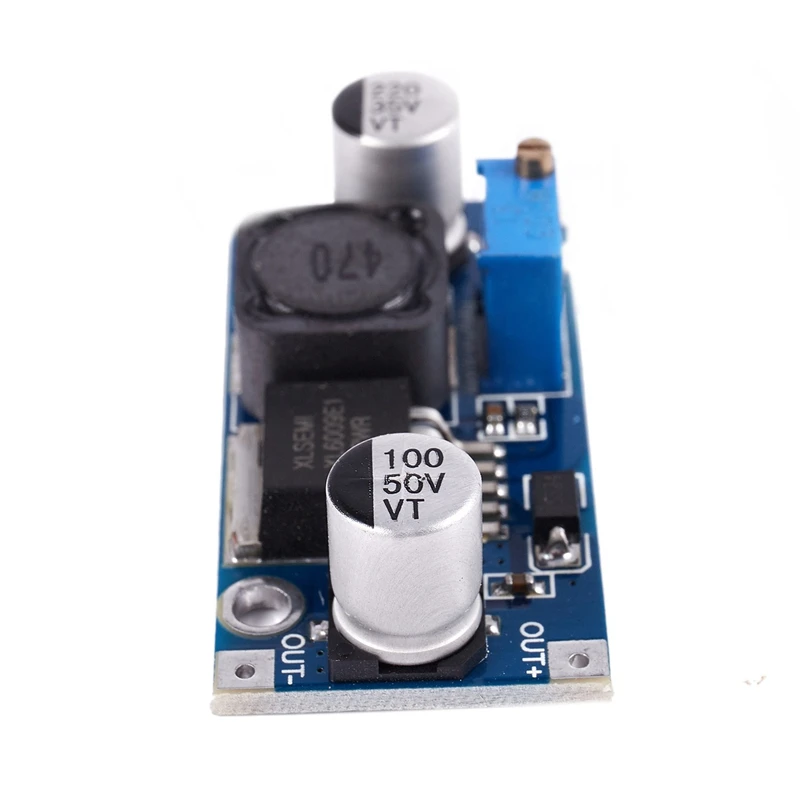

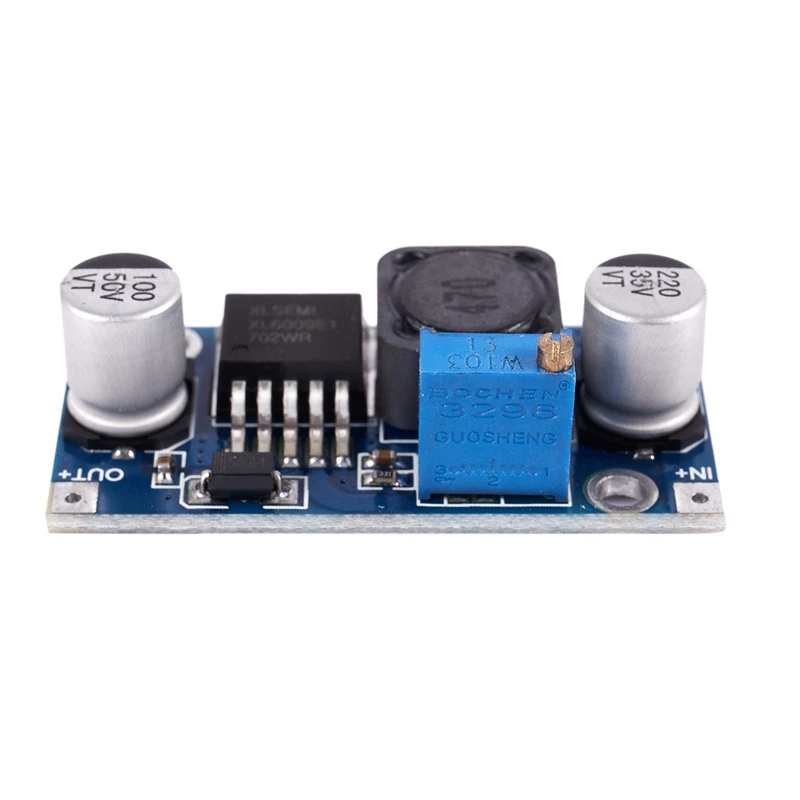

Product Name : DC-DC Step Up Boost Module
Model : XL6009
Input Voltage : DC 3-32V & DC 3.2V to 46V (input voltage must be higher than the output voltage of 1.5V or more. Can not boost)
Input Current : 4A
Output Voltage : DC 5-35V & DC 1.25V to 35V voltage continuously adjustable, high efficiency (maximum 92%) Maximum output current of 3A.

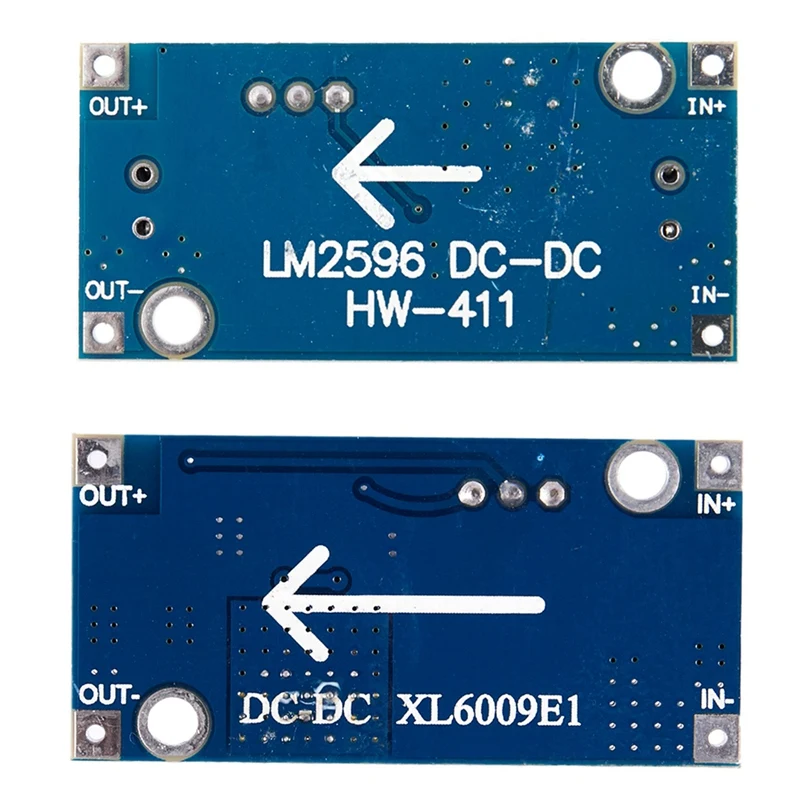

Terminals:IN + input positive IN- input negative
OUT + output positive OUT - output negative
Measured 12V input, 5V output current 1A when the load regulation rate is less than 1%
Note: This is a step-down module, the input voltage must be higher than the output voltage.
Output 2A can be used for a long time without additional heat sink Output current greater than 2.5A (or output power greater than 10W) Long time work Please add heat sink.
Color:Blue
Material:Metal
Size:43 x 21mm & 43 x 20 x 12mm/1.7 x 0.8 x 0.47 inch(L*W*T)
Package Contents:

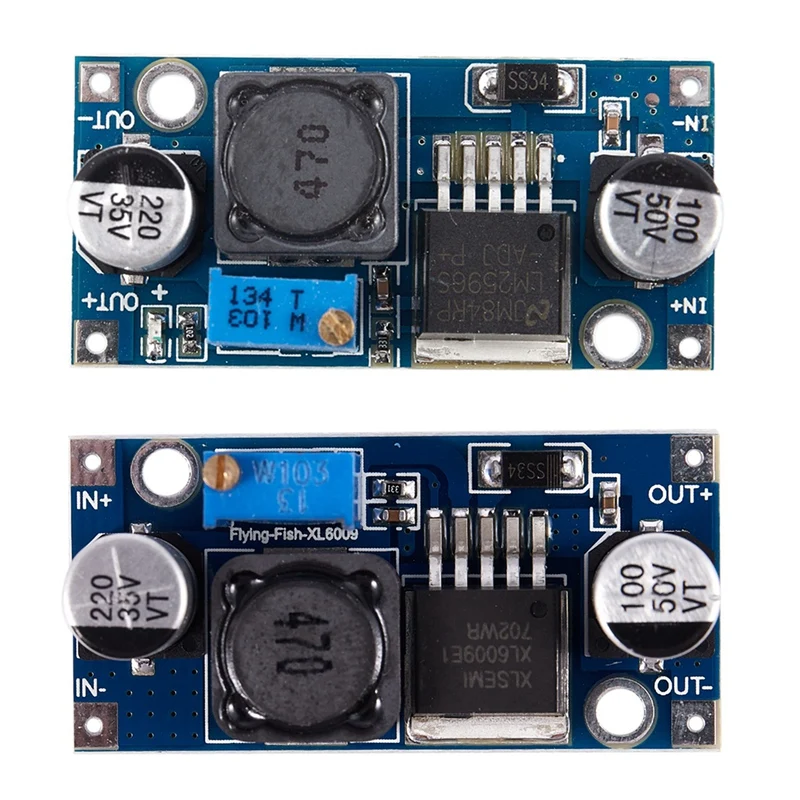

1 * adjustable buck regulator module
1 * DC-DC Step Up Boost Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
