R134A Compressor Oil Dye Ejector 1/4 inch SAE Male and Female Double-Head Refrigeration Air Conditioning Filling Cylinder R | Автомобили и

Характеристики

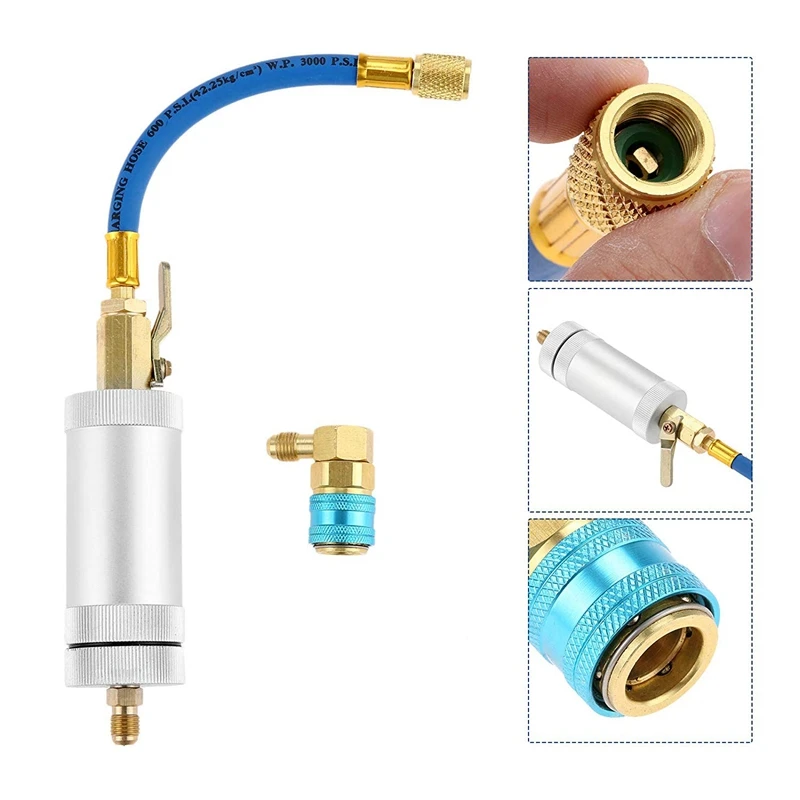

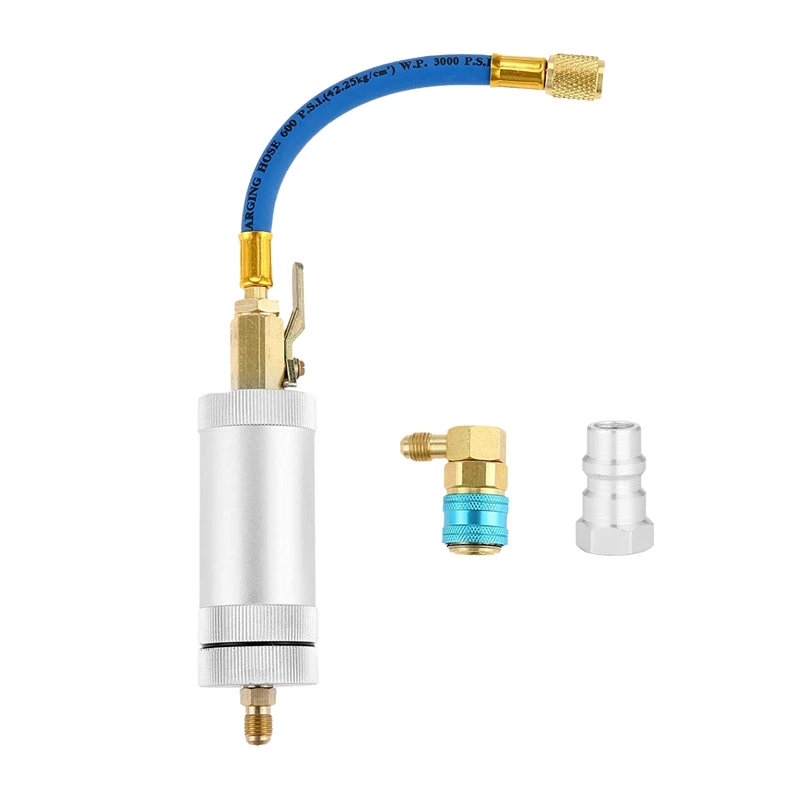

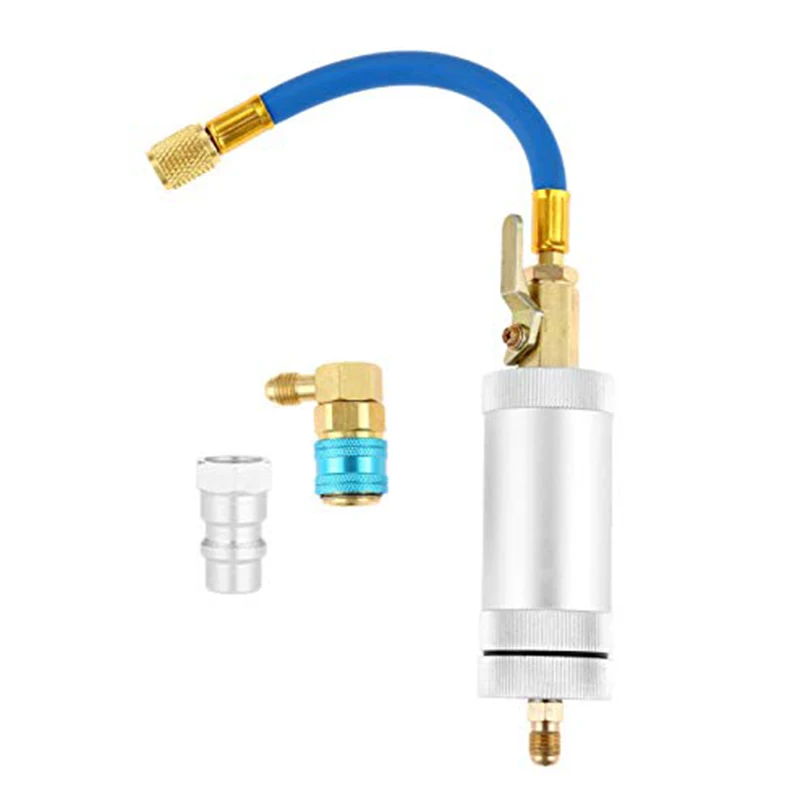

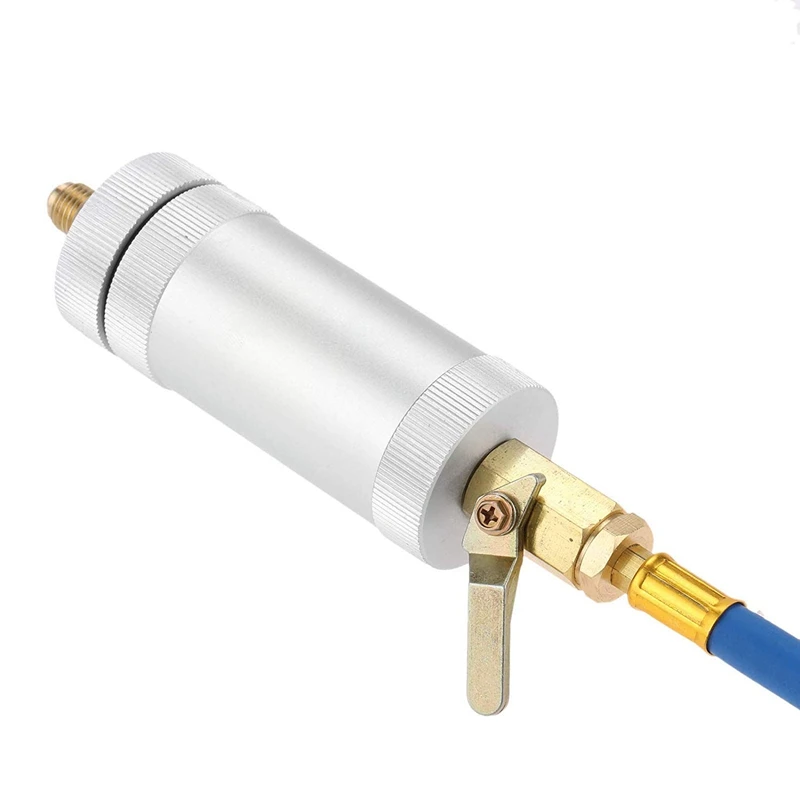

R134A Compressor Oil Dye Ejector, 1/4 inch SAE Male and Female Double-Head Refrigeration Air Conditioning Oil Filling Cylinder R

Product Description

WIDE COMPATIBILITY - Suitable for filling up the automobile air conditioning refrigeration system of R134A, R12, R22. Low Pressure coupler (inner diameter 13mm) to 1/4inch SAE male and 8v1 female thread work on car AC systems and all home office AC.
LARGE CAPACITY - 2oz refillable oil injector 60ml capacity aluminum canister body, get the oil or fluorescent dye into the system, once shot may cure and save a sickened compressor caused by low oil.
PREMIUM QUALITY - A professional field service tool with aluminum alloy body, and brass connector on a piece of high-pressure hose 1/4inch female connector, to ensure durable ans long lasting to use.
EAST TO INSTALL - Connects between charging hose and vehicle service port to add oil, adding refrigerant oil or leak-detection dye into system during vacuum evacuation or refrigerant charging process. There is an installation instruction in the description

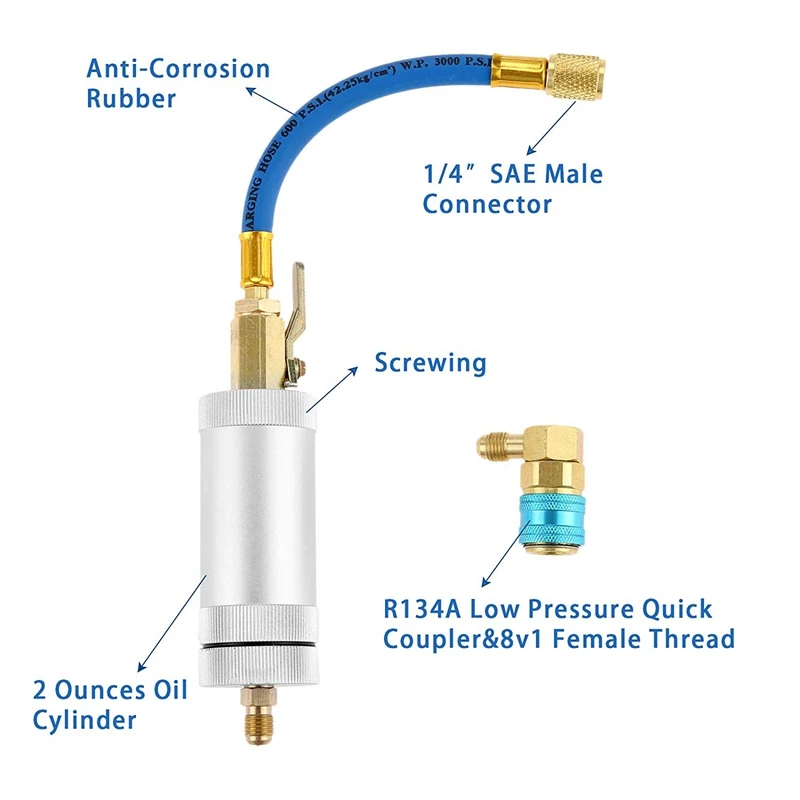

Specifications:
Tank Capacity: 2 OZ
Connections: 1/4''SAE Male and Female.

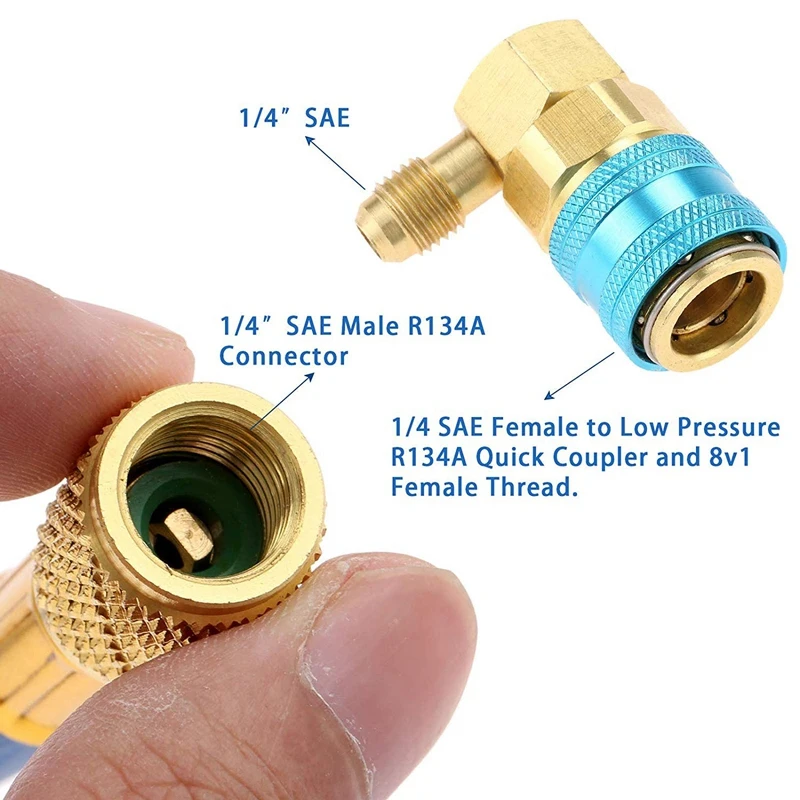

Coupler Adapter #1: Low Pressure coupler (inner diameter 13mm) to 1/4inch SAE Male.

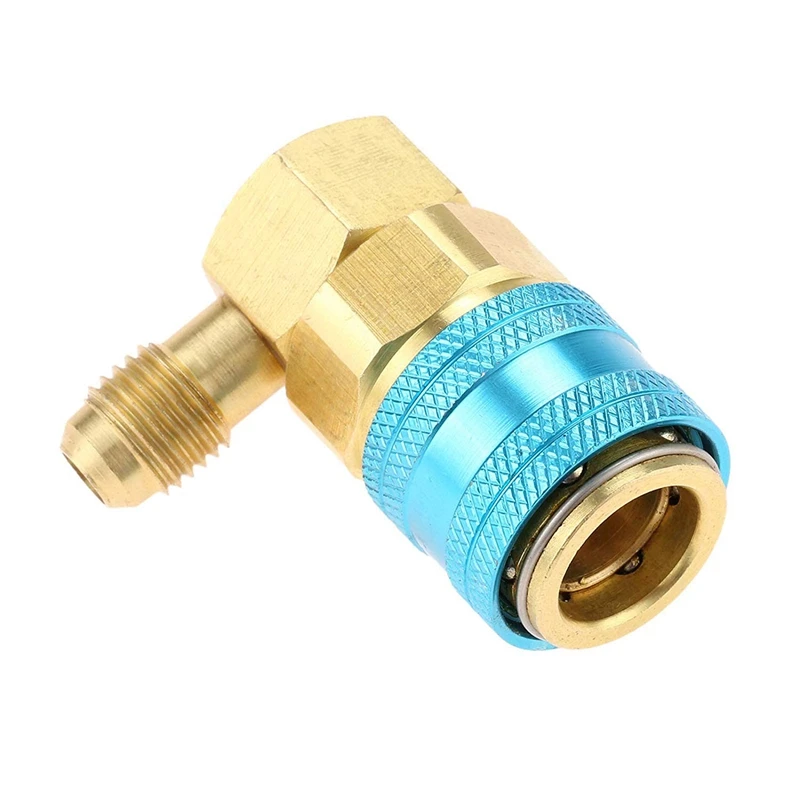

Coupler Adapter #2: 1/4 SAE Female to Low Pressure R134A Quick Coupler and 8v1 Female Thread.
Rated working pressure: 3000 psi burst / 600 psi Max. working pressure.
Ball Valve included.
Installation Instruction:
This injector can be used to add most A/C additive to our system from oil, dye, stop leak, etc.
Before adding any additive to the injector, the shut off valve must be off.
Unscrew the end of the injector.
Put in the desired amount of additive.
Screw the end back on the injector.
Connect R134A R12 F22 coupler to the injector.
Connect other end of the injector to the low side service port on the vehicle.
Open the valve on the injector.
With refrigerant attached, fill to proper pressure.
When finished using the injector tool, clean well by using brake cleaner.
Colour:Silver + blue
Material:metal
Package Contents:
1 x 2OZ A/C Oil Injector R134A R12 R22
Note:A/C must be running with the compressor on before injecting additive or refrigerant.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
