10Pcs USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported Adapter
Introduction of RS485 Ethernet Server
This is a serial RS485 to Ethernet server, used for data transparent transmission. USR-TCP232-304 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS485 and Ethernet. USR-TCP232-304 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.
Features of RS485 Ethernet Server
- Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Support DNS function
- Set parameters through webpage
- Upgrade firmware via network
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
- Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
- Support virtual serial port and provide corresponding software USR-VCOM
- Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
- User-defined registration package mechanism, check connection status and use as custom packet header
- Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
- The global unique MAC address bought from IEEE, user can define MAC address
- Restore factory default
- Across the gateway, switches, routers
- Can work in LAN, also can work in the Internet (external network)
- Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
- Support customization
Application Field of RS485 Ethernet Server
- Industrial data transmission, industrial automation
- security and protection monitoring, public security
- Smart home, power control, environmental monitoring, intelligent agriculture
- Door check on work attendance system, POS system, rice selling system
- Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

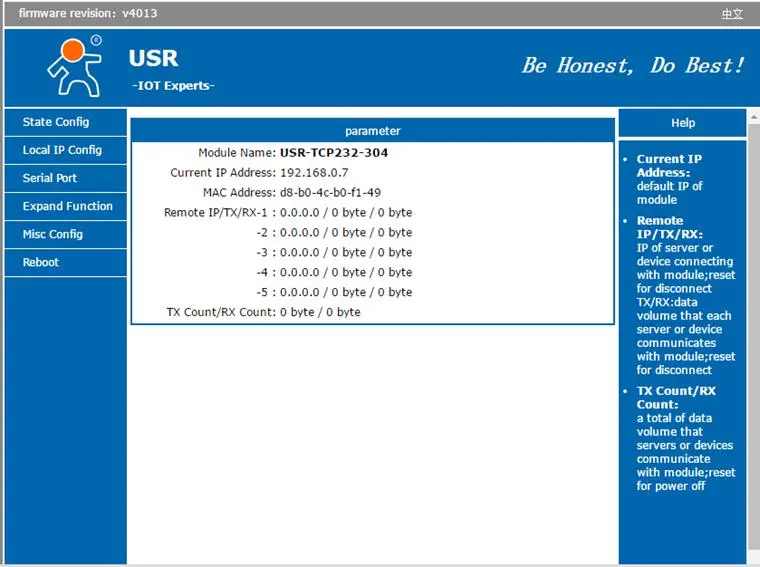

Built-in Webpage of RS485 Ethernet Server

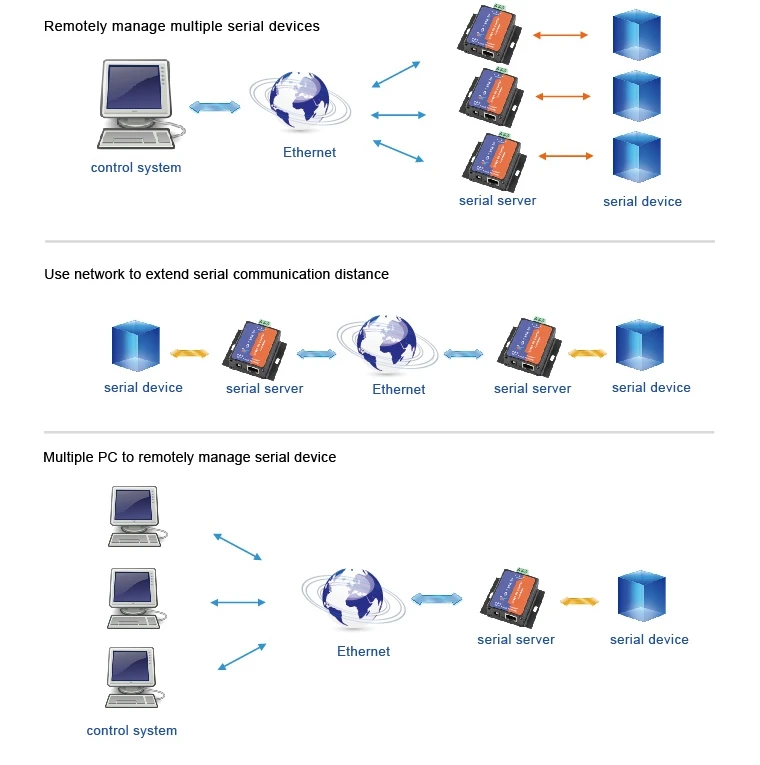

Application of RS485 Ethernet Server

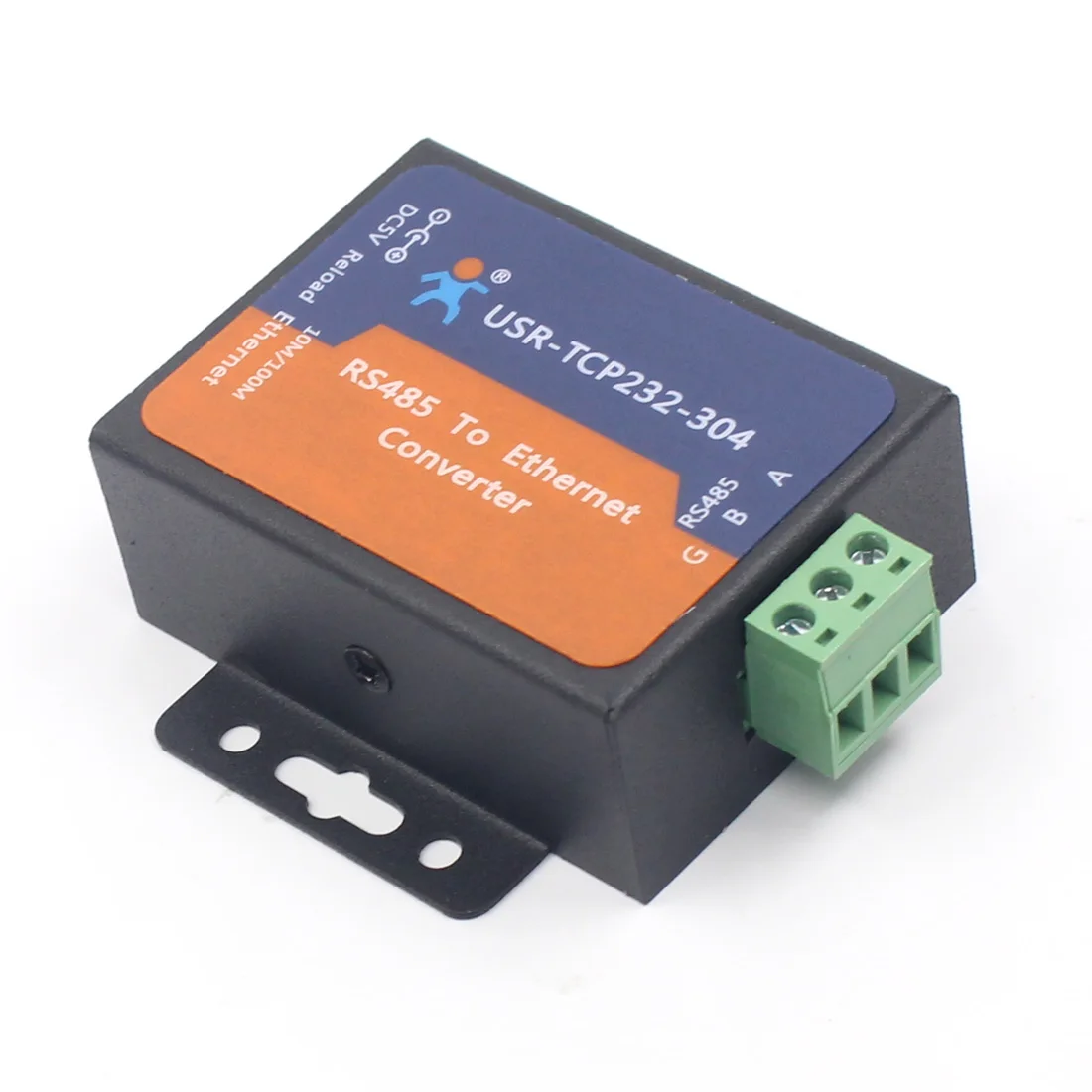

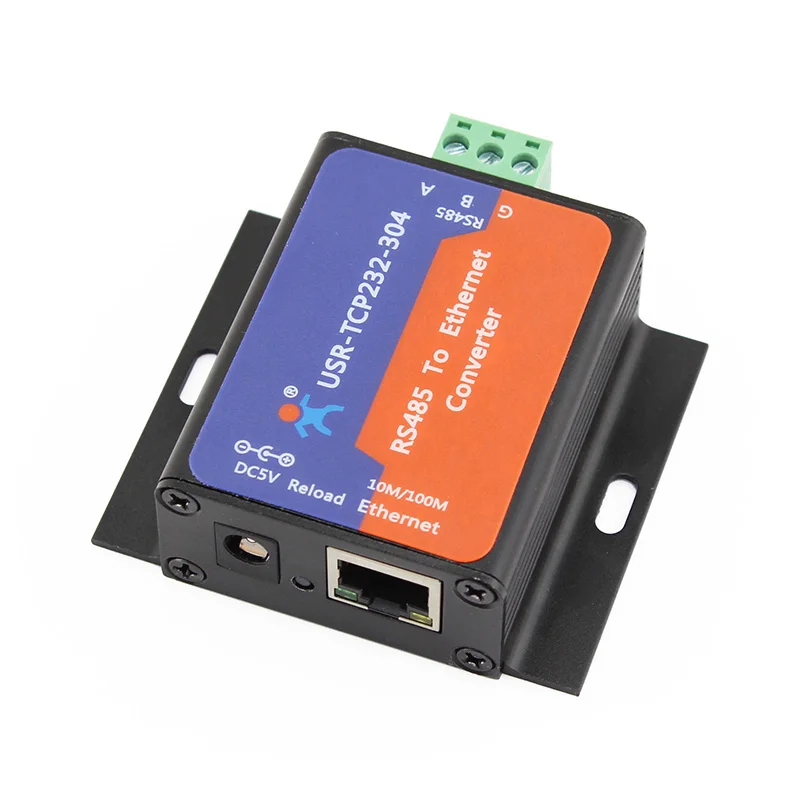

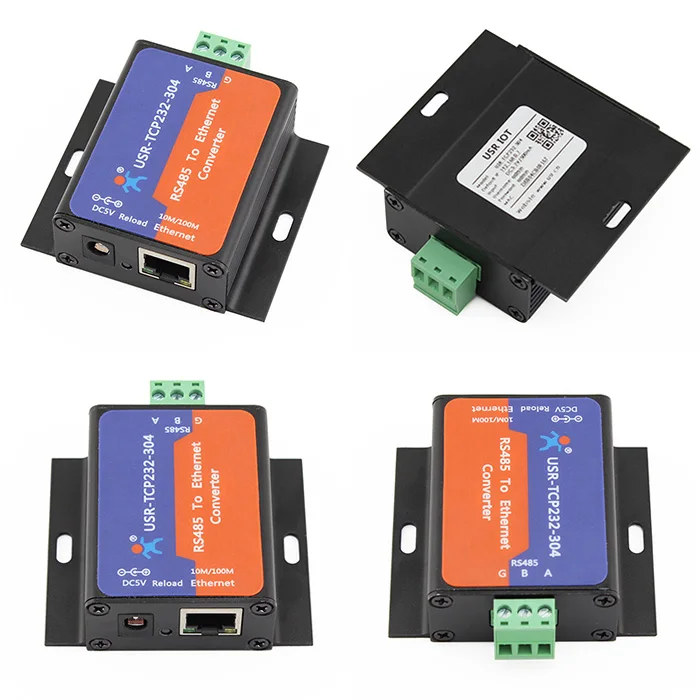

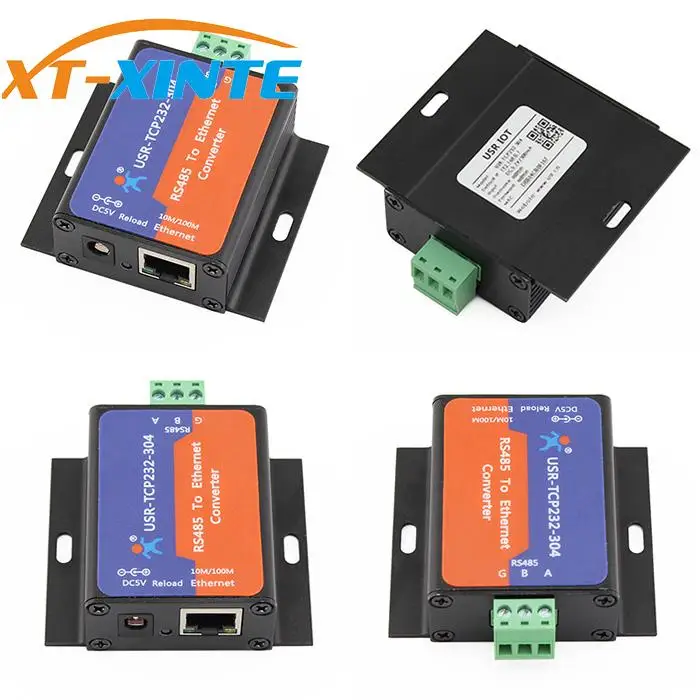

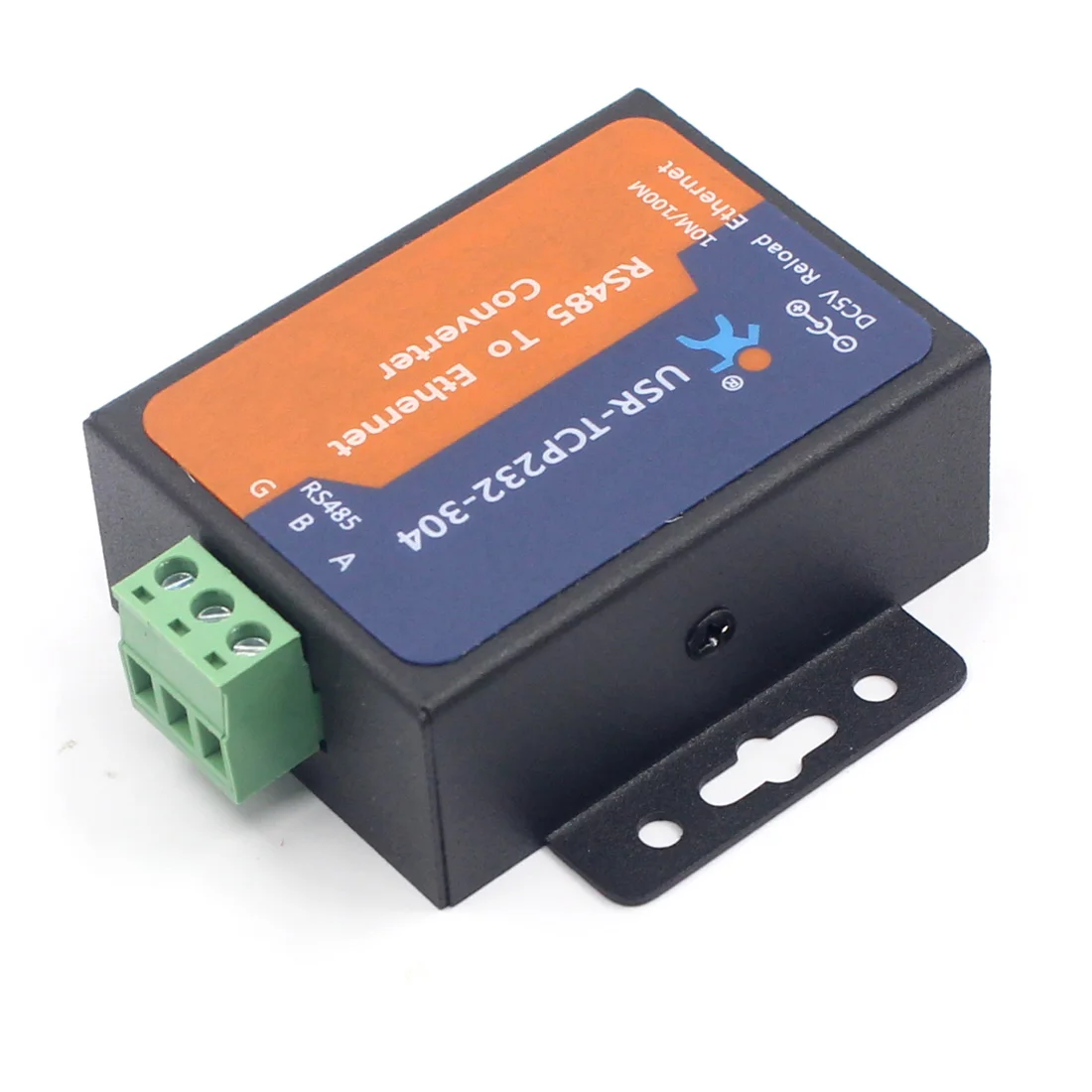

Images of RS485 Ethernet Server
| System Information | |
| Processor | ARM |
| Ethernet | |
| Port Number | 1 |
| Interface Standard | RJ45 |
| Rate | 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection |
| Protection | 2KV electromagnetism isolation, shell insulation blocking |
| Network Protocol | IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP |
| Buffer | Send: 6K bytes, receive: 4K bytes |
| Serial | |
| Port Number | 1 |
| Interface Standard | RS-485: 2 wire (A+, B-) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Check Bit | None, Even, Odd, Space, Mark |
| Baud Rate | 600 bps ~ 230.4 Kbps |
| Flow Control | Null |
| Buffer | Receive: 800 bytes |
| Software | |
| Virtual Serial (USR-VCOM) | Windows 2000 or higher (32 bit/64 bit) |
| Configuration | Computer set-up software, serial command, built-in webpage |
| Basic Parameter | |
| Size | 71 x 60 x 25 mm |
| Operating Temp. | -25 ~ 75°C |
| Storage Temp. | -40 ~ 105°C, 5 ~ 95% RH |
| Input Voltage | DC 4.75 ~ 7V |
| Working Current | 150mA @ 5V |
| Power | <1W |
| More | |
| Warranty | 2 years |

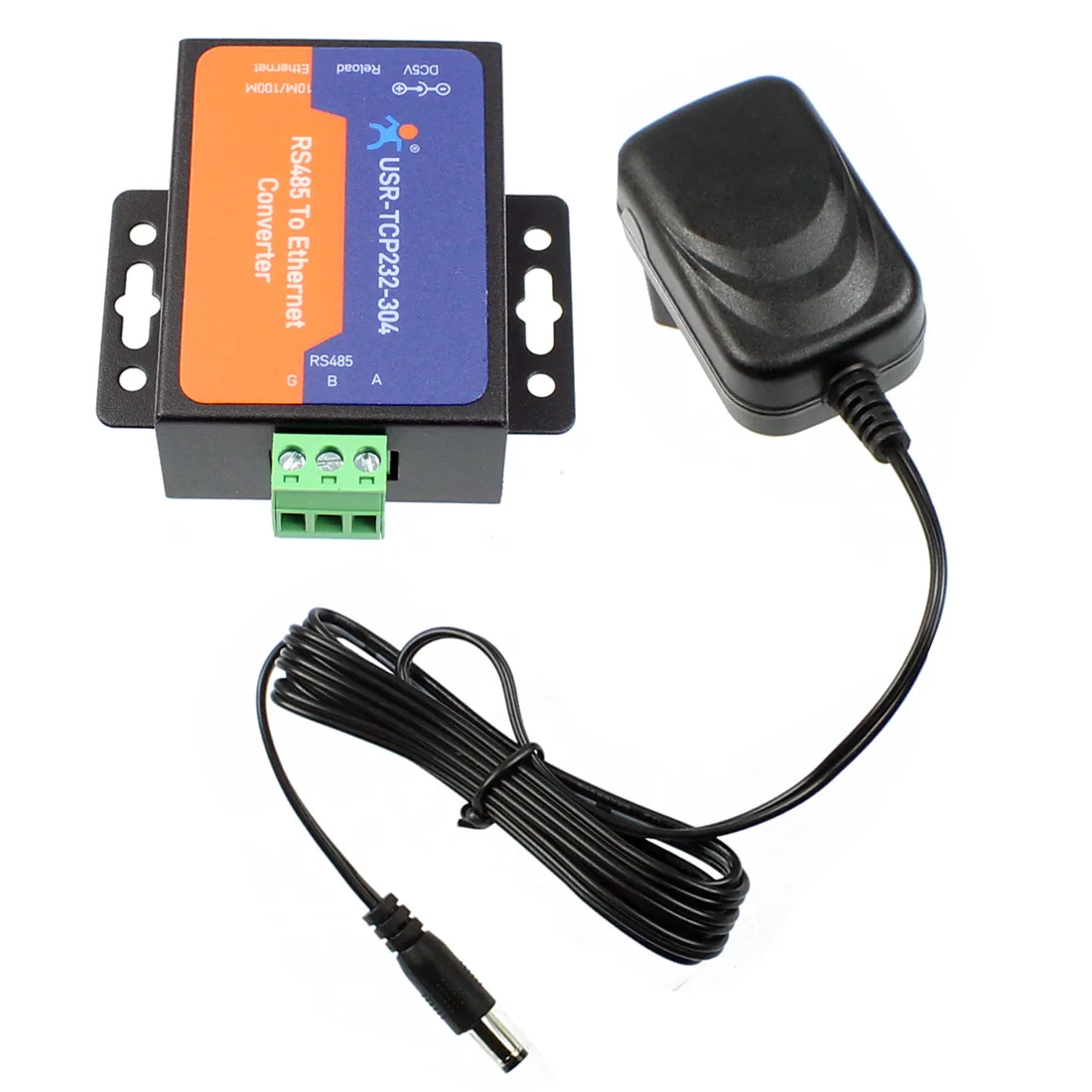

| Accessory | 5V1A power supply |
Quantity: 10 pcs
