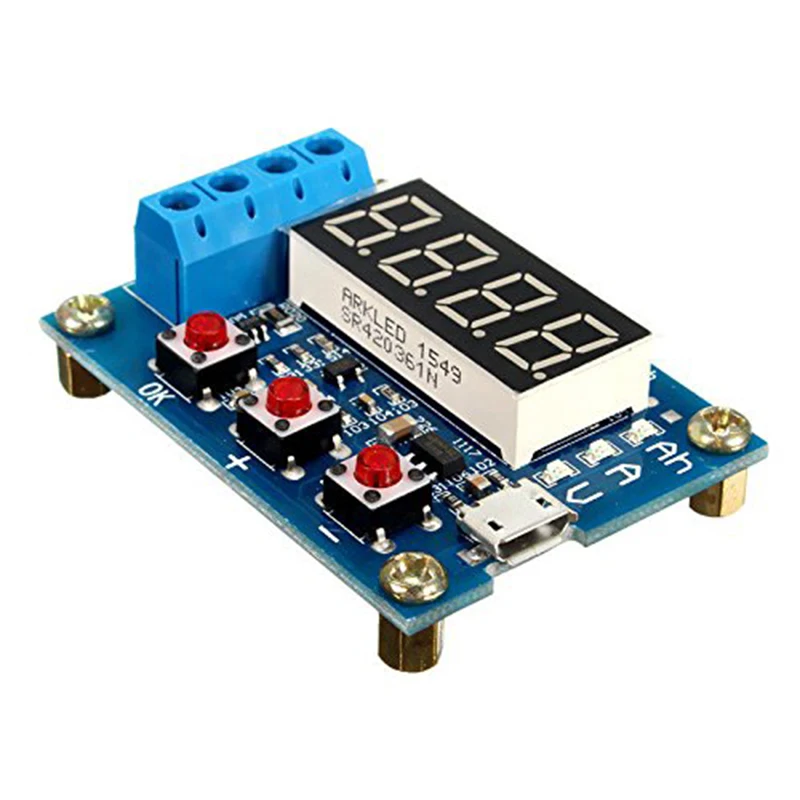

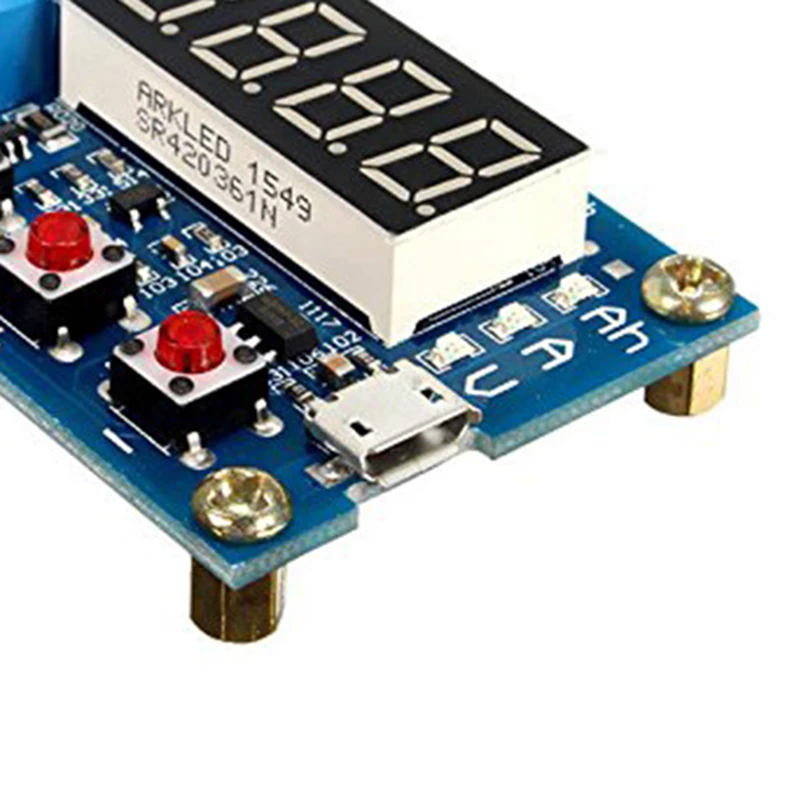

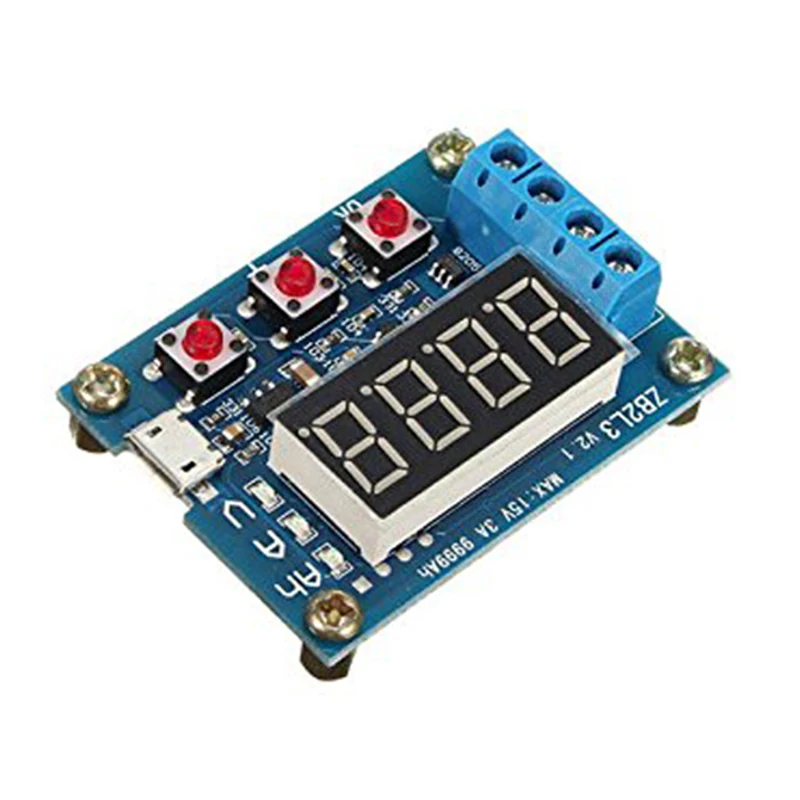

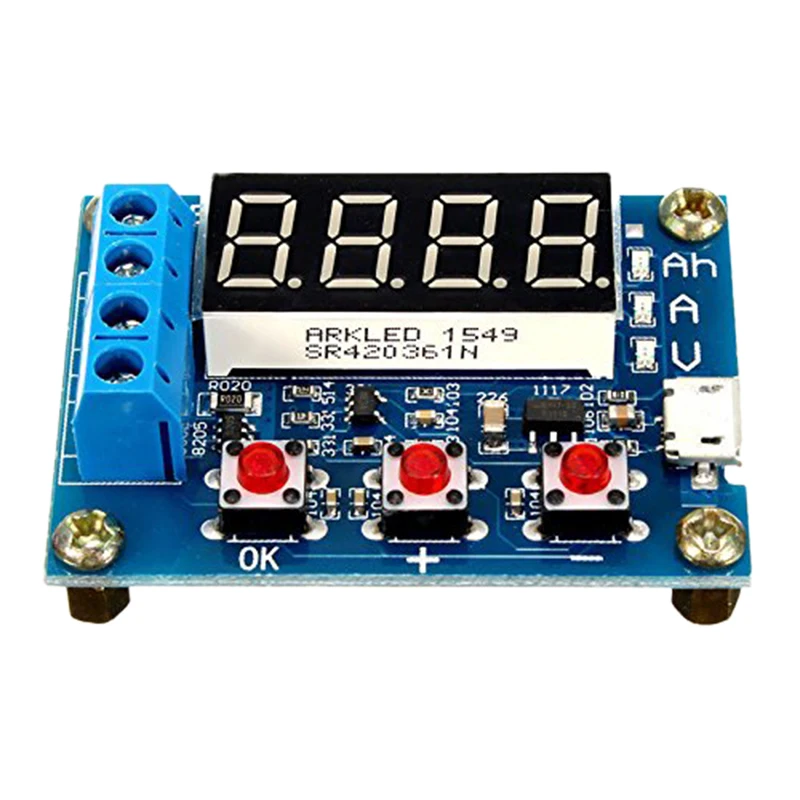

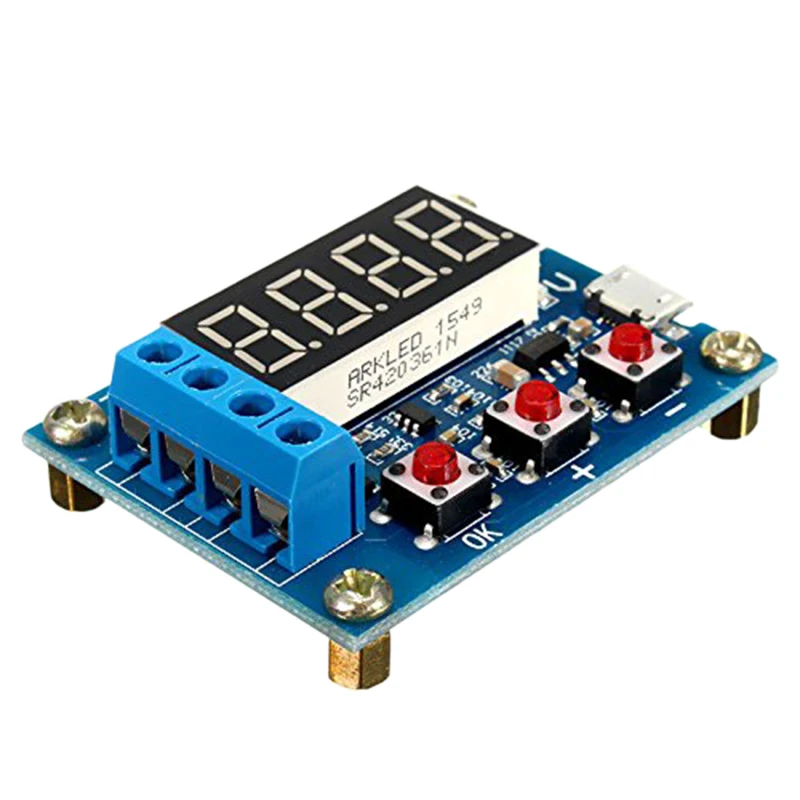

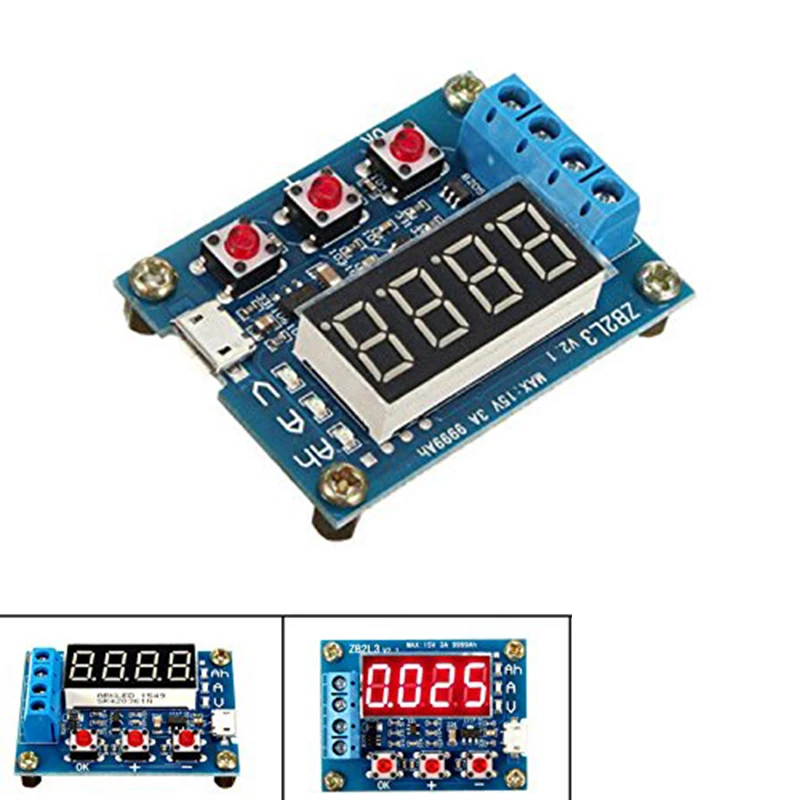

HOT-Battery Capacity T Meter Discharge Tester 18650 Li-ion Lithium Lead-S Hours 1.2-12V - Blue | Электроника

Характеристики

Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch when the display is less than 10Ah X.XXX as shown above to reach 10Ah XX.XX, and so on.
2.Connect the battery to be tested positively to the positive input, a negative input to the negative, can not be reversed (the load can reverse the circuit)! Load connected to the output of the positive and negative output to work through the tester microUSB power adapter (not available desktop or laptop USB-powered), then the battery voltage.
3.Direct start test only needs one press on the "OK" button, the tester can automatically develop a suitable termination voltage of the full charging voltage of the battery and start flashing three times after the test.
Develop artificial termination voltage only when the battery voltage indication state is changed by pressing the "+" or "-" buttons to change the display of the termination voltage beginning with P to the representative voltage resolution of 0.1V after pressing the "OK" start will be set up test.
4.After starting the test, the tester will turn on the load of the electronic switch, the test data will show that the process has released the capacity (Ah), the current discharge current (A) and the battery voltage (V) between the batteries wheel. When the battery voltage reaches the set shutdown voltage, the load controller shuts off the tester display, the data remains in capacity (Ah) and above, and the corresponding indicator flashes rapidly, now indicating the actual capacity of the battery, discharge capacity, approximately "OK" to stop the flashing
Supply voltage: DC4.5-6V (Micro-USB port)
Operating current: less than 70mA
Discharge voltage: 1.00V-15.00V 0.01V resolution
Connection voltage range: 0.5-11.0 V
Supported by current: 3.000A 0.001A resolution
Colour blue
Material: electrical component
Size: 50mmX37mm
Package contents:
1 x battery capacity meter discharge tester
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
