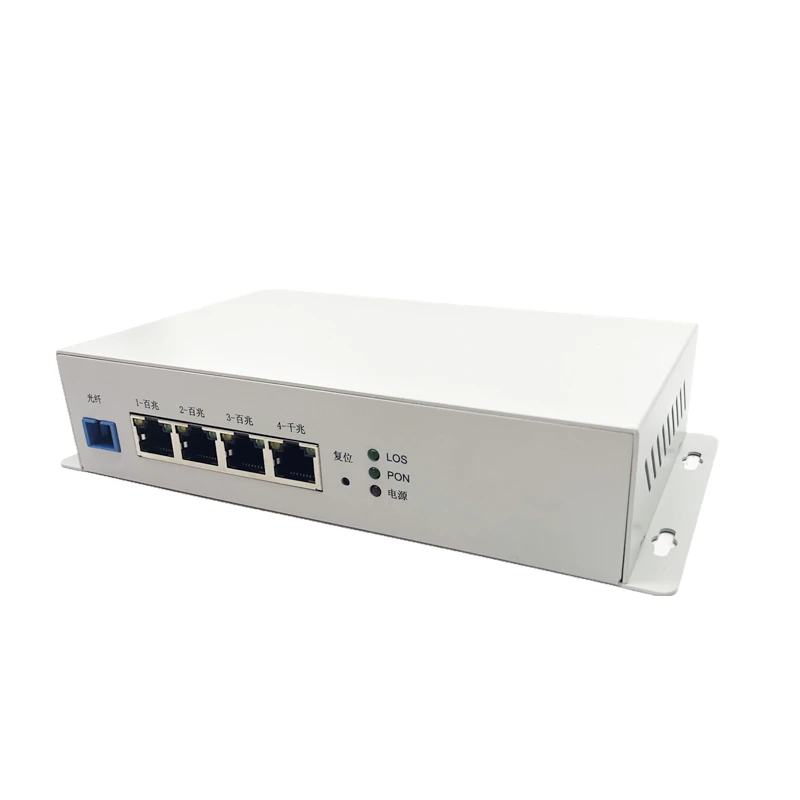

Metal enclosure outdoor industrial grade ONU 1GE+3FE GPON 2.5G with FTTH NETWORK onu wifi modem 10/100/1000M RJ45 FOR OLT | Компьютеры и

Характеристики

GPON=PON(2.5G)+1 RJ45(10/100/1000M)+3 RJ45(10/100M)

Product introduce

GPON type ONU products fully comply with ITU-T G.984 GPON standards and IEEE802.3ah GPON standards. It is operative,
manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink
port that connects to office end apparatus through optical fiber.

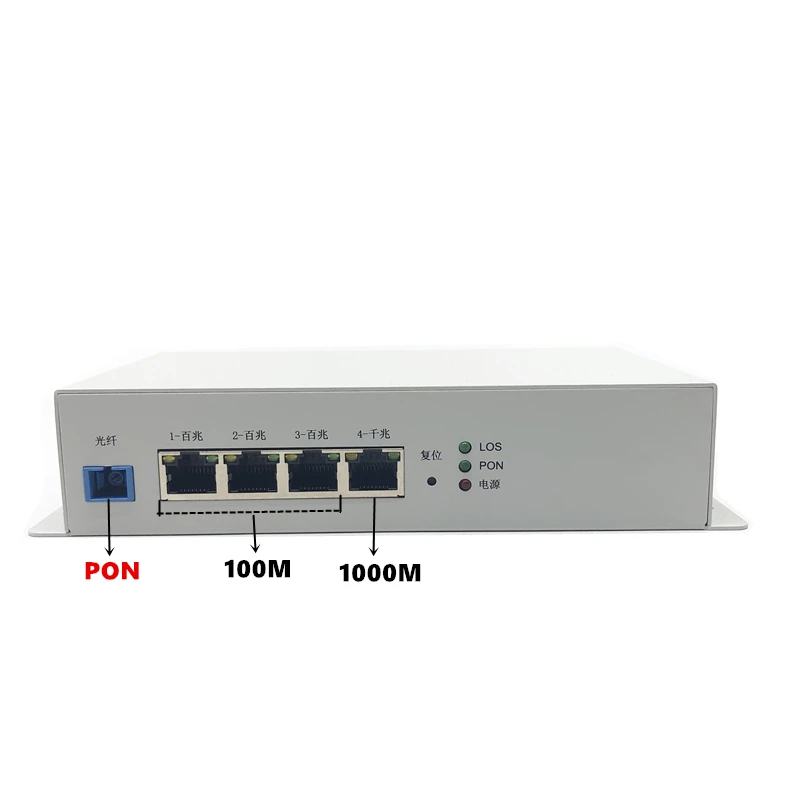

Interface Details

The left to right interfaces are:
 PON port: Connect the source OLT device through the fiber optic cable
RJ45 port: Connect to the user side device through twisted pair, the rate is 10/100/1000M adaptive
Reset button: Restore the factory default, use the fine needle to hold the hole for more than 3 seconds, the system will restore
the factory default
Power switch: You can turn off the device to save energy when not in use.
Power interface: connect external power supply

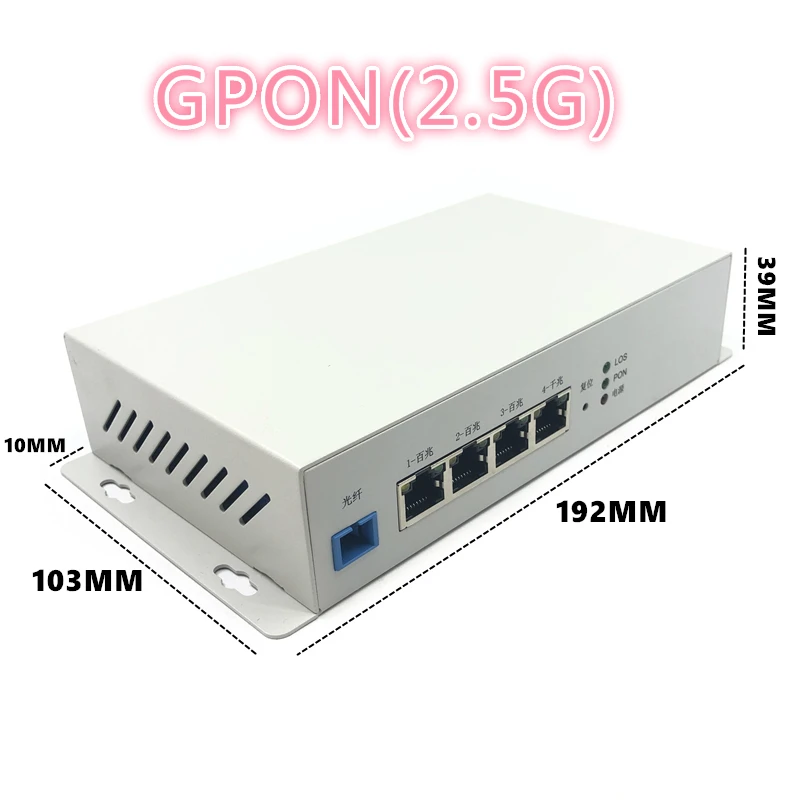

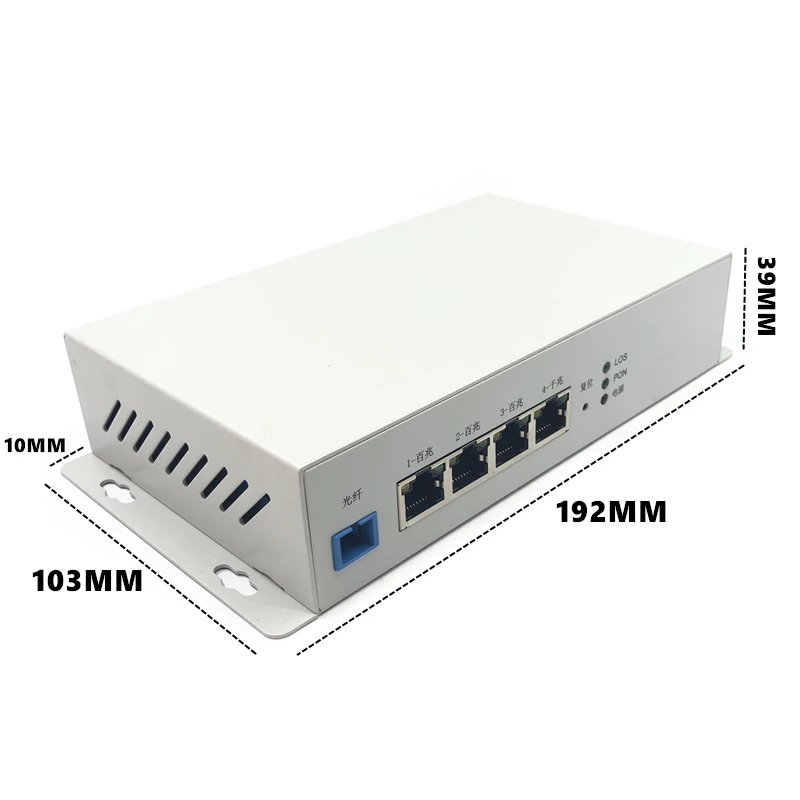

Physical characteristics

 Power supply: 12V/500mA
Power consumption: 6W
 Temperature:
Working temperature: -40~ 80° C
Storage temperature: -30 ~ 80° C
Relative humidity: 10 to 90% (non-condensing)
EMC / EMI : Compliant with VCCI Class B, FCC Part 15 B
Safety: UL 60950 safety regulations
Lightning protection: ITU-T K.21 standard.

Package Details

The package includes an ONU with opp bag,and an adaptor.
Logo can be printed on the products or the package.
You can have your company information on it on label also.
Adaptor standards can be Europe,America,Asia and so on.
Delivery in carton.



Specifications
Standards	GPON ONU with wifi
Port features	1 PON port(2.5G) 1 10/100/1000M port 3 10/100M port
Rate	1.25Gbps or 1.25Gbps/1.25Gbps
T/R	1310 nm/1490 nm
Interface	SC/PC RJ45
Splitting ratio	1:32 or 1:64 X/GPON 1:128
Sensitivity	< -26dBm
Distance	20 KM

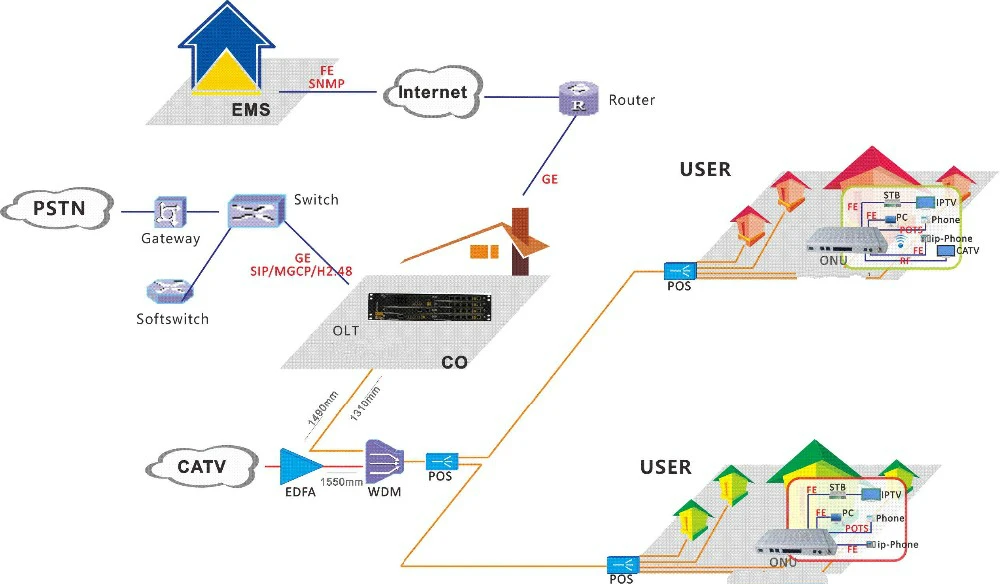

Applications










Q1. Can I have a sample order for testing?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 3-15 working days.
Urgent order for 1K-2K PCS needs 7 working days.



Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our products.



Q8: Is OEM offered?

A: Yes,OEM is welcomed.We are glad to offer you high quality products and help you develop your own brand.
