Product Description

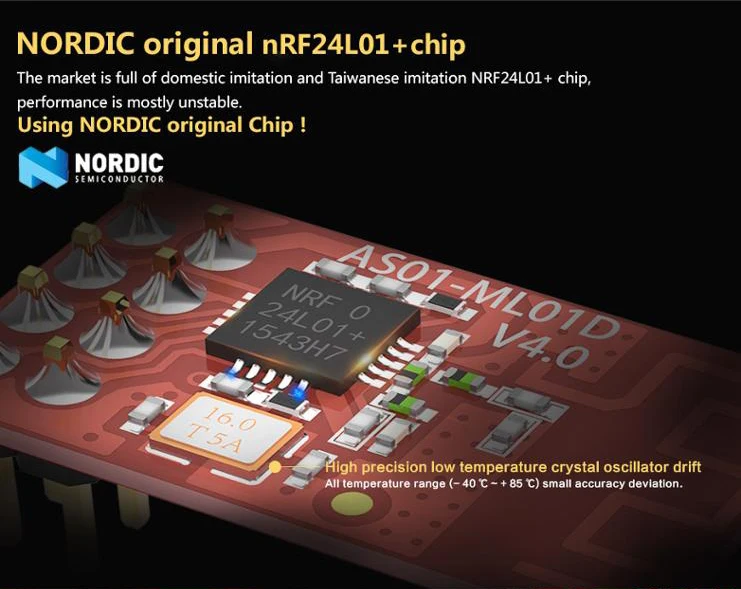

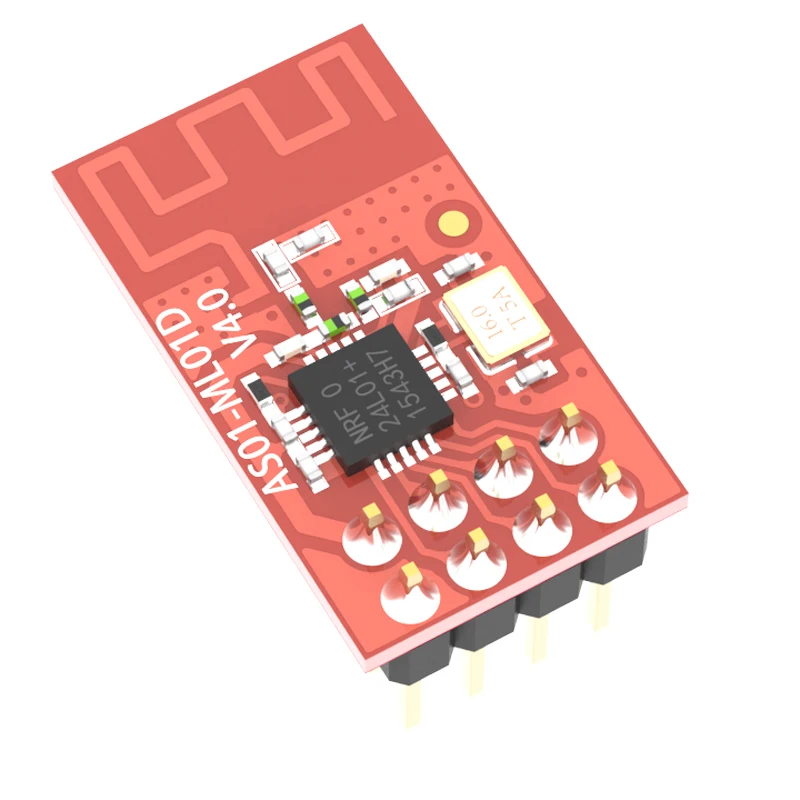

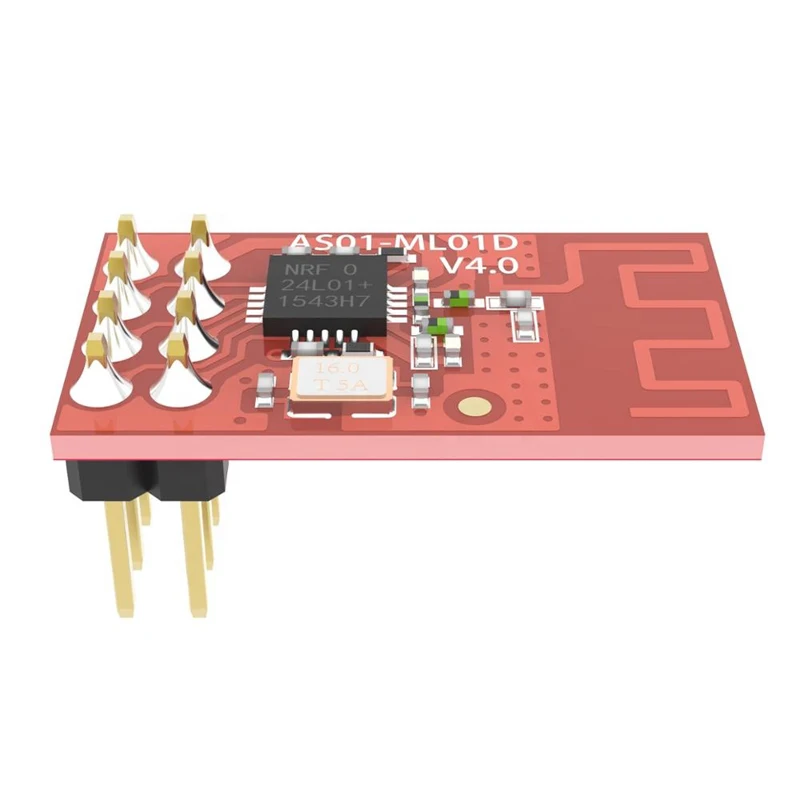

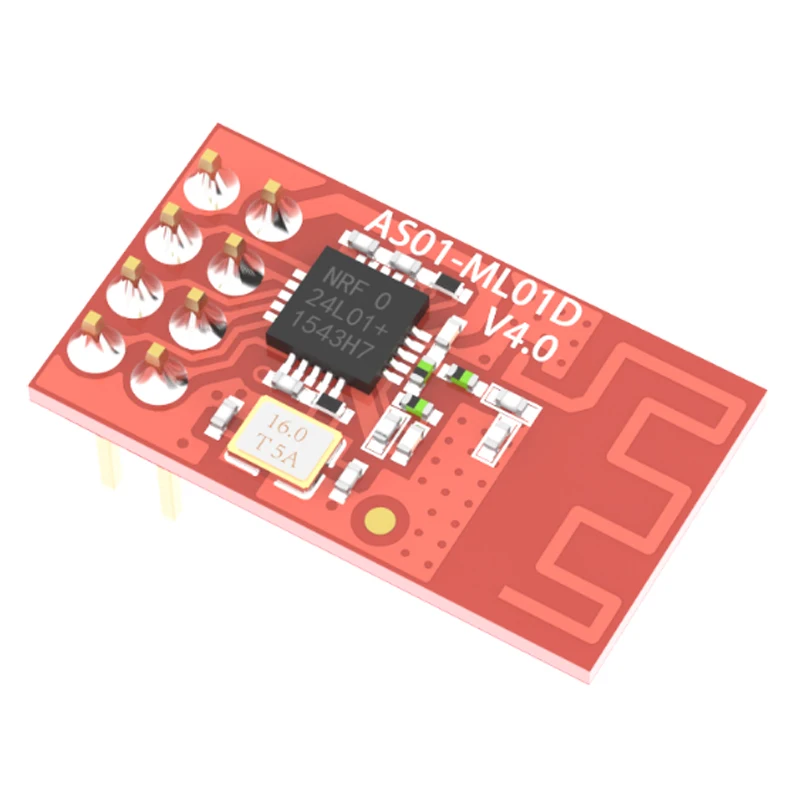

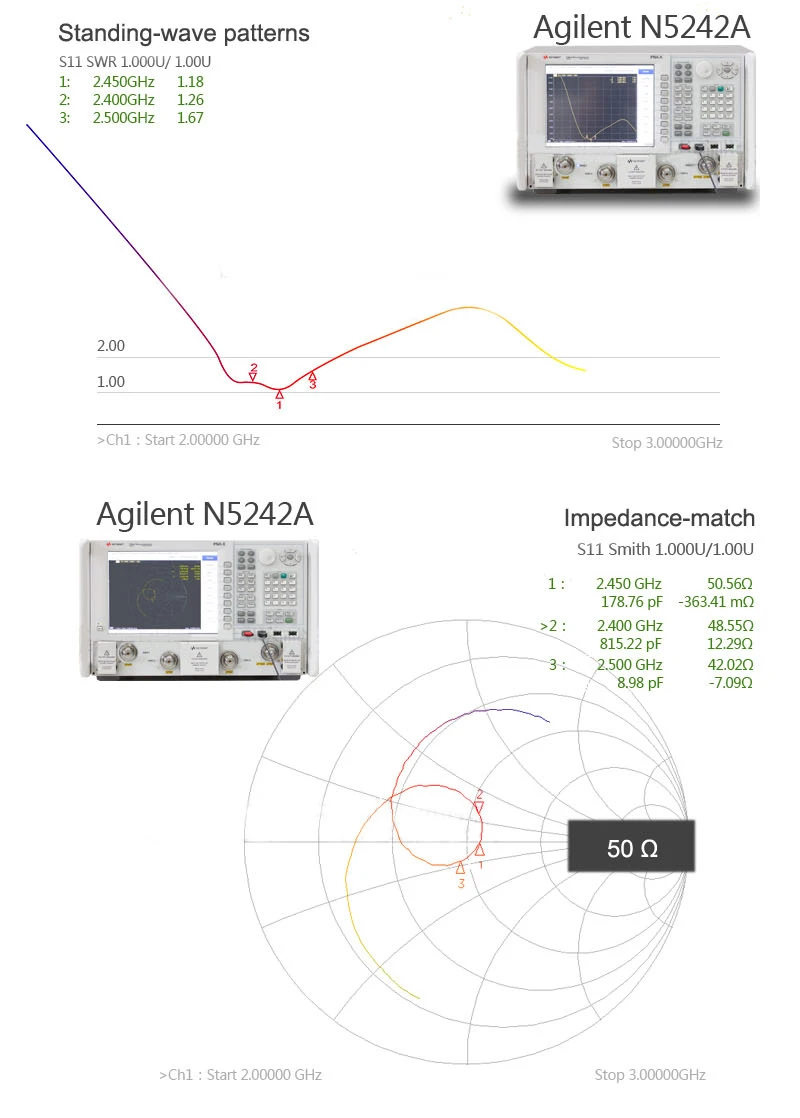

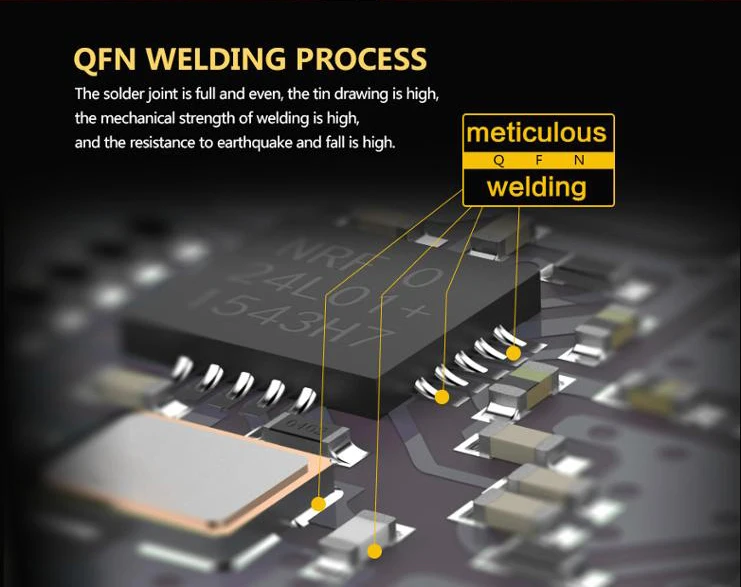

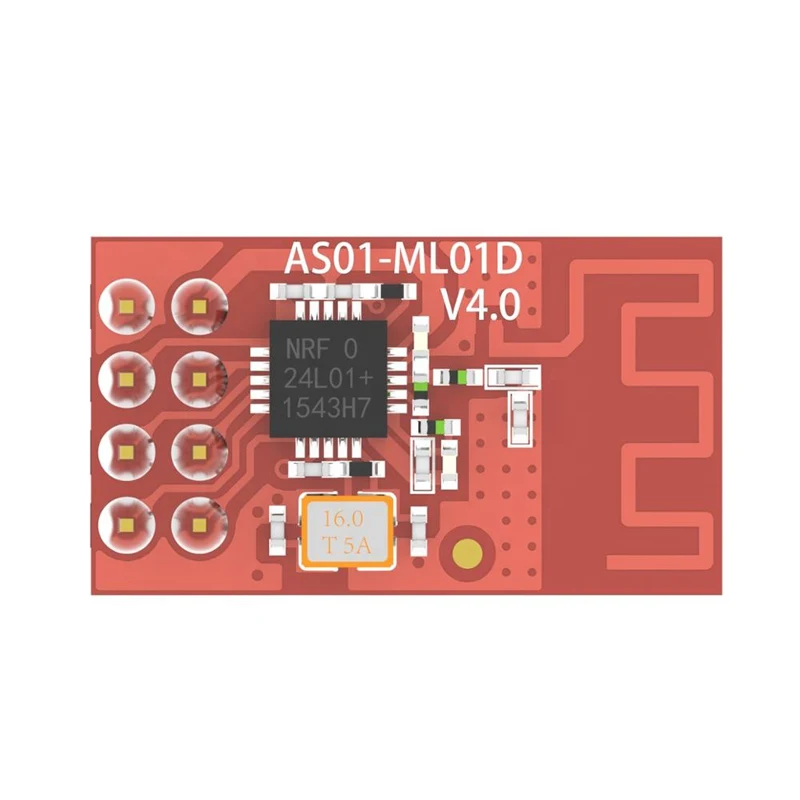

AS01-ML01D is a 1mW industrial wireless data transceiver with high speed and high stability, operates at ISM band 2.4GHz~2.525GHz (default 2.4GHz). The module comes with PCB antenna and exact impedance matching, and uses original nRF24L01P from Nordic. It features enough power, good spectral properties, small harmonic wave, small cross talk and super small volume. Some of the devices meet military grade standard.AS01-ML01D is a 1mW industrial wireless data transceiver with high speed and high stability, operates at ISM band 2.4GHz~2.525GHz (default 2.4GHz). The module comes with PCB antenna and exact impedance matching, and uses original nRF24L01P from Nordic. It features enough power, good spectral properties, small harmonic wave, small cross talk and super small volume. Some of the devices meet military grade standard.
Electric Parameterel
| No. | Parameter Name | Parameter values details |
|---|---|---|

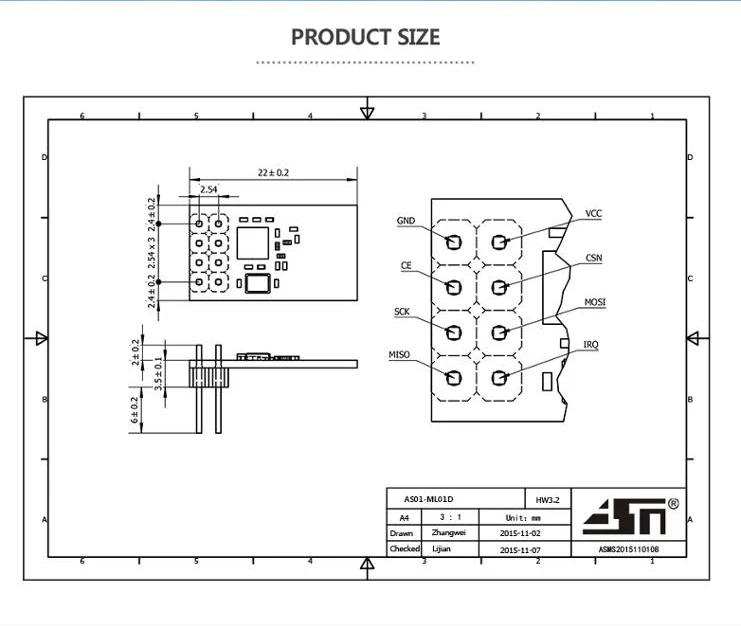

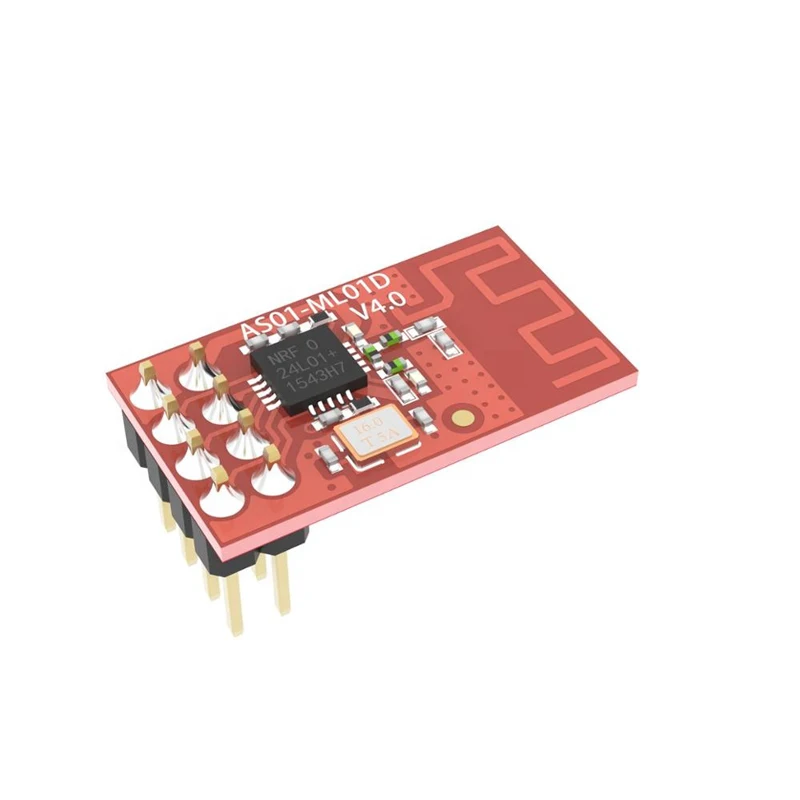

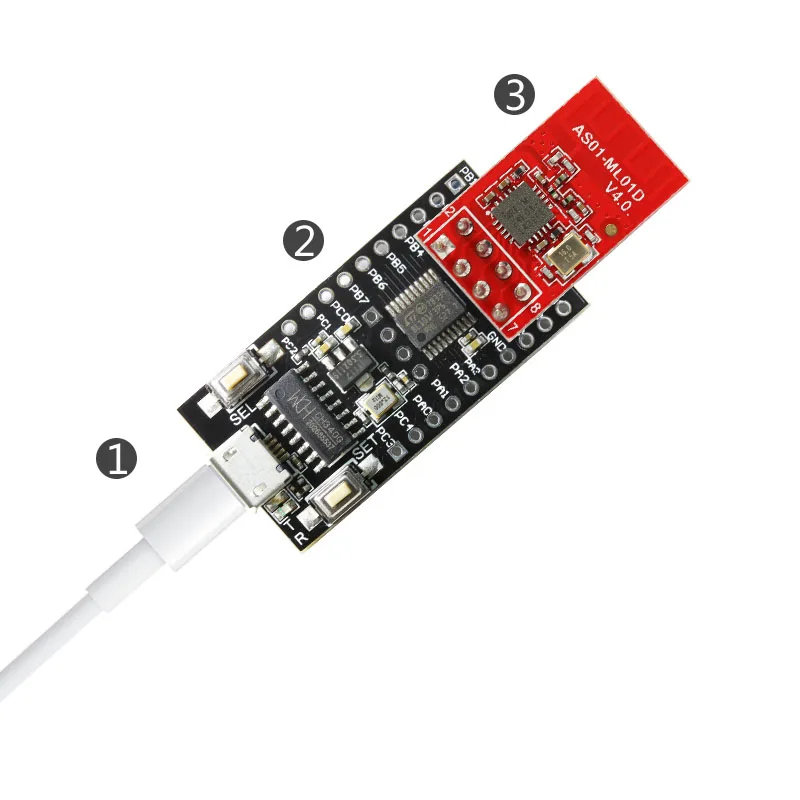

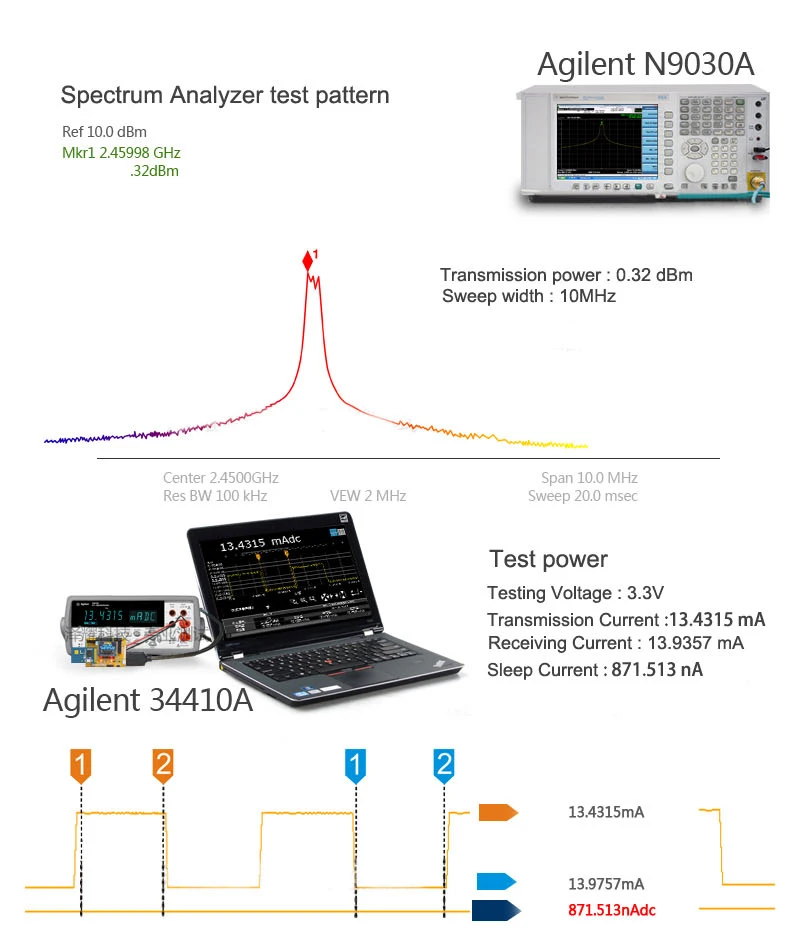

| 1 | Module Size | 12.5 * 22mm (not including antenna or SMA junction) |
| 2 | Source of the devices | All imported components from Japan, USA, Germany |
| 3 | Production craft | lead-free, electrostatic bag packaging |
| 4 | Interface mode | 2 * 4 * 2.54 mm, plug in packaging, you can use the universal board and DuPont line |
| 5 | Operating frequency | 2.4 - 2.525GHz, 1MHz step by step, factory default: 2.4GHz |
| 6 | Supply Voltage | 1.8V-3.6VDC, meet a variety of system requirements. ( if the voltage is smaller than 3.3V, the transmission power will decline, which has little impact on the receiving performance) |
| 7 | Communication level | Maximum 3.6V, The difference between the recommended and supply voltage is less than 0.7V to reduce power consumption |
| 8 | Measured distance (3.0VDC) | About 120m test conditions: sunny, open, the maximum power, Antenna gains 5dBi, higher than 2m, 250K air rate |
| 9 | Transmission power | Maximum 0dBm, about 1mW, 4levels adjustable (0-3), increase or deduct about 3dBm each level. |
| 10 | Air rate | 3 levels adjustable (250K, 1M, 2Mbps) |
| 11 | Sleep current | 0.9uA (MD1 =1, MD0 = 1) |
| 12 | Transmitting current | 22mA@1mW (voltage 5V) |
| 13 | Receiving current | 19mA (mode 0, mode 1), minimum about 0.9uA (mode 2 + 2s wake up) |
| 14 | Communication Interface | UART serial port, 8N1, 8E1, 8O1, from 1200 to 115200 a total of 8 baud rates |
| 15 | Driving means | UART serial port can be set to push-pull / pull-up, open-drain |
| 16 | Transmitting length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 17 | Receiving length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 18 | Module address | 65536 configurable addresses (easy to network, support for broadcast and fixed transmission) |
| 19 | RSSI support | Built-in intelligent processing |
| 20 | Receiving sensitivity | -94dbm @ 250Kbps (receiving sensitivity has nothing to do with serial port baud rate and delay time) |
| 21 | Antenna type | SMA antenna / Spring antenna |
| 22 | Operation temperature | -40℃ to +85℃ |
| 23 | Operation humidity | 10%-90% relative humidity, no condensation |
| 24 | Storage temperature | -40℃ to +125℃ |
Application
Our products have been widely used in consumer electronics, industrial control, medical, security alarm, field collection, intelligent home, highways, property management, water electricity gas meter reading, power monitoring, and other applications.
