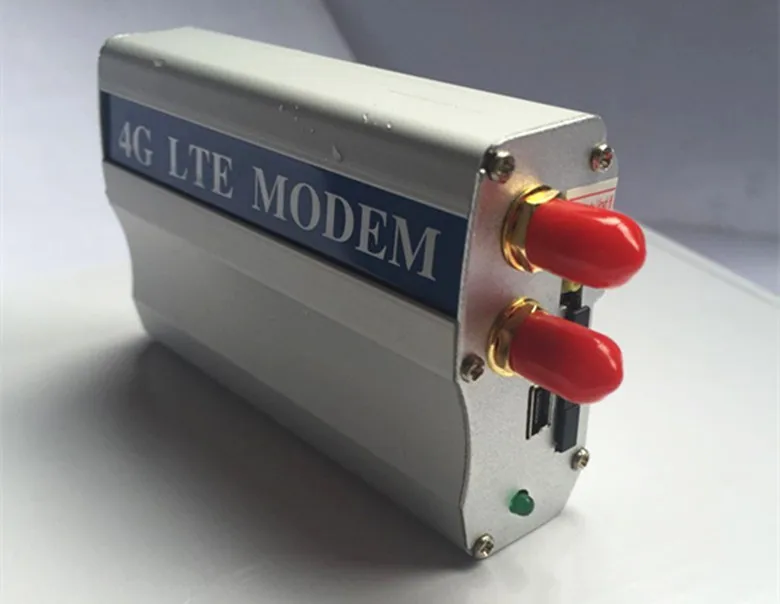

Best Price GSM USB Modem 4g LET modem support tcpip data transfer sms sending

Product description:

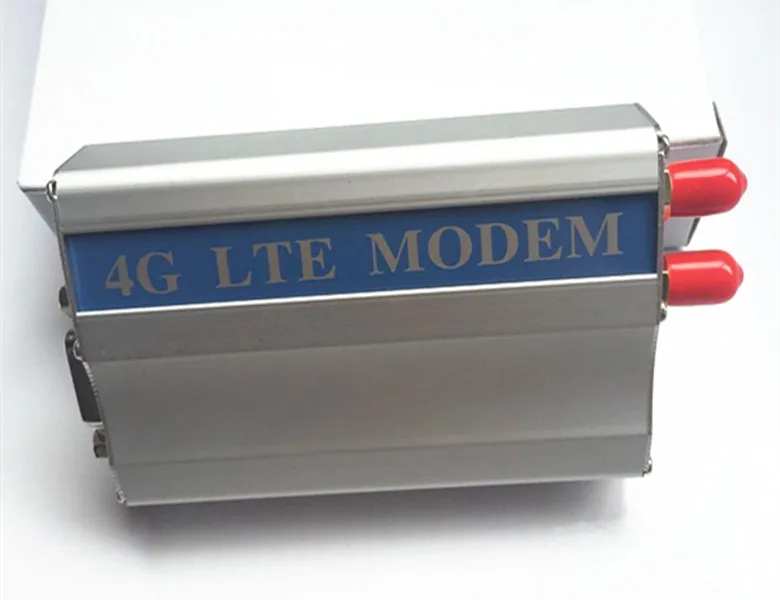

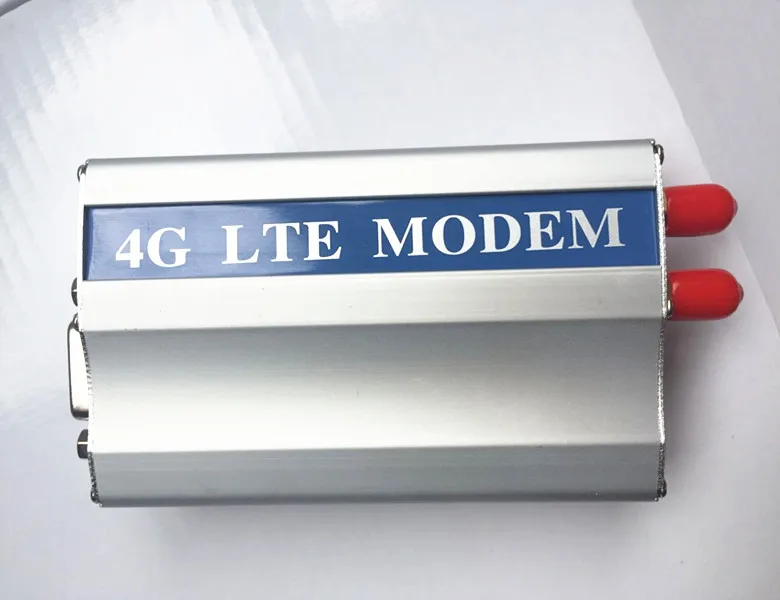

Industrial design

Aluminum casing

Wireless access to internet

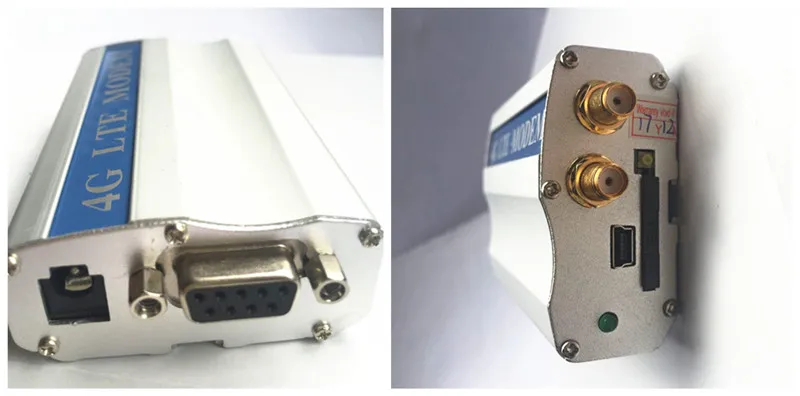

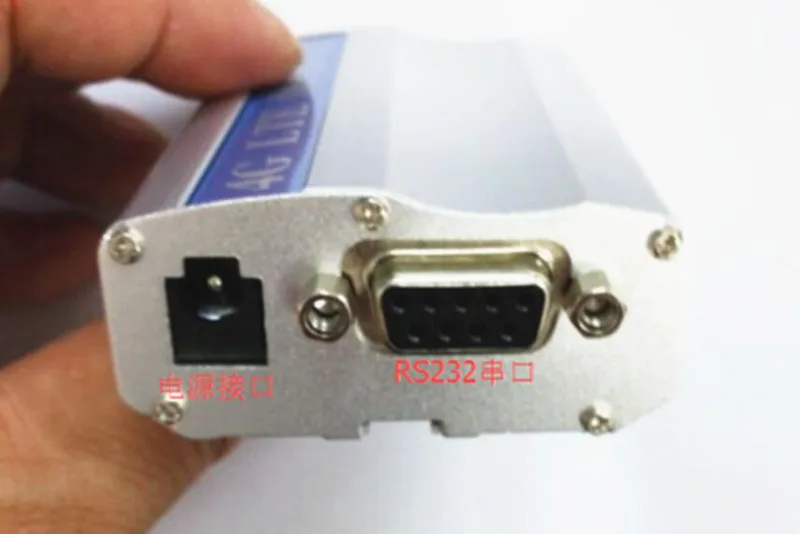

RS232 Interface

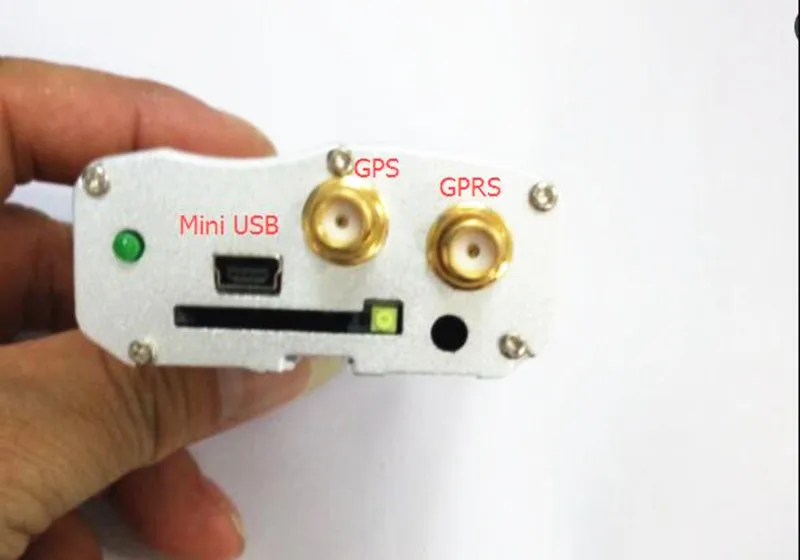

USB 2.0 interface

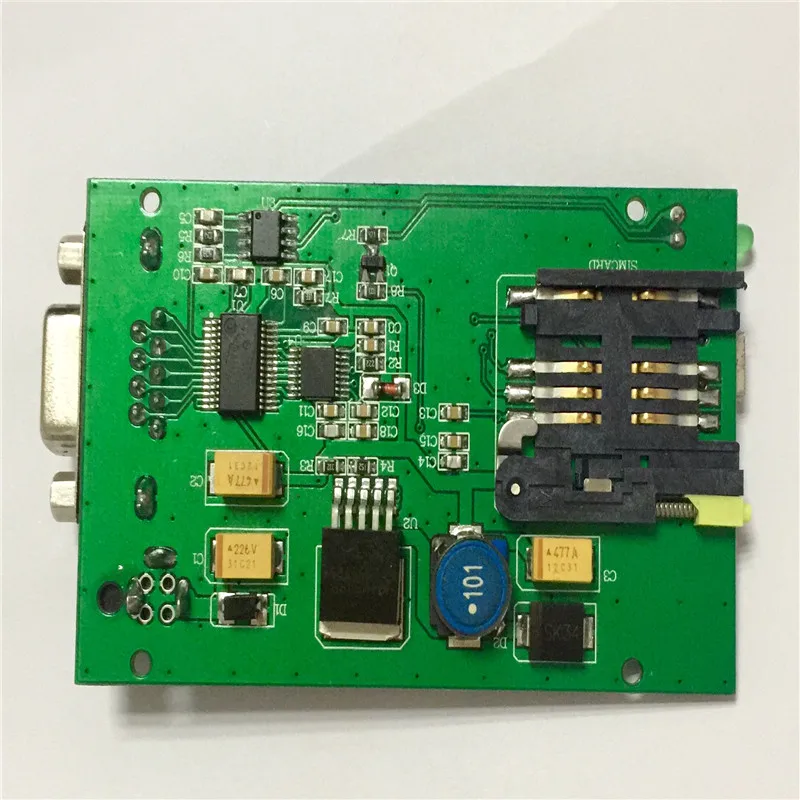

3V SIM card slot



 SIM7100A

• Quad-Band LTE-FDD B2/B4/B5/B17
• Dual-Band UMTS/HSDPA/HSPA+ B2/B5
• Control Via AT Commands or Gobi API
• Supply voltage range: 3.4V~ 4.2V
• LTE-FDD/Rel-9 Cat3
• HSPA+ DC-HSPA+,Rel-10 HSPA+

SIM7100E

• Five-Band FDD-LTE B1/B3/B7/B8/B20
• Dual-Band TDD-LTE B38/B40
• Dual-Band UMTS/HSDPA/HSPA+ B1/B8
• Dual-Band GSM/GPRS/EDGE 900/1800 MHz

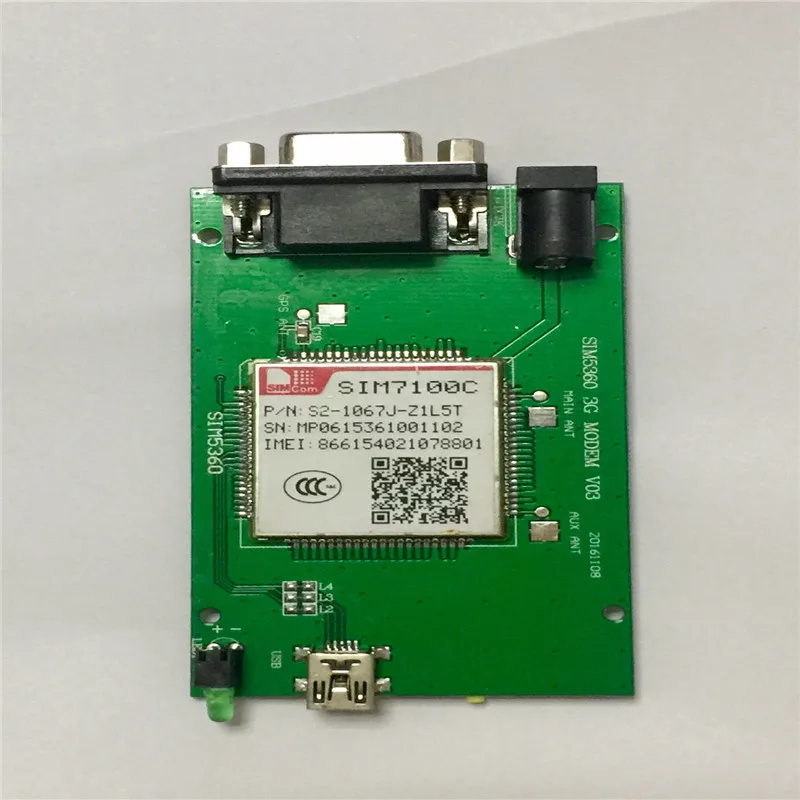

SIM7100C

  • Four-Band TDD-LTE B38/B39/B40/B41 • Four-Band FDD-LTE B1/B3/B7/B8   Dual-Band TDD-SCDMA B34/B39 • Dual-Band UMTS/HSDPA/HSPA+ B1/B8 • Dual-Band GSM/GPRS/EDGE 900/1800 MHz





General features

• Four-Band TDD-LTE B38/B39/B40/B41

• Four-Band FDD-LTE B1/B3/B7/B8

• Dual-Band TD-SCDMA B34/B39

• Dual-Band UMTS/HSDPA/HSPA+ B1/B8

• GSM/GPRS/EDGE 900/1800 MHz

• Control Via AT Commands

• Supply voltage range: 3.4V~ 4.2V

• Operation temperature: -40℃ to +85℃



• GNSS gpsOne Gen 8B;standalone;assisted,XTRA;

Specifications for Data transfer

• LTE - Uplink up to 50Mbps, - Downlink up to 100Mbps

• TD-HSDPA/HSUPA - Uplink up to 2.2 Mbps, - Downlink up to 2.8 Mbps

• TD-SCDMA - Uplink up to 128Kbps, - Downlink up to 384Kbps

• HSPA+ - Uplink up to 5.76 Mbps, - Downlink up to 42 Mbps

• UMTS - Uplink/Downlink up to 384Kbps

• EDGE Class: - Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)

• GPRS - Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)

• CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6Kbps - WCDMA 64kbps CSD for Video call



• USB Driver for Microsoft Windows 2000/XP/Vista/7/8

• USB Driver for Windows CE

• USB Driver for Linux /Android

• RIL supporting for Android/Windows CE

• Automatic installation for windows

• Linux API SDK

• Firmware update via USB

• TCP/IP/IPV4/V6 Multi-PDP,MT PDP

• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS

• Gobi SDK to the Win7/Win8/Linux

• MBIM to Win8

• Source code of the PC manager of the device for reference

Size: 84*54*26mm

Weight: 110g

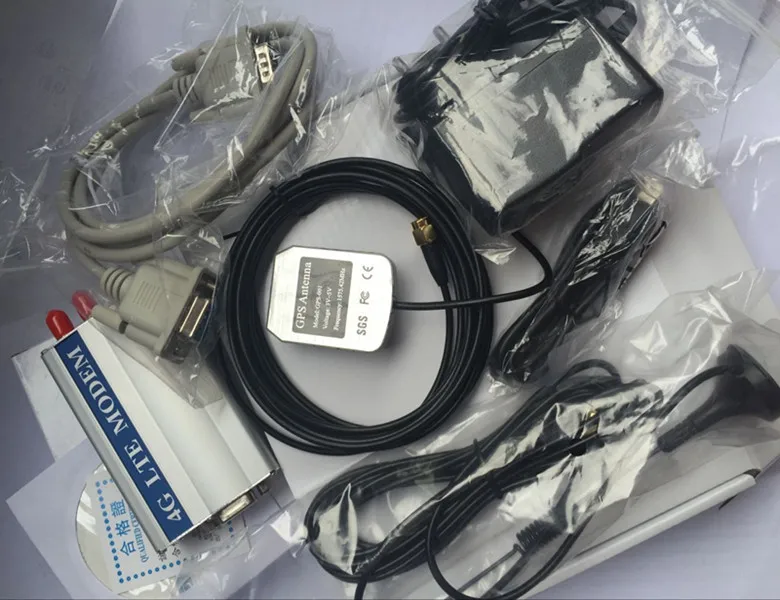

Accessories

USB cable, GPS cable ,antenna, 2 mounting plates, CD
