16 port modem pool bulk sms and make voice machine for marketing



1: This item is controlled on USB interface (Emulated COM/RS232/Serial Port) via AT commands (GSM 07.07, 07.05).
2: This item include the bulk voice call sending software. Or you can use your program or software to control it via AT commands.
3: If you don't know how to use this item, please inquire before you buy it.
4: We will provide technical support , if you have any questions after receive the goods, We can help you online via teamviewer.
5: After the payment, we will send out via fast shippment(EMS/DHL/Fedex/UPS) according to your details address.







Description:

The GSM Modem is actually a kind of equipment used for sending and receiving SMS. It needs a mobile phone SIM card to support just the same as we use cellphone.In the need to send Bulk SMS, put sim card into the device, link power and connect a pc through the USB cable. Then we can realize the function of the sending and receiving SMS by using the relevant computer management softwarewe.



- Build in 16 GPRS modem in one box

- Sigle power supply for 16 modems

- Power button to control on and off

- Com Port

- WAP compliant

- Send MMS

- GPRS class 10:max 85.6kbps(downlink)

- Auto answer function for voice and data collection with the remote device.

- AT command to control and program

- Designed for WAP, MMS, SMS, CSD data, fax, and voice applications

- Support XP/NT/2000/2003/vista operation systems

- Design for high traffic communicaton



GPRS Function:

- GPRS multi-slot class 10

- 21.4kbps uplink / 85.6 kbps downlink

- 42.8 kbps uplink / 68.2 kbps downlink

- GPRS mobile station class B

- Full PBCCH support



SMS Function:

- Support AT command

- Text and PDU

- Point-to-point (MT/MO)

- SMS broadcast



Voice Function:

- Voice Call through mobile network

- Auto answer function

- Full duplex and half duplex rate

- Enhanced full rate (EFR)

- Double sound multi- frequencies function (DTMF)

- Basic handsfree operation

- Echo cancellation

- Noise reduction



Data

- CSD up to 18.8 kbps

- Auto answer function

- USSD

- Non transparent mode

- V.82bis compression

- V.110



Fax

- -Group 3, Class 2



Accessory

--Power adaptor*1

--Antenna

--USB cabl*1

(Driver Send online , supply technical support , so pls contact us after receive the goods)









Installation of equipment and softwareInstallation of equipment and software

1. open the package, the mobile phone card into the SIM card slot, should pay attention to the gap (small chip to chip to a total of 8 kcal; slot, 8 kcal, 8 on each card, a card slot can only be inserted at the same time use).

2. connected to an antenna plug, and then boot device; a total power, each port has a separate switch for SIM card without power off, the direct exchange of card, equipment support hot plug, to replace the new card after a few seconds will automatically get the signal.



3. download my company software package.
(1) install the corresponding driver: install the corresponding driver according to the system of your computer!

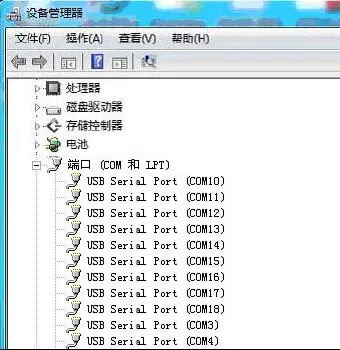

(2) insert the data line into the USB port of the computer: (if it is a desktop computer, you must insert the USB port on the back of the motherboard). When USB is plugged in, turn on the computer device manager, and then consult the COM port, which is COM. After confirmation of COM port, it is recommended that customers do not change the USB interface position at will. Otherwise, the number of COM port will change, and the COM query will be available again. Look for the COM port from the device manager, and then look for USB Serial Port, as shown in the following figure:



Software Details

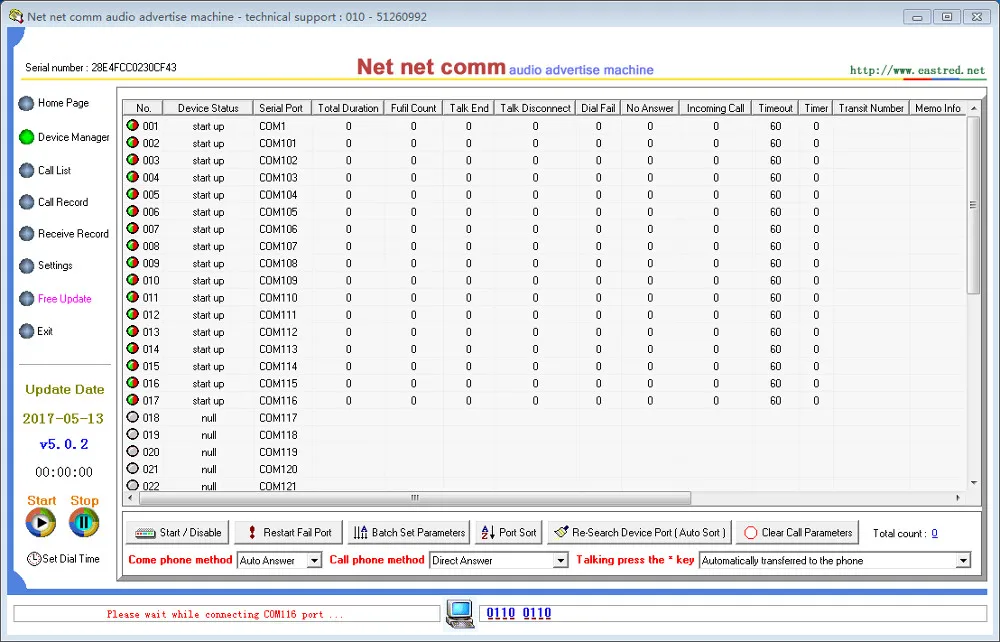

  1. device management interface:

As  diagram, each port has a different connection number"transit number"
,The transfer number can be a mobile phone number or a landline number. Before using this function, you must request the SIM card in the device to open the 3rd party call function. All port parameters can be modified in batches"batch set parameters"equipment.

There are two ways to call,You can also double-click a port to modify it individually. The order of ports in the device list can be reordered according to your own needs"port sort","Re-Search Device Port(Auto ports) Click on the computer to find the available <DIRECT ANSWER /  PHONEDISPLAY MISSED CALLS>he first one is to listen directly to the recording ad after the phone is connected,The second one is to make a missed call to the other party,When the other party calls back, the software automatically answers and broadcasts the voice ads (in this way, no fees will be incurred),When you listen to voice ads, you can press the tone button to transfer the manual number for consultation.

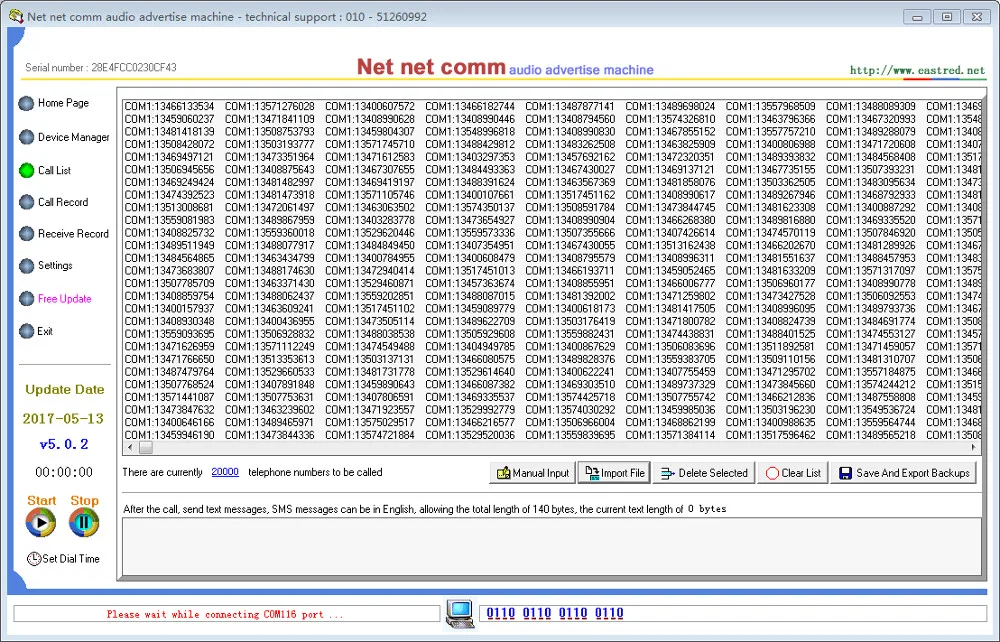

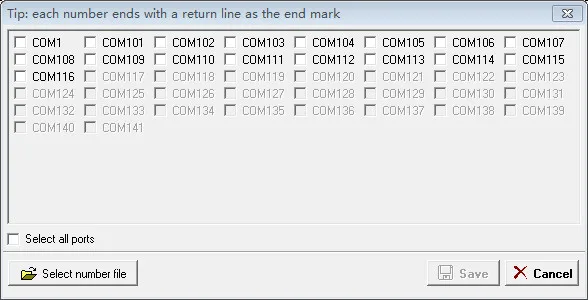

2. Call list interface You can see it from the picture above,Call numbers can be enter manually   You can also edit call numbers into text formats,One number per line,Batch import into call list,Each port can import different numbers to make calls,As shown in the figure.

If you fill in the SMS content,At the end of the call, the software automatically sends text messages to the number,

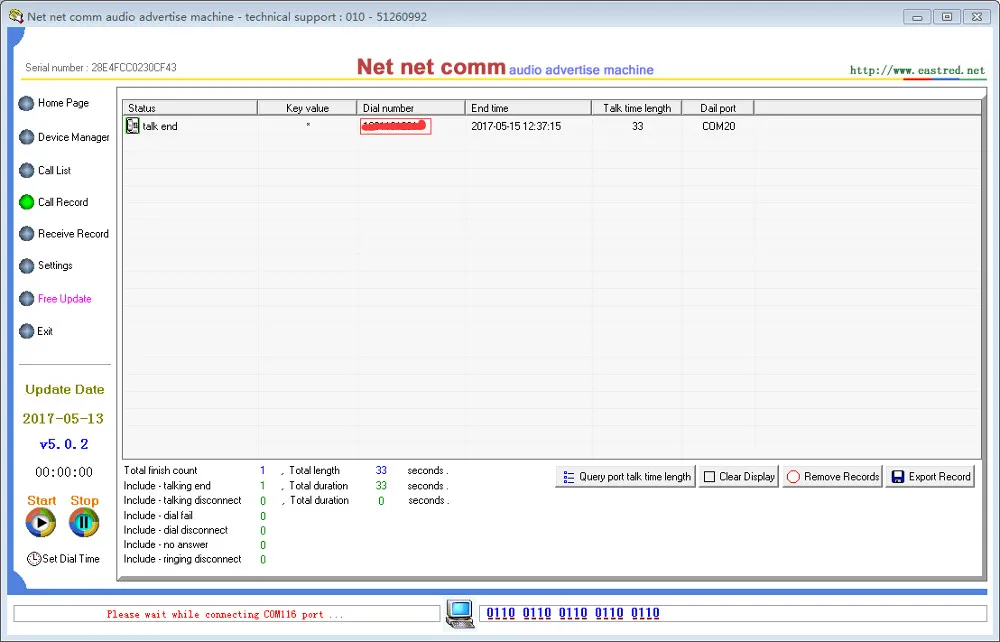

3. Call logging interface

4. You can see from the chart, the call records of all ports are here with the show, whether each number press the * key to switch to manual consulting are displayed in the listening process, call time is listening to each other advertising time, able to analyze what is from the call records of the real needs of customers.

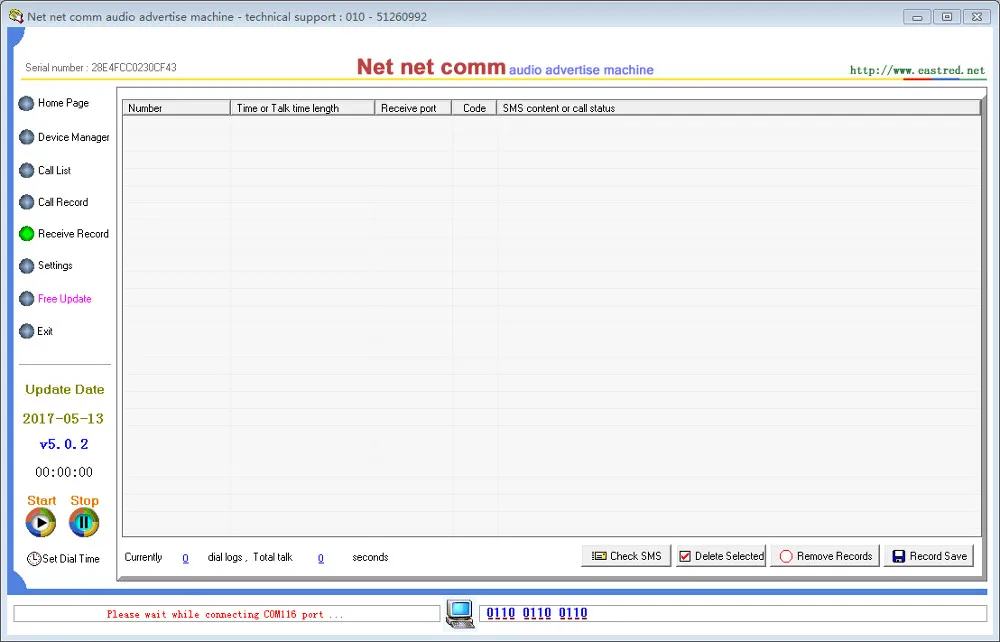

5. Caller record interface As you can see from the picture above, all incoming numbers listen to the length of the ad, and whether to press the * key. Missed calls are also shown here, and received text messages are also displayed here.

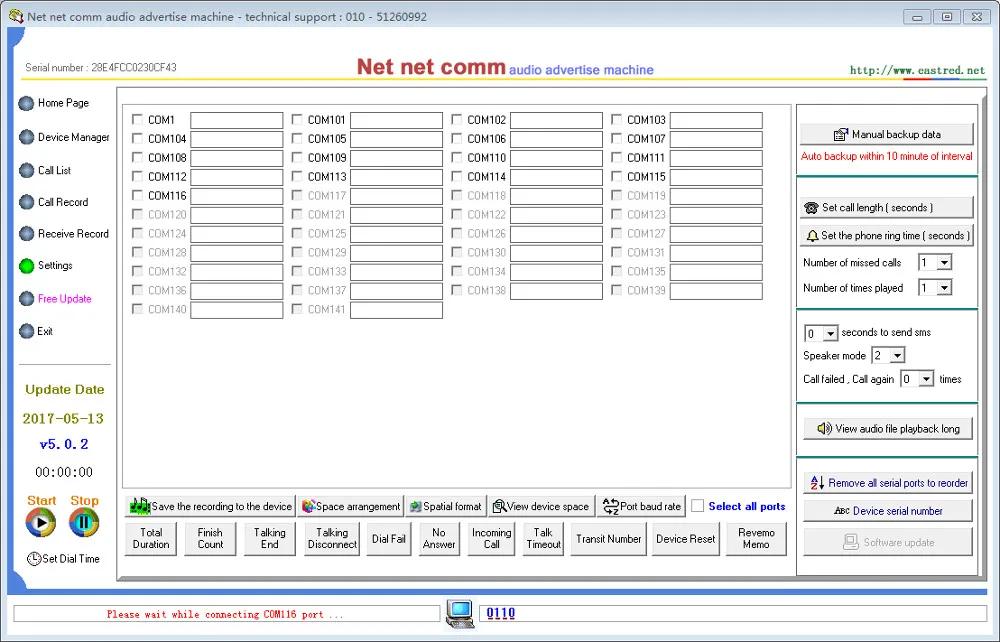

6. Advanced settings interface You can see it from the picture above,All port parameters can be set here,Before use, you must download the recording to the device before you can use it properly,All ports can choose the same recording ad,You can also choose different recording ads for each port.The storage space of the equipment can be arranged,You can also format your storage space,Formatting erases all recorded data,You need to download the recording ad again,This feature is carefully used"Spatial format".   Device Image     Packaging(Standard carton):
Product Weight:5kg

Product Size:L24*W22*H16(cm)

Accessories: Power cable, USB cable, Antennas and driver
