Sfrm72-Fu-Dl Usb Floppy Drive Emulator For Yamaha Korg Roland 720Kb Electric Organ Floppies Drive Emulators Use normal USB flash drive as the medium for transfer design.34pin floppy driver interface, 5V DC power supply, easy to install.720KB built-in flash memory, with FAT12 format, used for cache data from USB flash drive.720KB capacity of files in root directory or 999 folders can be searched.Long file name and 4-level directory in 999 folders supported.Jumpers with function for different machines.
Button:When no USB flash drive plugged on emulator:Left button used to rise ten-digit, right button used to rise single-digit, press 2 button together to rise hundred-digit, when the hundred-digit is 'b', the image mode used.When an USB flash drive plugged on emulator:Left button used to transfer data from built-in memory into USB flash drive, right button used to transfer data from USB flash drive into built-in memory.
Firmware version of emulator:Keep pressed 2 button together, power on, 8 segment numbers will display firmware version and data of emulator to detect different model.

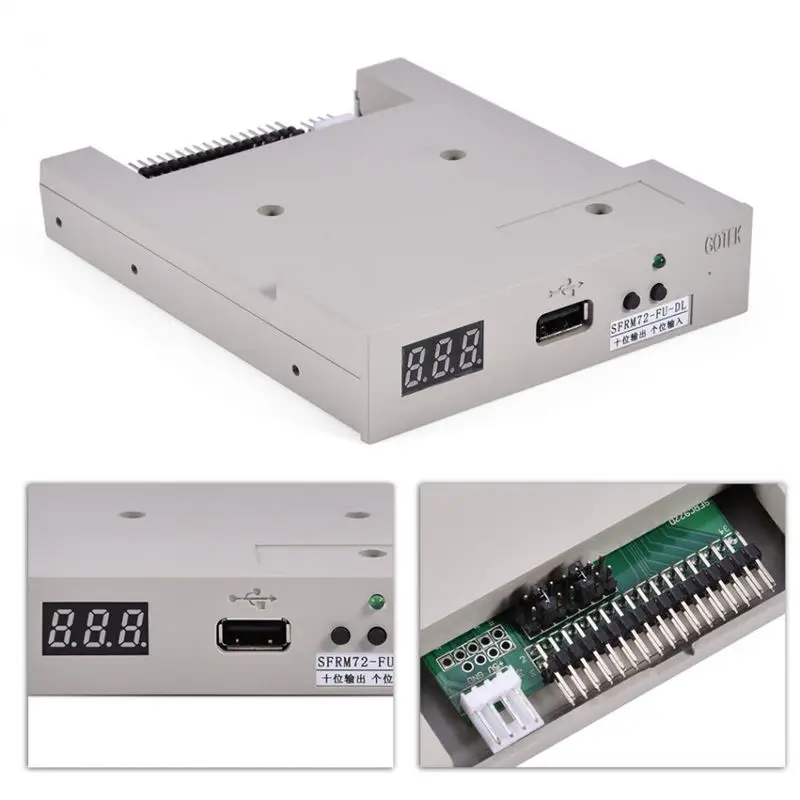

Panel:8 segment numbers: Represent partitions number.Green LED: Status of read and write operation.USB port: Connect USB flash drive
100 disk image file supported. (used for machine with non FAT disk format, example for make boot disk).
Model Number: floppy
Interface Type: USB3.0
Drive Type: DVD-ROM
Application: Desktop
Item Condition: New
Installation Method: Built-in
Disc Loading Mode: Tray Type
Error Correction Function: Support
Floppy Driver:

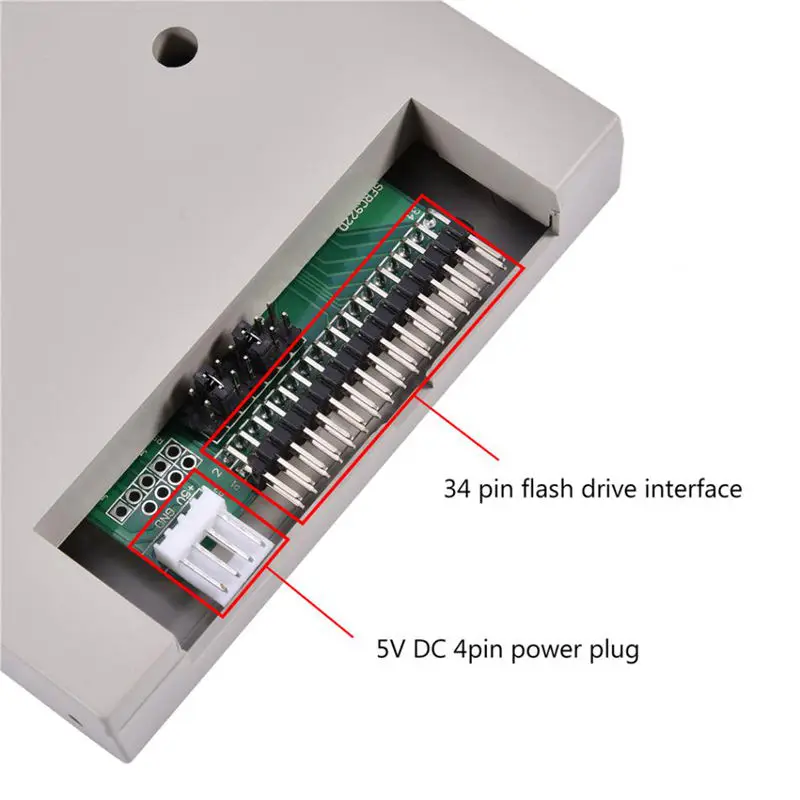

Interface: 34 pin floppy driver interface, 5V DC 4 pin power plug
Format of disk: Cylinders: 80 Tracks: 160 Sectors/Track: 9 Bytes/Sector: 512 Data
Transfer rate: 500 kbps
Encoding method: MFM
Error Code:
E0: No specified file in USB flash drive
E16: Built-in memory fault

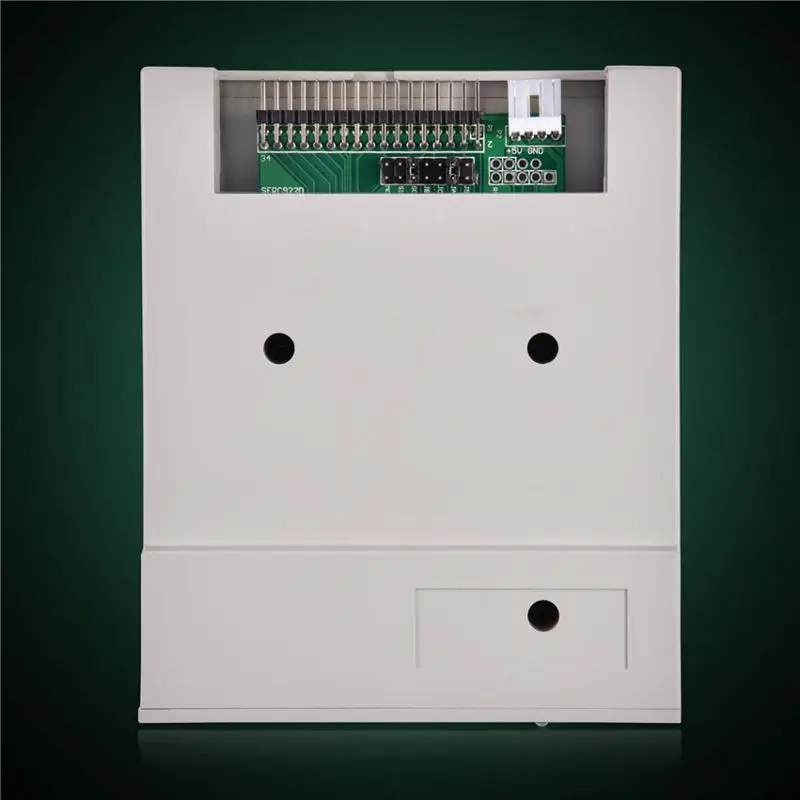

Jumper Setting:
J5: ---
JA: Set to generate READY signal on 34pin of floppy driver interface
JC: ---
JB: ---
S0: Driver select 0
S1: Driver select 1
MO: Motor
Compatibility: Suitable for Yamaha Korg Roland Electric Organ with 720KB floppy drive
Voltage: 5V DC
Interface: USB port, 4 pin power plug, 34 pin plug
colour:white
Material:Metal + ABS

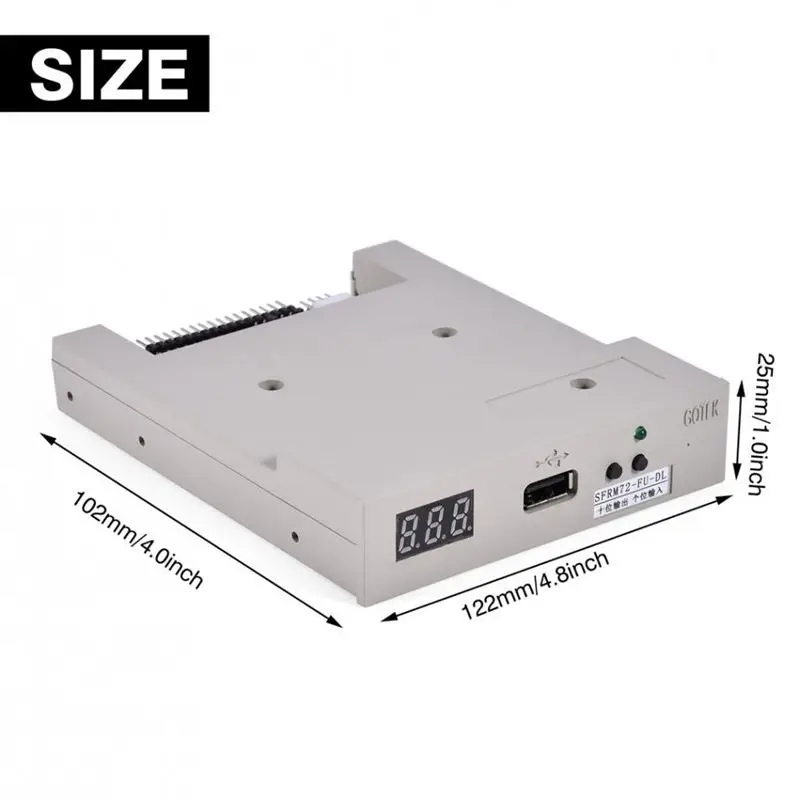

Size (L x W x H): Approx. 122 x 102 x 25mm / 4.8 x 4.0 x 1.0inch

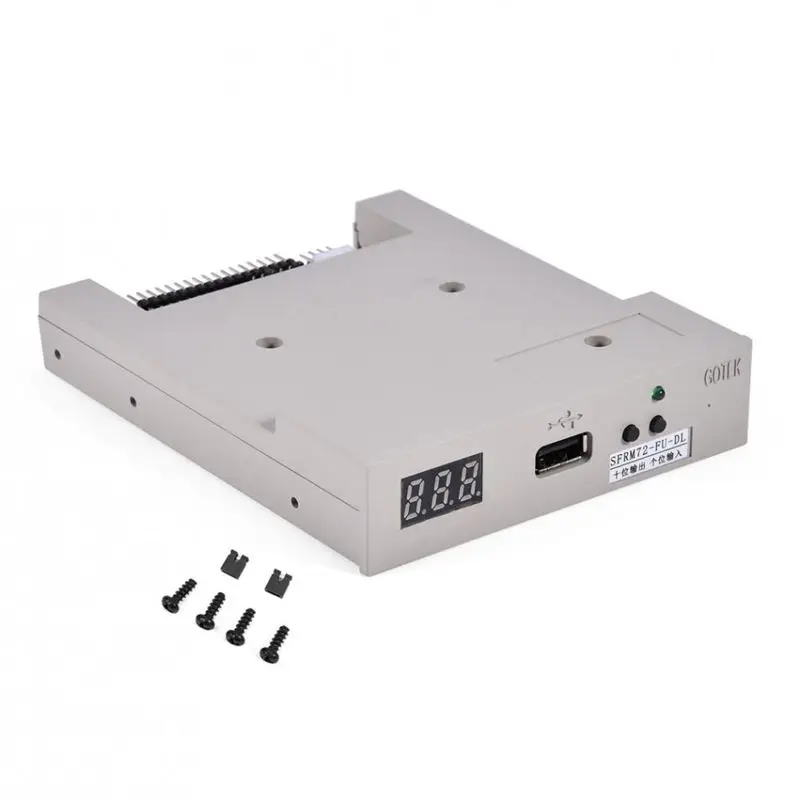

Package Contents:
1 x USB Emulator
2 x Jumper Cap
4 x Screws
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
