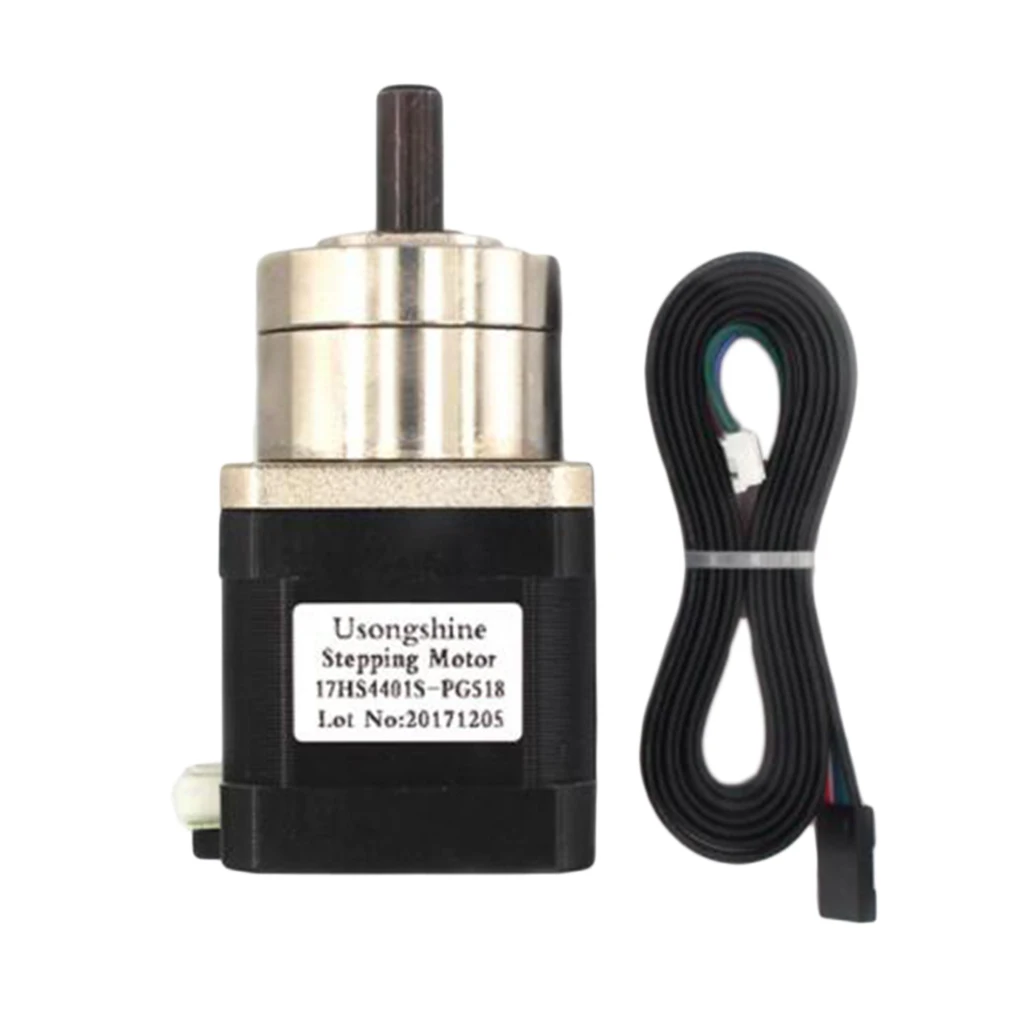

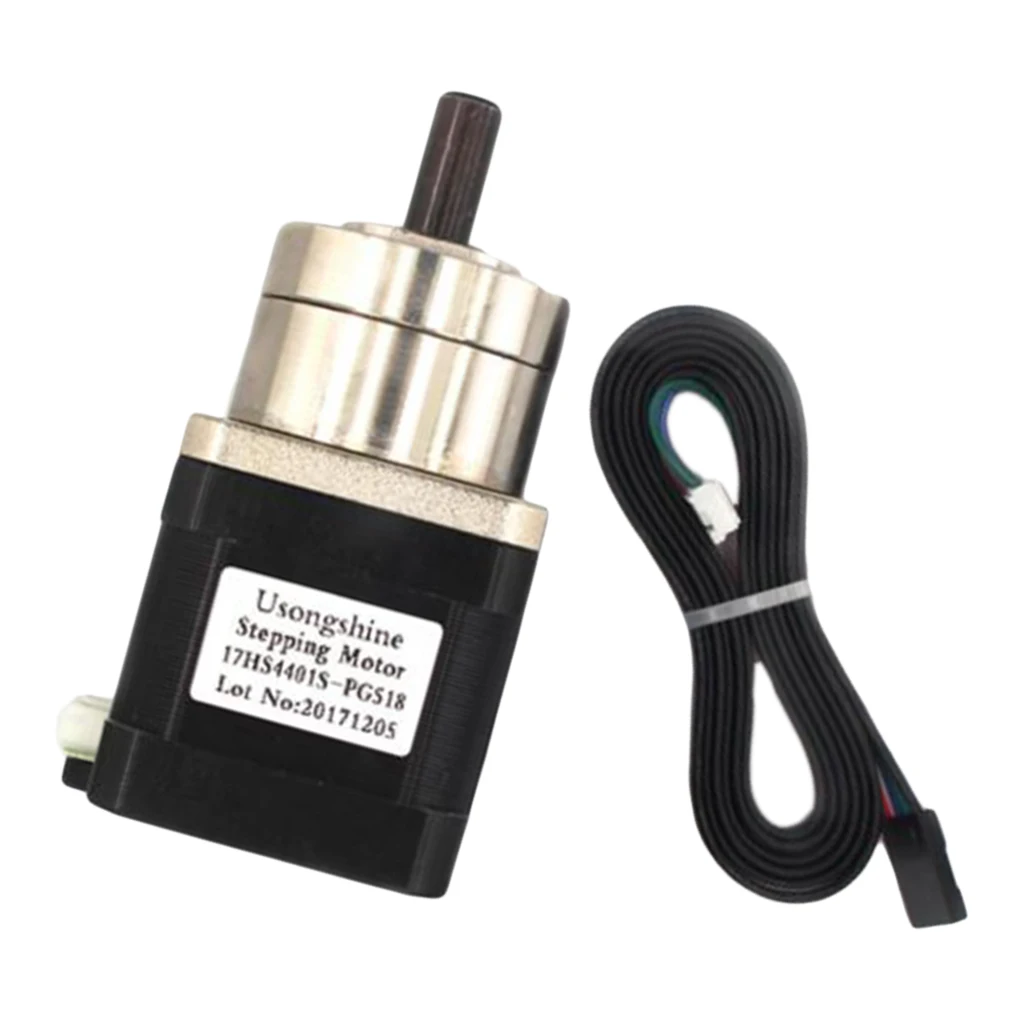

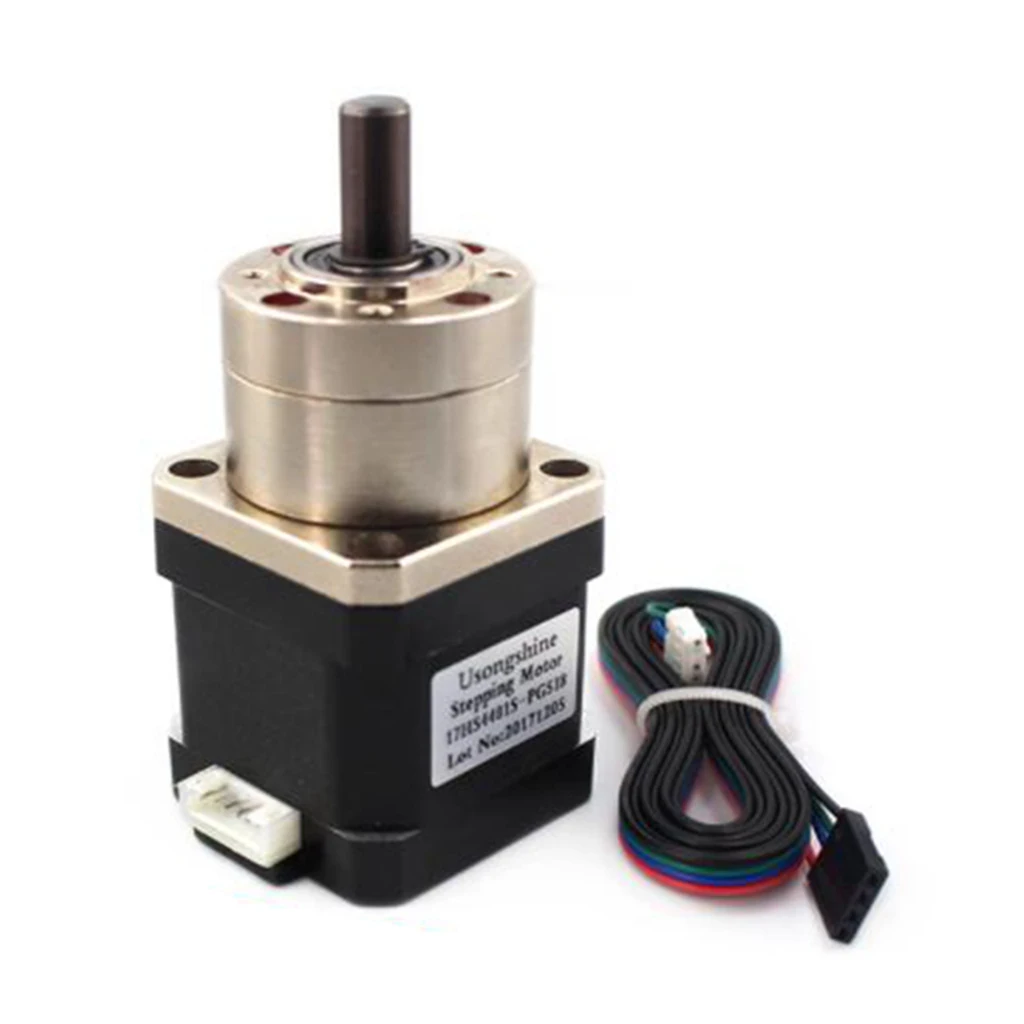

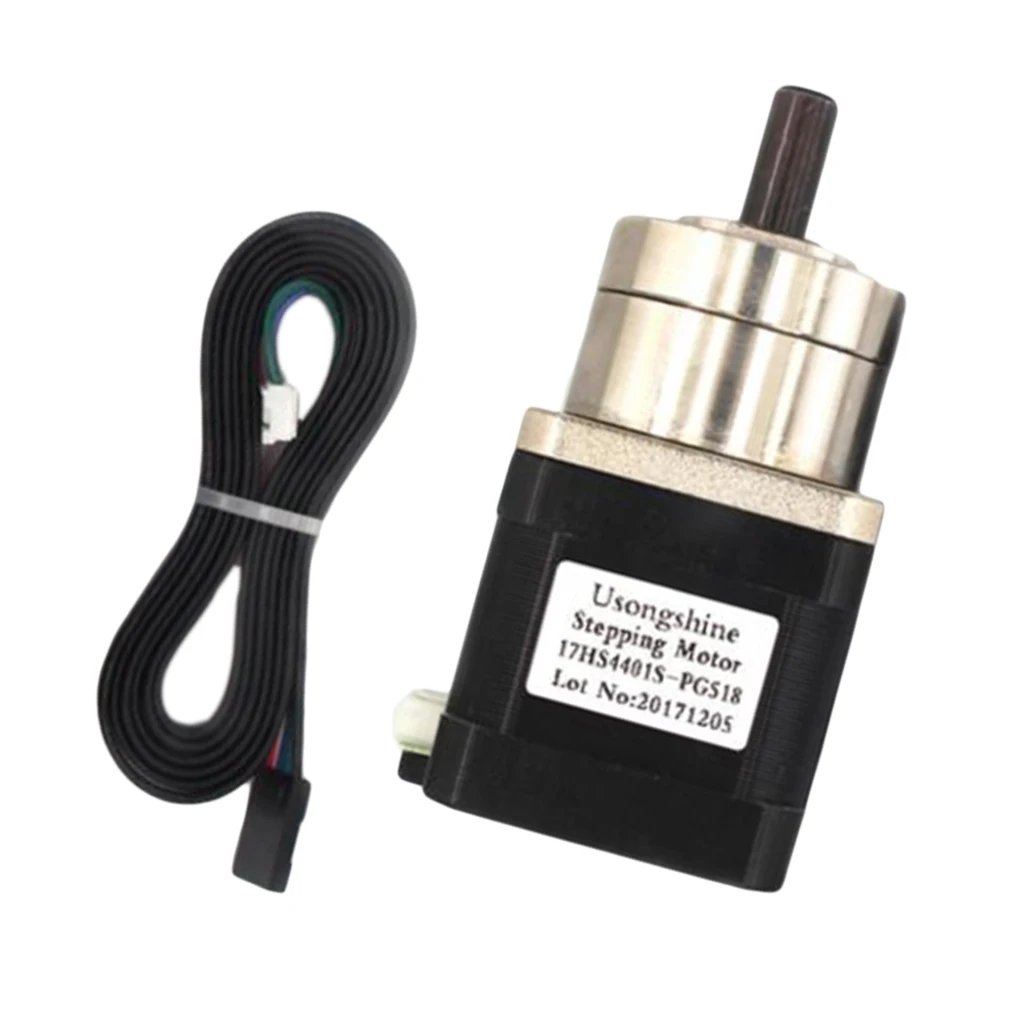

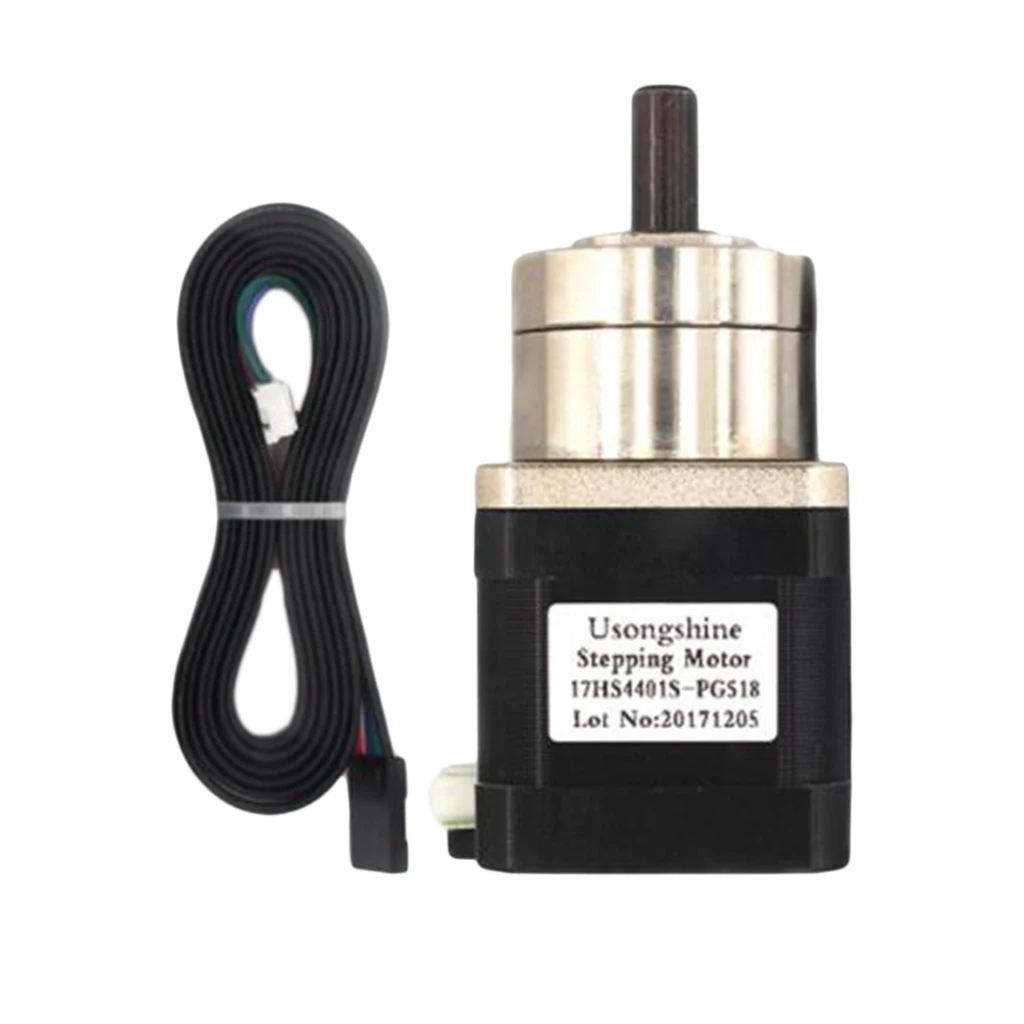

17 Stepper Motor Aluminum Alloy Step By CNC Computer Controllers Driver | Автомобили и мотоциклы

Характеристики

Description:

High torque, good stability and low noise

DC/AC dual purpose stepper motor

Stepper motor fit for robotics, textile machinery, 3D printer etc.

Material: Aluminum Alloy

Color: As Shown in the Picture

Specification:

Size: 42x42mm/1.65x1.65inch

Manufacturer Part Number 17HS4401S-PG518

Bipolar Motor Type step by step

Angle of passage (with gearbox) 1,8 °

The PAR 1.68Nm

Rated current / phase 1.68A

1.65 ohm resistance phase

Recommended voltage 12-24 V

Inductance 3.2mH ± 20% (1 KHz)

Planetary type gearbox

Gear ratio (exact gear ratio) 5 + 2/11

Efficiency 90%

Backlash without load <= 1 °

Torque maximum 2 nm (283ozin)

Permissible torsion torque 4Nm (566ozin)

Axial load Axial maximum 50N

Maximum radial load shaft 100N

Package Includes:

1 Piece Stepper Motors Driver

Note:

Color might be slightly different due to the color calibration of each individual monitor.

Please allow slightly measuring deviation due to manual measurement.
