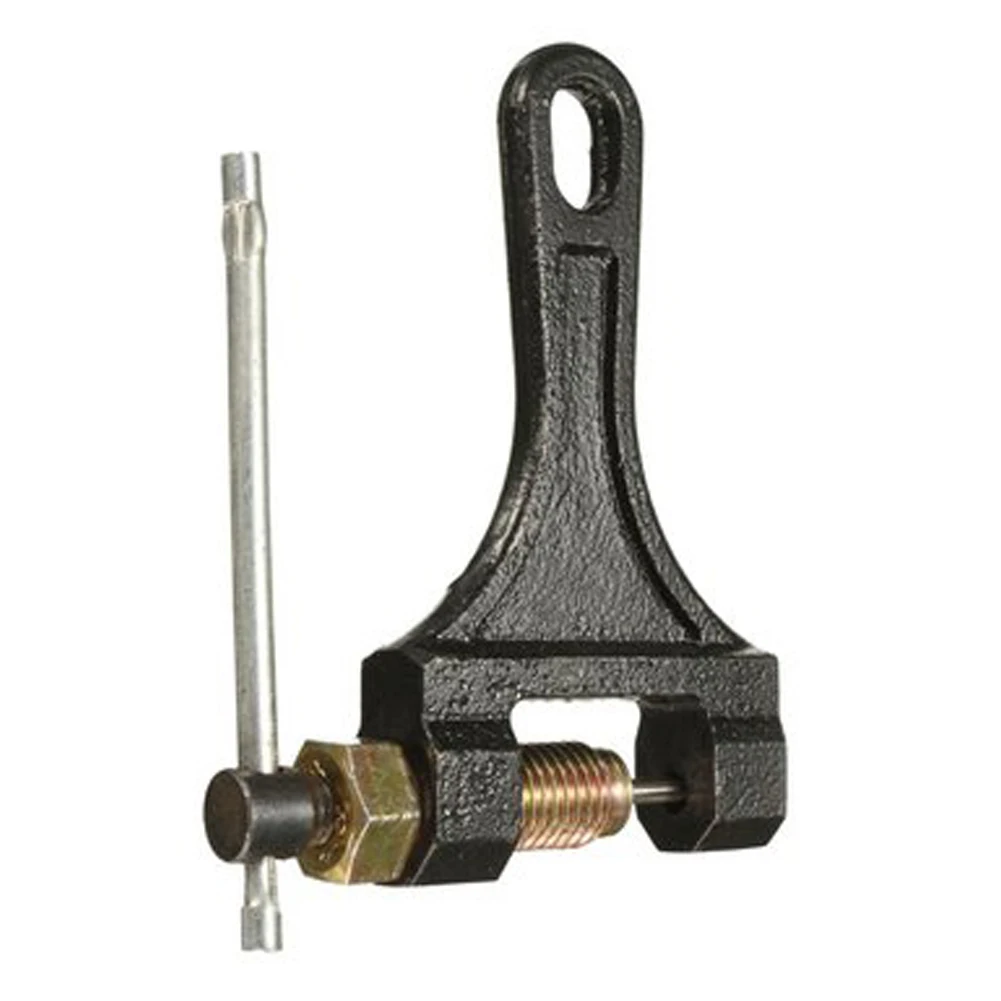

Motorcycle Bike Chain Breaker Drive Splitter Link Removal Repair Tool For 420/ 428/530 | Автомобили и мотоциклы

Характеристики

This is an essential tool to have for anyone working on their own machine. Remove chains and extra with ease

Suitable for chain 420, 428, 530

Replaceable press pin is heat treated and hardened

Please be sure to verify that the push pin is aligned properly with the chain pin

It is recommended to grind off the chain pin head before using this tool

This will significantly reduce the load on the tool and help prevent premature wear or damage to the breaking tips

Specification:

Color: Black

Material: Metal

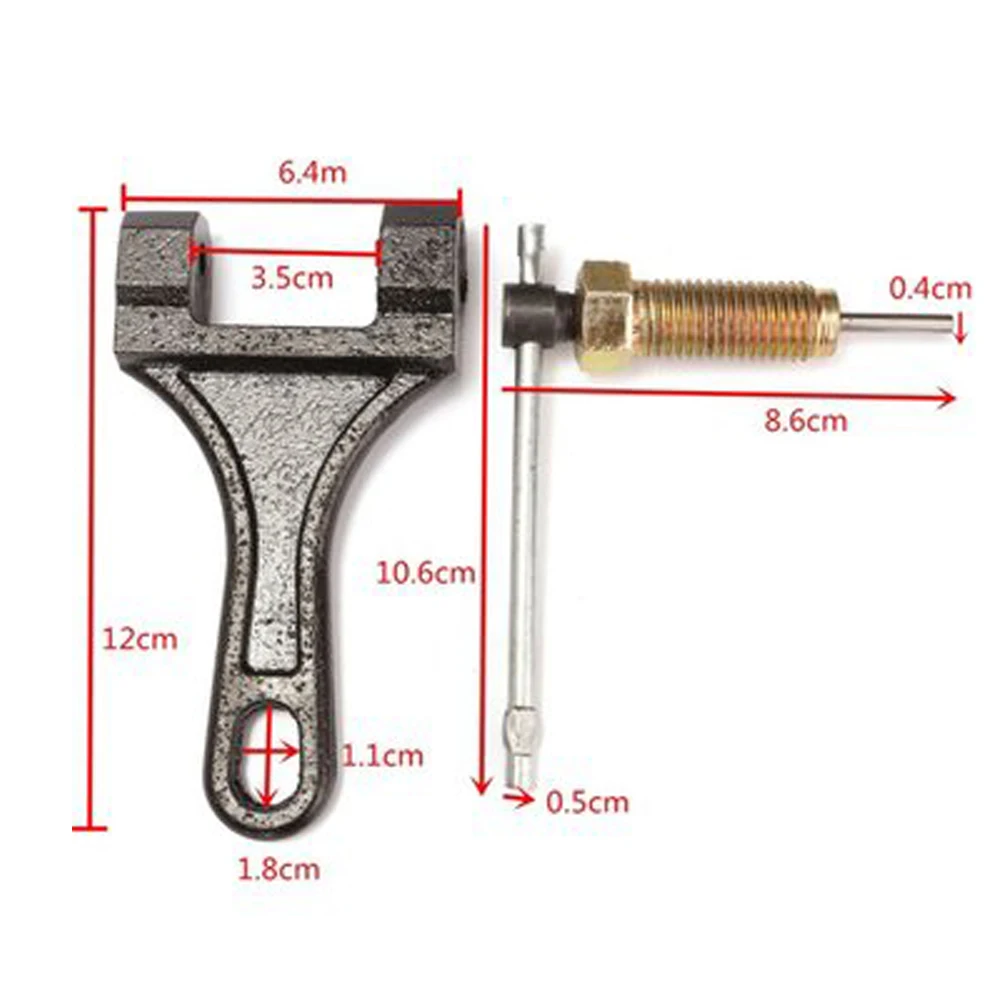

Size: Approx. 12cm x 6.4cm/ 4.72" x 2.52"

Quantity: 1pc

Installation:

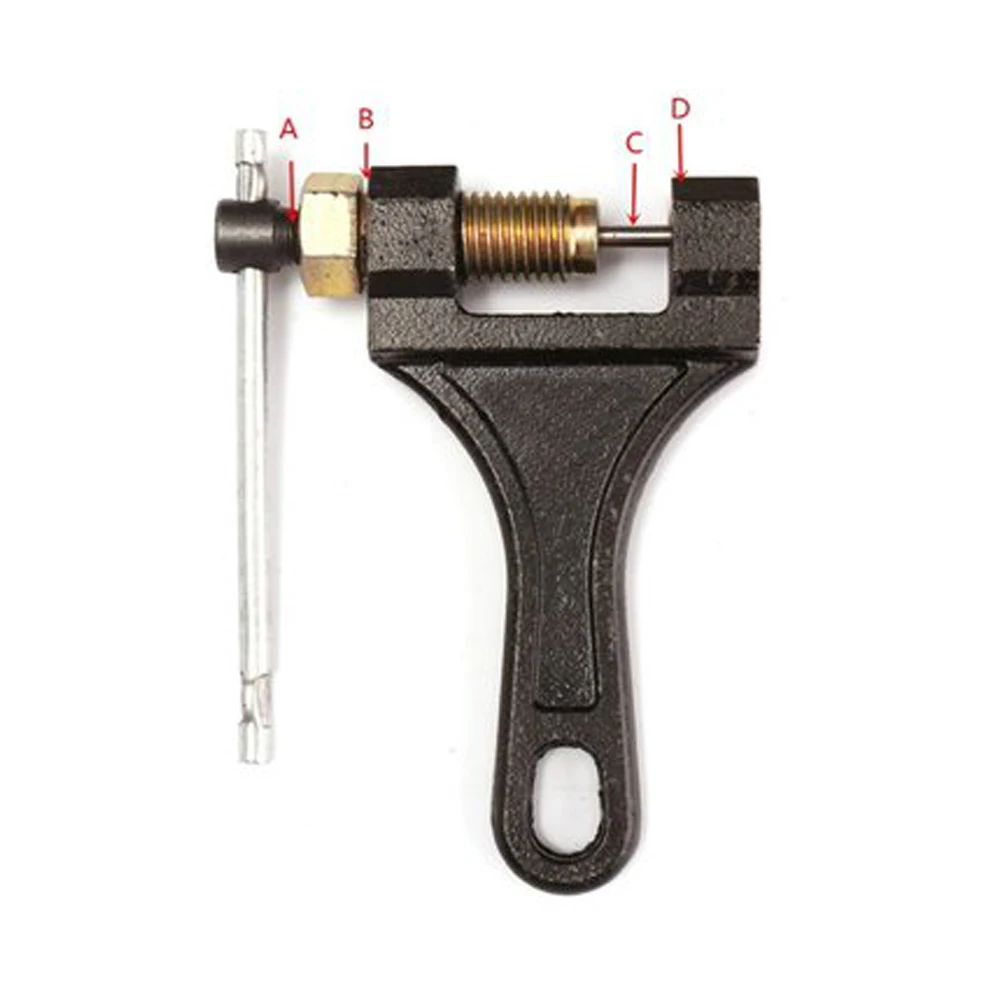

1. Unscrew bolt "A" so that the pin "C" is fully retracted into the bolt "B"

2. Unscrew bolt "B" and position the chain under "B", so that the ends of the chain pin can fit into the holes "D" adn the bolt "B"

3. Thread bolt "B" in until the chain is clamped in place, against the hole "D"

4. Turn bolt "A" to push the chain pin head out of its plate

5. Repeat the operation on the second pin of the link to be disassembled

Package Included:

1 x Motorcycle Chain Removal Tool
