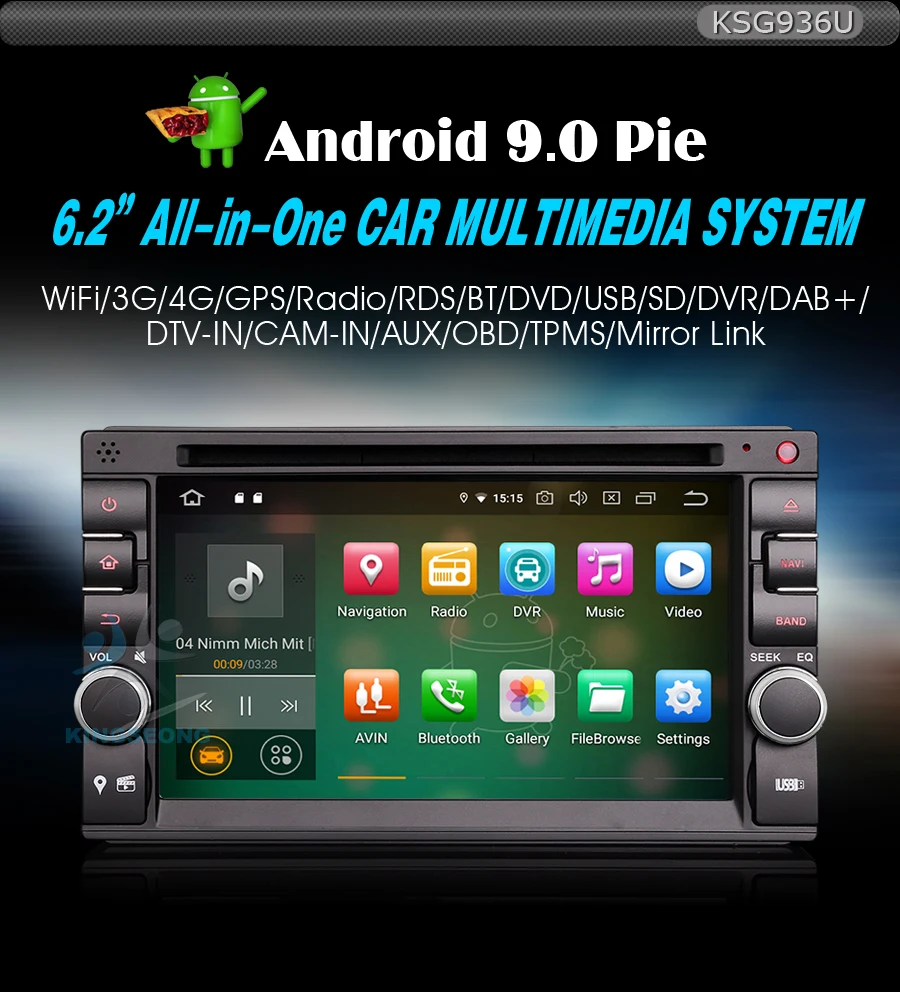

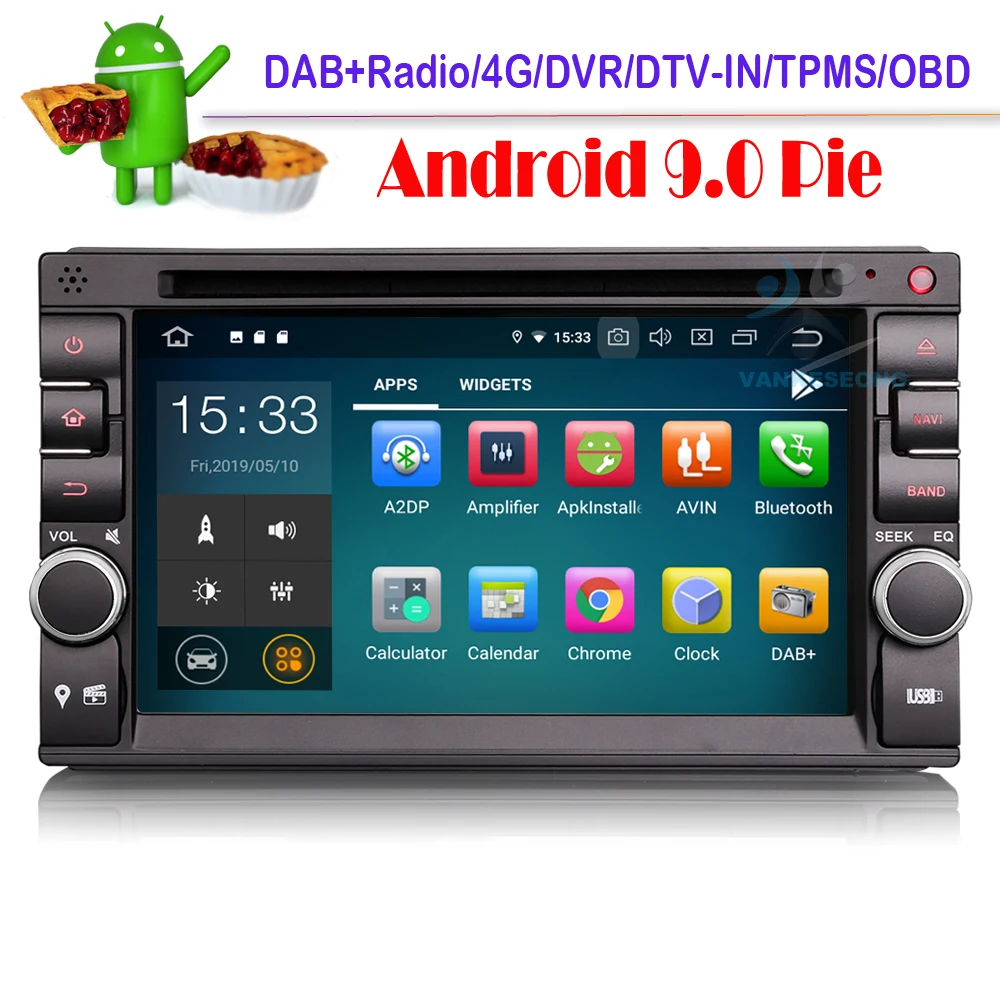

Octa-core Android 9.0 DAB + Car GPS Navigation player double DIN for NISSAN DVD Radio Sat Nav 4G WIFI OBD DVR DVT-IN | Автомобили и

Характеристики

This unit is the best Android car multimedia system on the market, 8 Core with high-speed processing, the most

Functions can be compared with your smartphone


It can be used not only as universal 2Din unit, but also as special unit for NISSAN cars. Adopt the newest Android 9.0

Pie OS, capacitive Touch Screen, Octa Core 1512 MHz CPU, 4 GB RAM and 32 GB Internal Storage, Support extended 2

Card/3 USB Stick up to 5*64 GB. it has special Port for Digital TV Box, you can connect our Digital TV Box to achieve

Touch operation, and this item can power on the connected DTV Box. built-in DAB + App, just connect with our DAB +

Box to use this function. Built-in TPMS App for display Tire Pressure Monitoring System, just connect with our TPMS

Product through USB to use this function, and built-in DVR App, just connect with a USB Camera to use Car Record

Function. The records will be saved in Card/USB Storage automatically, and you can play saved record on this unit

Directly. Support Mirror Link for iPhone and Android SmartPhone. Support Torque Pro (OBD2 & Car), you can connect a

ELM327 Bluetooth OBD2 Scanner Tool to use this function.

Most Popular and strongest function:


Support 1080 P Video/live images/2160 P Photos, support PDF/WORD/TXT/EXCEL, Audio/Video/Photo media Player,

Surf Internet through 3G/4G or WiFi, support Google online maps and Free Android Offline Maps GPS Navi, get access

To thousands of apps, games on the Google Play Store, keep connected through Twitter, Facebook, GTalk, Gmail,

WeChat, Skype and other services, play popular games like Fruit Ninja, Feed the Candy, angry Birds, Big Fish, Air

Attack… Radio, RDS, Bluetooth, DVD, USB, SD, CAM-IN, AUX, steering Wheel Control, 8 Panel Light Colors and via RGB

Combination, Live Wallpaper, DIY Wallpaper

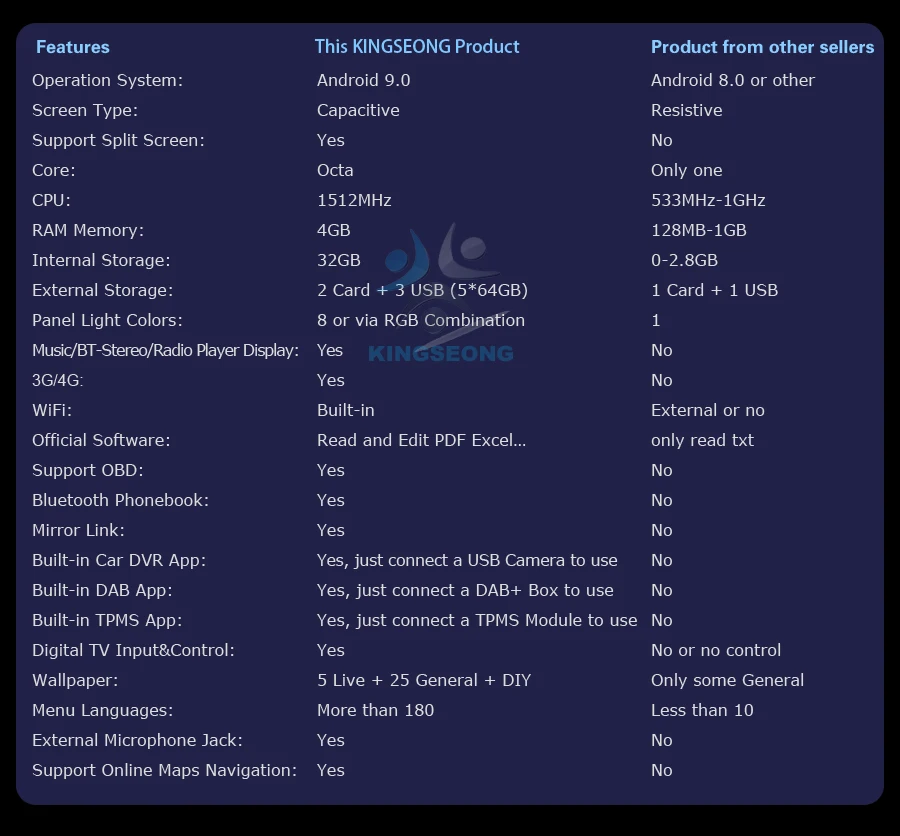

KEY FEATURES:

• ISO 2Din Universal Unit, So it can be used as special unit for manyNISSANCars---you may need buy special

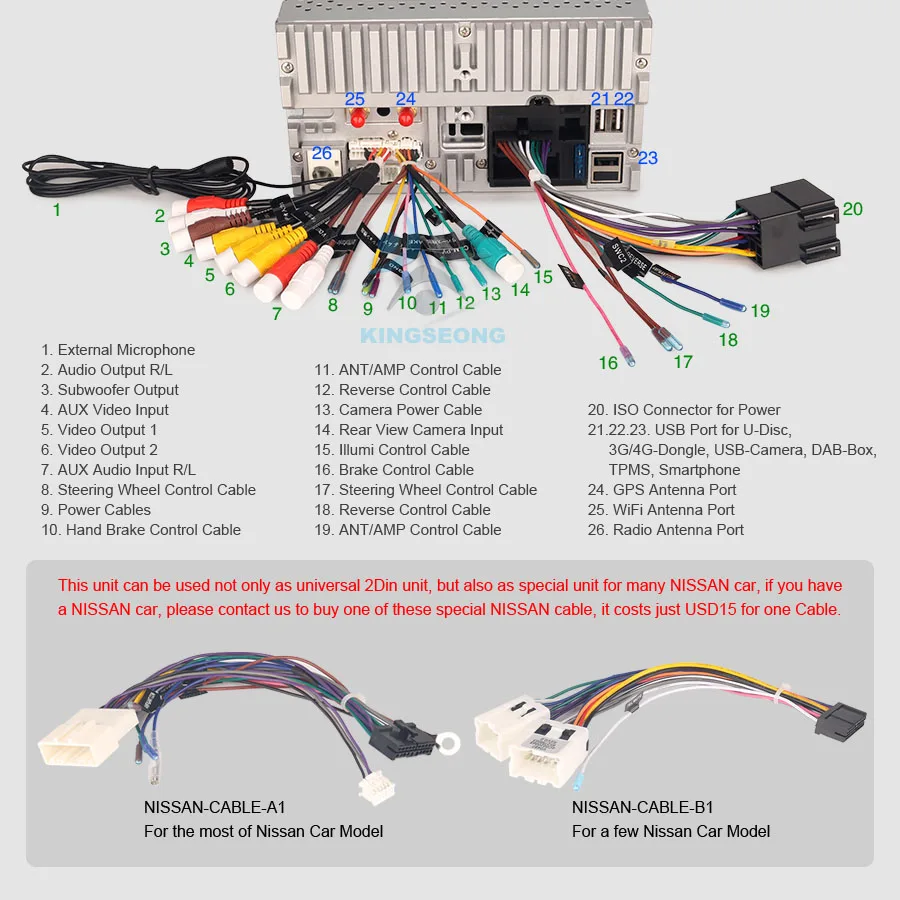

  Nissan Power Cable from us, please refer to the wiring diagram mentioned later

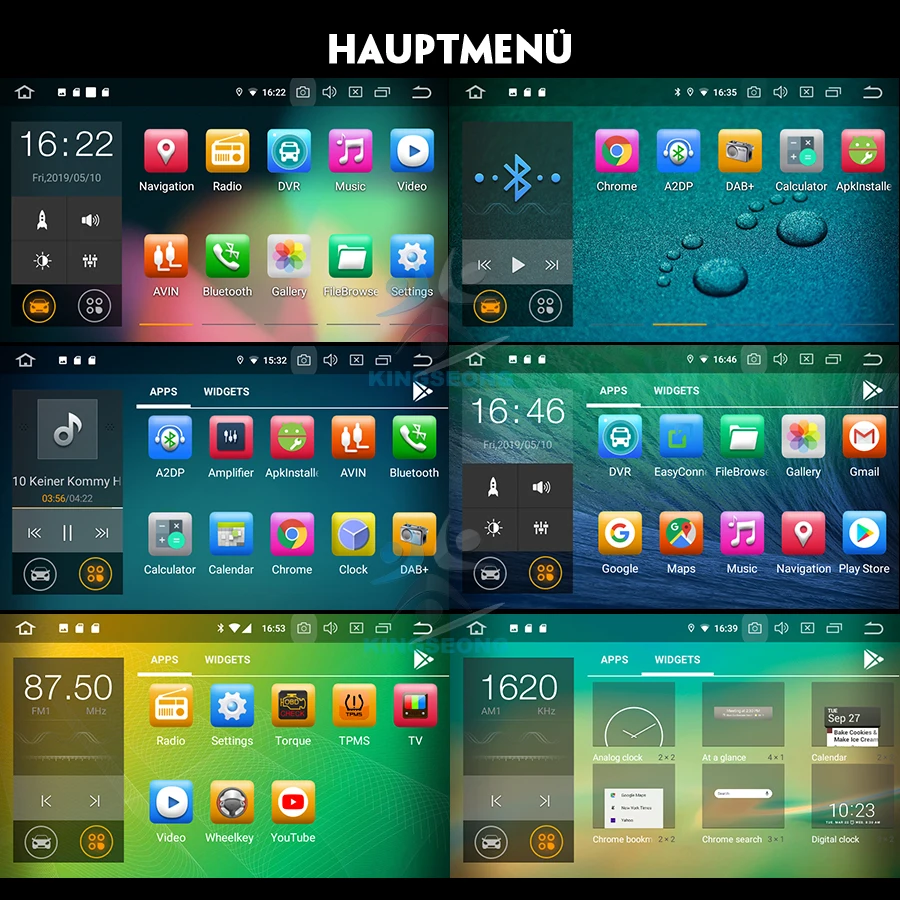

• Google Android 9.0 PieOperation System, Beautiful and fashionable UI Unique Design
• 6.2"Five-Point TouchCapacitiveScreen, 800*480 HD Digital Screen
• Octa-Core Rockchip PX5Industrial-grade Chips, 1512 MHz Cortex A53 CPU
• 4 GB RAM, 32 GBInternal Memory,Support extended 2 Card/3 USB Stick up to 5*64 GB
• Built-In Clock and Calendar, Clock/Date/Week/Time Zone adjustable, can use GPS or network provided time
• Music/Radio/BT-Stereo Player and Clock/Date/Week can be displayed on Main Menu Status Bar
• Multi-Languages: it has more than 180 languages to select, just check it in our pictures

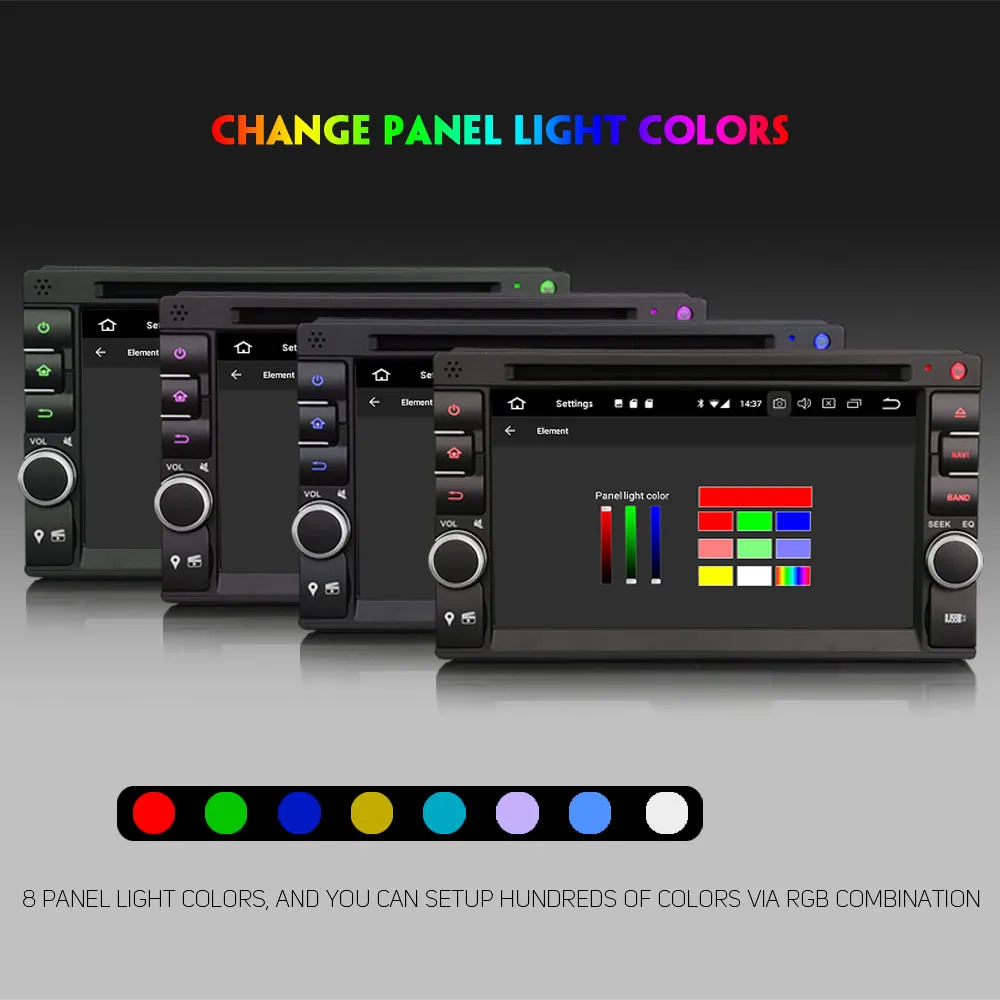

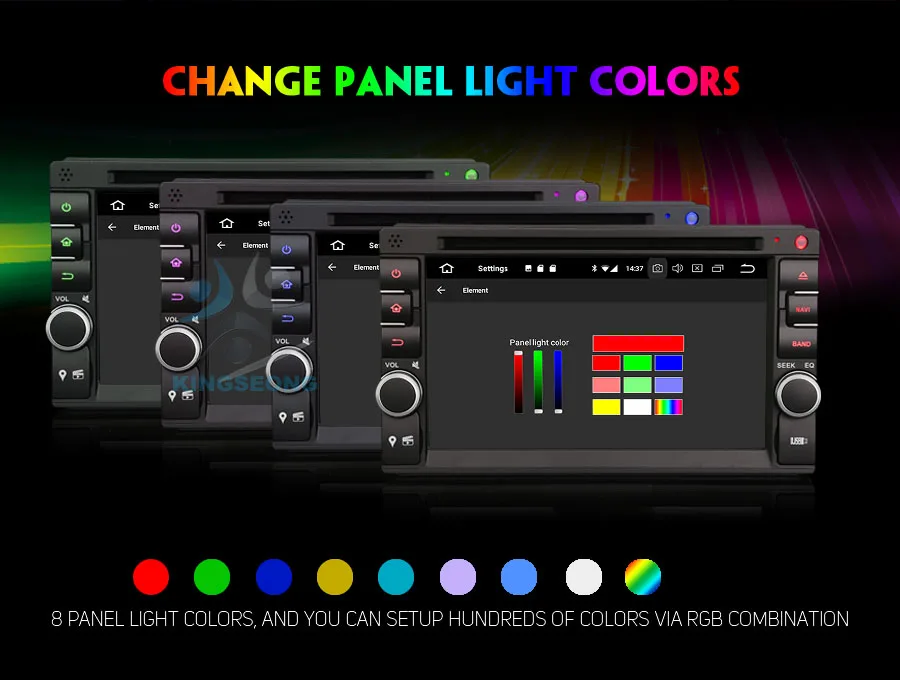

• 8 Panel light colors, and you can setupHundreds of colors via RGB Combination

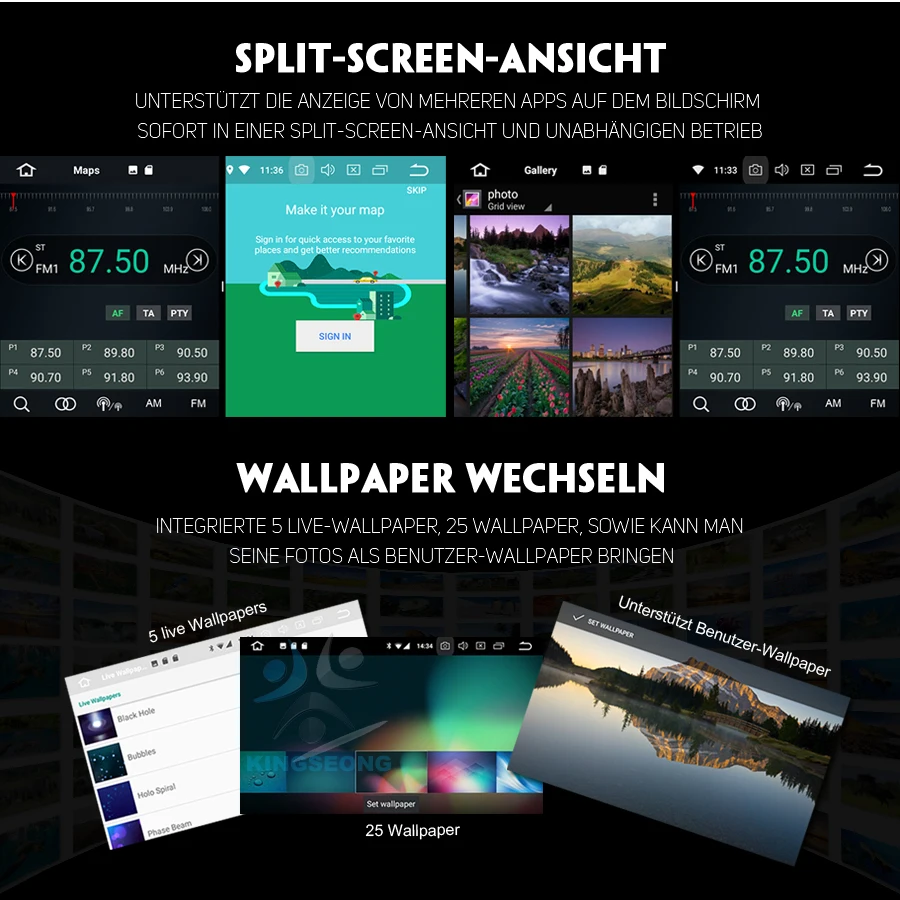

• 5 live wallpapers, 25 wallpapers, support DIY User's wallpaper from Gallery Pictures

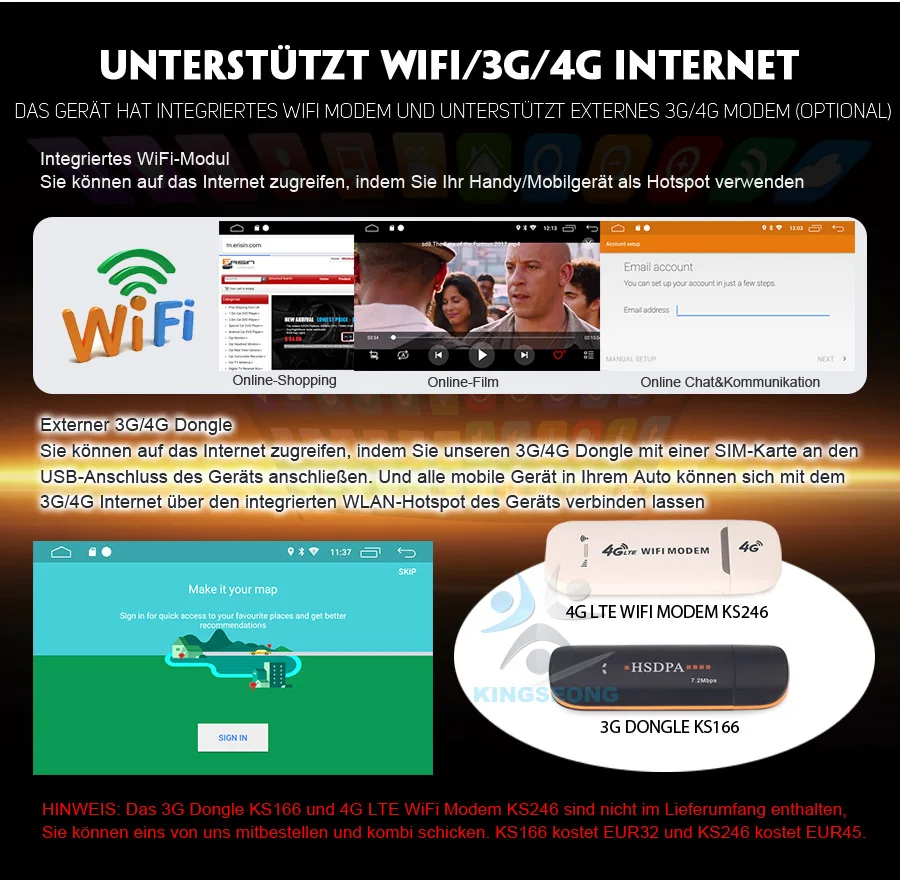

• Built-inWiFi InternetAnd support external3G/4GInternet, 3G/4G Dongle is not included

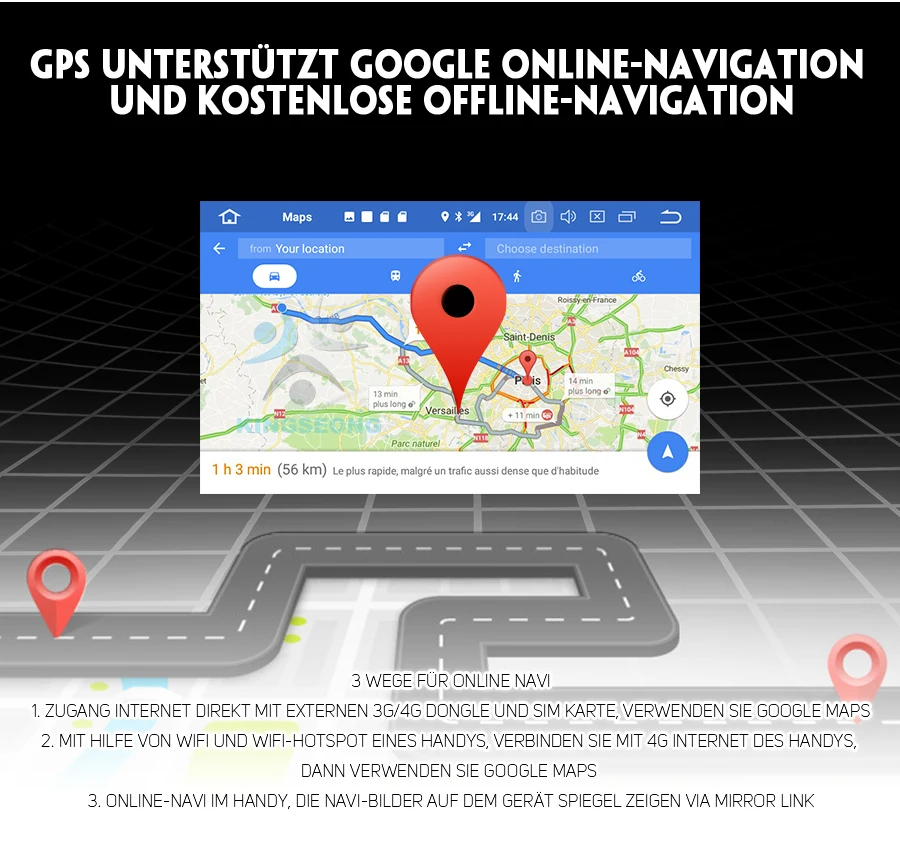

• SupportGoogle Maps OnlineNavi variegating, you can use GPS Navi variegating if you are in Internet
• Support Android Maps Navigation,You can use Free offline maps navigation.
• Support Android Multimedia Player, it can play Music/Movie/Photo from local Disc or USB/SD.
• Online Entertainment, support online video, TV, movie, music, radio, YouTube, Yahoo, MSN
• Online Communication, keep connected through WeChat, Twitter, Facebook, Gtalk, Gmail and other services
• Support read and edit Official Software, WORD/EXCEL/POWERPOINT/PDF/TXT.
• SupportGoogle Play Store, You can download thousands of Apps from here and you can download many popular games
  Like Fruit Ninja, Feed the Candy, Angry Birds, fieldrunner, speed forge 3D…
• Support 3D Games, HD Video, 1080 P, H.264, DivX Live images Formats
• Support HD Video up to 1920*1080 pixels, up to 4096*4096 pixels
• SupportBluetooth hands-free function, Built-in microphone and external microphone Jack.
• SupportA2DP Bluetooth, Can play stereo music through Bluetooth from your mobile Phone
• DownloadPhone Book function, You can download contact information from your phone to this unit
• Support theNewest Phone Book Search, You can search & find a contact Member in downloaded phone book,
  Just input the first letter of name, you will find some associated names, then you can choose the right one

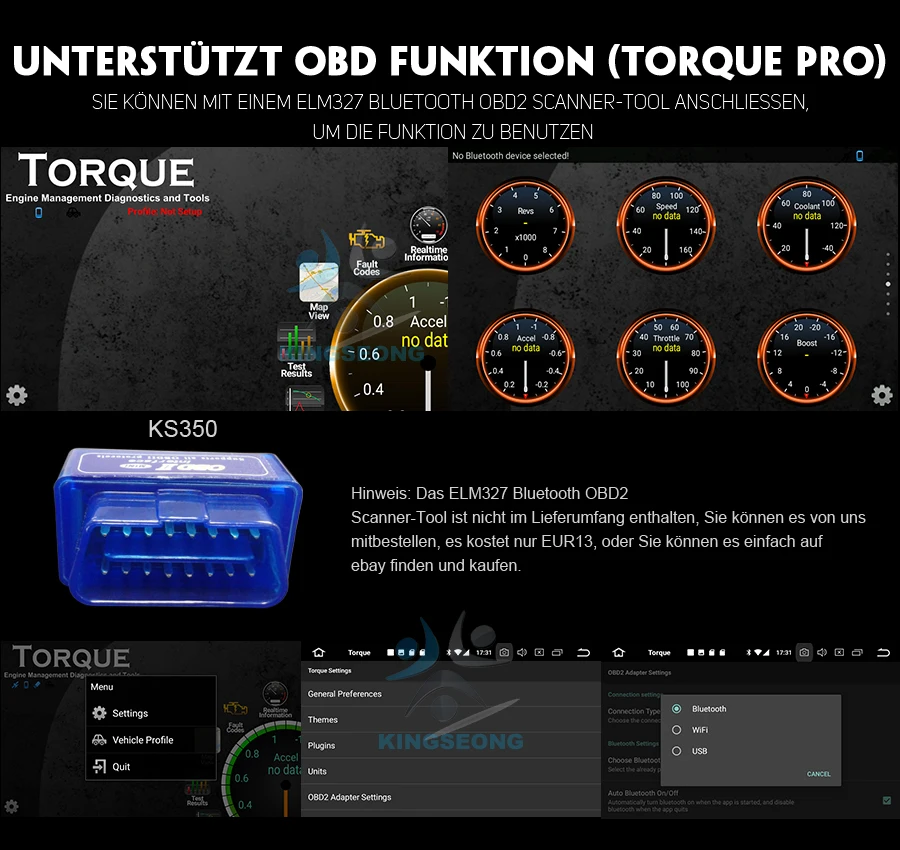

• SupportTorque Pro (OBD2 & Car), You can connect a ELM327 Bluetooth OBD2 Scanner Tool to use this function.

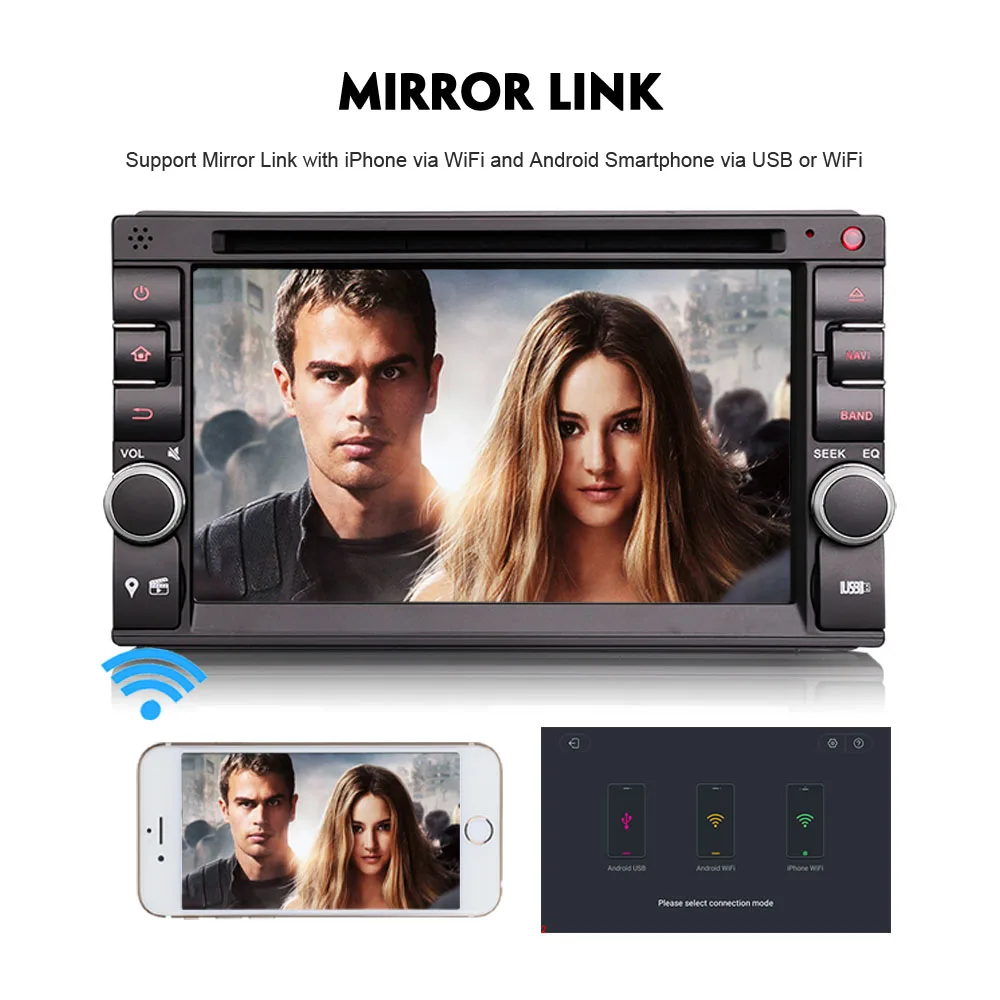

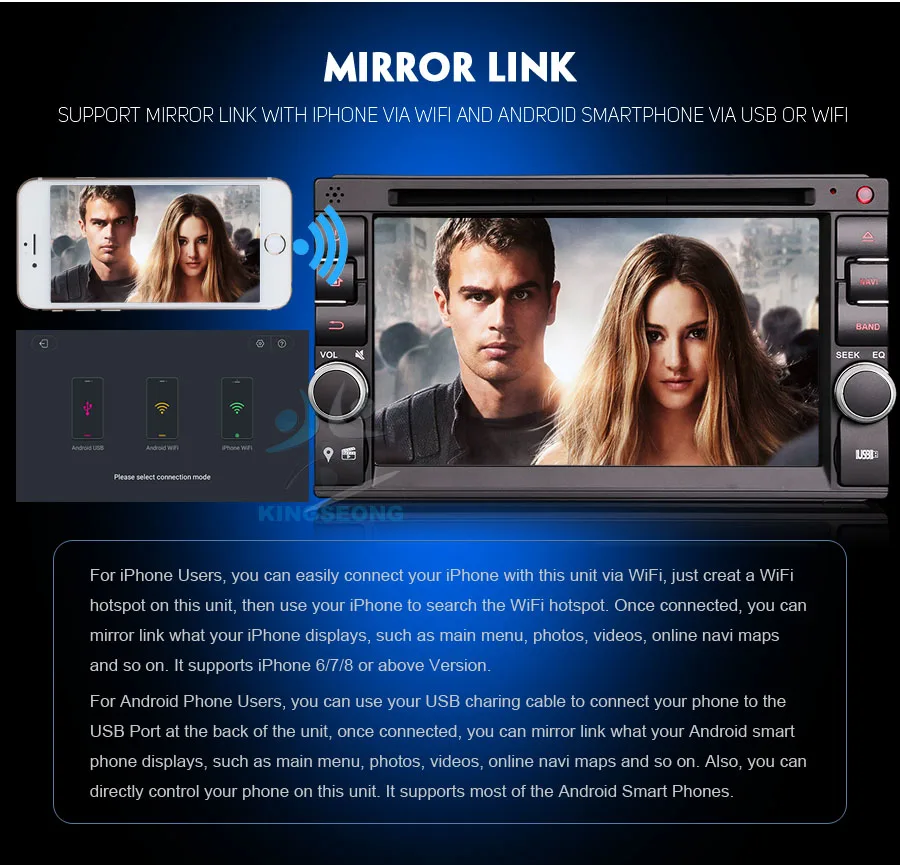

• Support the newestMirror LinkWith iPhone via WiFi and with Android Smartphone via USB or WiFi
• Built-inDisc PlayerFor your CD, VCD, DVD…, Decode IC: 8202TQ
• Radio Tuner with RDS, 30 Preset Radio Stations (FM: 3*6, AM: 2*6), Main Chips: TEF6686
• USB Port and Micro SD Slot, Support USB Stick and Memory Card up to 64 GB

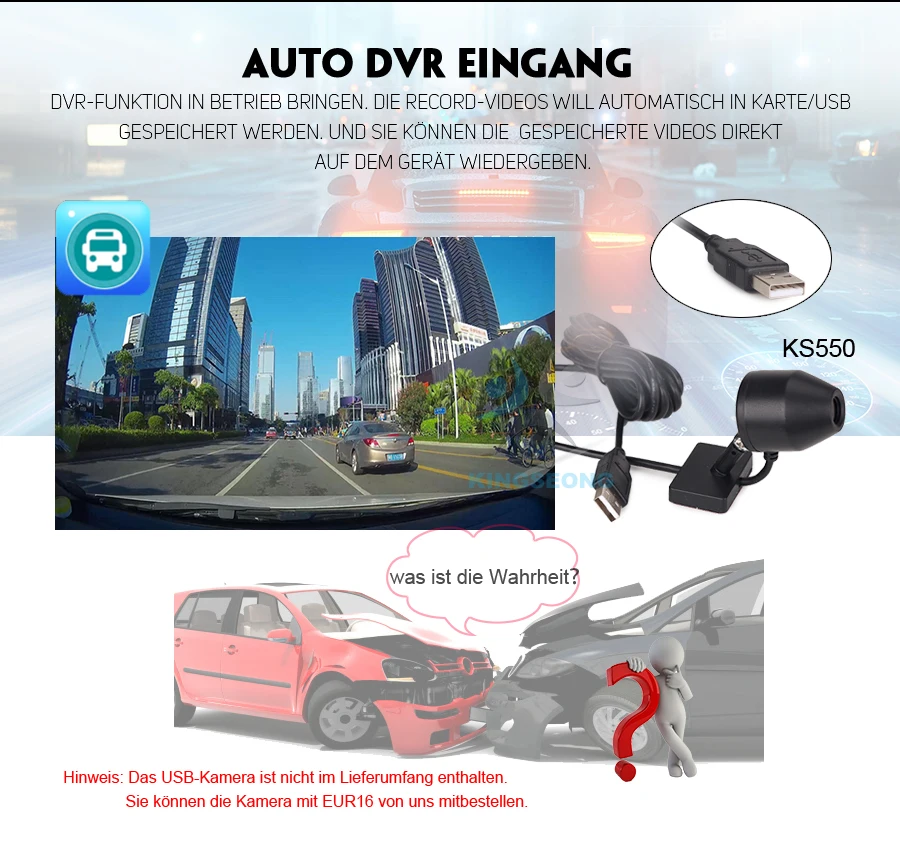

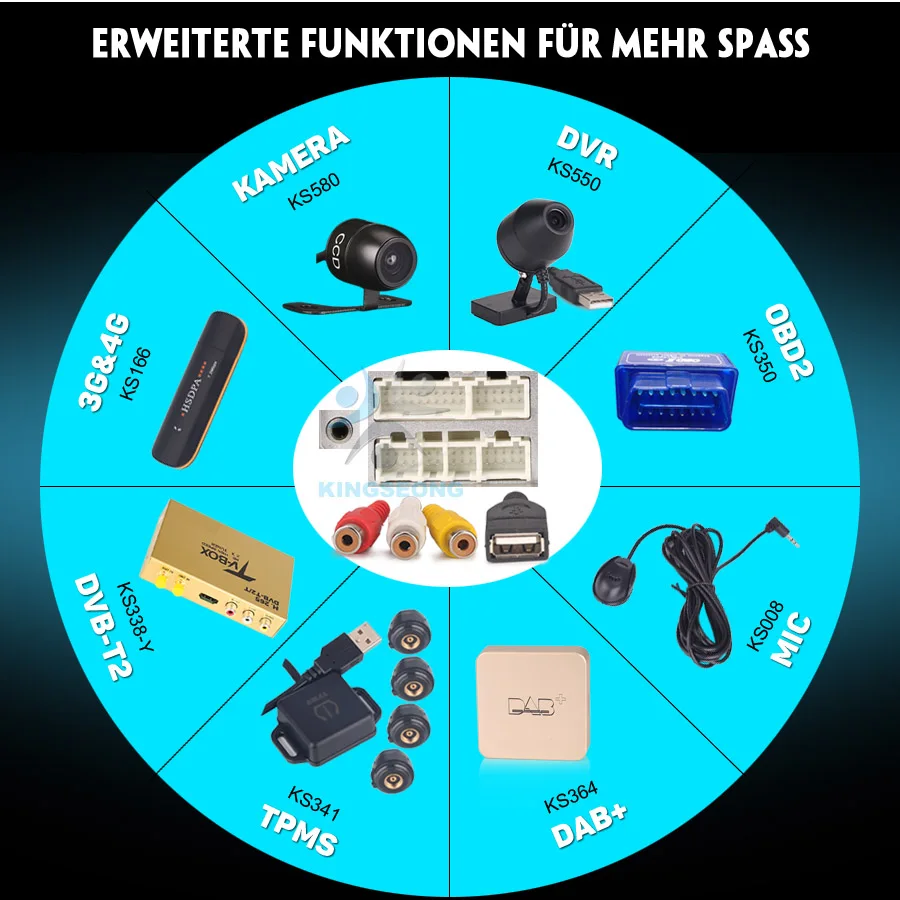

• Built-inCar DVR System, Just connect with a USB Camera to use Car Record function. The records will be saved
  Automatically in NAND Flash/GPS Card/SD Card/USB Storage and you can play saved record on this unit directly.

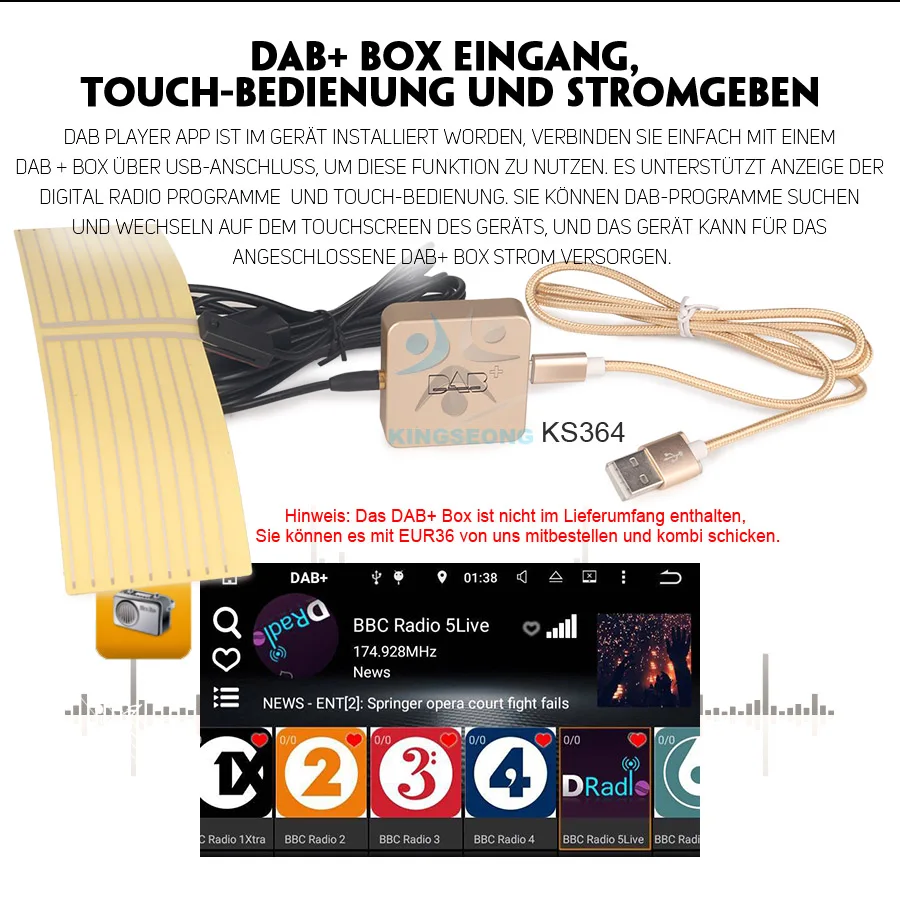

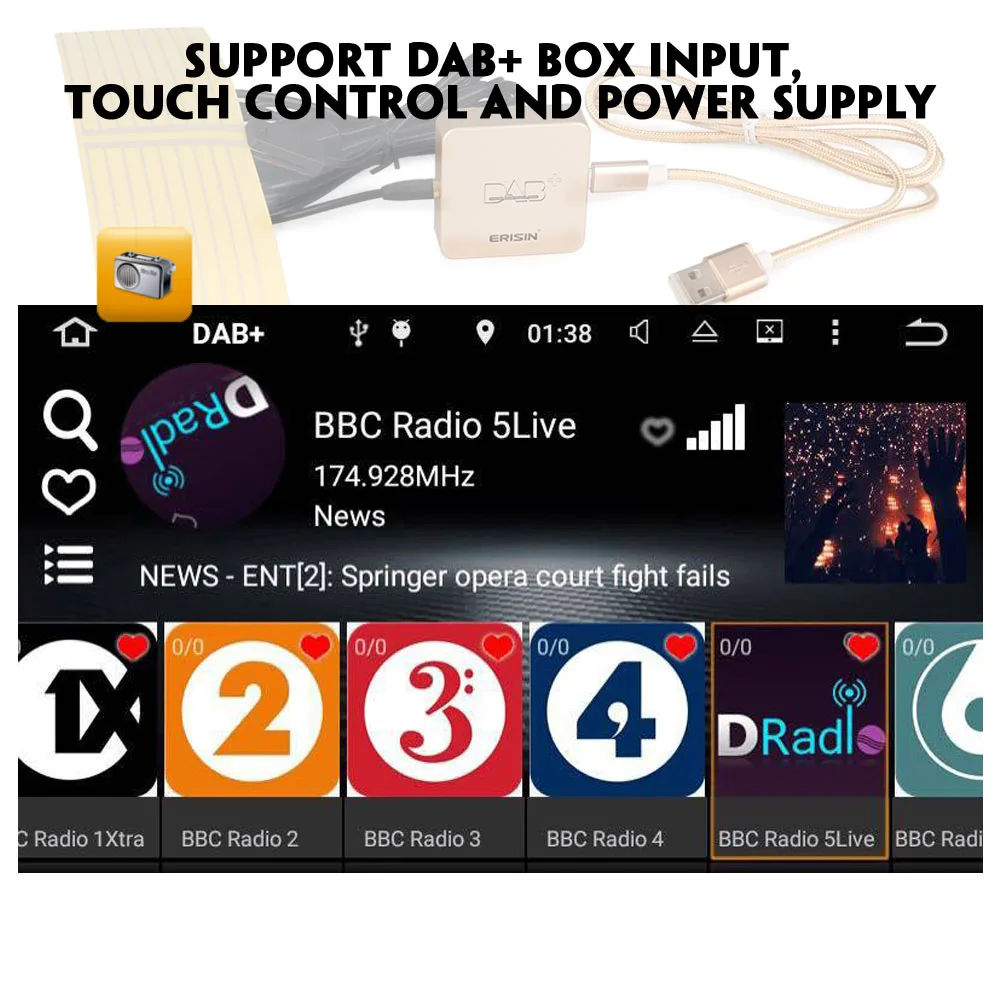

• Built-inDAB +System, just connect a DAB/DAB + Box with USB Port to use this function.
• SupportDigital TV Box(DVB-T/T2, ATSC, ISDB) input, Touch Control and Power supply

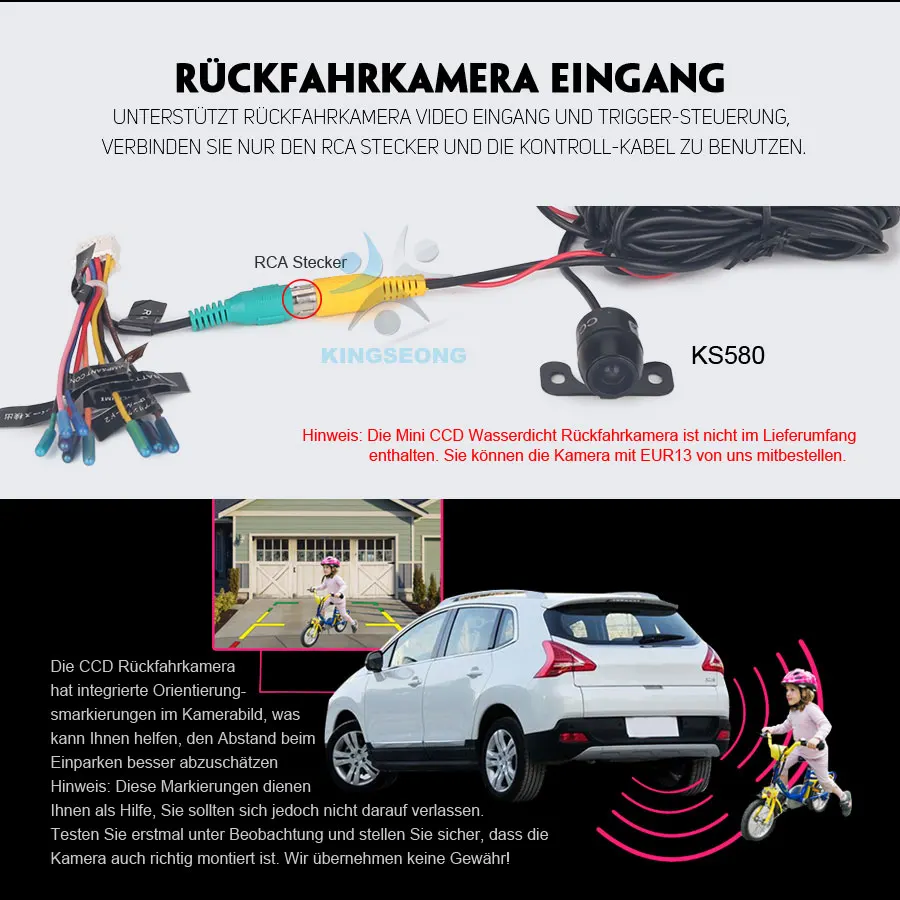

• Support Rear View Camera input and reverse trigger Control

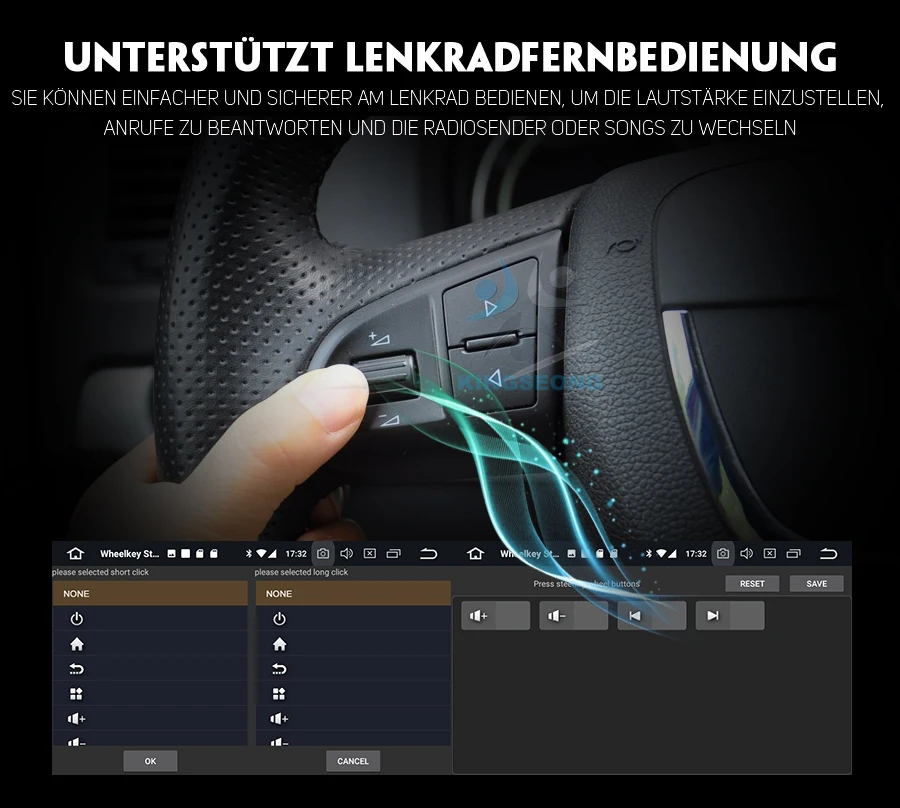

• SupportSteering Wheel Control, Hand Brake Control
• Electronic Anti-Shock, Last Position Memory

6.2 "Octa-Core capacitive Android 9.0 Car Multimedia Player GPS/WiFi/TPMS/DVR/DTV-IN/ DAB +…

General
-Power Supply: DC 12 V (allow ance range: 10.8-14.5 V)
-Max. Current: 10A
-Screen Size: 6.2 inch

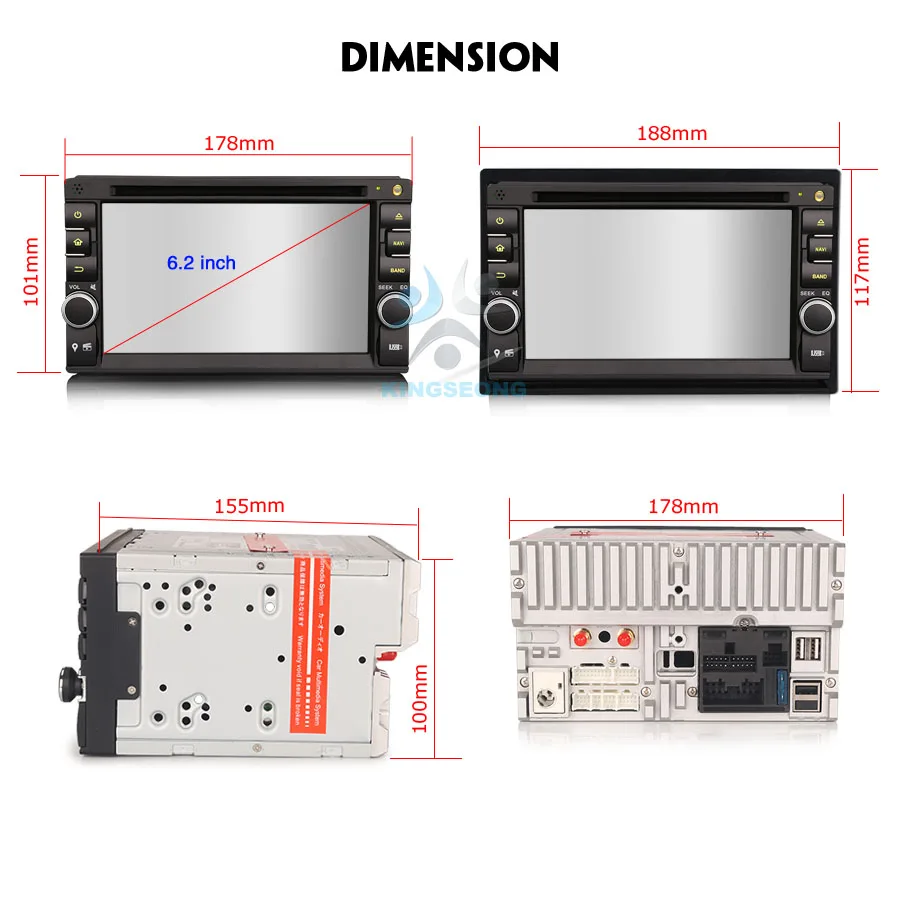

-Front panel Size without frame: 178mm (W) * 101mm (H)
-Front panel Size with frame: 178mm (W) * 101mm (H)
-Install Size: 2Din Size, 178mm * 150mm * 100mm
-Package Size: 280mm * 270mm * 190mm
Shipping Weight: 3.0 kg

System
-Operation System: Google Android 9.0
CPU: rockchips PX5 1512 MHz Cortex A53
-RAM: 4 GB
-Internal Memory: 32 GB
Extended Card/USB: Support USB/SD up to 64 GB

Display
Touch Screen: Yes
-Resolution: 800*480
-Capacitive or Resistance Screen: Capacitive
-Built-in Clock and Calendar: Yes, show real time and can use network provided time
Main Menu Status Bar display: can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
-Change Apps-Icon Position: Yes

Internet
-WiFi Internet: Built-in WiFi Module, Support 802.11b/g/n, support WiFi Hotspot
-3G/4G Internet: USB 3G/4G Dongle not included, just contact us to buy it together
Explorer: Opera, UCWeb, SkyFile, Dolphin and more Explorer for your selection
-Online entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
-Online Navigation: Online Google Maps Navi variegating
Online Games: Yes, online play or you can download it from Google Play store
Online Communication: keep connected through WeChat, Twitter, Facebook, Gtalk, Gmail…
-Read and Edit Office Software: Yes, support Word, Excel, PowerPoint, PDF, TXT

Audio
-Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. could play via song list
-Record: MP3, WMA
-Other: LRC synchronized display; ID3 search; Search by files; Album Picture; user-Defined audio effect
Audio IC: Top Global Cirrus IC, independent audio decoding
-SNR: Noise lacerations: = 90dB

Video
Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
MPG ect. = 30 formats, Playing Internet video directly (while download ing)
-Play: Up to 1920*1080 Pixels, 30 MB. Fluent play without light spot
-Video Output: Common Video Output (AV)

GPS
-Operation System: Android 9.0
-Support Maps: IGO, SYGIC Maps for Android 9.0
Ready to use: Yes
Voice Guidance: Yes
-Support 2D/3D Map Views: Yes
-Dual Zone: Yes, Navi variegating while music playing
-Online Navi: Yes, support Google maps online Navi variegating

DVD
-Decode IC: 8202TQ
-Compatible Format: MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG
-OSD/Audio/subtitle Language: English, Italian, French, Spanish, Portuguese, german, Russian…
-Auto-Save Function: Yes, expe diently watch all kinds of disc continuously

Bluetooth
Hands Free: Yes
-A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
-Bluetooth Music Control: Yes, play/pause/previous/next
-PB-Download: Yes, can download phonebook from mobile to this unit
-PB-Search: Yes, can use the first letter to search contact Member in PB-Listings
-Calling Records: Yes, Dialed Call, Received Call, Missed Call
Setup: Auto Answer, Auto connect, Device name
-Built-in Microphone: Yes, on the front panel
-External Microphone Jack: Yes, on the back, external Mic. incl.

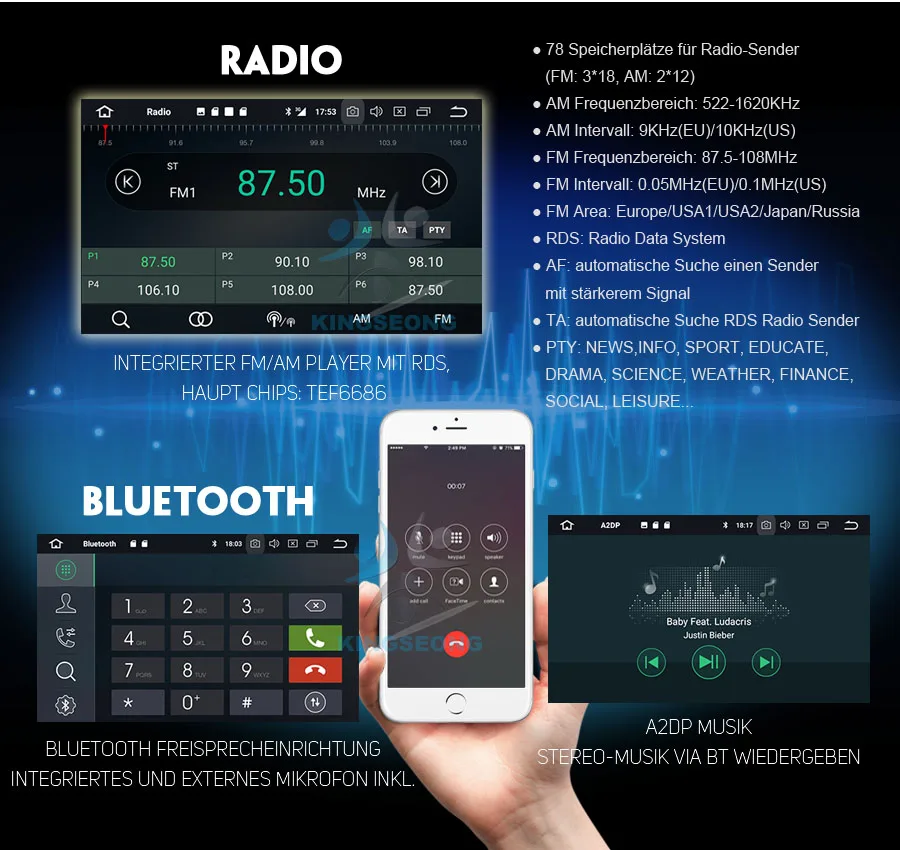

Radio
Main Chips: TEF6686
-AM Frequency Range: 522-1620 KHz
AM Increment: 9 KHz (EU)/10 KHz (US)
-FM Tuning Range: 87.5-108 MHz
-FM Increment: 0.05 MHz (EU)/0.1 MHz (US)
-FM Area: Europe/USA1/USA2/Japan/Russia
RDS: On/Off
-Preset Stations: 30 (FM 3*6, AM 2*6)

USB
-Position: 3 USB On the Back, can be connected with Media, 3G/4G, TPMS, Camera, DAB + Box, Smartphone
Capacity: 64 GB
-Play MP5 Videos: Yes, can play RMVB Video up to 1080 P
-Touch Music Title to play directly: Yes

CARD
-Position: On the front panel, Media or GPS Card Slot optional
Capacity: 64 GB micro SD/TF Card
-Play MP5 Videos: Yes, can play RMVB Video up to 1080 P
-Touch Music Title to play directly: Yes

Car DVR
-Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
-Support HD CCD Camera: Yes
-Play recorded Video directly: Yes
-Storing Position: CARD/USB Storage can be changed

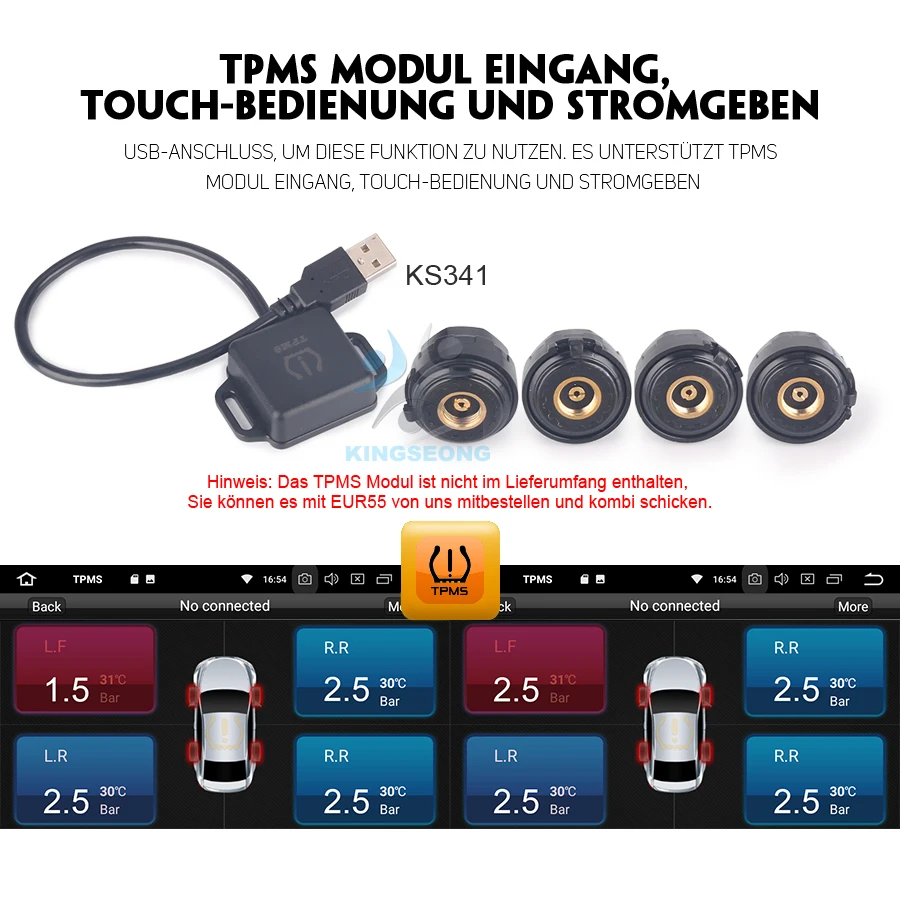

TPMS-IN

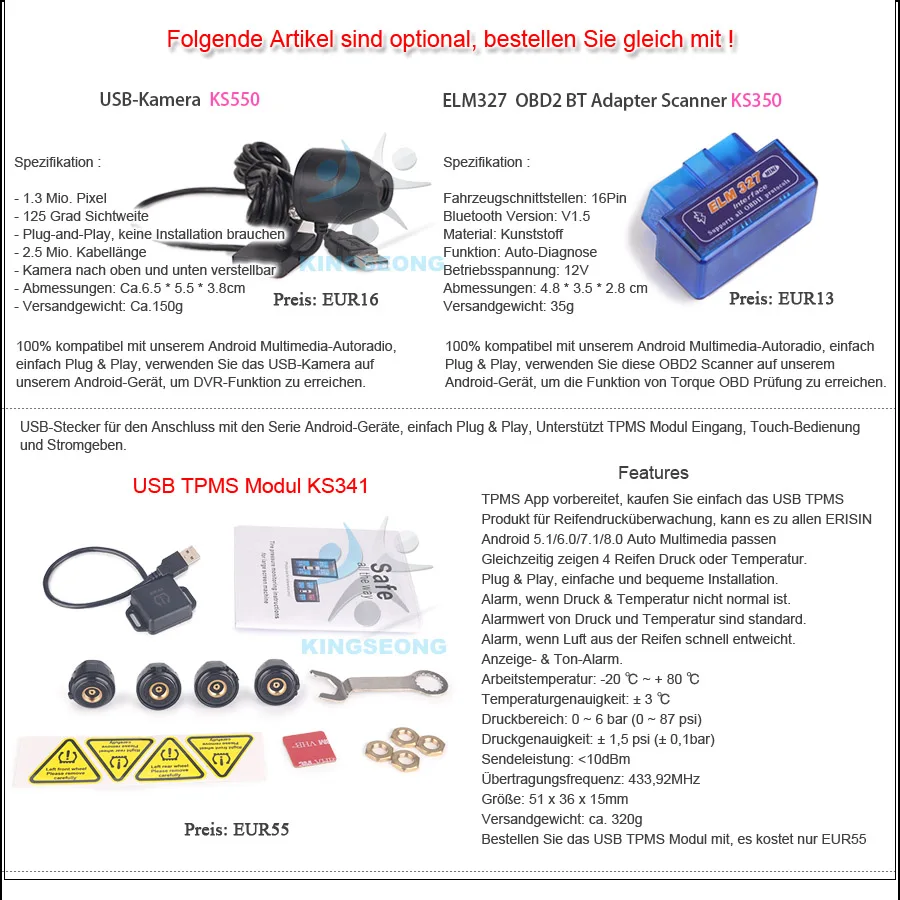

-Built-in TPMS App: Yes, just connect a TPMS Module to use this function
Connection Port: USB
-Power Supply to TPMS Module directly: Yes
Touch Control: Yes

DAB (+)-IN

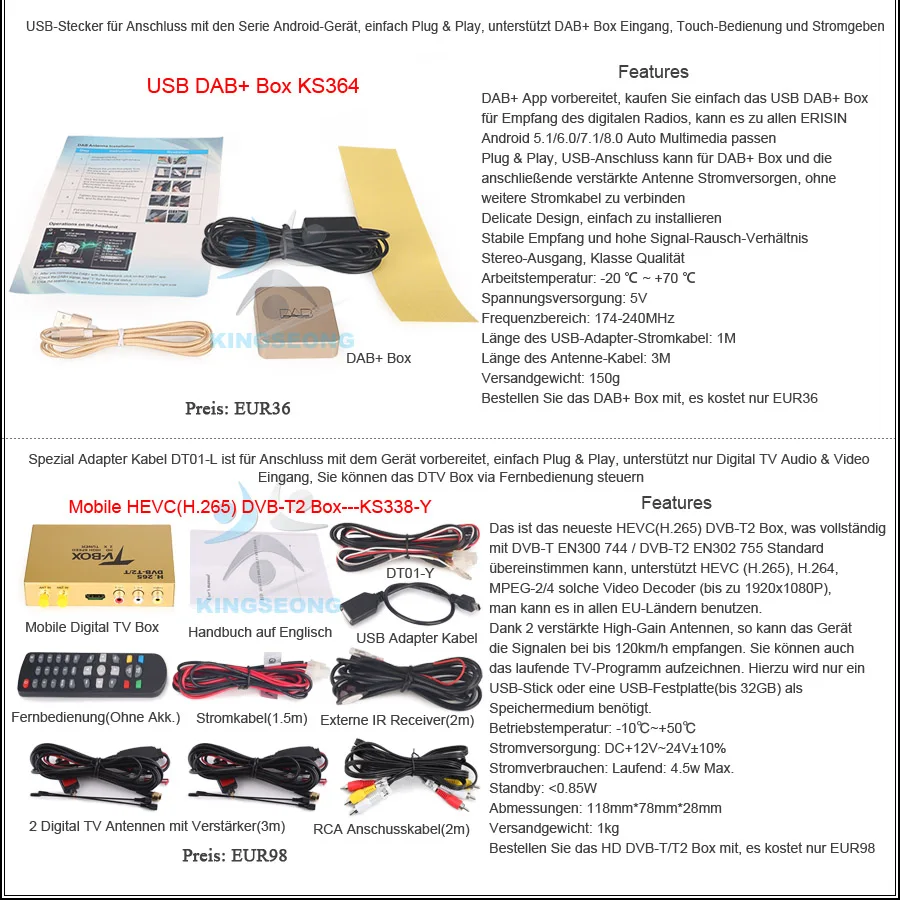

-Built-in DAB Player App: Yes, just connect a DAB + Box to use this function
Connection Port: USB
-Power Supply to DAB + Box directly: Yes
Touch Control DAB + Box on unit: Yes

DTV-IN
-Built-in Digital TV Tuner: No
-External Port for TV Box: Yes, Support DVB-T/T2/ATSC/ISDB Box
-Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function
Touch Control the TV Box on unit: Yes, you can connect our TV Box to achieve this function

Additional
-Textbook: Could Change font, font color, background color, bookmark, reading E-book while listening music
-Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. Play by revolve, PowerPoint Support 4096*4096 Pixels
-Wallpapers: 5 live wallpapers, 25 standard wallpapers, support DIY wallpaper from Gallery
APK Installer: Support Android Package installer
-Support Torque Pro (OBD2 & Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
-Support MirrorLink function: Yes, support screen mirroring from iPhone and Android Smartphone

Setup
-Network & Internet: WiFi/HotSpot/VPN/Airplane fashion
-Connected devices: Bluetooth settings and connecting
Apps & notifications: Apps Info/Notifications/App permissions/Default apps, Special app access
-Display: Brightness level, Wallpaper, Font Size, Night display and Touch assistive
Wallpaper: Wallpapers, Live Wallpapers, Gallery
-Sound: Key Tone, Volumes, Default notification sound, Default alarm sound
-Storage: Storage Manager, Internal shared storage and Portable Storage
Security & Location:: Location/Device admin apps/Apps with usage access
-Users & Accounts: Add Account/automatically sync data
-Accessibility: Yes
Car settings: element/Steering wheel keys/Amplifier/Navigation/Driving settings/Extra settings/Factory settings
-Item: 8 Panel light colors, support RGB Combination
Amplifier: Rock/Pop/Jazz/Classic/Flat/Voice/Custom
Navigation: Yes, Navigation application options, monitoring, sound mode, mixing ratio, GPS monitor
Driving Safety: Allowed or block Watching video, Notifications in status bar while driving. Network settings for app while driving
-Extra settings: Shutdown delay when ACC OFF, choose on/off Playing music automatically when USB or SD inserted. Choose Reversing X-mirror, Reversing volume… On/Off
Factory Settings: Code 3368, choose Radio Band, Voice levels, CANbus types, and 88 Open Unit Logos
-Google Services & Preferences
-System: languages & input/Date & time/Backup/MCU & System updates/Reset/About Machine
-Languages & Input: more than 180 Languages and choose input method
Date & Time: setting Date & Time by yourself or choose GPS/network provided time & time zone
-About Machine: Display Parameter Info.

Input
AUX Video In: One
-Rear-View Camera Video In: One
-External Microphone In: One
-AUX Audio In: R/L
TPMS Box In: One
-DTV Box In: One
-DAB + Box In: One
Car DVR In: One
-Radio Antenna In: One
-GPS Antenna In: One

Output
-Video Out: Two
-Audio Out: R/L
Surround Stereo Out: 4*45 W
-Subwoofer Out: One

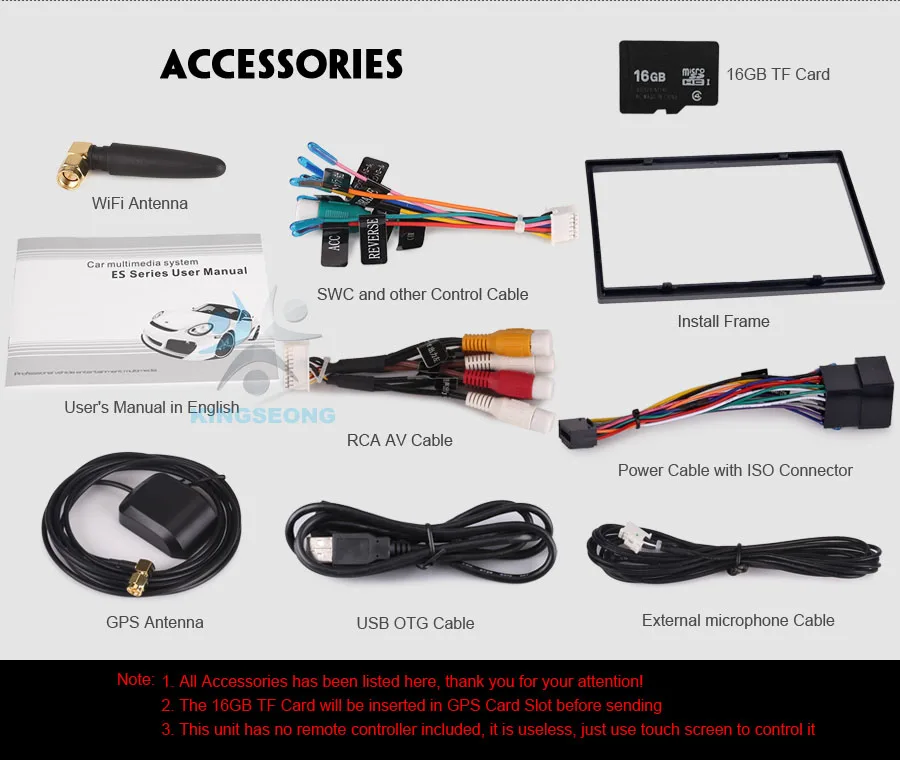

Accessories
-1 * User's Manual in English
-1 * Power Cable with ISO Connector
-1 * SWC Control Cable
-1 * External microphone Cable
-1 * USB OTG Cable
-1 * GPS Antenna
-1 * WiFi Antenna
-1 * Install Frame

Important Note:

1. we offer lifetime technical service, we will teach you how to update the device, we will provide good after service, you

Do not need worry about it.

2. installation fee is out of our control, it must be paid by the buyer. installation fee is not include in this transaction

3. All the message will be replied in 24 hours except weekend and Festival



Shipping:

International Buyers-Please Note:

1. Import duties, taxes and charges are notincluded in the item price or shipping charges. These charges are the buyer's

Responsibility. Above 95% can get to the buyers without any Taxes. If the buyers have better method to help clear the

Customs, please contact us. Some of the buyers, their area or zip code belong the remote area, they need to pay 35 $ for

The remote fee.

2. please check with your country's customs office to determine what these additional costs will be prior to

Bidding/buying. We use DHL and EMS for our international shipment and if you can choose DHL we suggest you use it.

If you prefer other express, please feel free to contact with us directly They usually take 10-20 working days for delivery

To most of the international cities. In our experience, around 10% items will take longer than that due to the customsstate

Clearance. If your address is PO BOX, Express will refuse to delivery so you need provide another address, thank you

For your attention. We just can send this item to your ALIEXPRESS registered address, if you want to change the shipping address

After paid, we will refund you first, and you can add the new address in your Ali pay for it again.

3. please leave your phone number and email after you place an order so that we can contact with you if we have any

Problem about the shipping.

4. we need 1-3 days to help you send out the package after we receive your payment (except the weekends and

Festival). we will give you the tracking number after we help you send out the package, the tracking information need

Some time to update, you need to stacking your order after a few days we will help you send out.



Warranty and Return:

1. we will help you test well the device and build in map before we help you send out the package

Our device has one year warranty. withinthewarranty notinclude the damage incorrect installation, accident, misuse, abuse,

Improper wiring, and incorrect voltage operating the unit against the instructions in the owner's manual.

2. the valid period of replacement is 14 days from the date of receiving the item, if this item has any problem when

Arriving, please feel free to contact us and please note keep it in original condition, and you can recover a video about the

Problem and send us to help you check it

3. you need to pay for the return postage and ship the item back to us, we will pay for the return shipment if you get the

Broken device. Please inform us of the reason of your order revocation and send us a clear picture or a video as a proof.

Items returned to us without a report will not be processed.

4. please install the the carefully because the most of the device with a big touch screen, please just install this unit

By professional technician, also ask them to test it first before installation

5. before Our sending, we have checked all our items carefully, if you received a broken defective item, just keep the

Original package and make a photo to us within 3 days, just in 3 days after delivery we can make the claim to shipping

Company with your photo, however please note shipping company needs about 15-30 days to invest iGATE the case, so

Please be patient

6. For following situations, the item is out of free warranty

Damaged caused by: misused, improper installation and so on man-made fault

Warranty seal removed or damaged

Opened or repaired by unauthorized perso



Feedback:

1. if you are satisfied with our device, please give us a positive feedback and help us leave some good pictures about the

Device, and excellent operation video or installation video for the DVD is strongly recommended

2. if you have any problem about the device after you get the package, you can contact me any time, we will try our best

To help you solute the problem and give you the best service, please do not leave a negative feedback to us to open the

Dispute directly
