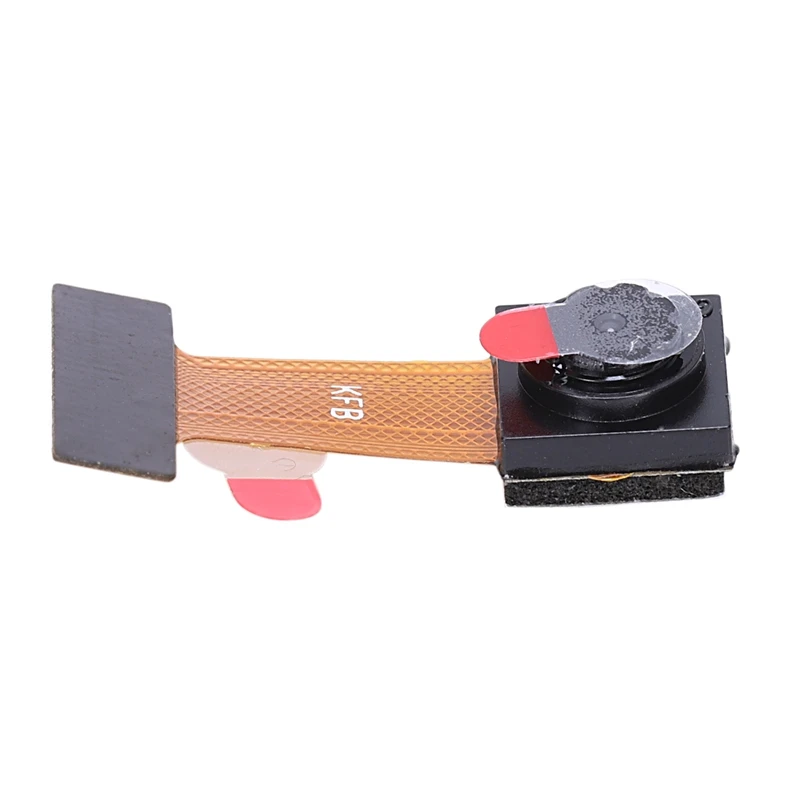

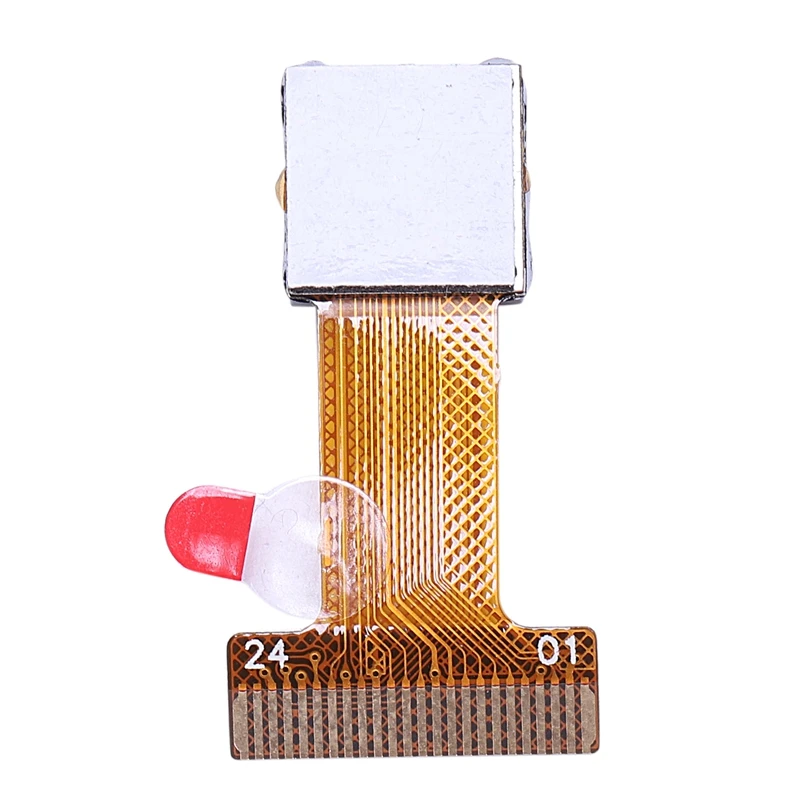

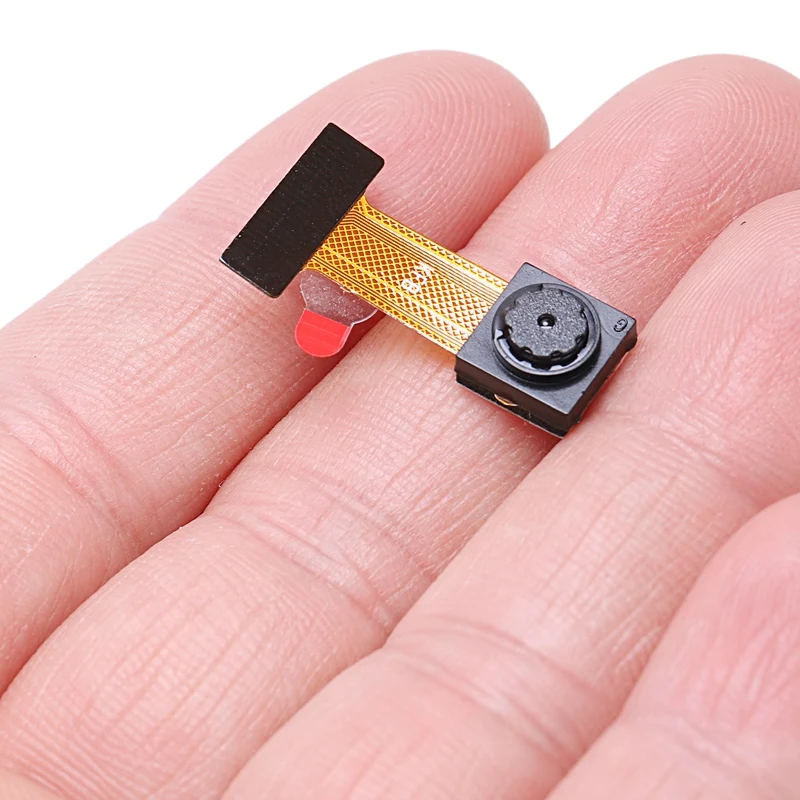

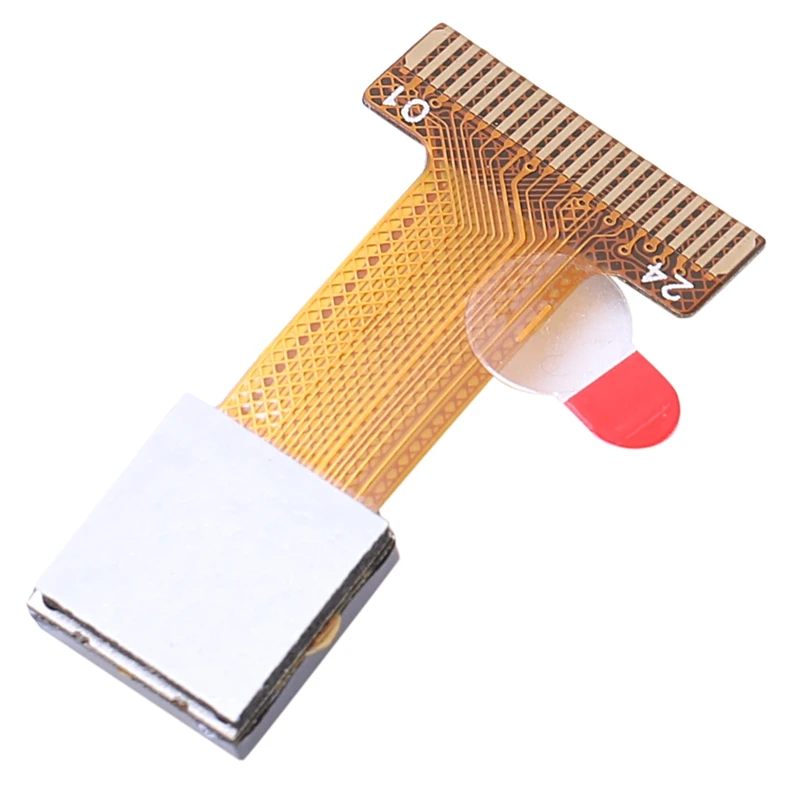

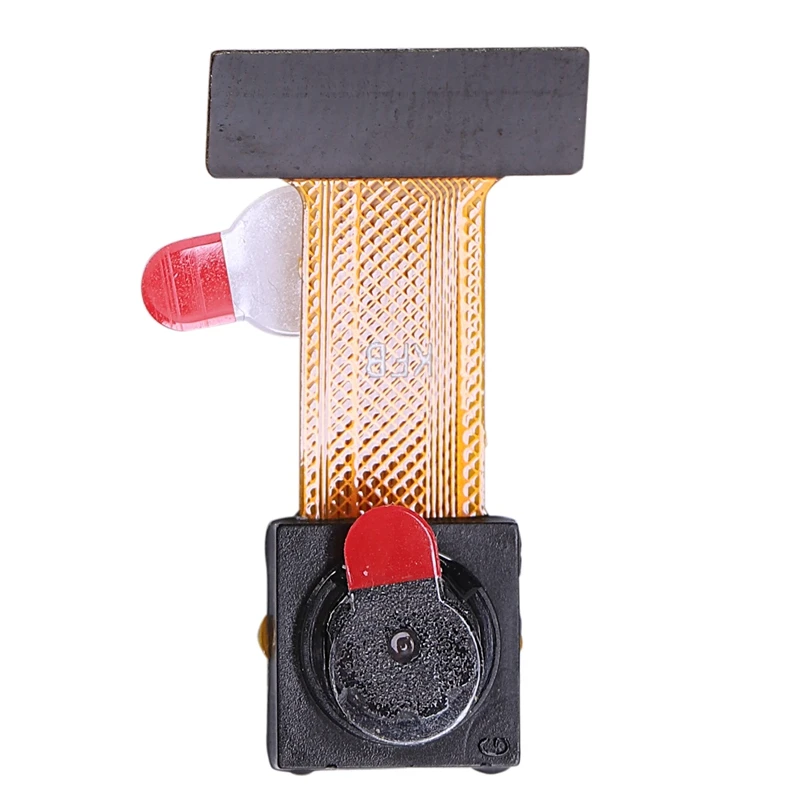

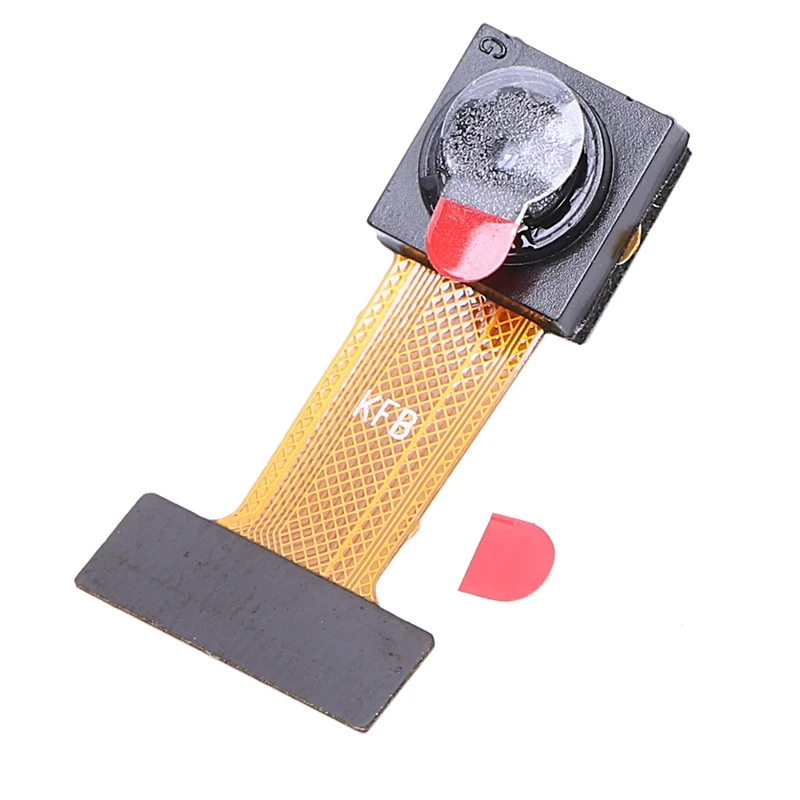

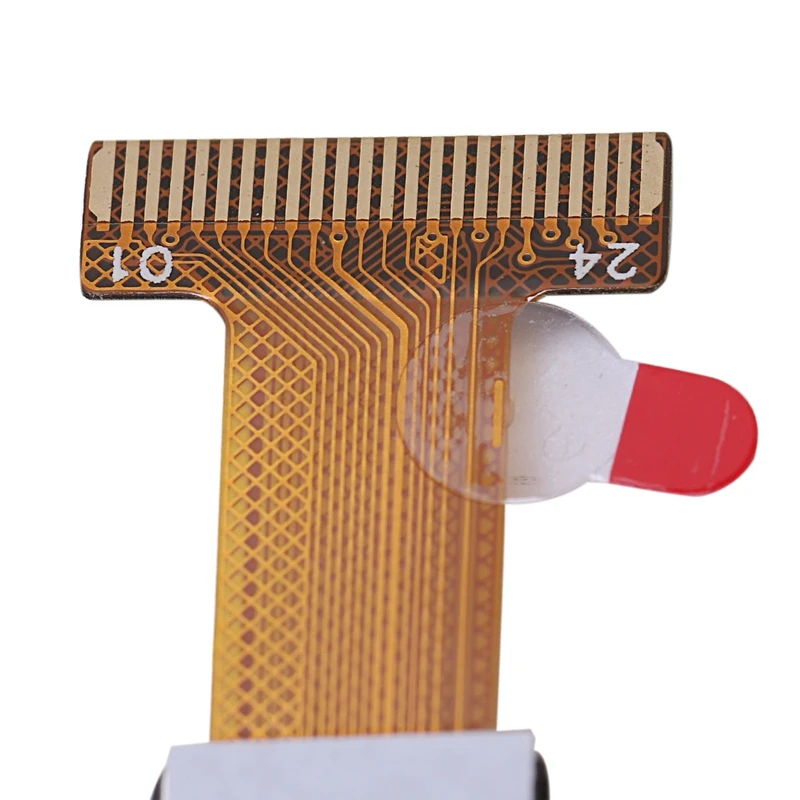

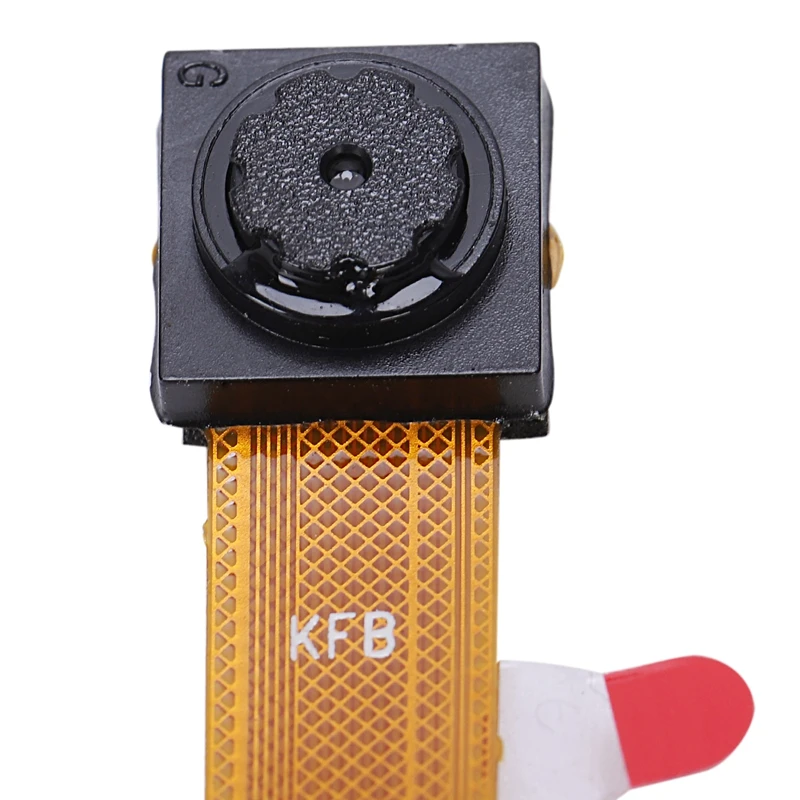

FULL-640x480 Pixel Lens OV7670 CMOS Camera Module with 24p Socket 2.5V-3.0V 0.3 Million | Электроника

Характеристики

IO voltage:2.5V-3.0V;SNR:46db;DYN :52db
300000 pixels;dark current:12 mV/s at 60;Photographic Array:640 x 480
active power:60mW/15fps VGA;Optical Size:1/6 inch;Angel of view:67 degrees
Maximum Frame Rate:30fps VGA;Sensitivity:.1.3V/(Lux-sec);Dormancy:Less than 20A
Color:color as shown
Material:plastic + metal
Package Contents:
1 x OV7670 CMOS Camera Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
