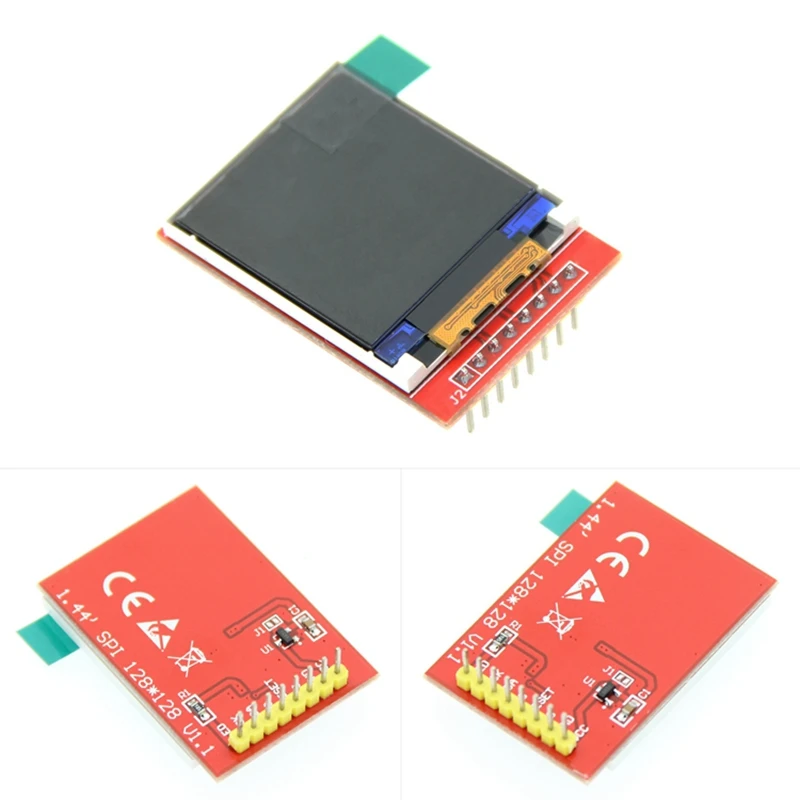

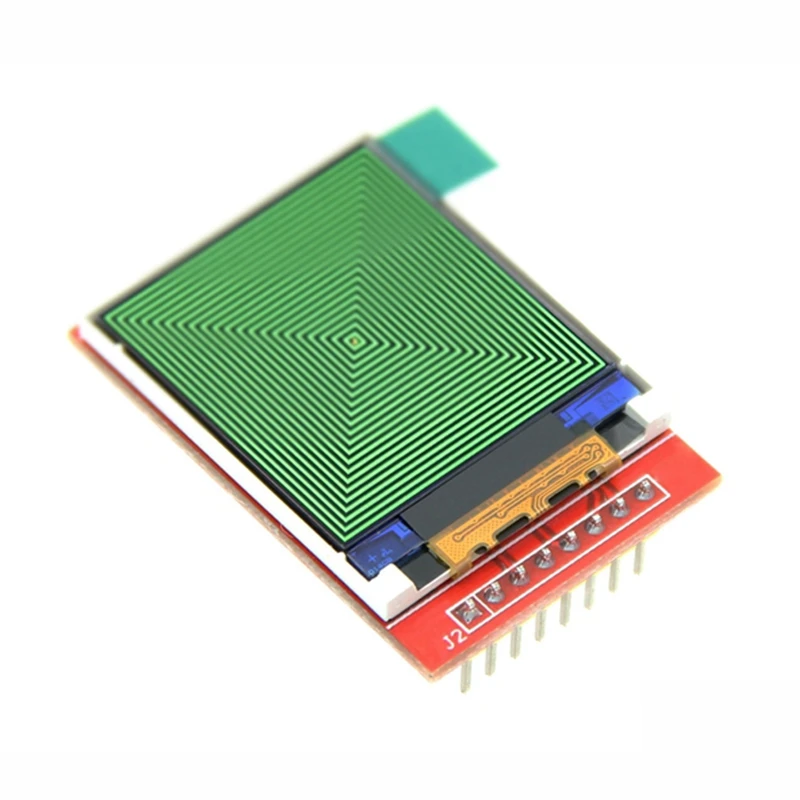

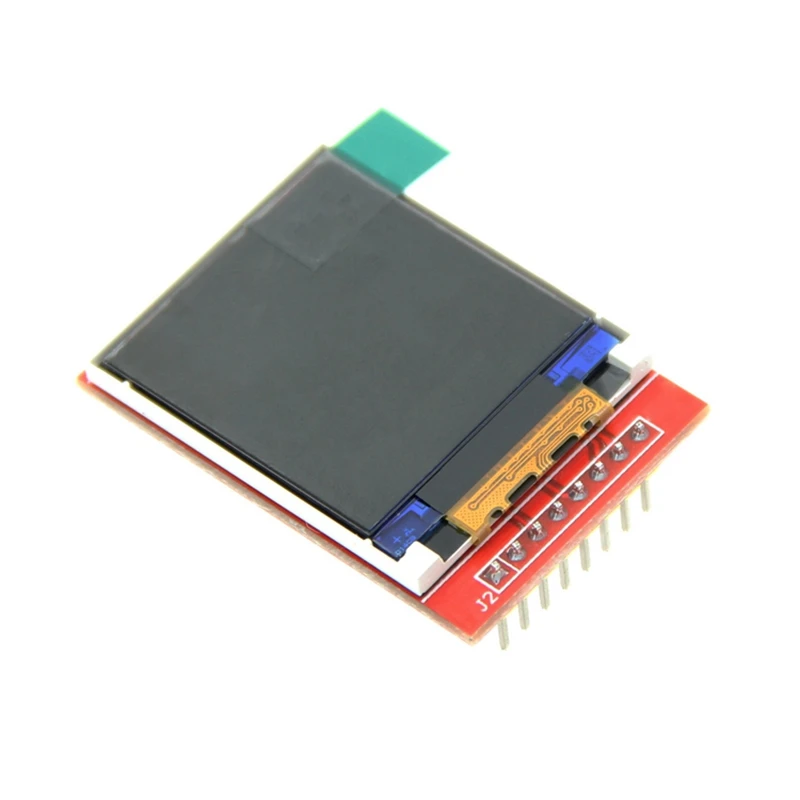

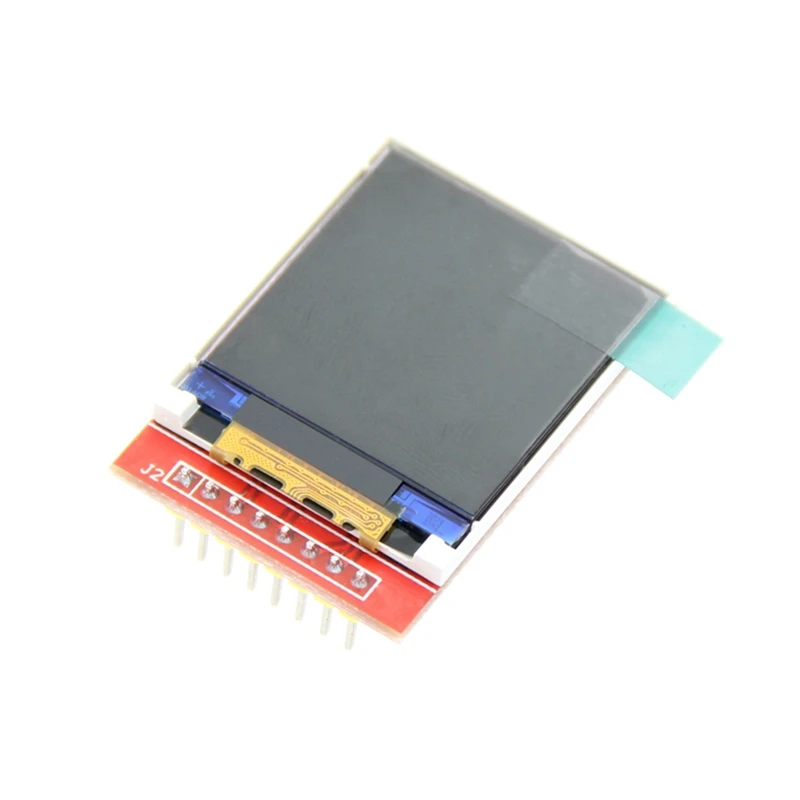

AAAE Top-1.44 Inch TFT LCD Module 128x128 SPI Serial 4 IO Display Screen Driver IC ST7735S | Электроника

Характеристики

Welcome to our store. Please writer your right address and post code so that you would get your packages soon. It's would be lower if you buy more. Please feel free to contact us if you have any questions. Best Regards!

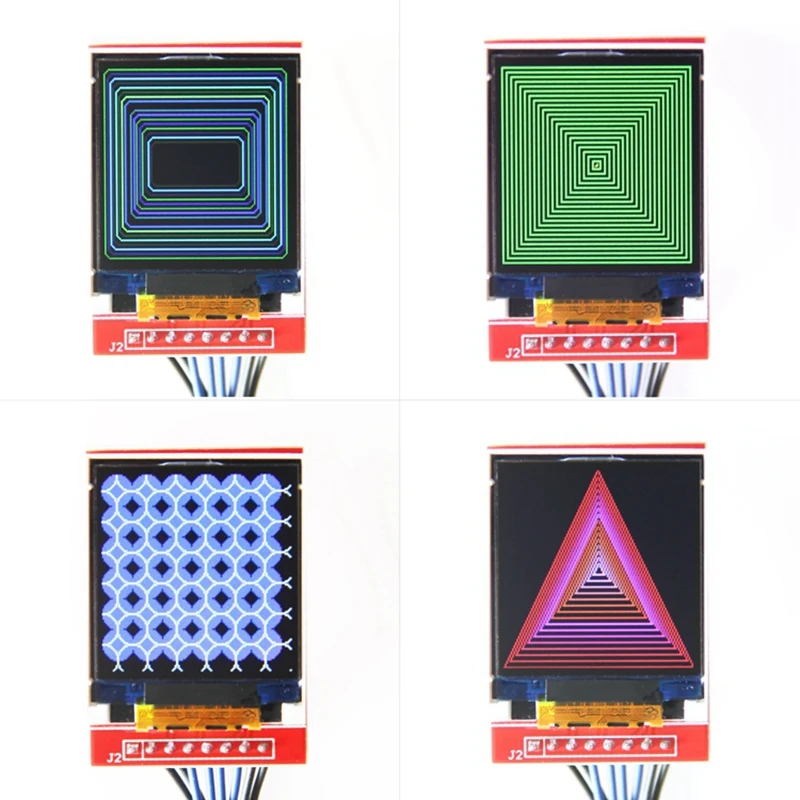

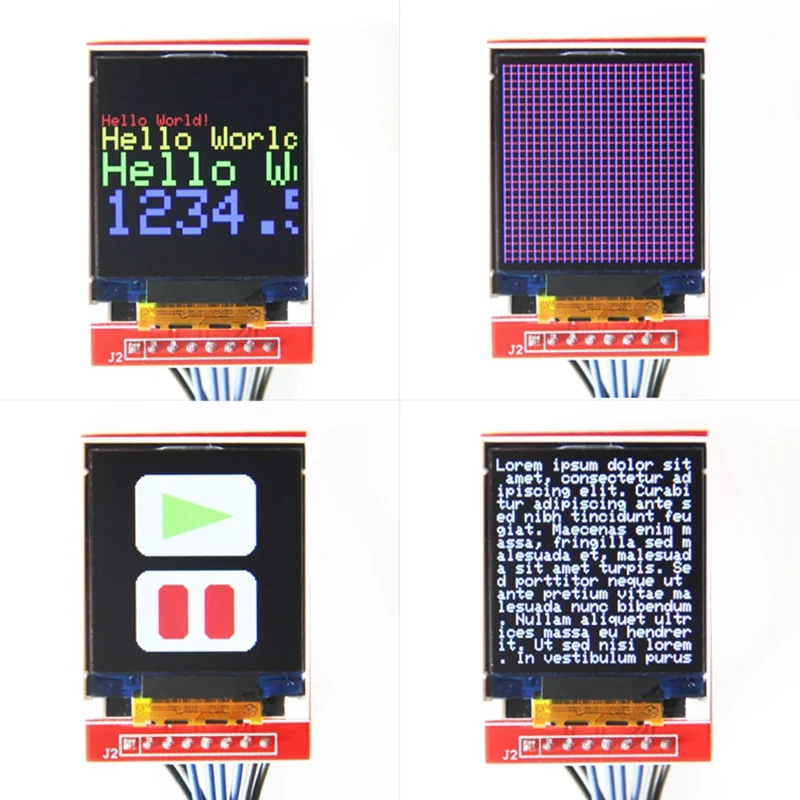

1.44-inch color screen,support 65K color display,display rich colors
128X128 resolution, clear display
Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with SD card slot
Provide a rich sample program,process standards, long-term stable work
Type:TFT
Driver IC: ST7735S

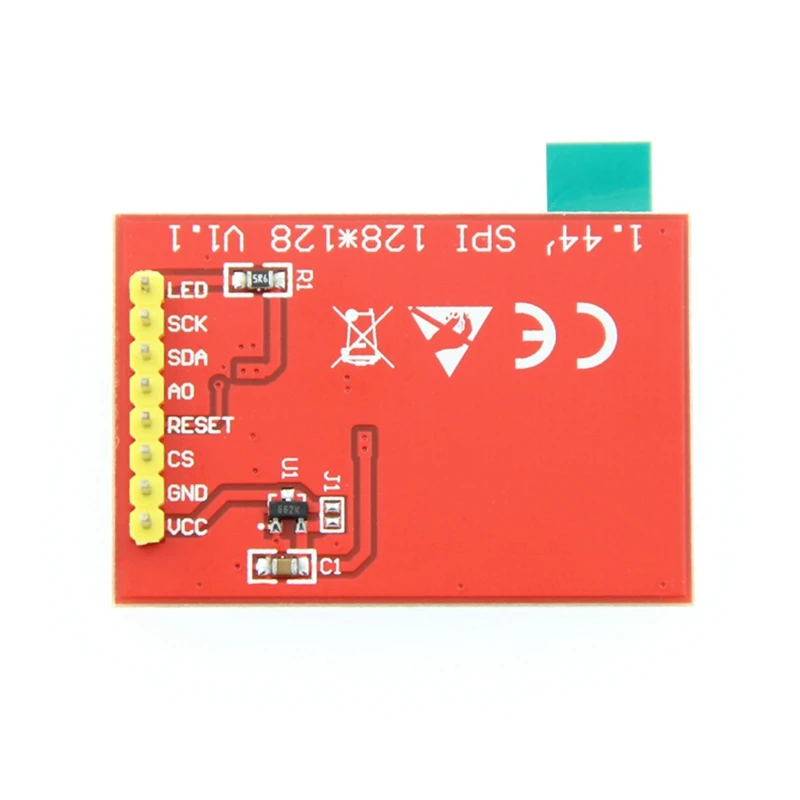

Module Interface: 4-wire SPI interface
Active Area (AA area): 26.2x27.2(mm)
Module PCB Size: 29.7x43.36(mm)
Operating Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
VCC power voltage: 3.3V~5V
Logic IO port voltage: 3.3V(TTL)
Power Consumption: TBD
Material:Metal +pc
colour:red
Package Contents:

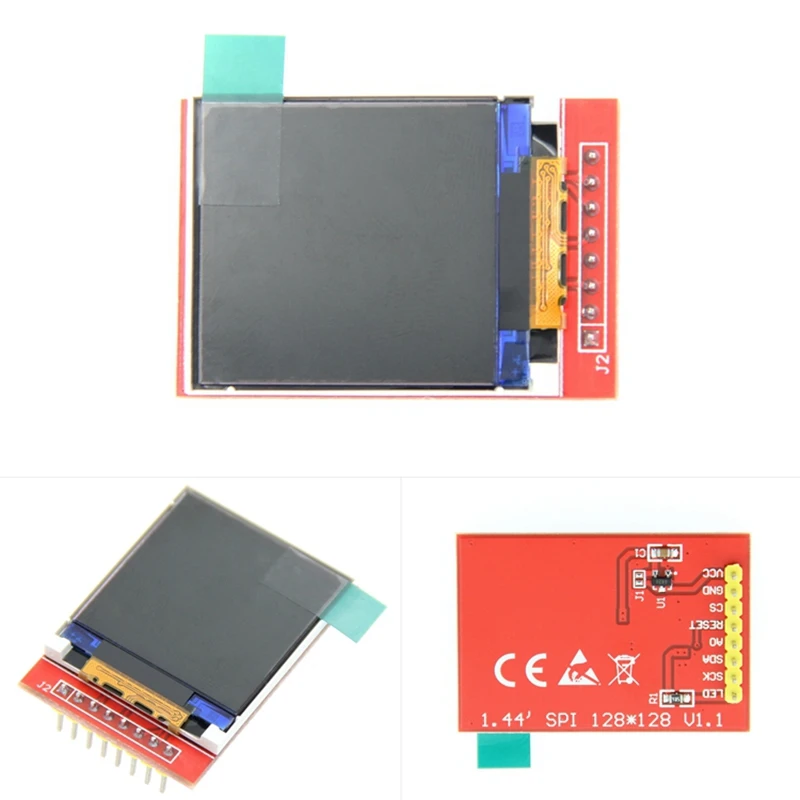

1 * 1.44 inch TFT LCD Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
