Характеристики

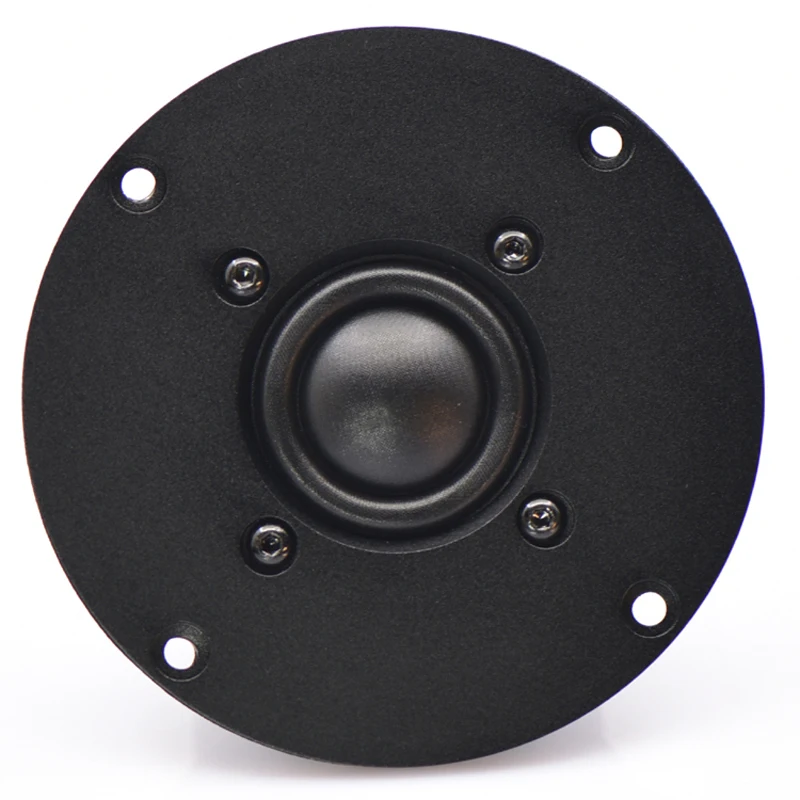

The diameter of the panel 102-diagonal screw is 89.5mm.
Speaker opening diameter>=74mm; total height 40.5mm

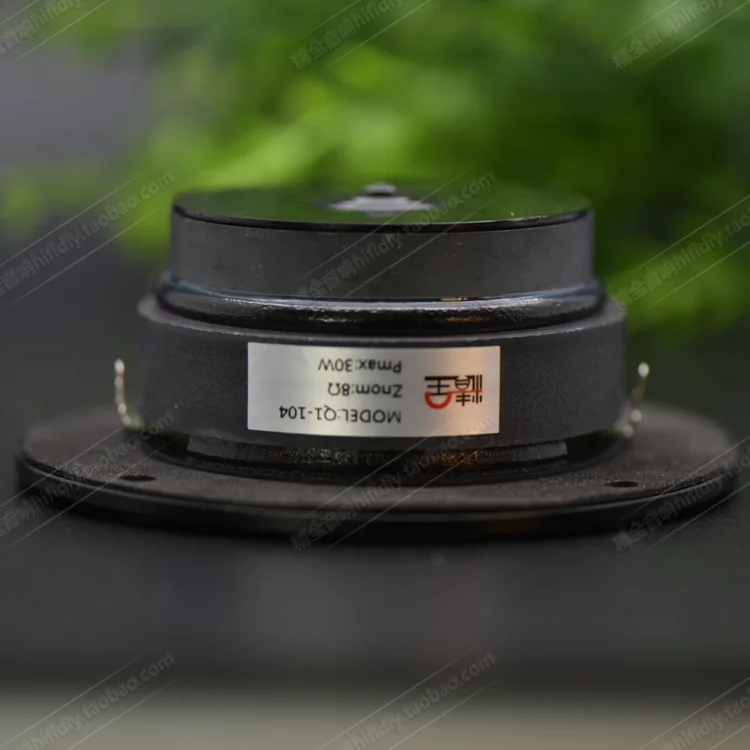

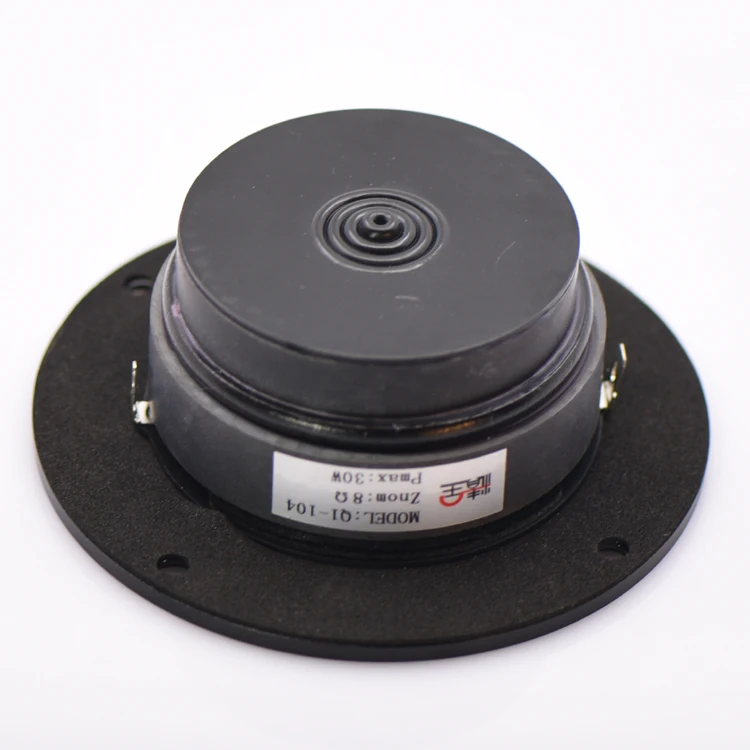

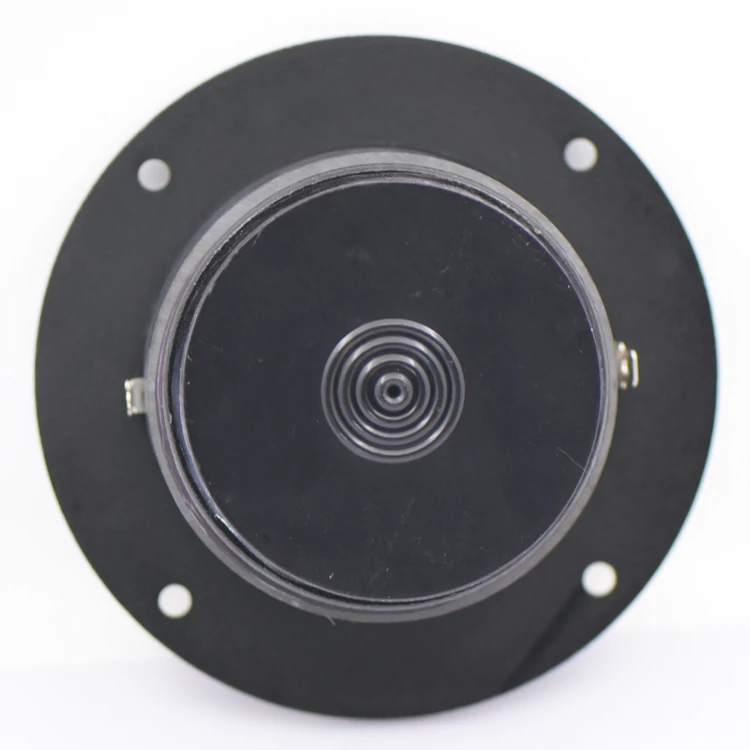

-magnet steel diameter 70mm/small 60mm-magnetic
steel thickness 30mm, panel thickness 4mm, screw
hole 4.2mm

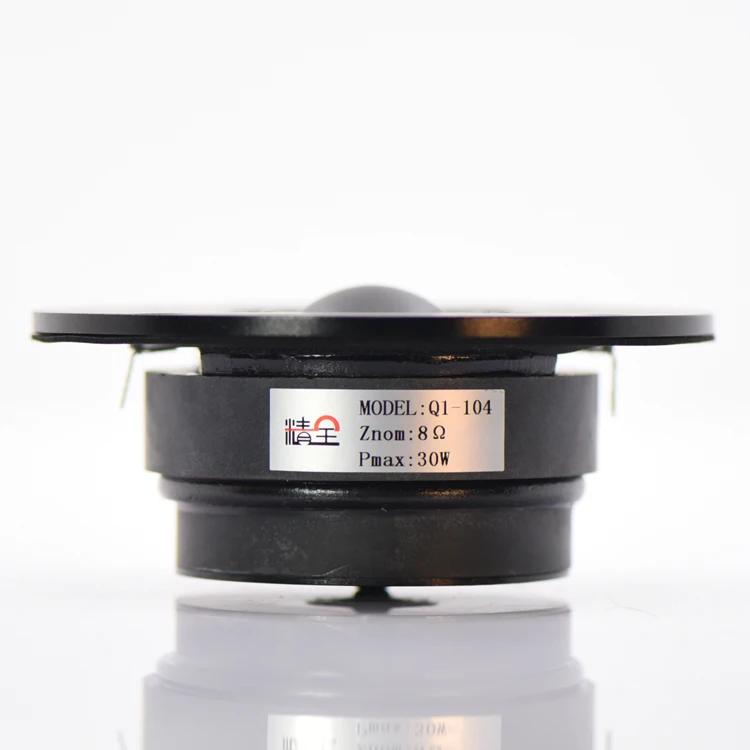

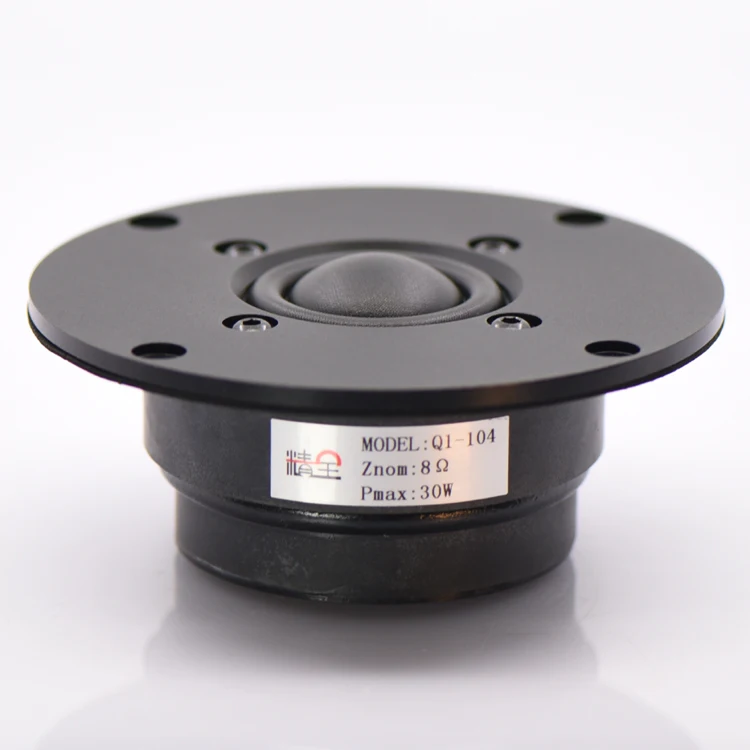

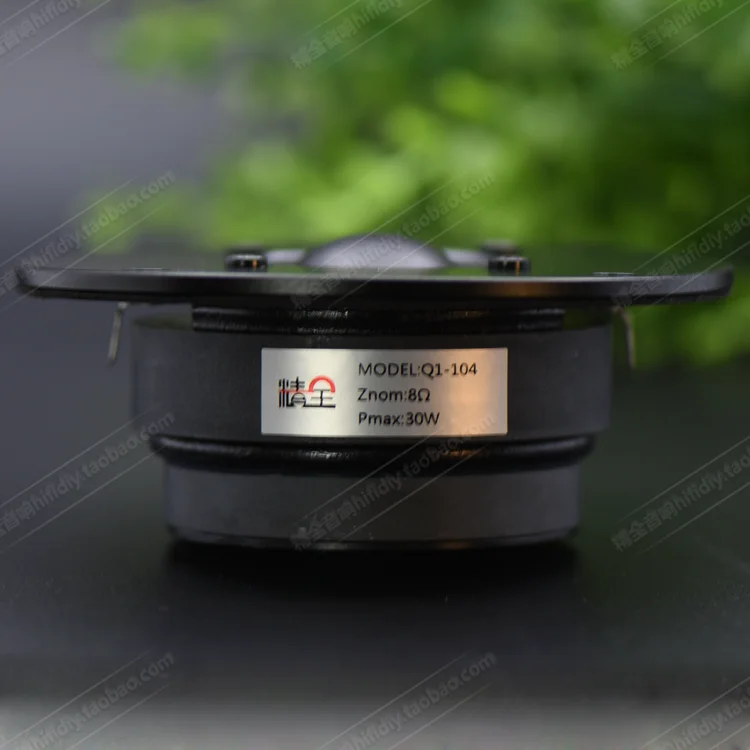

Impedance 8 ohms (DC resistance 6 ohms), power

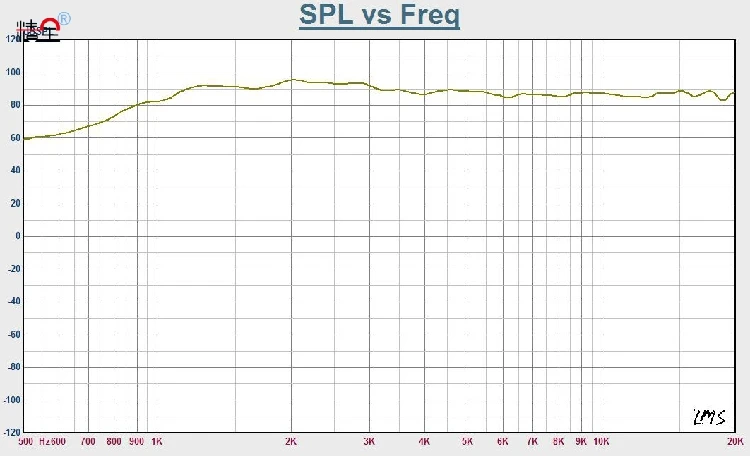

15W-30W, sensitivity 90dB, resonant frequency 1380HZ,
recommended crossover point >2200Hz, voice coil
diameter 25mm,

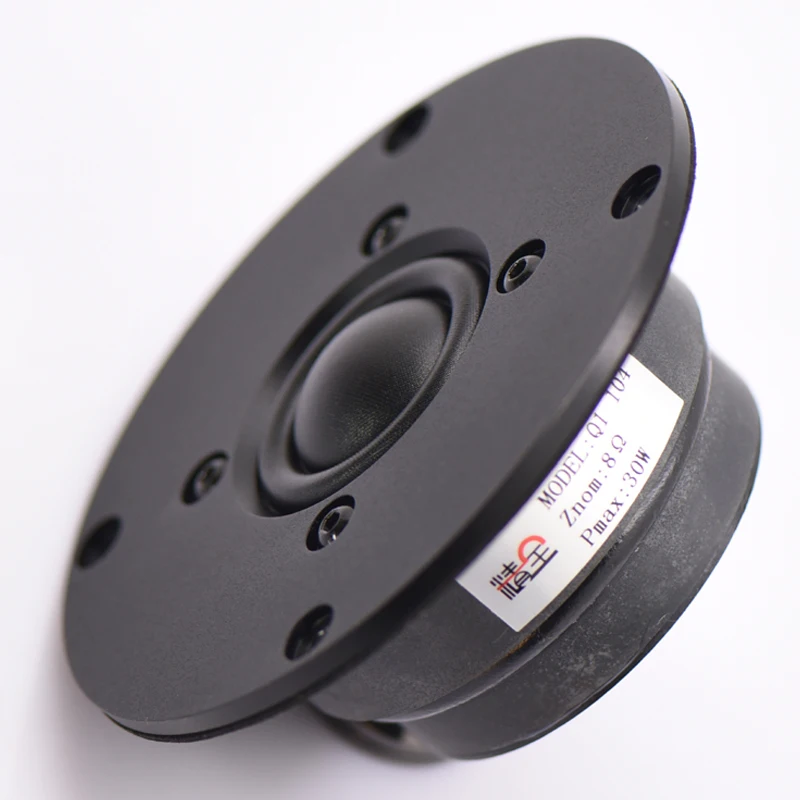

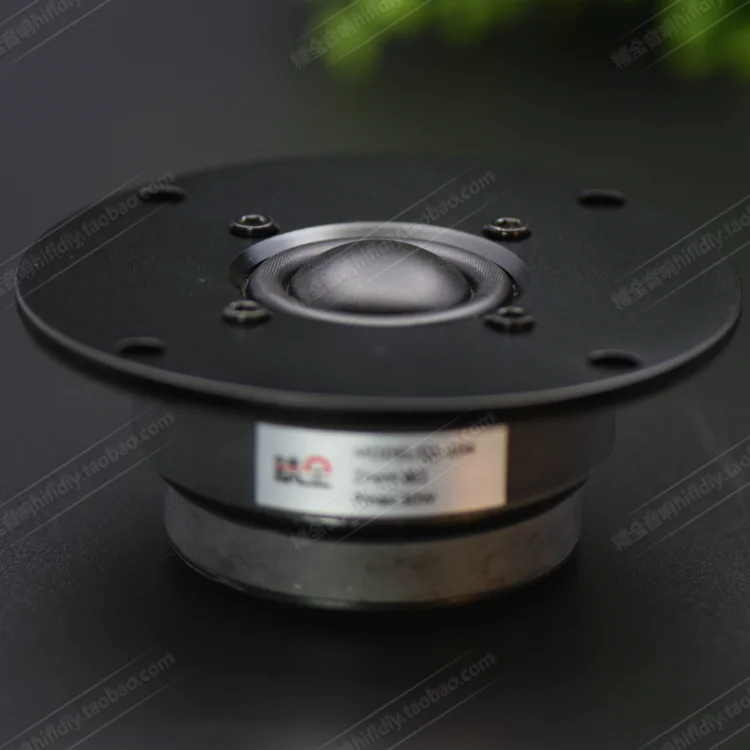

Imported Danish high-end natural silk film, design the
sound film on the reference Shishibao 9500 / Huiwei
Q1R and other units, and further optimization; the

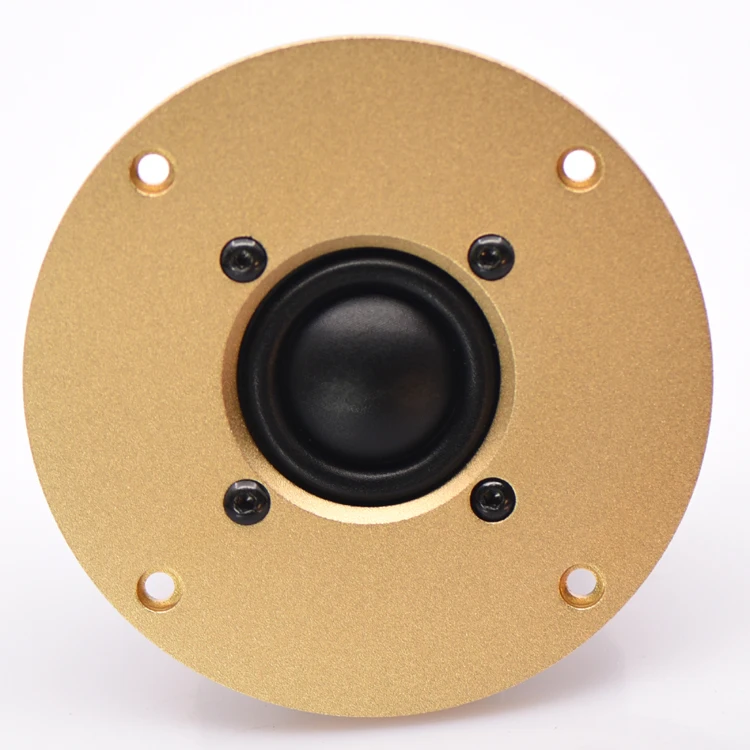

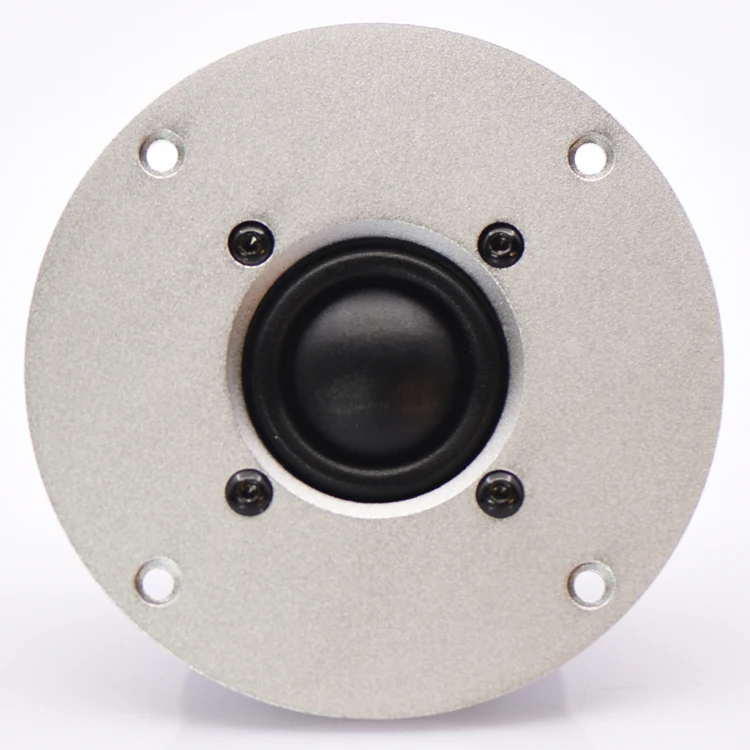

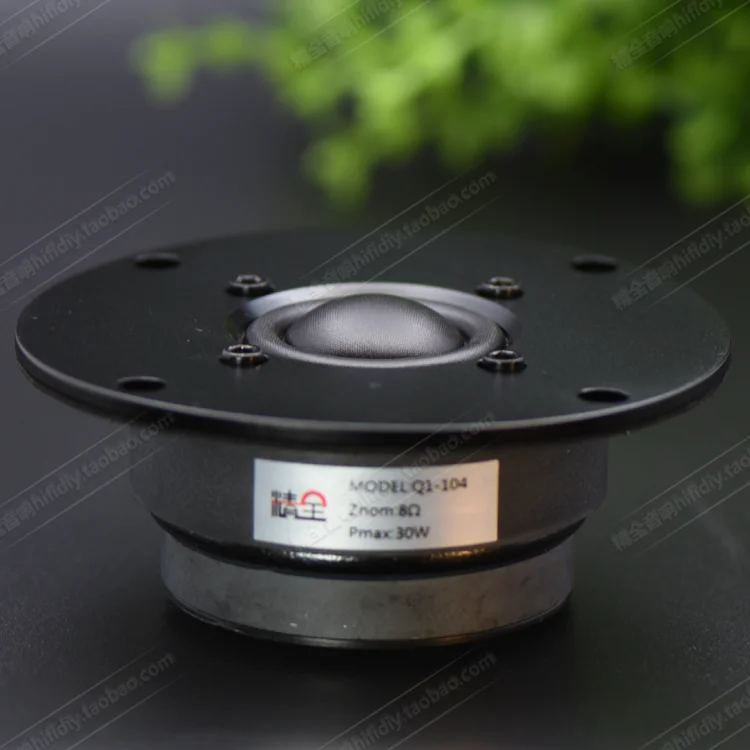

panel is metal 103.1mm aluminum panel, double
magnetic structure - dynamic foot, withstand high

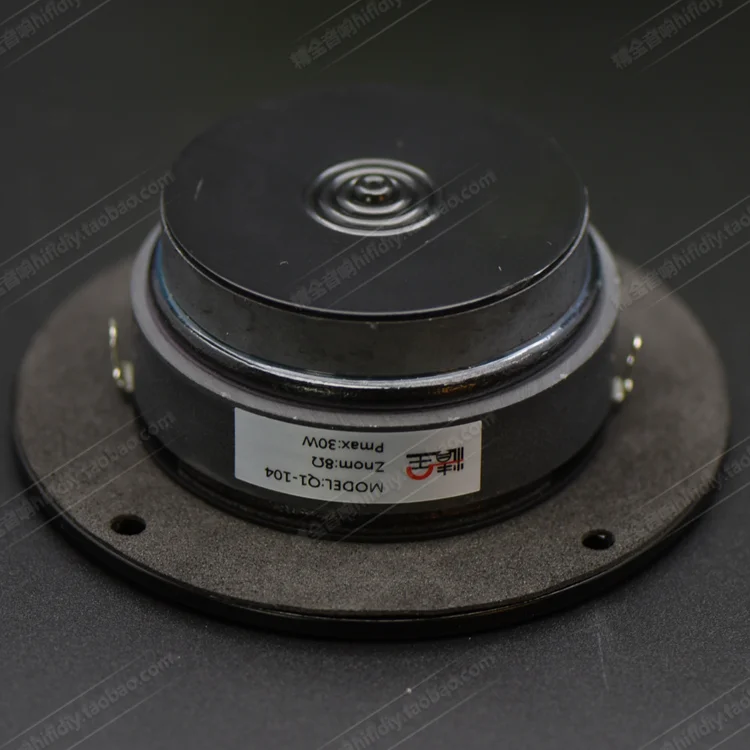

power, magnetic steel back with The design of the
cavity is almost none of the domestic design.
At present, the Danish VIFA DX25 unit adopts a
similar design, the loudness is obviously improved,
the power is increased, and the sound pressure is
enhanced.
After running for about a month (the sound film is softer,
the voice coil is more consistent, and the magnetic
fluid is more uniform), there will be unexpected surprises.
