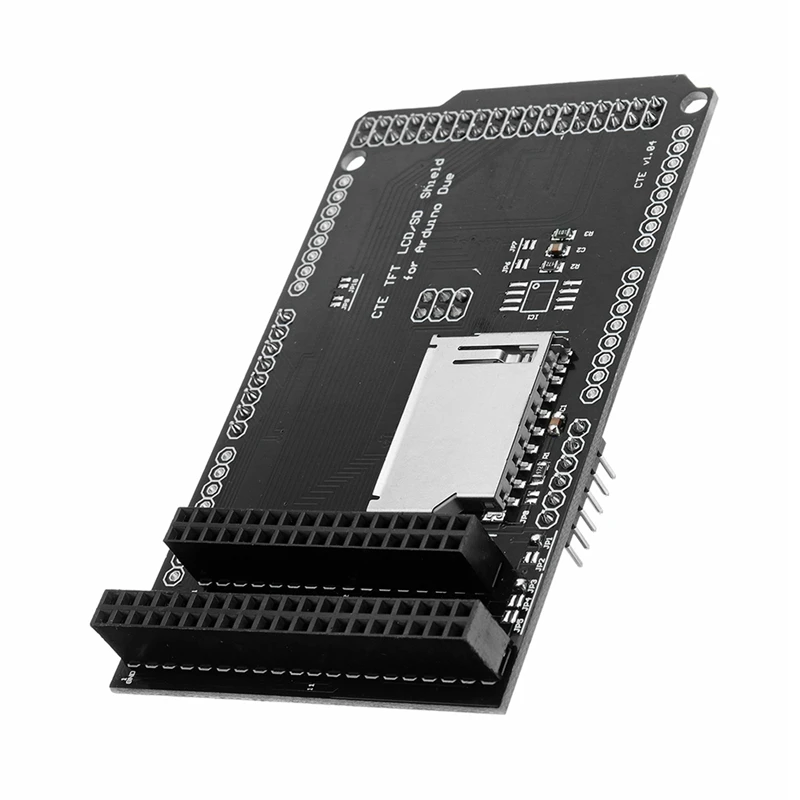

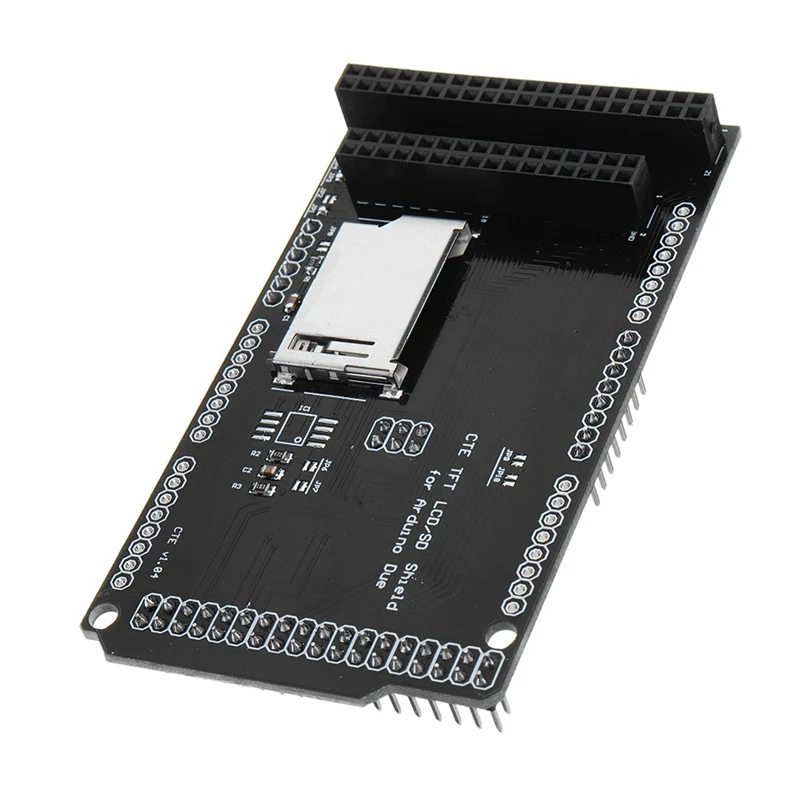

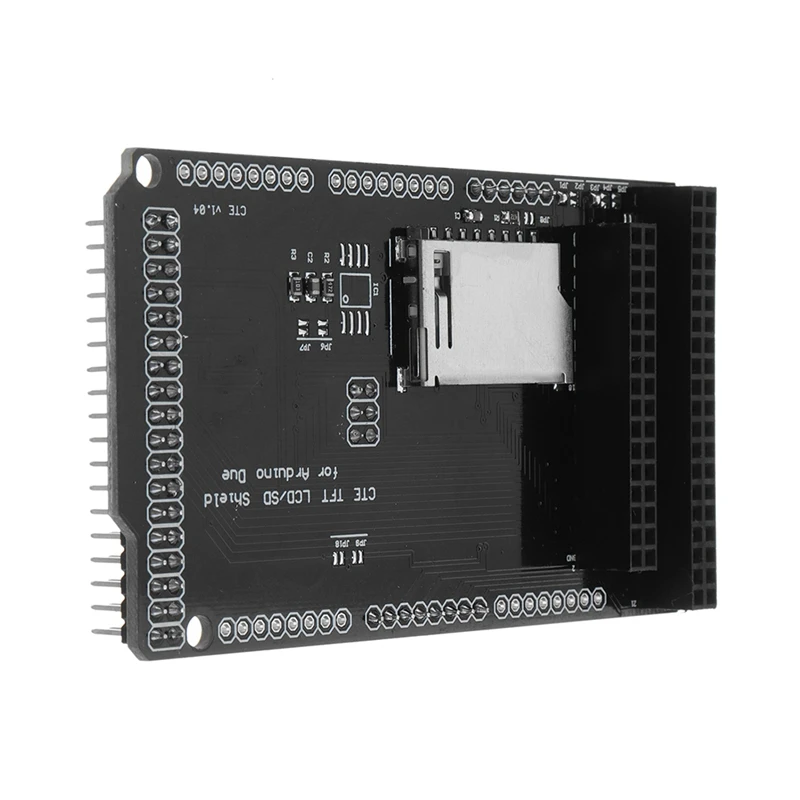

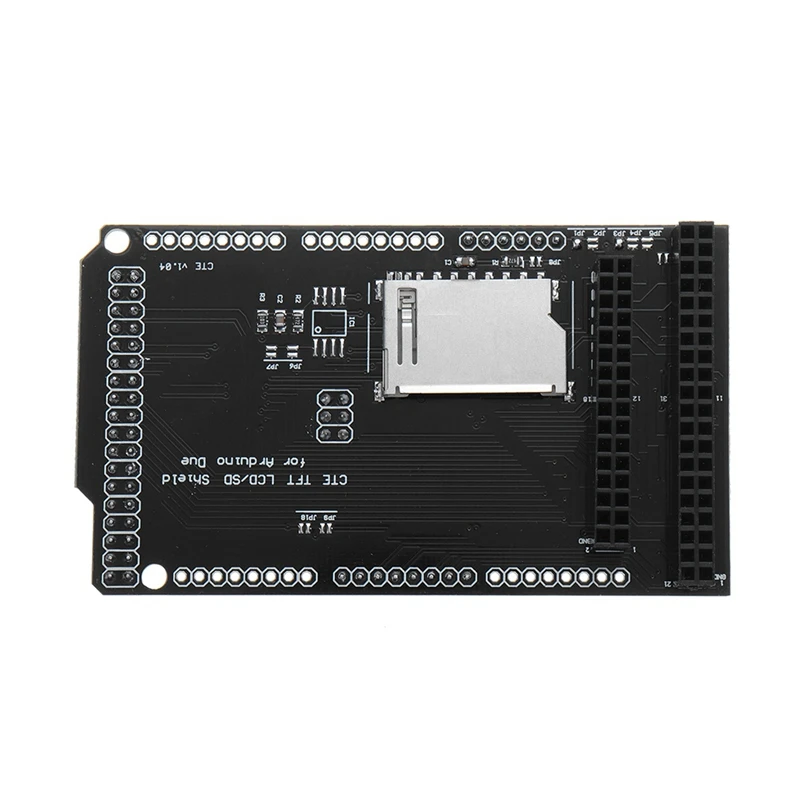

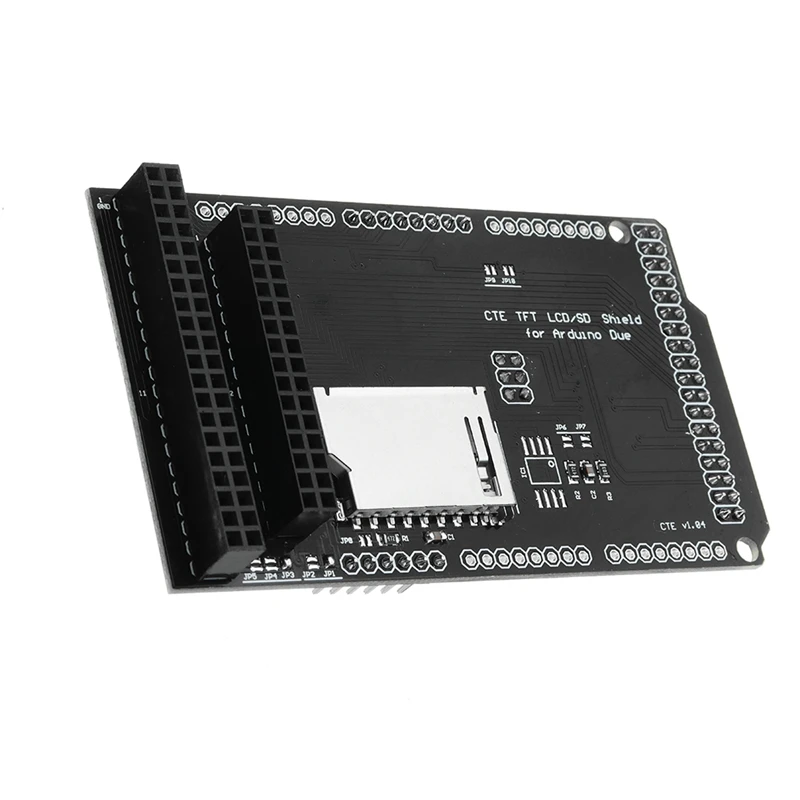

3.2 Inch TFT SD Shield Expansion Board Module for Arduino DUE LCD Card Adapter | Компьютеры и офис

Характеристики

Type:Voltage Regulator,Condition:New,1.TFT LCD at a much faster speed using 84 Mhz Ardiuno due,2 the shield routes all the LCD data pins to ports PC1-PC8 and PC12-19,the control pins to PD0-PD3,this design can produce high speed data transfer (three cycles by strobe writing to LCD) to maximize the speed of the LCD screen
3 SPI interface (for flash or SD control) is the path to the ISP header for Arduino due,so that a high-speed SPI transfer with DMA can be achieved
The shield is compatible with Arduino DUE and the following LCD:
2.2 inch TFT LCD module (220x176),2.8 inch TFT LCD module (320x240),3.2 inch TFT LCD module with IC source (320x240)
3.2 inch high resolution TFT LCD module with IC source (480x320)
3.5 inch TFT LCD module with IC source (480x320) (full viewing angle IPS panel),4.0 inch TFT LCD module with IC source (480x320),4.3 inch TFT LCD module with IC source (480x272),5.0 inch TFT LCD module with IC source (800x480),7.0 inch TFT LCD module with IC source (800x480)
1 TFT LCD unit turned on for Arduino due to just plugging in for Arduino due to main board,no flying wires

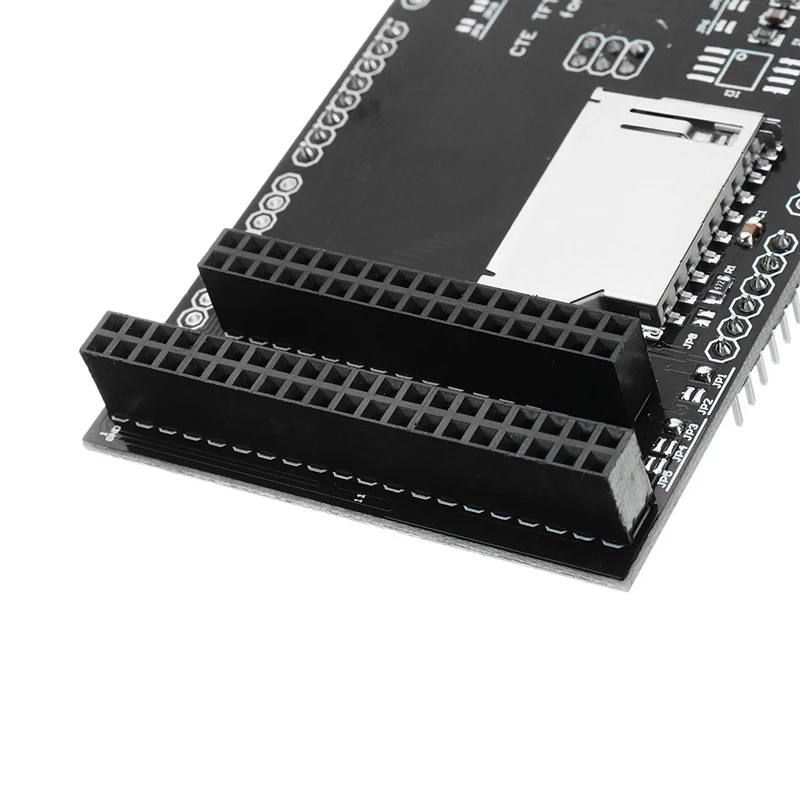

2.Compatible with the 40-pin LCD version,which is frequently used in TFT due shield
3.It is also compatible with the 32-pin LCD version,which is frequently used on the STM32 development board
4.on-board SD card slot with adjustable CS selection
5 on-board SPI flash footprint with adjustable CS selection,to update,includes font IC to draw text on the LCD and also supports the SPI Flash library
6.Power LCD 3.3V and 5V selectable through welding jerseys
7.LCD backlight (LEDA +) 3.3V,5V or PWM selectable through welding jerseys
8.The pins are routed to reduce CPU cycles,the display speed is faster
colour:black
Material:PC+ metal
Package Contents:
1 * TFT/SD shield expansion board for Arduino DUE LCD module
Only the above package content, other products are not included.

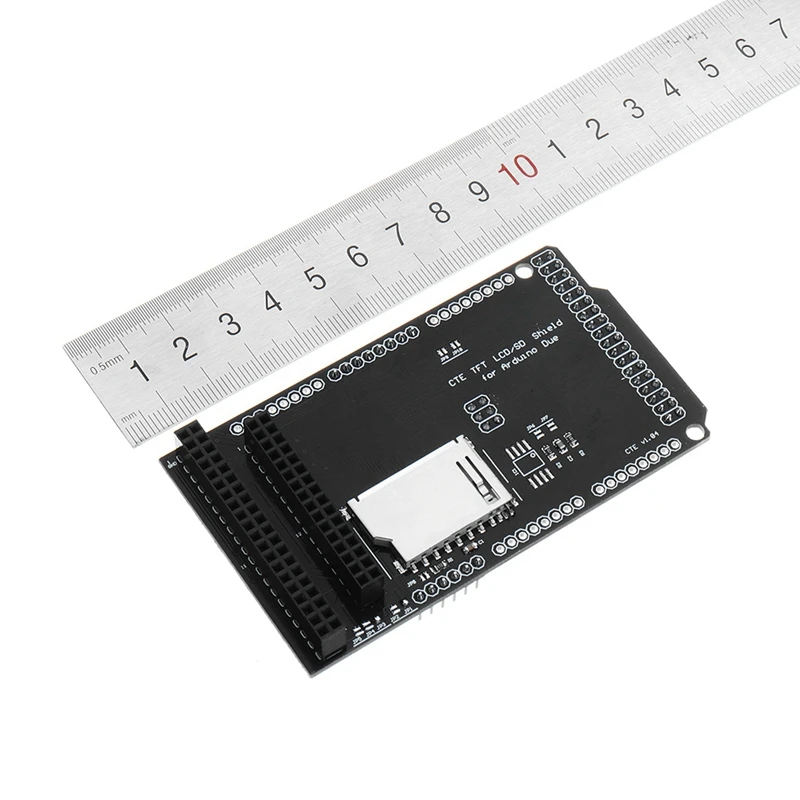

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
