Smart Car Accessories Driving Assistant System For Suzuki DZire 2012-2015 Auto Automatic Rain Wiper Headlight Sensors | Автомобили и

Характеристики



For Suzuki DZire 2012~2015

Smart Auto Driving Assistant System  Automatic Car Rain Wiper Sensor & Automatic Car Headlight Sensor







 Automatic

Rain wiper sensor When the sensor senses raindrops, the system automatically  activates the wiper and adjusts the wiper speed based on the  amount of rain.Wiper sensor identify rainfall in 0.5 seconds,  and corresponding to different windshield wiper action  frequencies.According to the amount of rainfall, it is divided  into five grade, rain with fog, light rain, mild rain, heavy rain,  downpour rain.





Automatic Headlights When entering garage and tunnel, if the natural light is dimming, the  sensor will turn on the headlights automatically, when the light become  bright, the headlamps turn off automatically.The sensor intelligently  identifies the light intensity and automatically adjusts the light.For  example, the car is driving at dusk, the small lights will be turned  on automatically, and the headlights will be turned on at night.









• Independent R&D sensors

The use of inductive photosensitive resistance and other imported electronic components,speed sensor light intensity,0.5 seconds can detect the amount of rainfall.

• Support manual and automatic switch

Retain the original driver dynamic adjustment,to provide driver with more options.

• Non-destructive installation

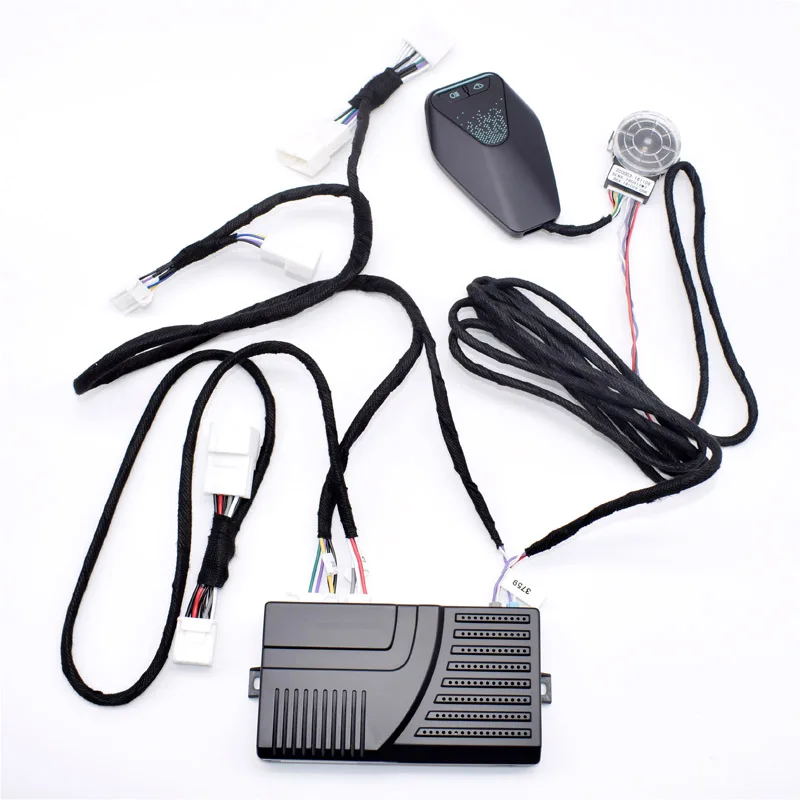

Special plug,fool-proofing plug design,no need to break original cable, can be inserted directly.

• Alarm warning when abnormal

When high or low temperature, fall, the system will timely alarm,remind the car owner attention.

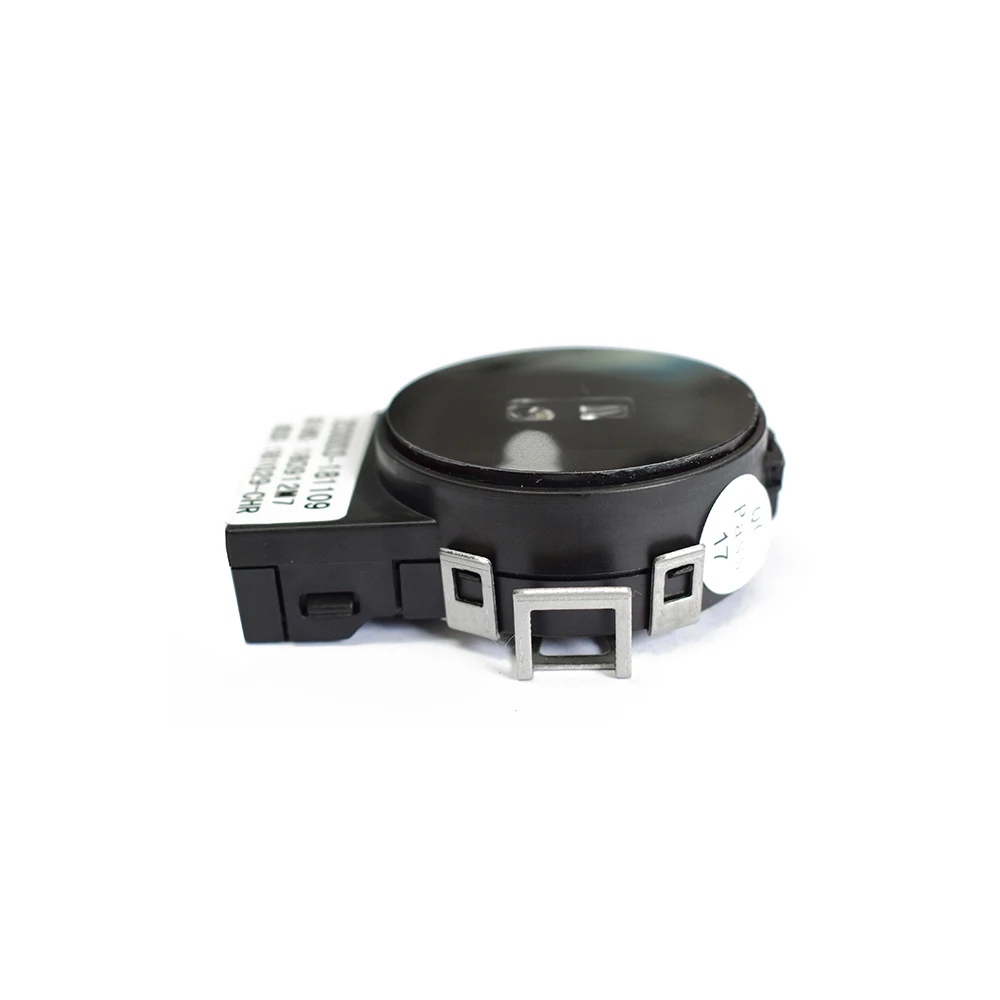

1. Smart sensor: senses external environment, automatically identify raindrop and light intensity.

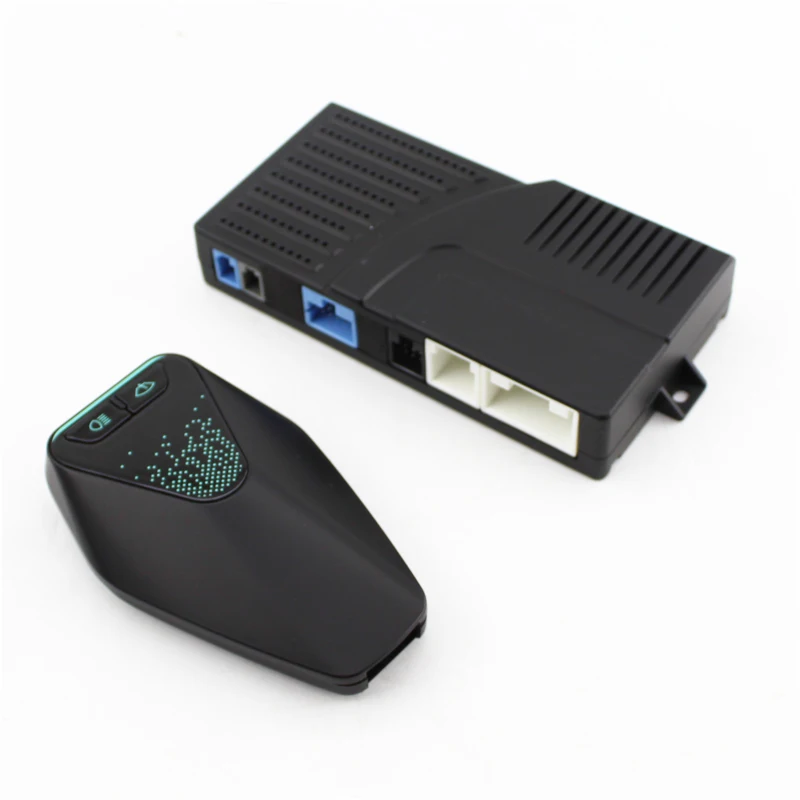

2. Smart control panel: sensor housing and operating buttons.
3. Smart control box: to control all functions.



Rain wiper, headlight sensor speciation: 1)Sensor type:IR reflection rain sensor 2)Sensor detection for light channel: 4 channel 3)sensor detection available area: 900(mm)2(almost all front car area) 4)Sensor detection available point: 4 5)Sensor circuit emissive source: IR reflection led(imported famous brand) 6)Sensor circuit emissive source wavelength: 850 nm 7)Sensor circuit receiving tube: IR receiving tube(imported brand name) 8)Sensor circuit receiving source wavelength: 850 nm 9)Sensor detection response time:0.5 S 10)Sensor detection flexibility: automatically adapt different refractive index on the front window glass (by setting button) 11)Sensor detection rainfall amount: 5 levels : foggy, Sprinkle, moderate rain, heavy rain, rainstorm 12)Rain flexibility setting: 3 levels setting 13)Light detection :Automatically recognize the day time, night, tunnel and tree shade mode 14)Temperature detection: when at high temperature, low temperature etc. the control box will give warning through the buzzer.     Control box basic specification: 1)Main CPU:STMicroelectronics,STM32F072C8T6 2)Control box relay: famous imported brand, stable, good durability, less noise 3) To control the wiper speed according to the rainfall amounts( foggy, sprinkle, moderate rain, heavy rain, rainstorm) 4)To control the headlight according to the light environment ( daytime, at night, tunnel,tree shade) according to the light brightness as dark ,slight brightness, brightness total three levels, the function will be activated as turn on all the headlights, only turn on the small headlights, do not turn on the headlight 5) Manual switch detection: Automatically detect the original manual switch on/off function, hold the original manual function. 6)Detect the original car data: Detect the A/C on and off status of the engine. 7)Control box software upgrading: Upgrade the software through the SD card slot in the control box. 8)Control box ESD static electricity protection: 2KV protection design 9)Noise protection: le 52dB design     About Payment:
