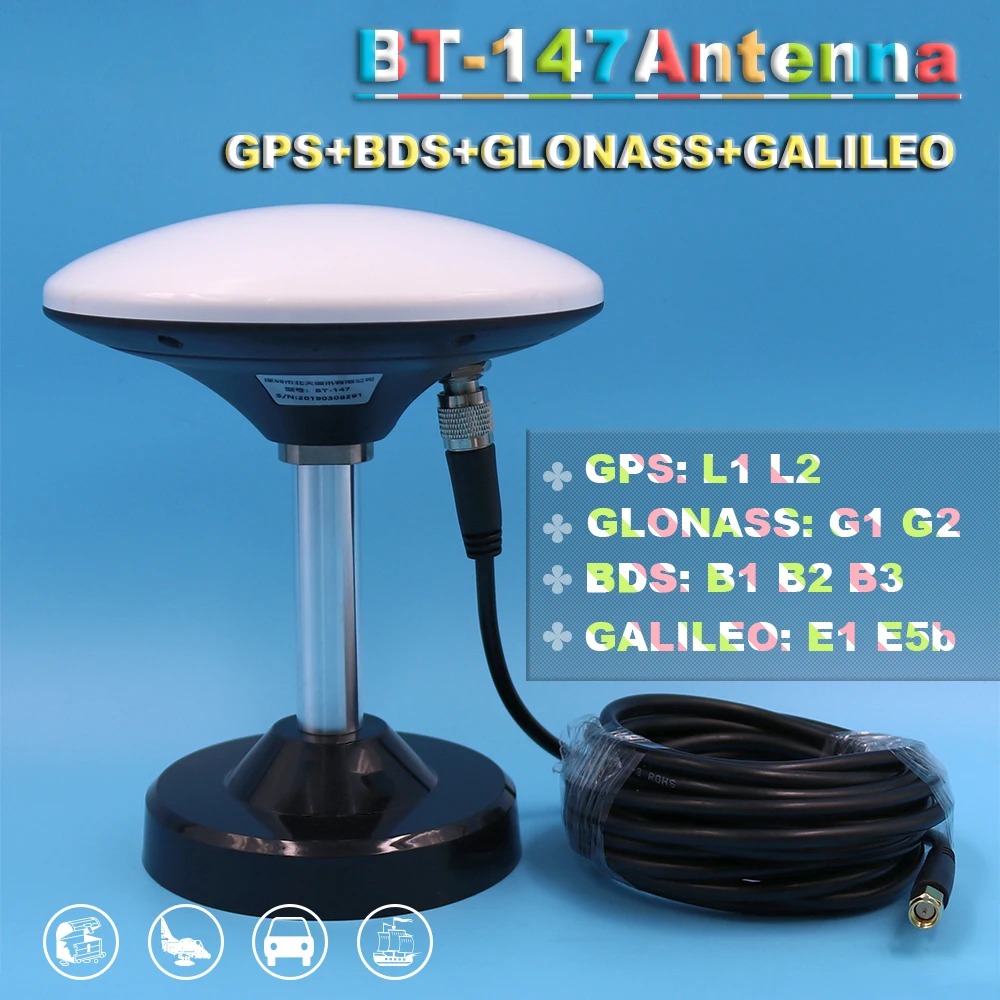

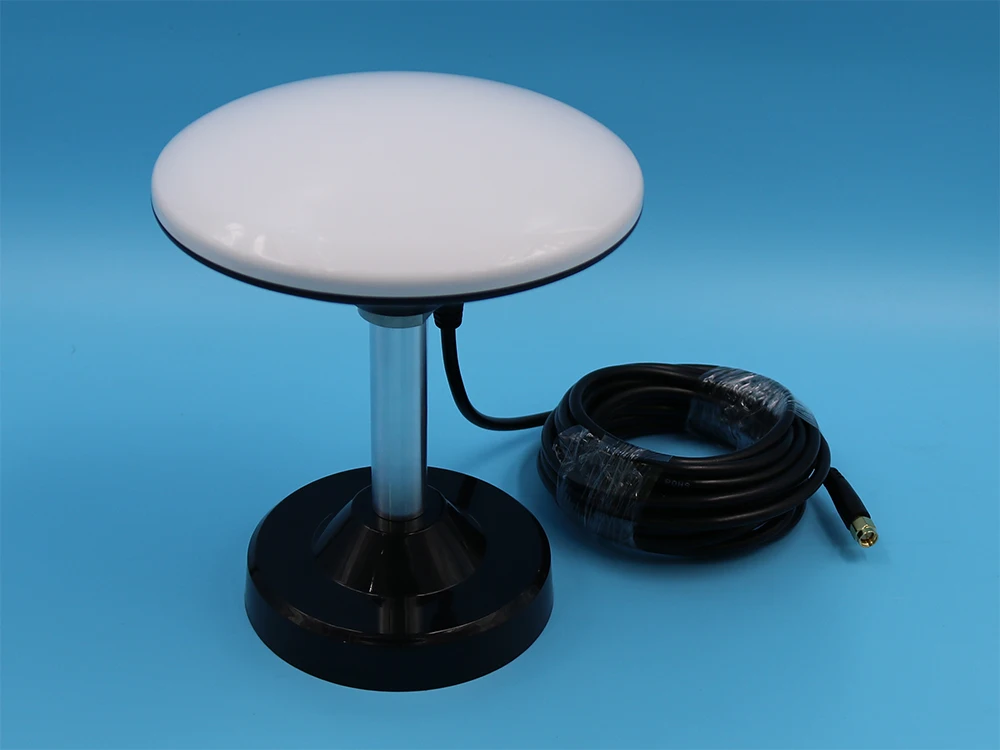

Model:BT-147

BT-147 is a Four-star multi-frequency satellite navigation antenna with high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability, which can effectively meet user needs.

Application field:

The antenna can be used with a variety of satellite navigation receivers, and is widely used in geodesy surveying, navigation surveying, precision agriculture and marine surveying, and can also be applied to the military field according to application conditions.

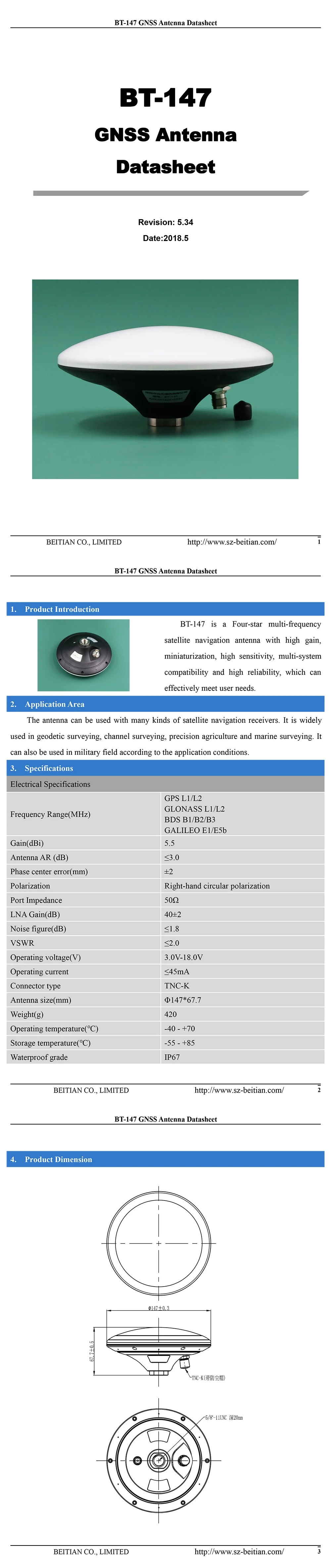

The main technical parameters:

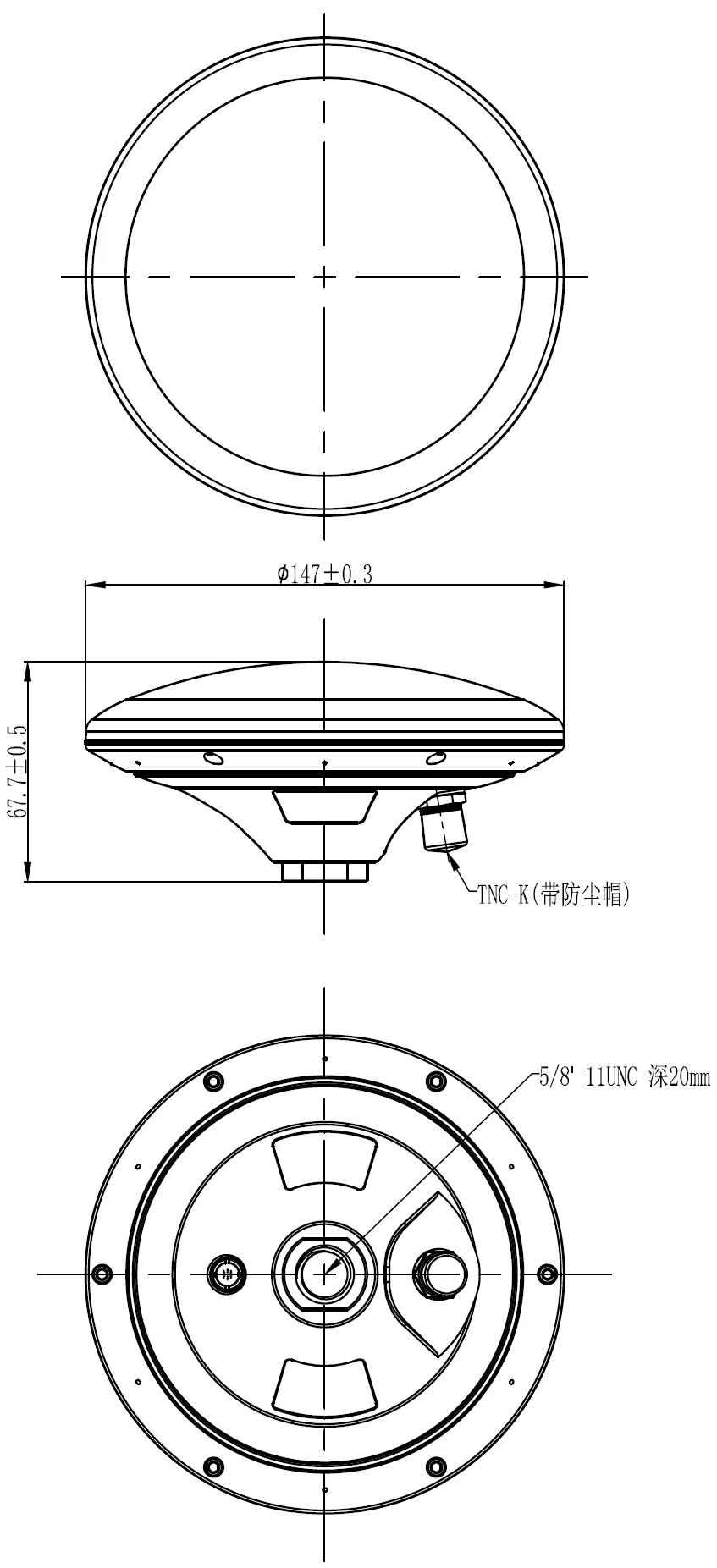

Electrical Specifications Frequency Range(MHz) GPS L1/L2 GLONASS L1/L2 BDS B1/B2/B3 GALILEO E1/E5b Gain(dBi) 5.5 Antenna AR (dB) ≤3.0 Phase center error(mm) ±2 Polarization Right-hand circular polarization Port Impedance 50Ω LNA Gain(dB) 40±2 Noise figure(dB) ≤1.8 VSWR ≤2.0 Operating voltage(V) 3.0V-18.0V Operating current ≤45mA Connector type TNC-K Antenna size(mm) Φ147*67.7 Weight(g) 420 Operating temperature(℃) -40 - +70 Storage temperature(℃) -55 - +85 Waterproof grade IP67

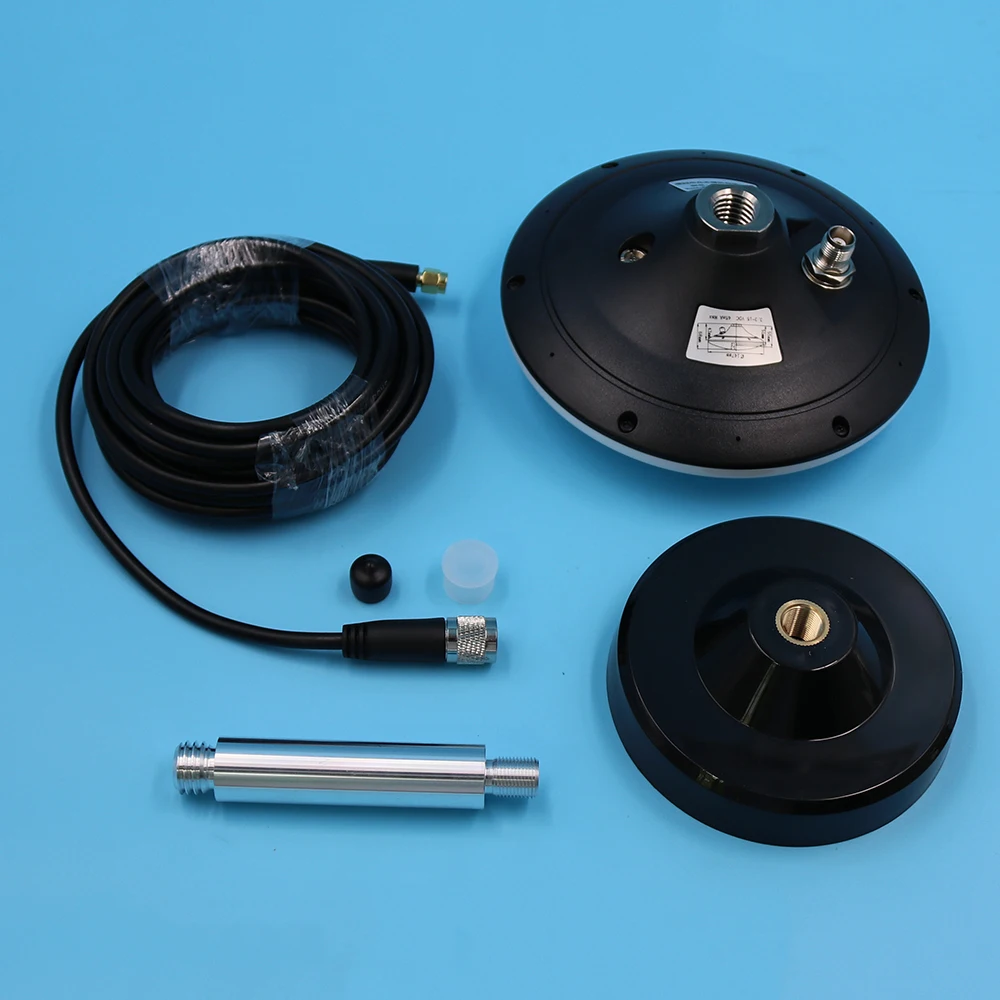

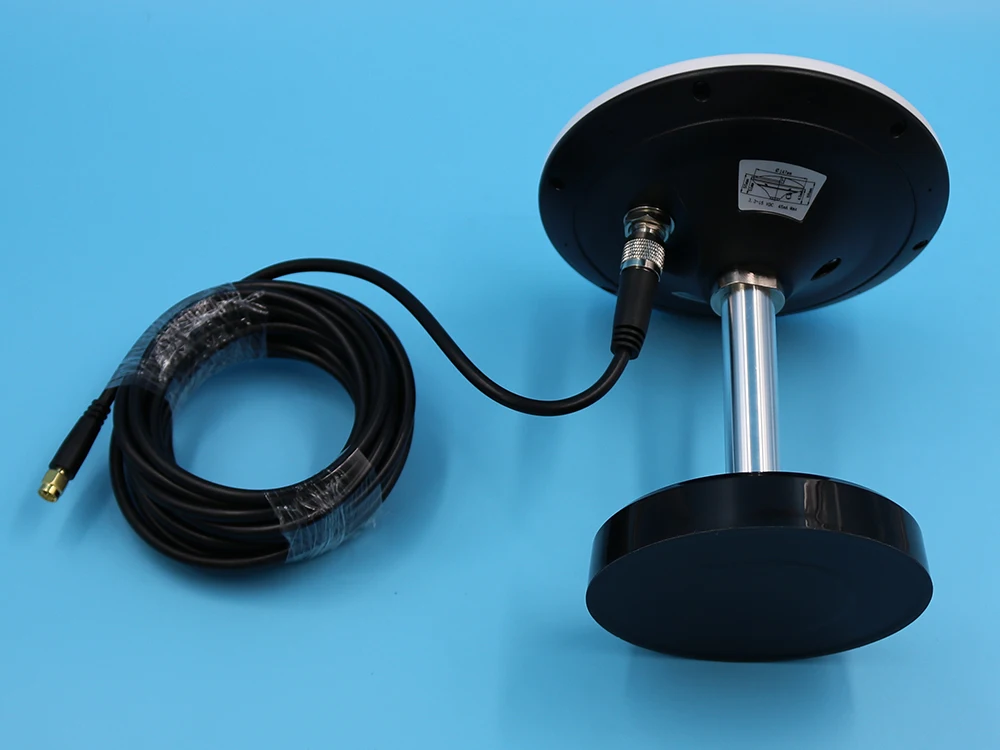

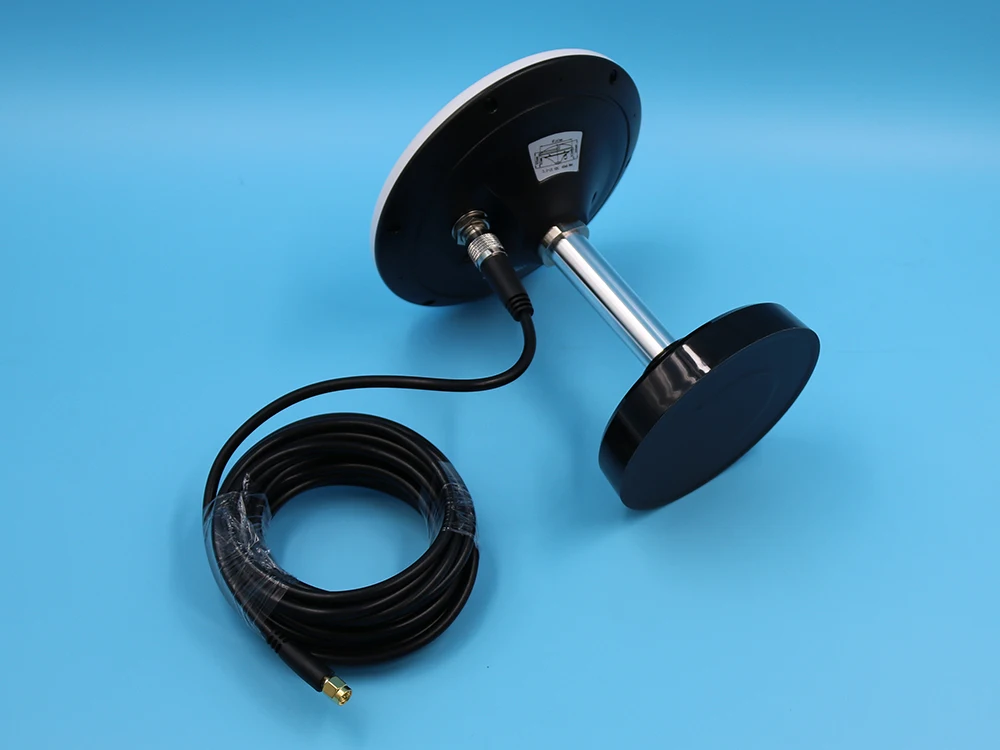

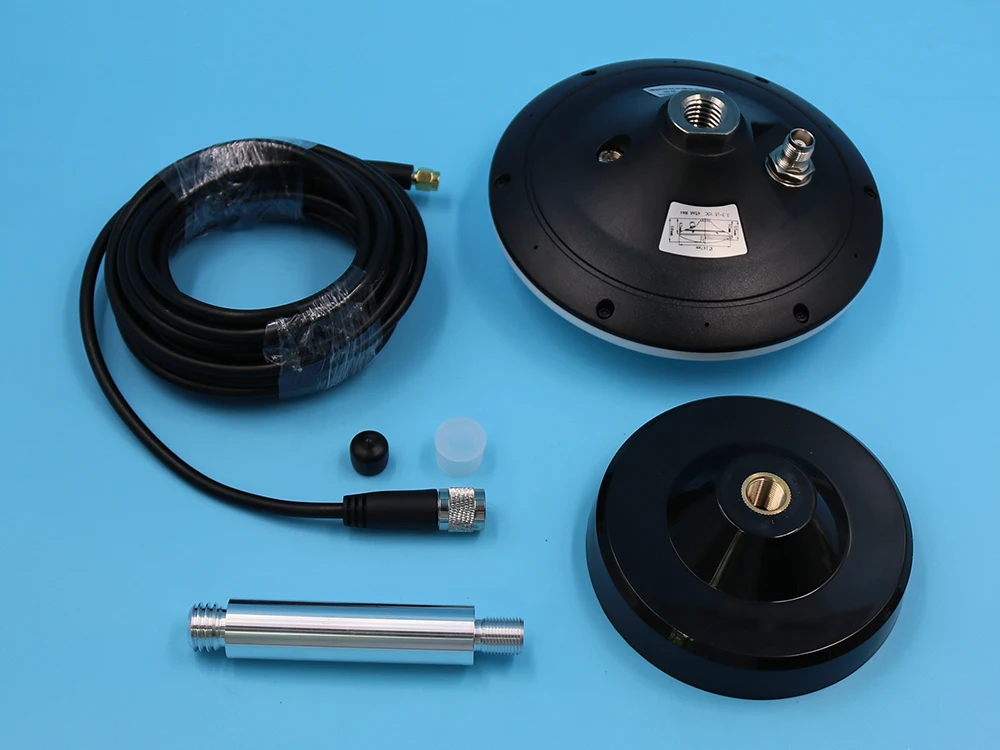

Pcakage Included:

1x GNSS antenna BT-147

1x 5M TNC-SMA cable

1x magnetic Mount











Shenzhen Beitian Communication Co., Ltd. Our company is a high and new technology company in china. We have our own factory, we are the original factory, we ourselves research and development, production and sales of GNSS modules, receivers and antennas, RTK high-precision systems and cards and other products.our company is a high-tech enterprise that specializes in researching and manufacturing high-precision GNSS motherboard and industrial GNSS products. Our aim is to provide the high-quality and high-security GNSS products and services. We have an experienced core technology R&D team, who has been unremitting efforts to research and develop the new GPS and GNSS technologies.

Company focus on core technologies innovation, breaking the barriers of foreign technical, and breakthroughs the bottleneck of joint positioning for high-precision GNSS signal reception, core algorithms and so on. We strive to become the leading supplier of GNSS products.

And company also has another experienced team for system integration, GNSS deformation monitoring, GNSS mechanical control, which can provides comprehensive, high-precision, and multi-industrial solution for customers. Such as:

The series high-precision GNSS motherboard and related solutions

Automated real-time deformation monitoring system

Mechanical control system based on GNSS technology and location for special vehicle.



If you have any technical problems or product problems, please contact us. We will help you with your problem.





1.Are you a manufacture company or a trading company?

We are a manufacture company with 100 workers.

2.What advantages do you have?

We have many advantages, and one of  important advantages is that we have many professional engineer and  we can customize your products according to your requirements.
3.What is your main product?customize
We specialied in OEM&ODM antenna for 10 years.We produce GPS modules, GPS receivers, GPS antennas, RTK systems and high-precision boards, and so on.
4.Where is your factory?
Our headquarters is located in Longhua district,Shenzhen city,China.
5.Do you have your own R&D department?
Yes, we have. Inculding Beijing,Shanghai,Zhuhai, etc.
6.How about your MP leadtime?
It deponds on the quantity.If the goods is urgent, we will arrange the production in advance.
7.Do you assure your quality in which way?
We are a listed company, and we got many certifications. We will responsible for the quality for the products, and the warranty is 12 months.
8.Do you cooperate with some large companies?
Yes, we cooperate like Huawei, ZTE, BYD, Lenovo etc.
