BEITIAN 20PCS Buetues internal GPS antenna active IPEX BT-25A | Автомобили и мотоциклы

Rated 4.00 out of 5 based on 4 customer ratings

(4 customer reviews)

~~0 руб.~~

*Узнать точную стоимость и возможную скидку можно добавив товар в корзину

Быстрая доставка в г.Эль-Монте*

Отзывы о продавце: Buetues Store

Характеристики

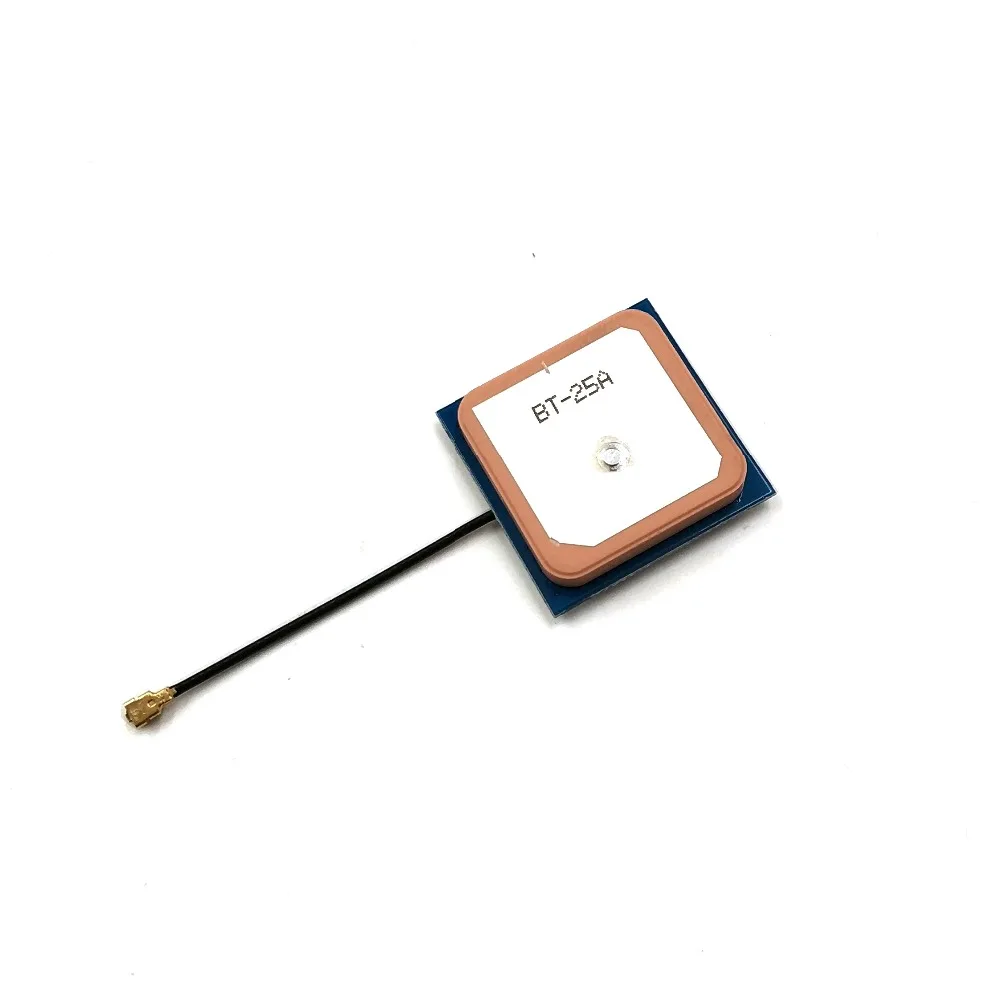

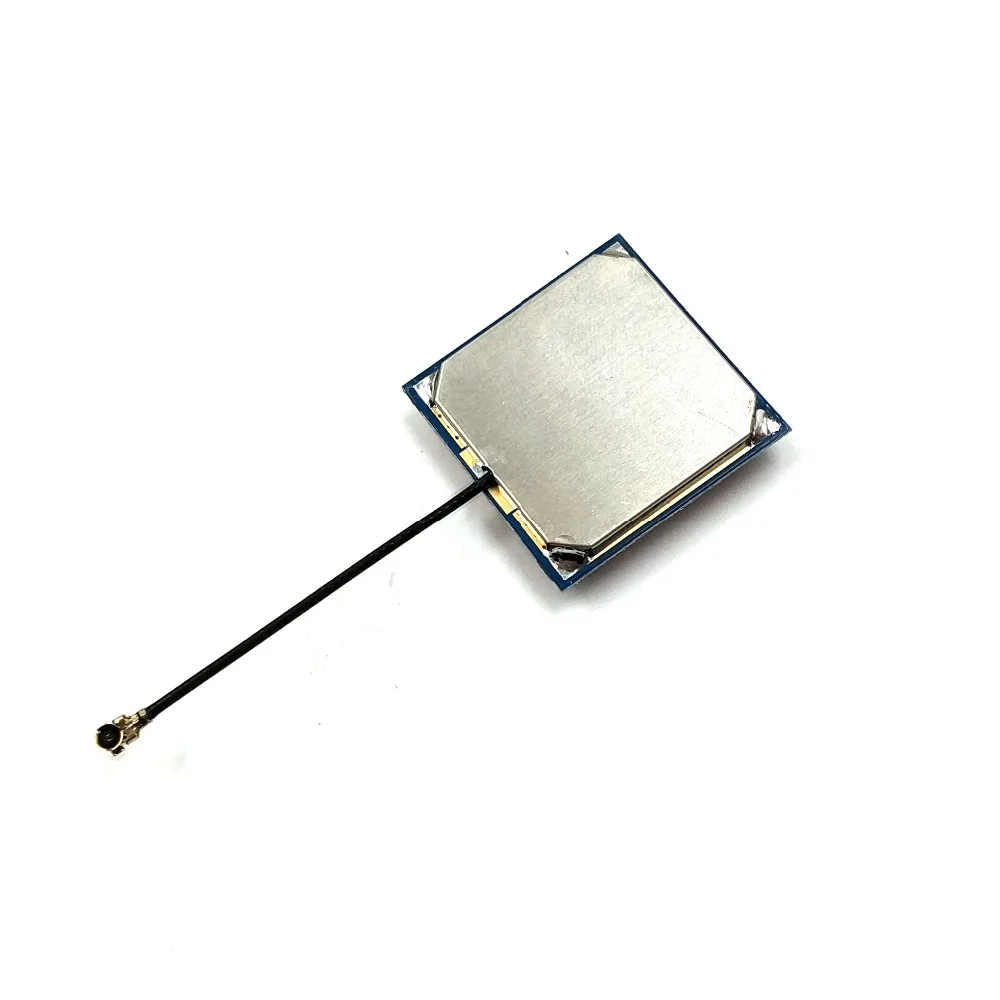

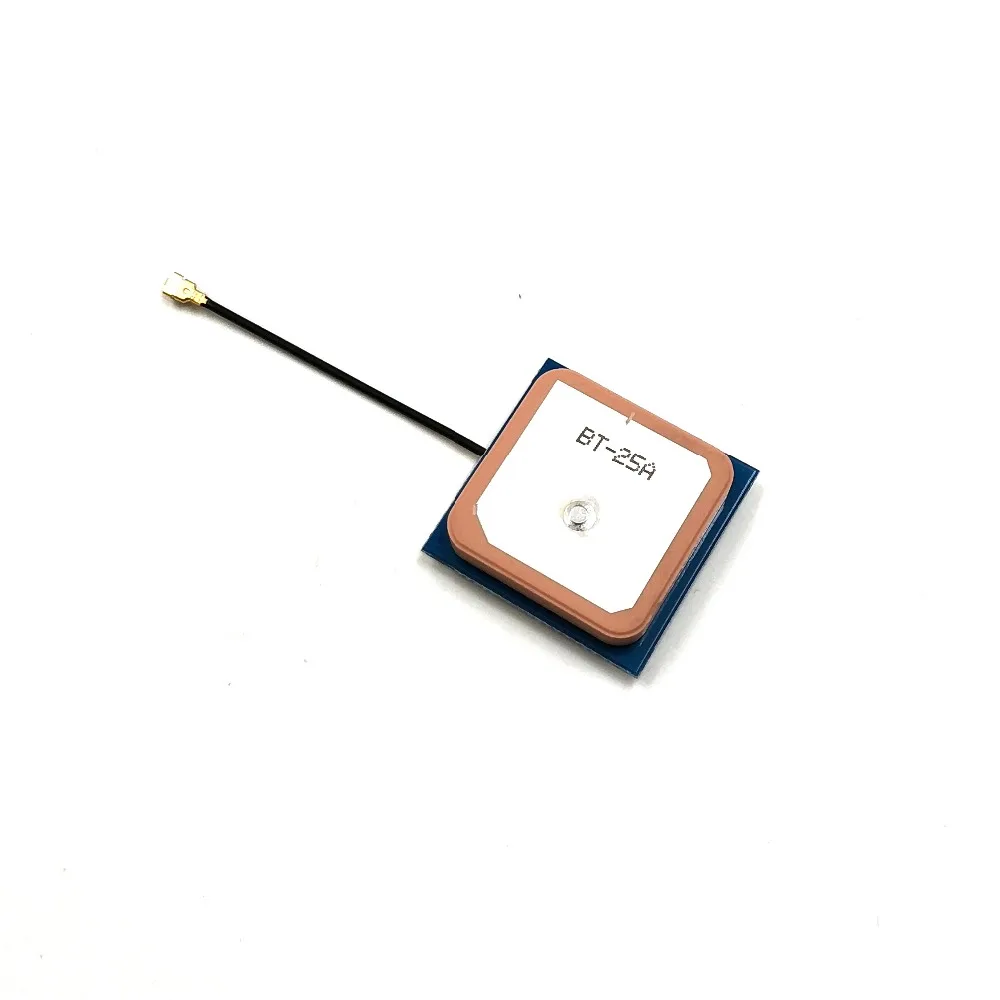

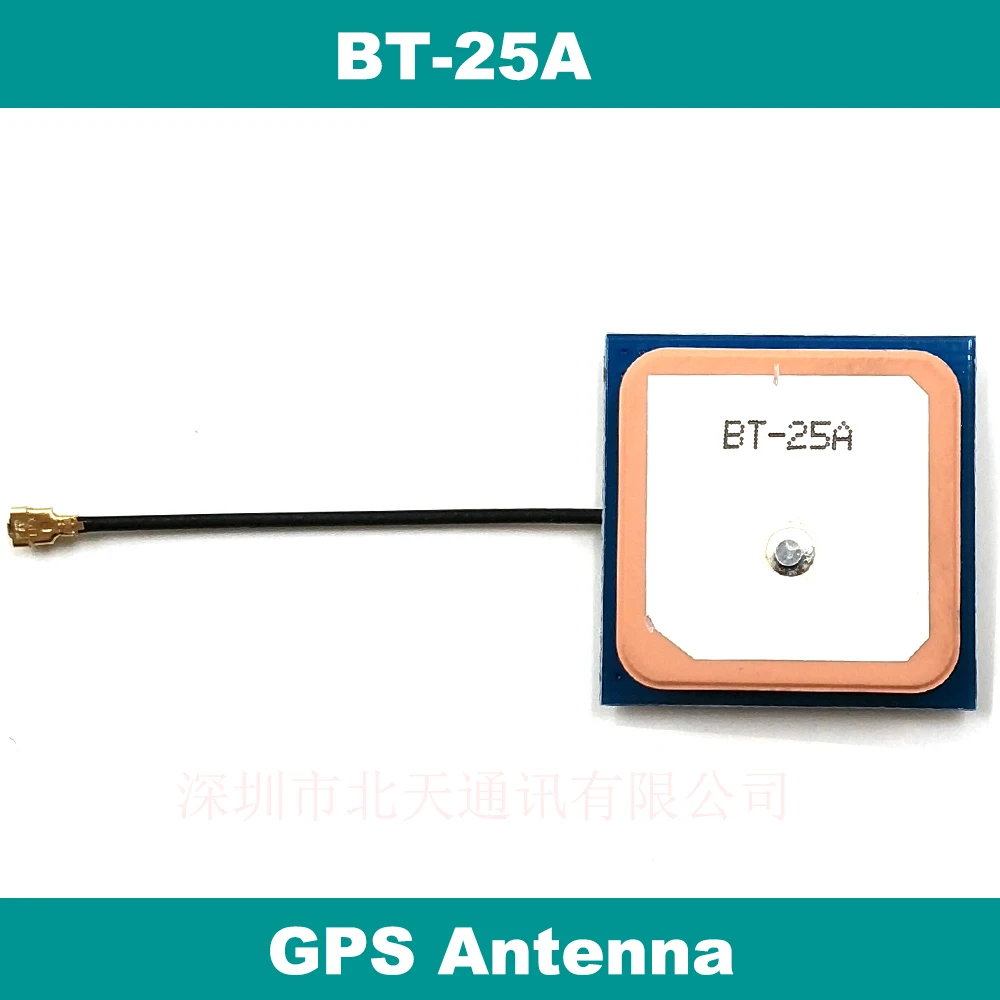

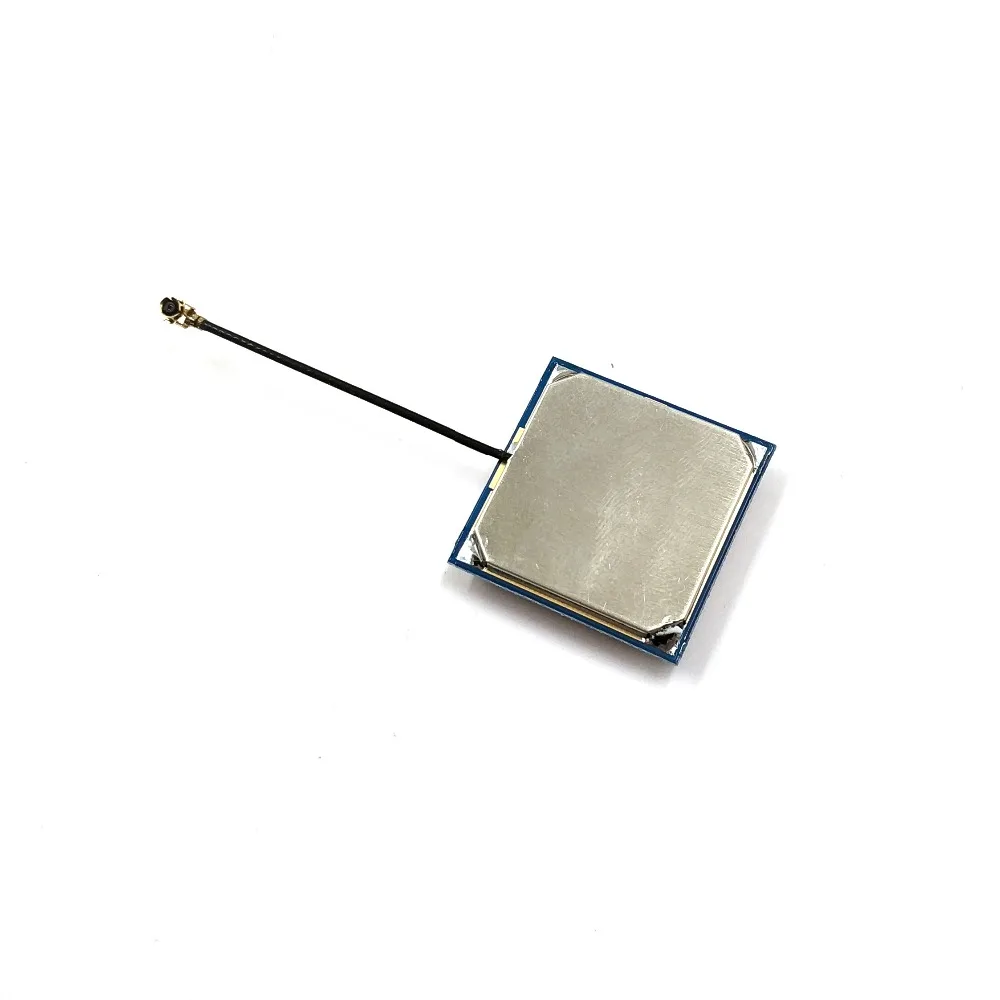

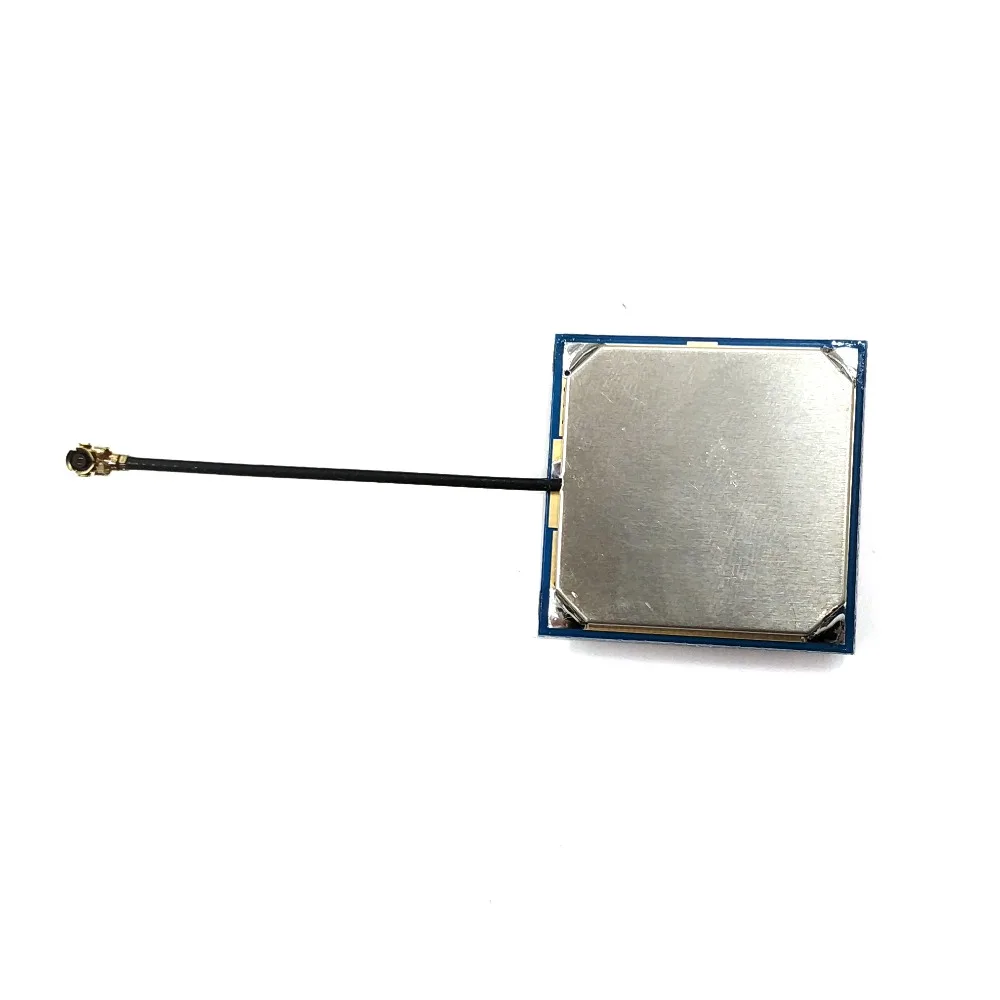

20PCS BT-25A GPS ANTENNA

1．Characteristics of Ceramic Antenna Item Specification Range Of Receiving Frequency GPS L1:1575.42MHz Gain at Zenith 3.0dBi Output VSWR <1.5 Impendance 50Ω Band Width ±10MHz Polarization RHCP Axis ratio <3dB Horizontal coverage angle 360° Frequency Temperature Coefficient 0±10 2．LNA Specification Item Specification LNA Gain 33dB Noise figure <1.8dB(Only LNA) Output VSWR <1.5 Output impedence 50Ω Passband Ripple ±1.0dB(Only LNA) Supply Voltage 2.8V-5.0V Supply Current ≤20mA 3．Work environment Item Specification Operational Temperature -40℃ - +85℃ Storage Temperature -40℃ - +85℃ Wet degree 40% - 95% 4．Structural characteristics Item Specification Size 28*28*7mm Antenna Size 25*25*4mm Weight ≤ 13g Connector IPEX Cable 1.13 Cable Length 5cm

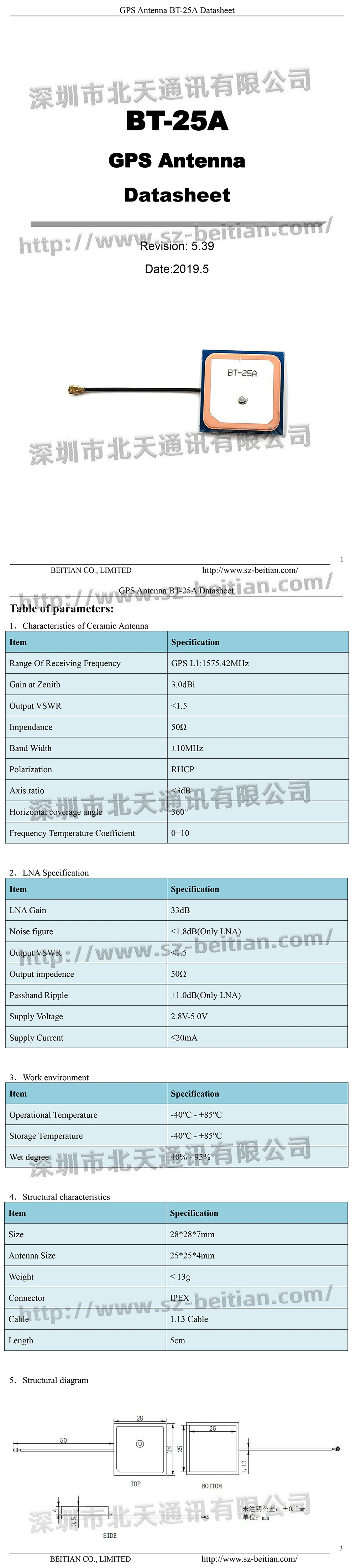

BT-25A-Datasheet-22-E
