Характеристики

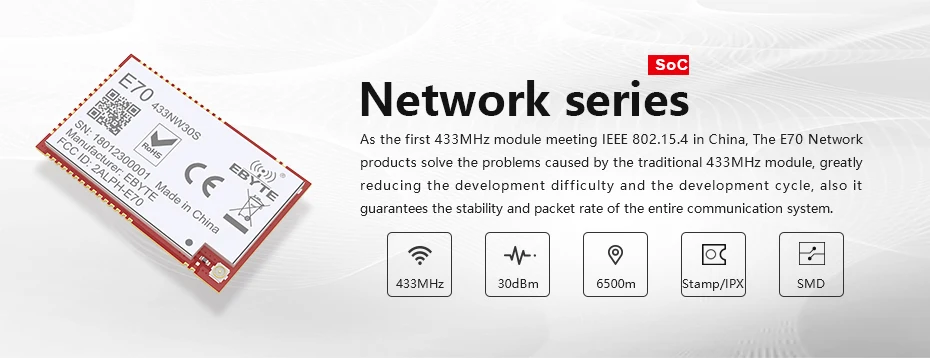

CC1310 1W 433mhz SMD Wireless Transceiver E70-433NW30S IoT 433 mhz IPEX Antenna Transmitter and Receiver
| RF Parameter | Value | Remark |
| Working frequency | 433.3MHz ~ 434.5MHz |
Support ISM band |
| Transmitting power | 30 dBm |
- |
| Receiving sensitivity | -110 dBm |
Air data rate is 5kbps |
| Air data rate | 5k~50kbps |
Controlled via user’s programming |
| Test distance | 6500m |
Test condition：clear and open area, antenna gain: 5dBi， antenna height: 2.5m，air data rate: 5kbps |
| Hardware Parameter | Value | Remark |
|

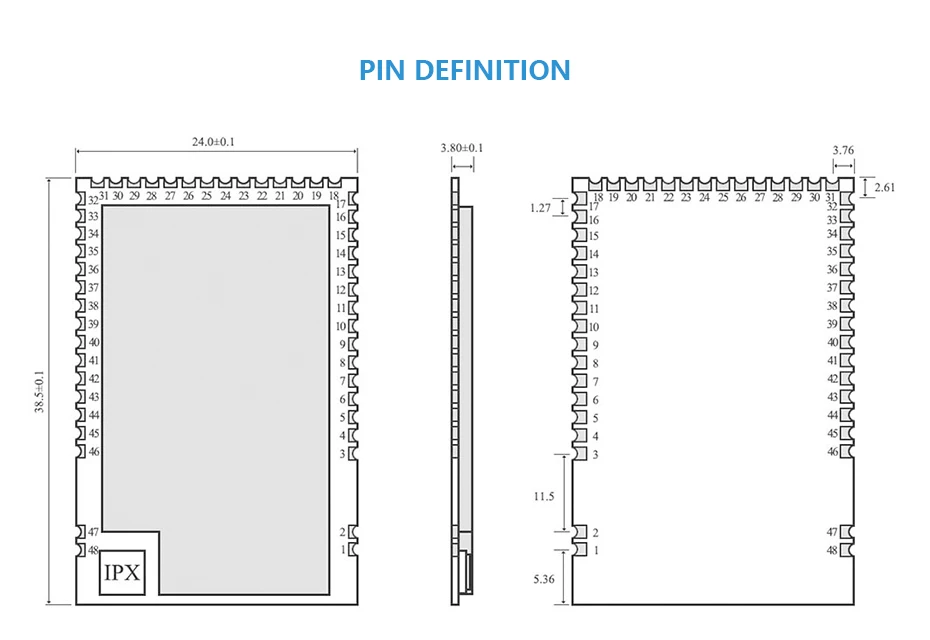

Size |
24 * 38.5 mm |
- |
|
Antenna type |
IPEX / Stamp hole |
50 ohm impedance |
|
Communication interface |
UART |
- |
|
Package |
SMD |
- |
|
Buffer |
512 byte |
A single packet may not exceed 128 bytes |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 3.3 | 5.0 | 5.2 | V | ≥3.3 V ensures output power |
| Communication level | - | 3.3 | - | V |
For 5V TTL, it may be at risk of burning down |
| Transmitting current | - | 610 | - | mA | Instant power consumption |
| Receiving current | - | 13 | - | mA | - |
| Sleep current | - | 2 | - | μA | Software is shut down |
| Operating temperature | -40 | - | +85 | ℃ | - |
| Operating humidity | 10 | - | 90 | % | - |
| Storage temperature | -40 | - | +125 | ℃ |
- |
