Характеристики

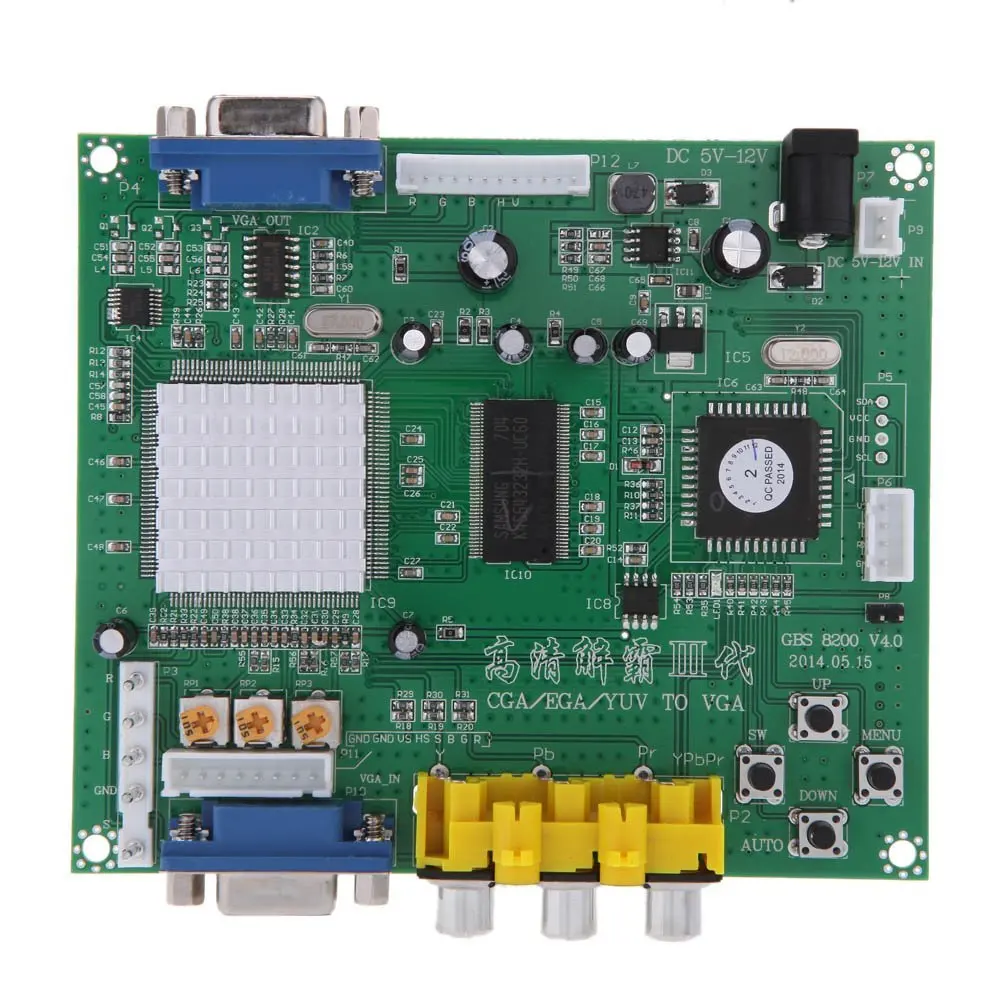

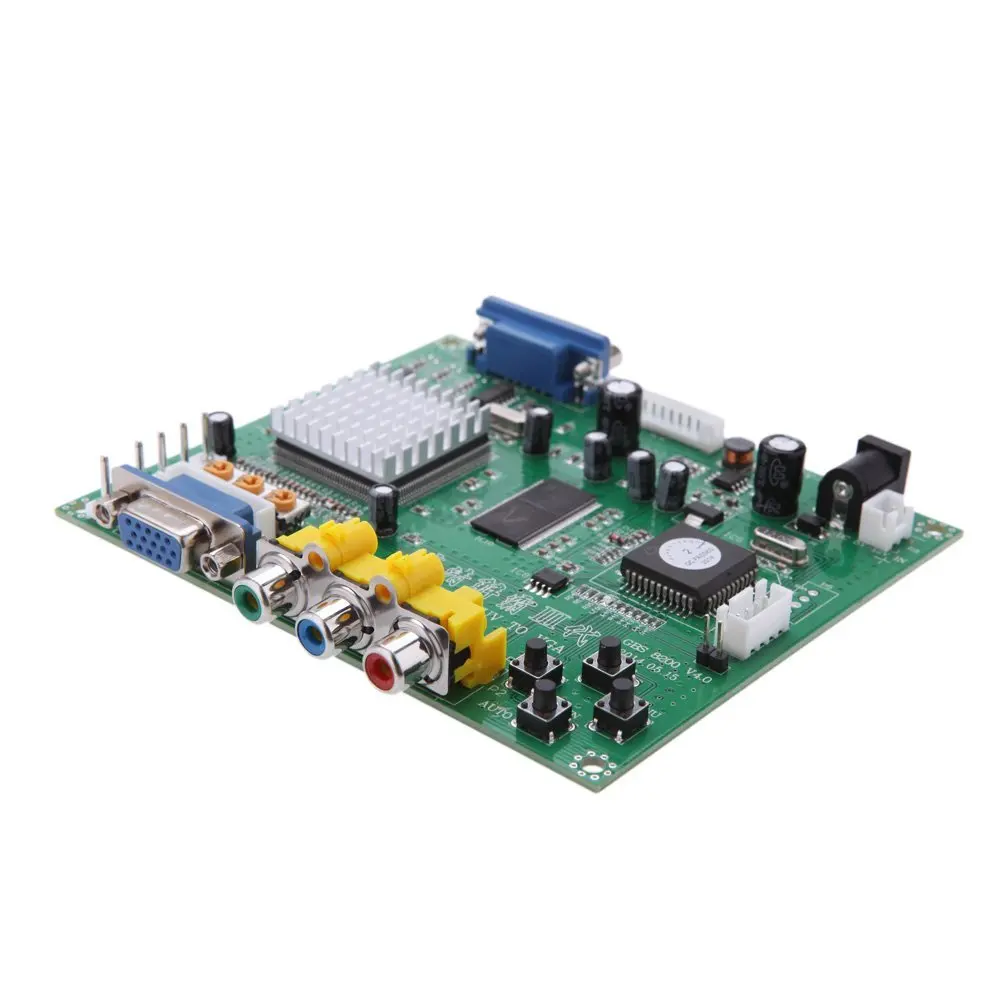

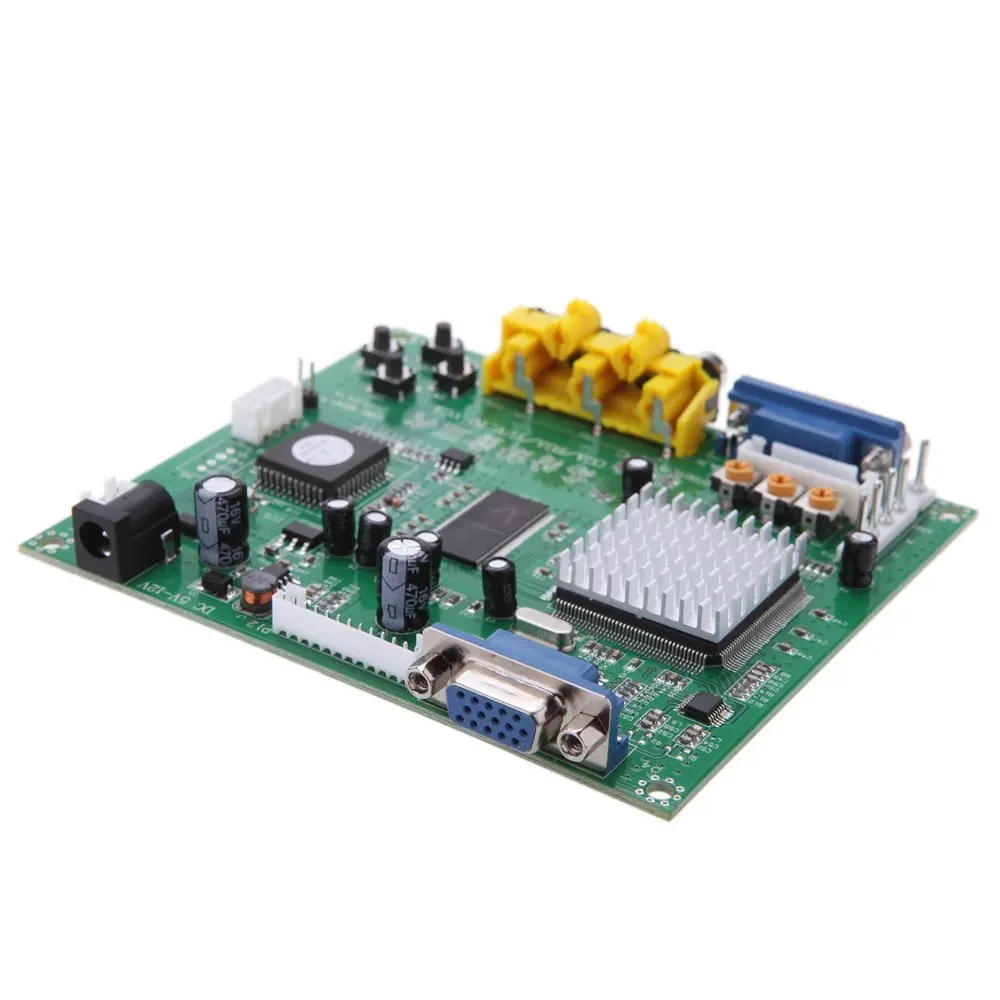

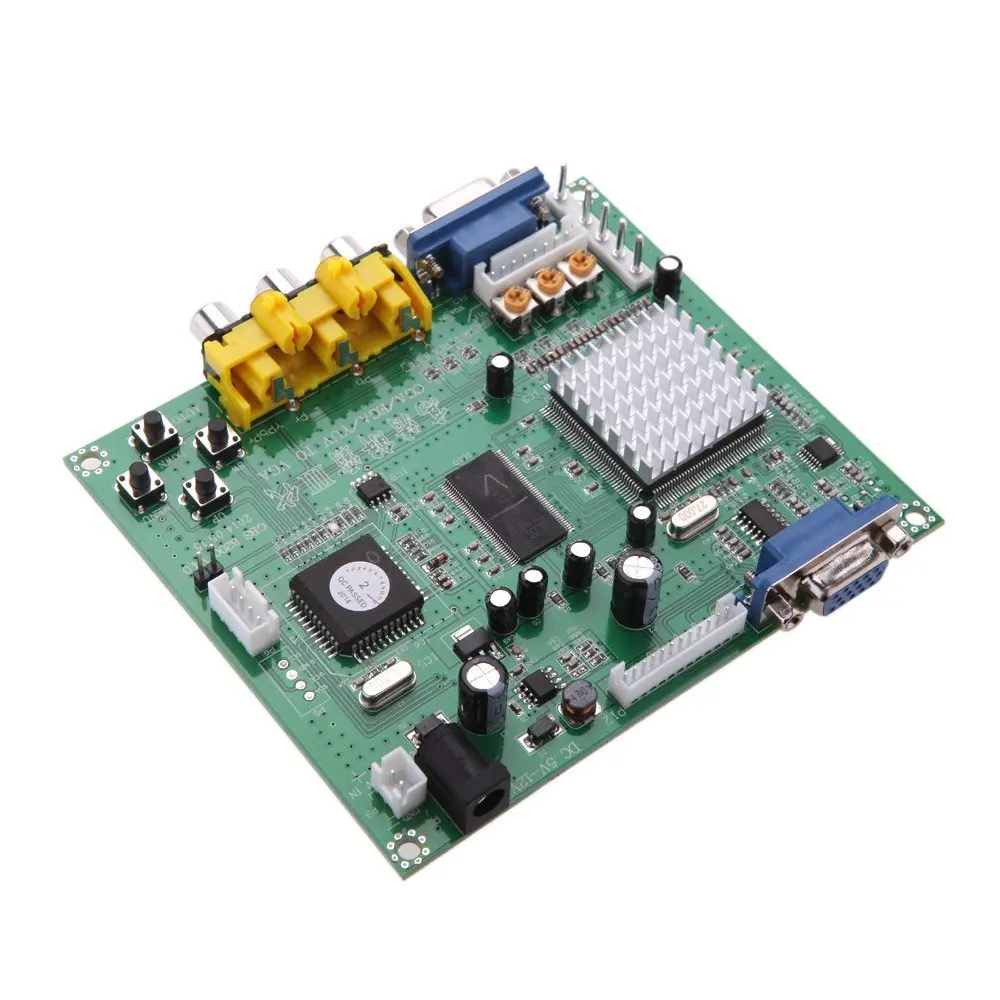

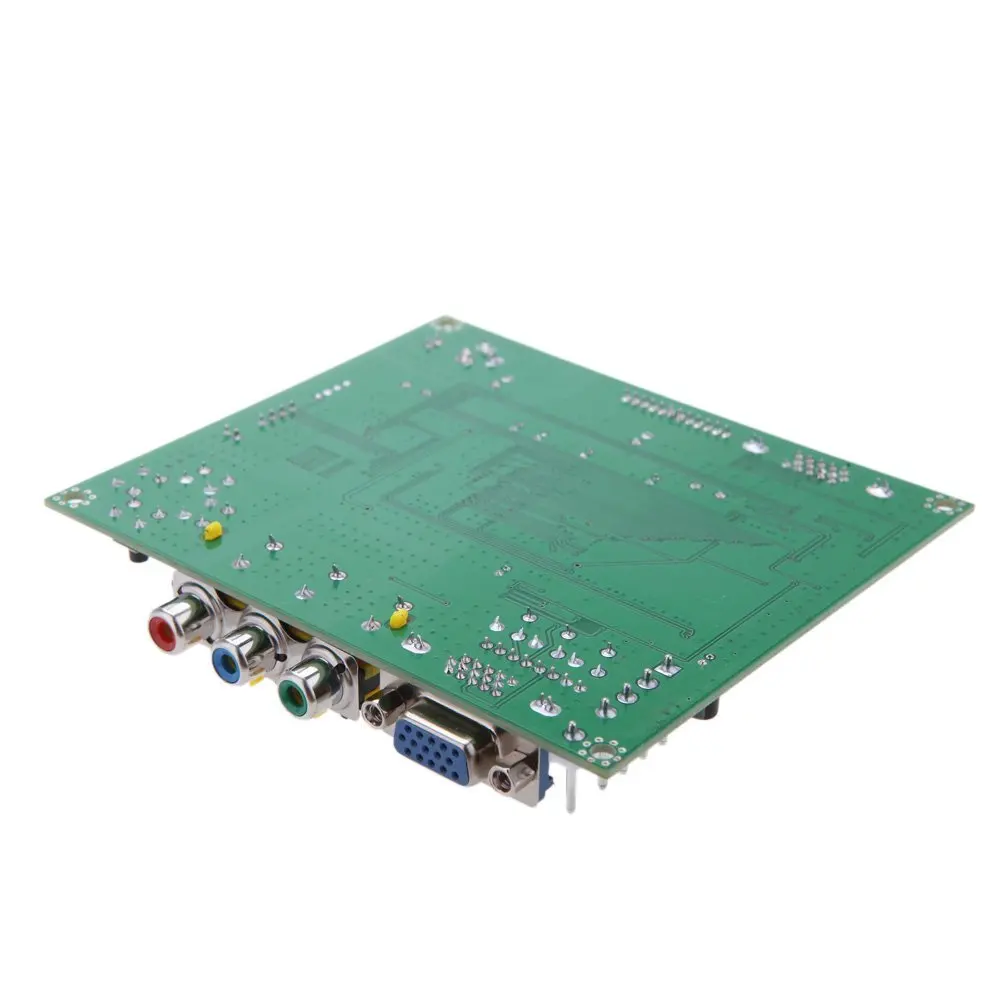

The high definition GBS-8200 Video converter is a professional game converter, which support all games such as, Amusement, Play station, for Xbox, wii, etc.
It can convert CGA/EGA/VGA/YUV Component input Signal to the HD Monitors (CRT Monitor LCD Monitor PDP Monitor) with VGA interface (VGA video signal), and automatically scan CGA / EGA / YUV signal, VGA output signals.
Supports CGA/EGA/VGA/YUV Component Signal Input. Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768).
Supports image position control & image zoom control.
Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
User controls:
Input Switch,Image Zoom,Input Zoom,Image Position,Output resolution,R/G/B gain adjust.MENU KEY R/G/B VR
Color:Green
Material: glass fiber panel
Main item size:11.8 * 10.8 * 1.4 cm/4.65 * 4.25 * 0.55in
MENU CONTROL:
"MENU"open OSD menu,and enter.
"UP"up and increase.
"DOWN/AUTO"down and reduce.
Press this key:auto scan CGA/EGA signal
Press this key over 5 second and release:reset system(this operation is invalid when you open OSD menu)
"SW"switch input signal Ypbpr/RGBS/RGBHV(this operation is invalid when you open OSD menu).
"Clamp sp”&"Clamp"please don’t adjust this button,except the monitor has black item or picture discoloration.
Package list:

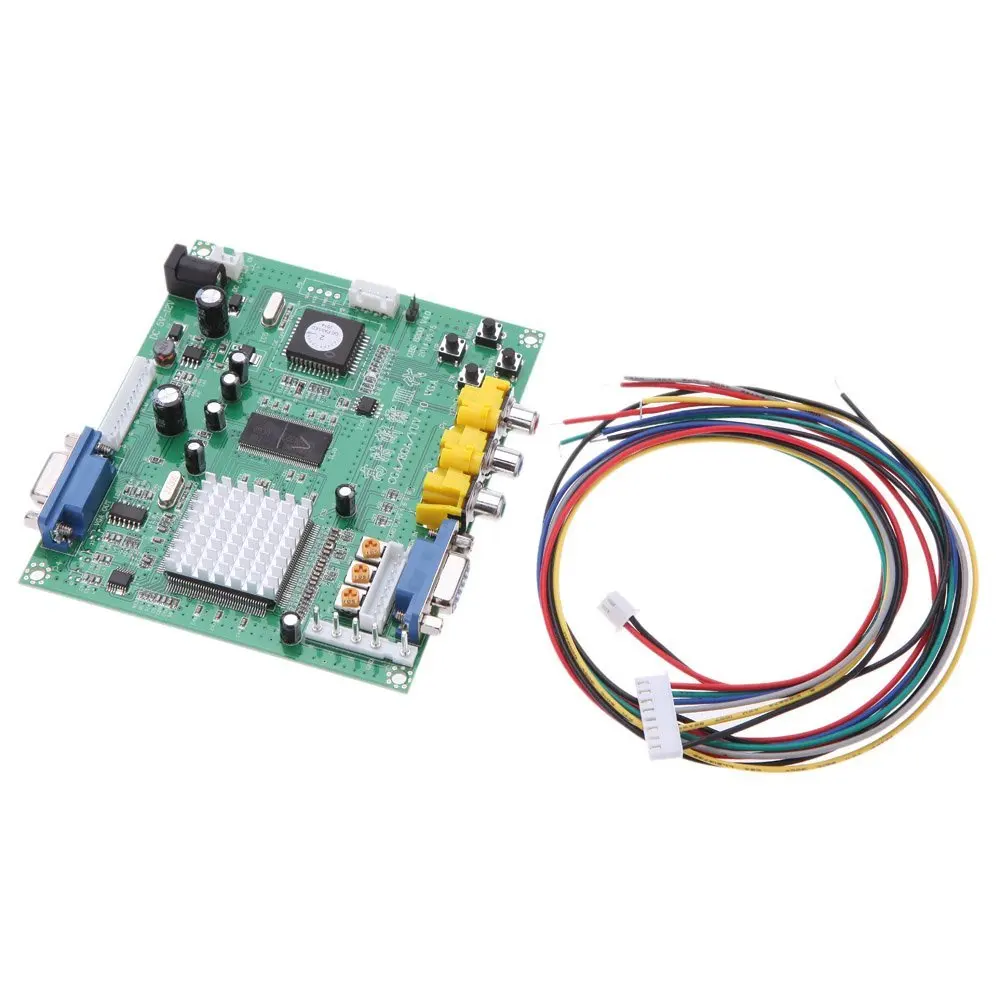

1 x CGA/EGA/RGB To VGA Game Video Converter Board

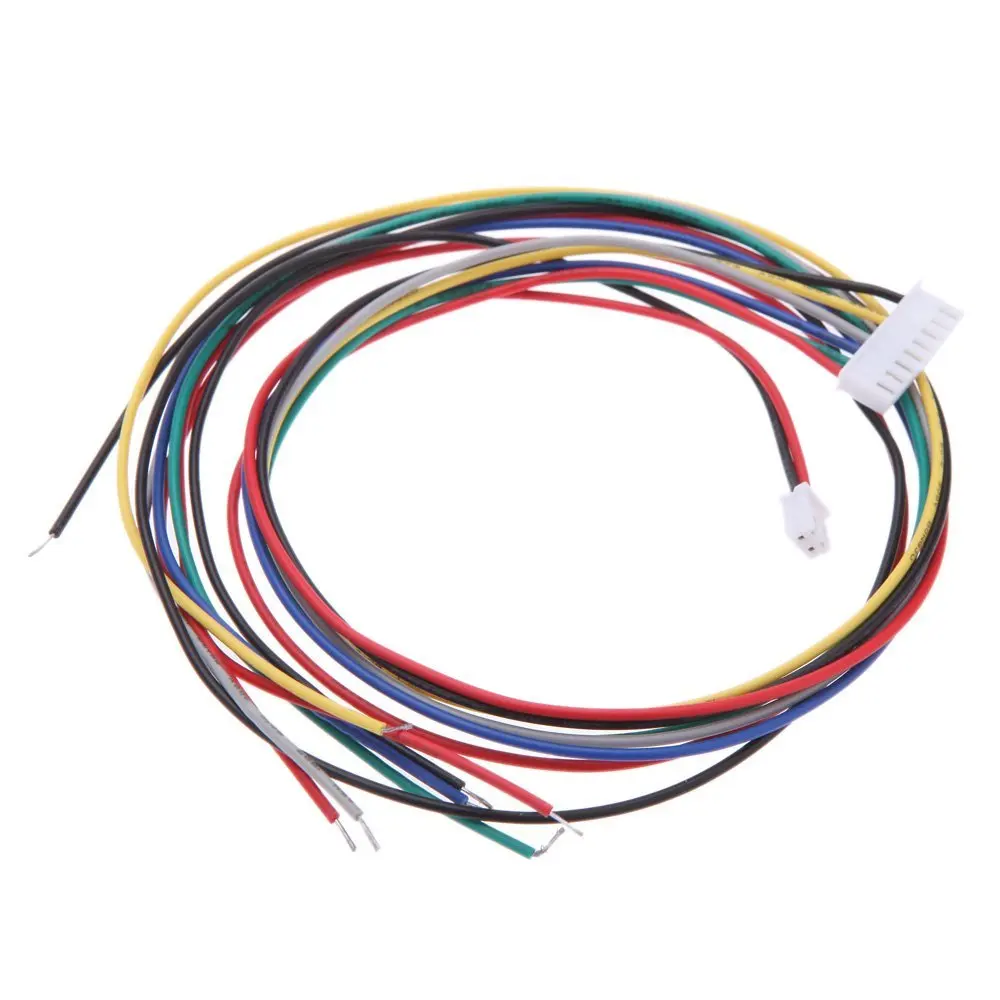

1 x 6pin signal wire
1 x 2pin power supply wire
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
