Package list:

SIMCOM SIM7030 LCC * 1 PCS

product description

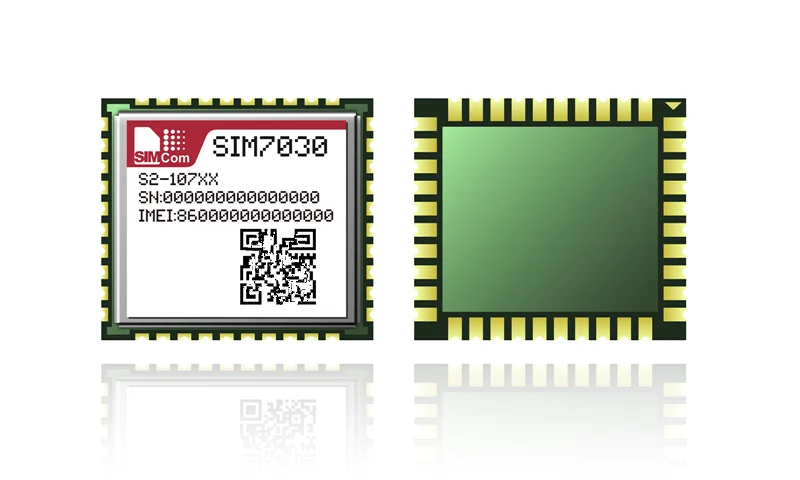

The SIM7030 is a multi-band NB-IoT wireless communication module with a 40 PIN LCC package. SIM7030 has a wealth of hardware interfaces, including serial port, GPIO, SPI, ADC, etc., which also makes the module rich in scalability, which provides great convenience for users' product development. The SIM7030 module is the optimal solution for low-latency, low-power, low-throughput applications, making it ideal for IoT applications such as metering, remote control, asset tracking, remote monitoring, telemedicine, and shared bicycles.

Product advantages

● Low power consumption: The module supports PSM and eDRX low power modes. In theory, two No. 5 batteries can support 10 years. ● Wide coverage: Compared with GSM, NB-IoT has a strong gain and a wide signal coverage, which also enables the wireless communication capability of the product in a location like a basement. ● Supports built-in SMD SIM IC. ● Fully in line with China Mobile's technical specifications.

Main characteristics • Band: B1/B3/B5/B8 • AT command operation • Supply voltage: 2.1V-3.6V, typical value: 3.3V • Temperature range: -40°C to +85°C • Size: 18X 16X 2.4mm • Weight: 1.3 g ± 0.2 g   Data transmission specification Upstream: 62.5Kbps Downstream: 26.15Kbps SMS • Text and PDU mode   Power consumption • PSM mode: 5 uA       Other characteristics • Upgrade software via serial port • TCP/UDP • LWM2M/COAP* • MQTT • OneNET • FTP/HTTP/HTTPS*/SSL*/DTLS* • FOTA * • PSM/eDRX     interface • Serial port • USIM card (1.8V/3V) • SPI • I2C • Wakeup _IN • Wakeup_OUT • GPIO • ADC   Certification (Plan) • CCC/TA/CTA • RoHS/REACH
