HXJ8002 Mini Audio Amplifier Module amplifier module Single Channel 3W/DC2.0~5.5V | Электроника

Характеристики

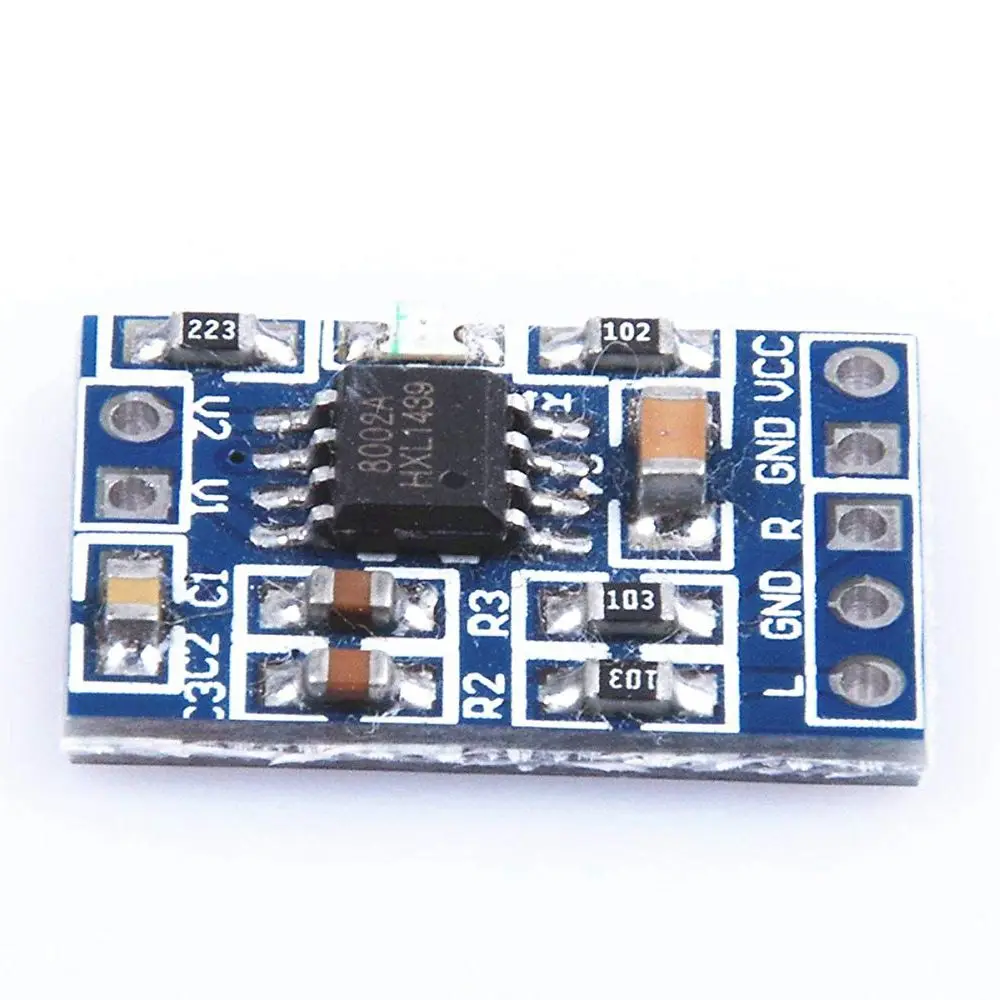

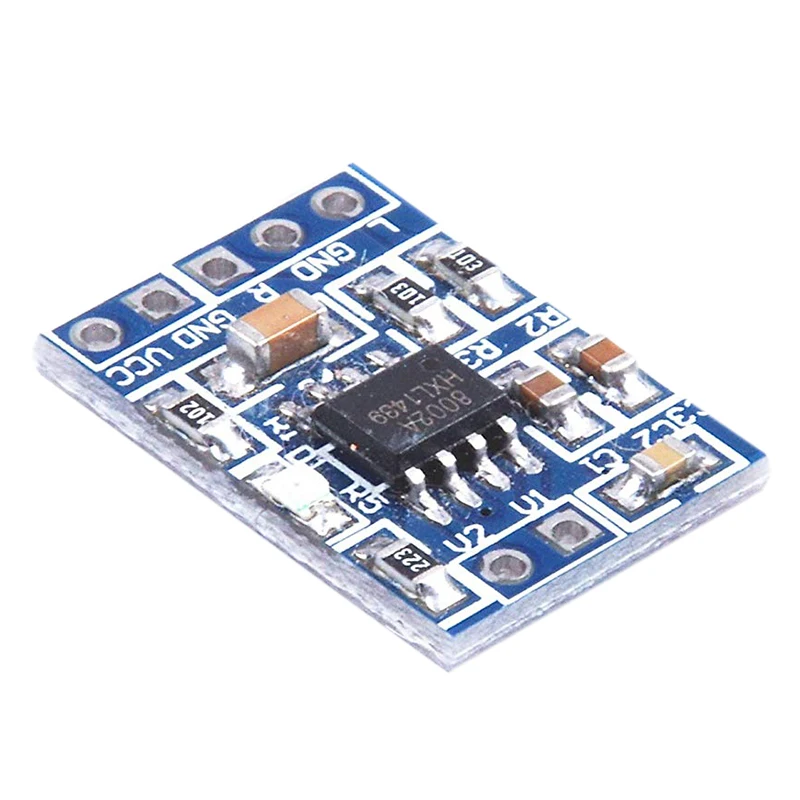

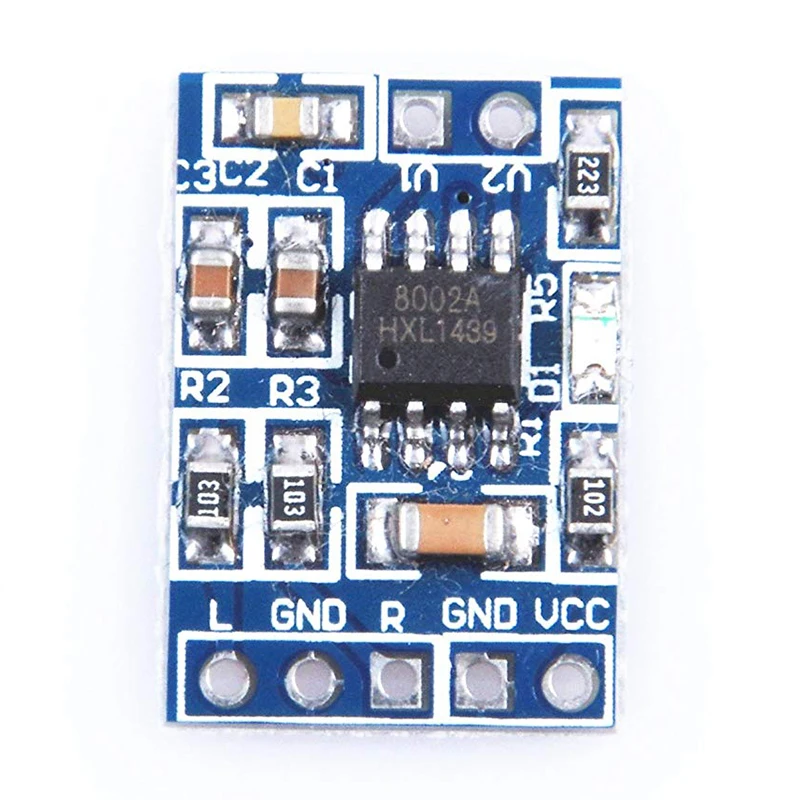

Onboard HXJ8002 single channel 3W, BTL bridge connected audio power amplifier chip.
Operating voltage: 2.0-5.5V.
Standby Current: 0.6uA (typ).
The input signal frequency is 1kHz, 8Ohm load, the average output power under 1W maximum distortion is 0.5%.
In THD + D Less than 10%, input 1KHZ frequency, different load conditions of output power (typical value): 3W (load 3Ohm); 2.5W (load 4Ohm); 1.5W (load 8Ohm).
Model: HXJ8002.
Size: 20*14*3mm(L*W*H).
Weight: 1.1g.
colour: Photo Color
Material: metal
Package Contents:
1 * Audio amplifier module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
