Description (MINI DSP, 2 to 3 weeks of goods)

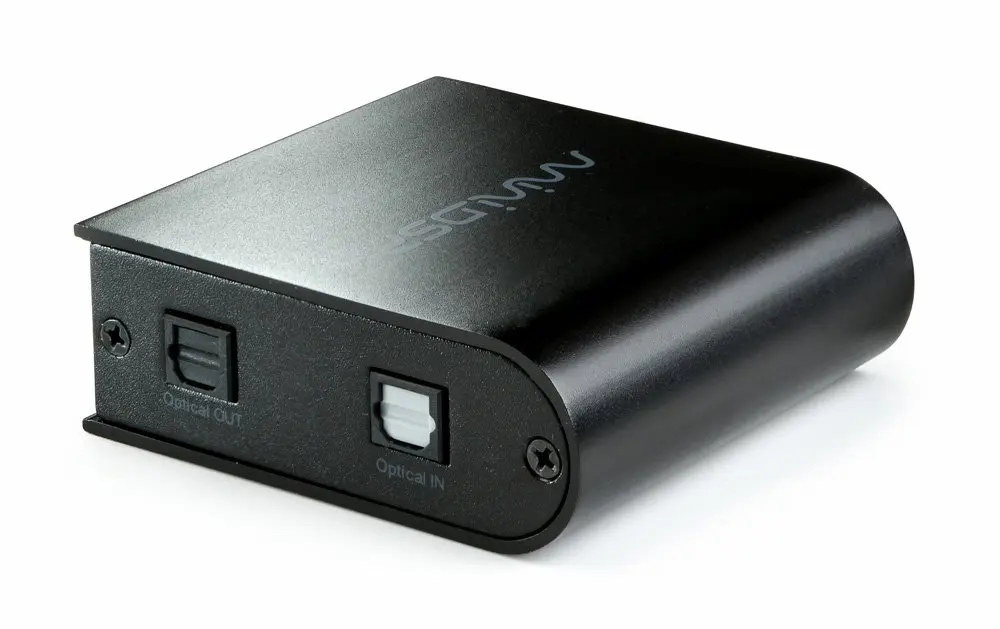

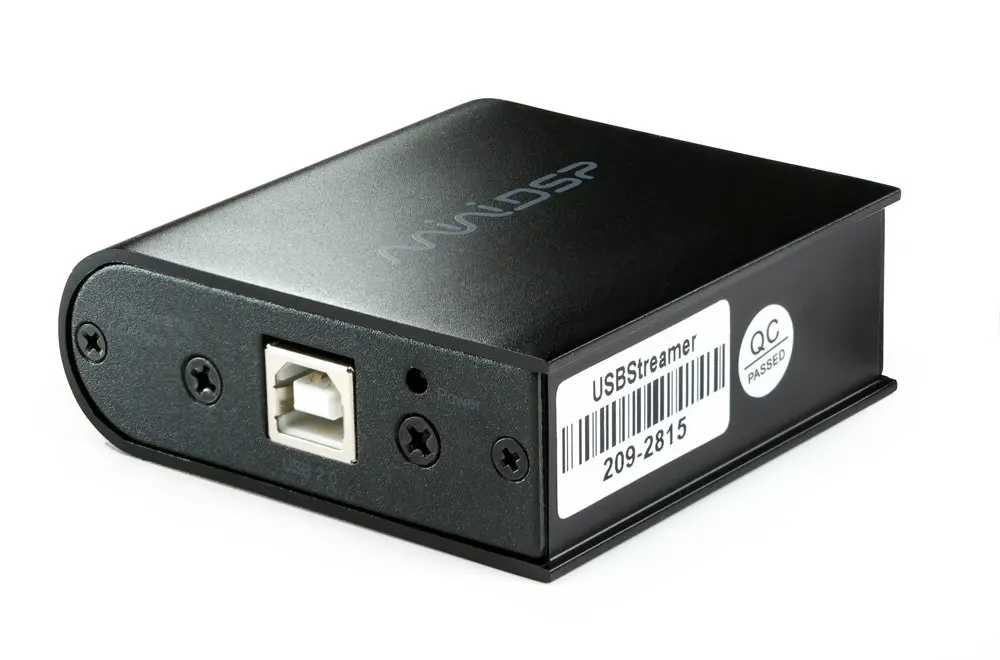

The USBStreamer B is a miniature multi-channel USB to ADAT/Toslink interface with native support for audio files format up to 24bit/192kHz. Operating in ADAT or Toslink depending on the loaded firmware, the unit is versatile and very cost effective. In the ADAT mode, the USBStreamer B makes the retrofit of outboard DAC/ADC interfaces a child's play. A simple firmware update and one can enjoy streaming of stereo (Toslink) audio over the same optical connector.

The USBStreamer utilizes high speed USB2.0 along with the Audio Class to simultaneously provide up 2 implementation to 8channels of playback along with 8channel of recording over the ADAT standard. The unit is USB self powered and installed in a matter of seconds with compatible ASIO drivers for both Mac/Windows platforms. An easy and flexible system integration that follows the footsteps of the miniDSP product line.

Features

  • USB to TOSLINK/ADAT interface
  • Pocket size/low Power Design
  • Stereo up to 192kHz Transmit & Receive (Toslink mode)
  • Multichannel (up to 8) 48/44.1kHz for ADAT transmit/Receive
  • XMOS multi-core IC
  • USB 2 interface
  • Low jitter clocks
  • 26Mbps optical transmit/receive
  • Asynchronous USB clocking
  • 44.1/48/88.2/96/176.4/192KHz for Toslink
  • 44.1/48kHz for ADAT
  • Optical Receiver/Transmitter
  • USB to Toslink stereo interface
  • USB to ADAT multichannel interface

What's in the box?

  • 1 x miniDSP USBStreamer boxed in an aluminium enclosure
  • 1 x 1m long USB audio cable
  • 2 * Toslink audio cables



USB Streaming Engine XMOS 16 core


Internal Processing resolution
Sample rate

32 bit / up to 192 kHz

USB Audio Class

USB Audio Class 2 device,
Windows ASIO driver, Mac Osx driverless

Input/Ouput Configuration

10 in / 10 out

Audio Input Connectivity



Depending on the loaded firmware:
ADAT firmware: Up to 8ch 48kHz
I2S + TOSLINK firmware: 2CH TOSLINK + 8CH I2S - Up to 192kHz

Audio Output Connectivity

Depending on the loaded firmware:
ADAT firmware: Up to 8ch 48kHz
I2S + TOSLINK firmware: 2CH TOSLINK + 8CH I2S - Up to 192kHz

Input / Output Max Levels

-

TOSLINK Input


Optical receiver
Supported sample rate: 44.1~176kHz

TOSLINK Output

Optical transmitter
Supported sample rate: 44.1~192kHz

Dimensions 24 x 64 x 67 mm
Power USB self powered
Win/Mac Compatible ??
