                                          Solar Connectors

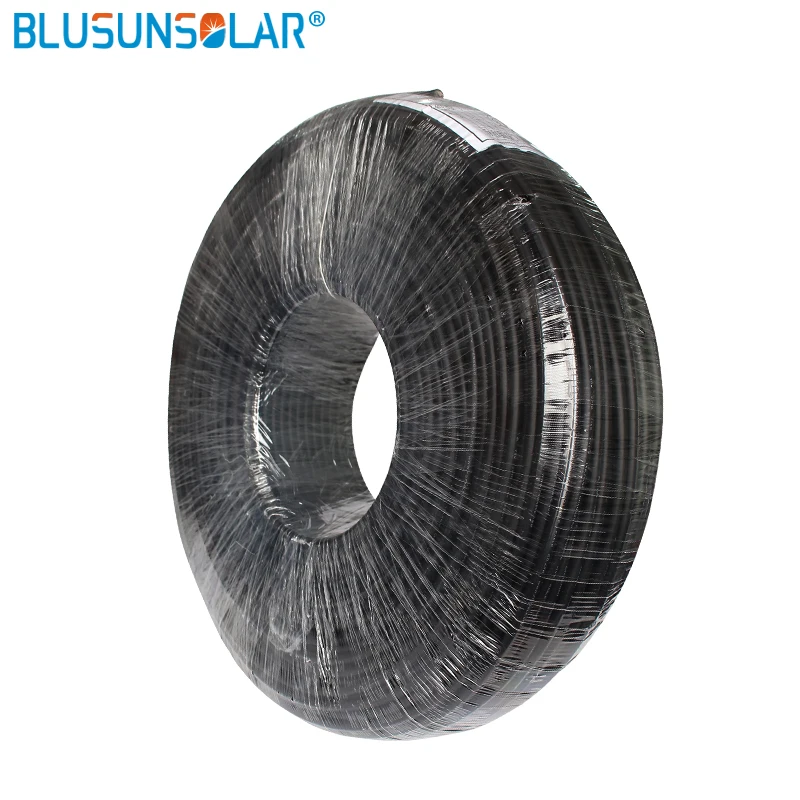

1. 4mm sq PV cable, please note the color you need.

2.TUV approved,Double XLPE cover

3. Dual wall insulation,electron beam cross-linked

4. Excellent resistance to UV,water,ozone,fluids,salt,general weathering

5. Excellent resistance to abrasion

6. Halogen free,flame retardant,low toxicity

7. Excellent flexibility and stripping performance

8. High current carrying capacity

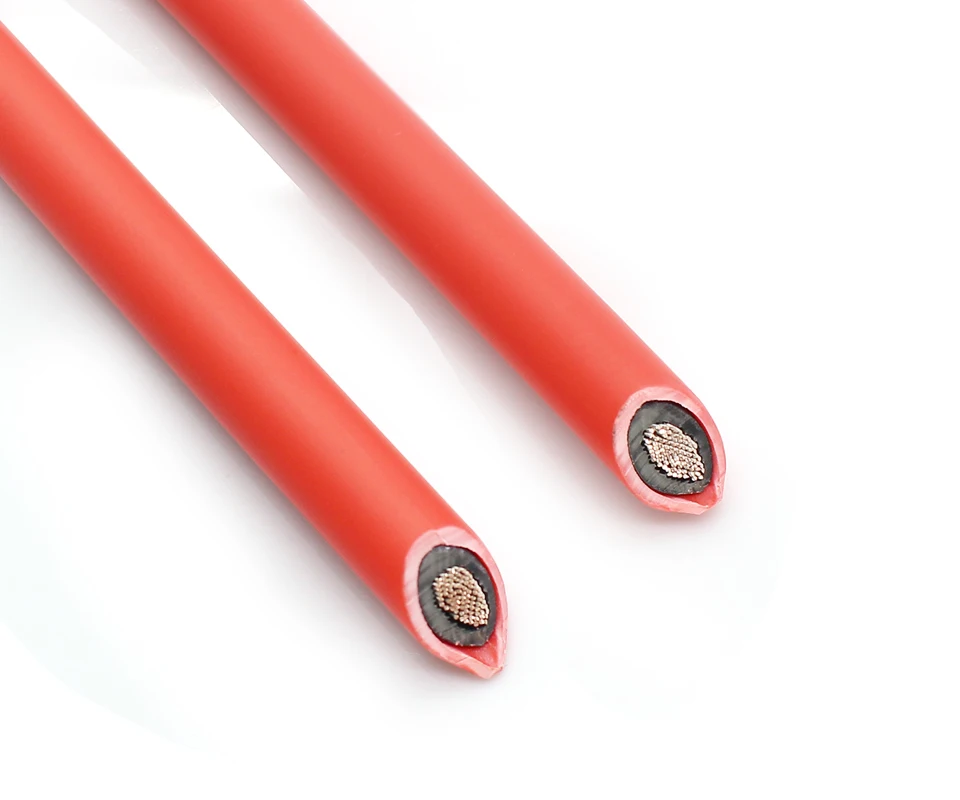

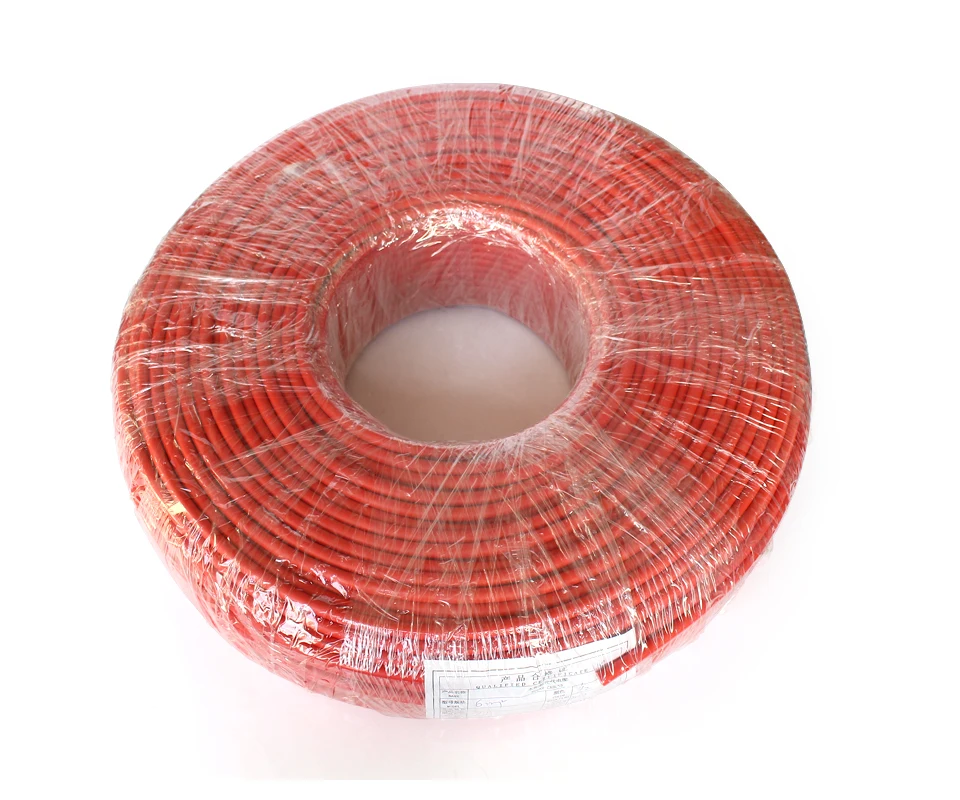

9. two colour: black or red

10. 5-year factory warranty from date of delivery.

11. Designed life:25 years.

 1.Executive Standard:

PV cable(solar cable) refers to original draft made out by PV system cable work team of German Standard Committee

(Technical Specification 2PFG1169/08.2007 in Rhein TUV company German).

2.No-haogen PV-Cable Type:

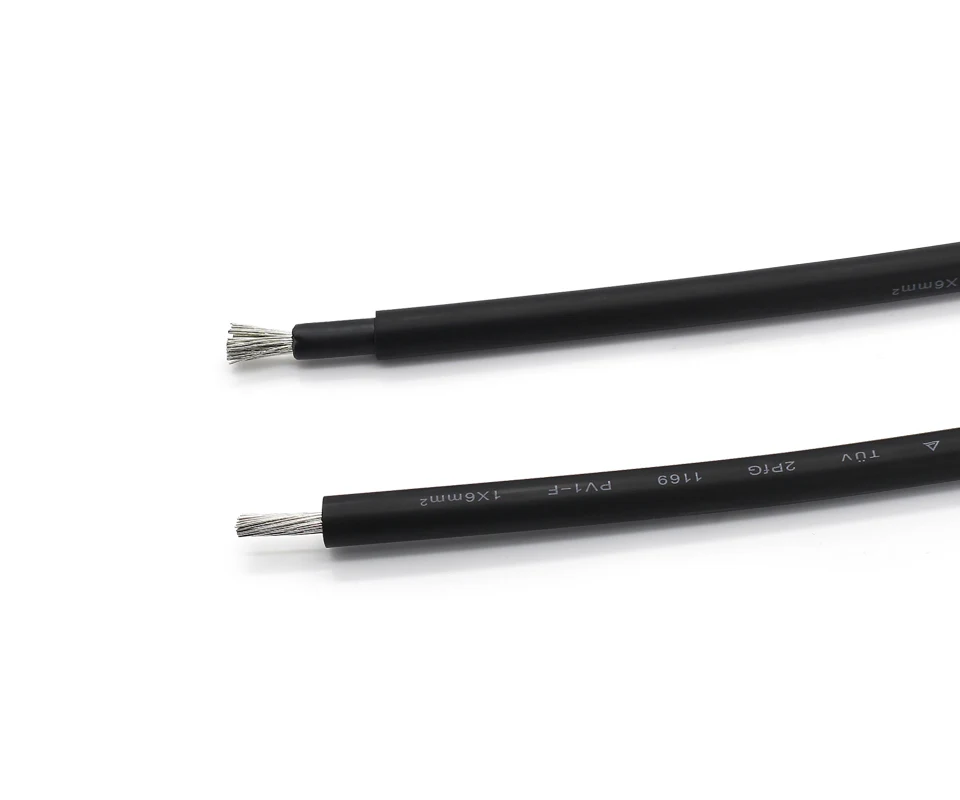

 PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable.

3. Application:

Applied to  solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor .

Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

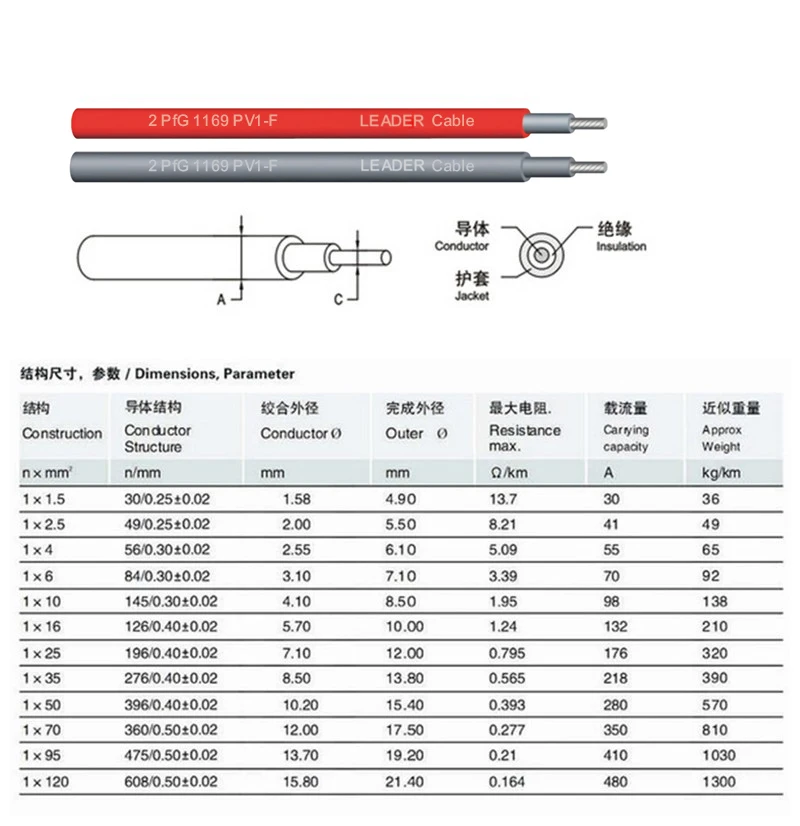

4.Cable Characteristics

For more information please leave message to us, we will reply you soon, thank you!
