276I 288E hydraulic performance camshaft for VW Golf MKIII 8v ABA AP MKII GTI corrado G60 forced induction turbo pointer arbol | Автомобили

Характеристики

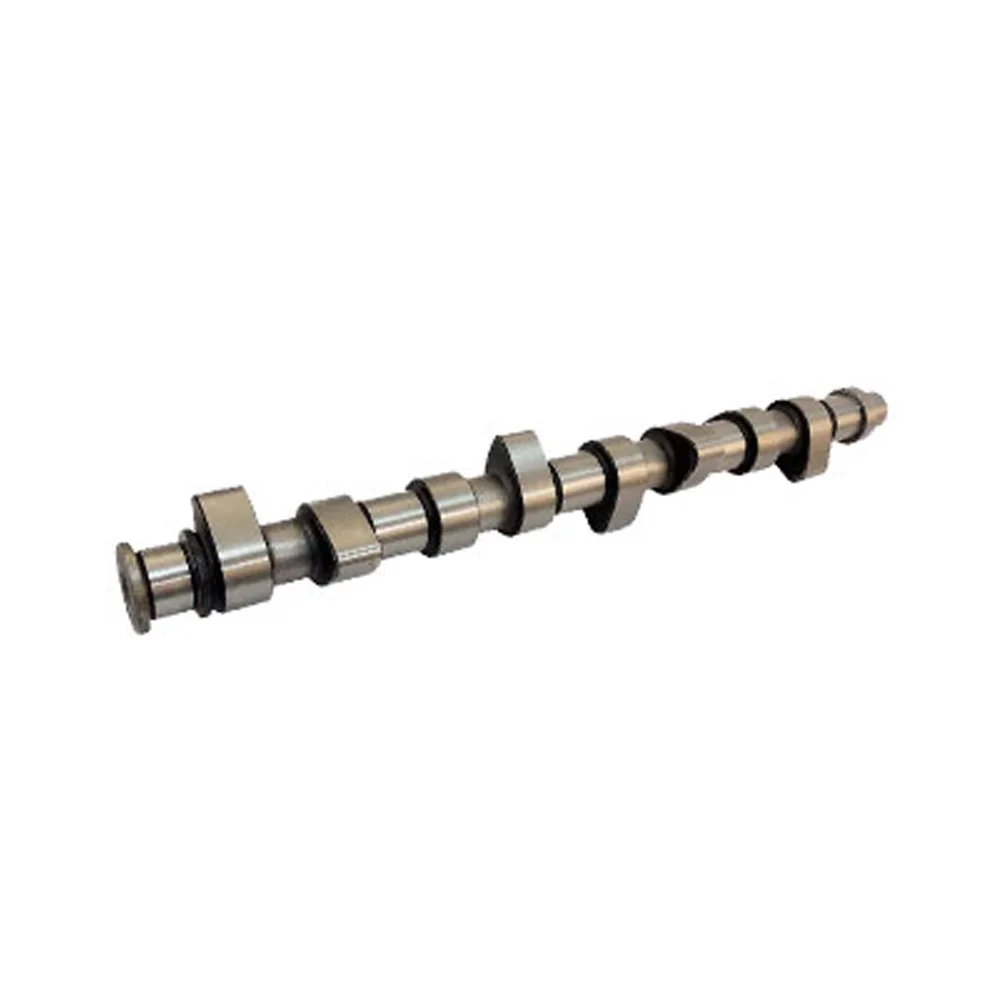

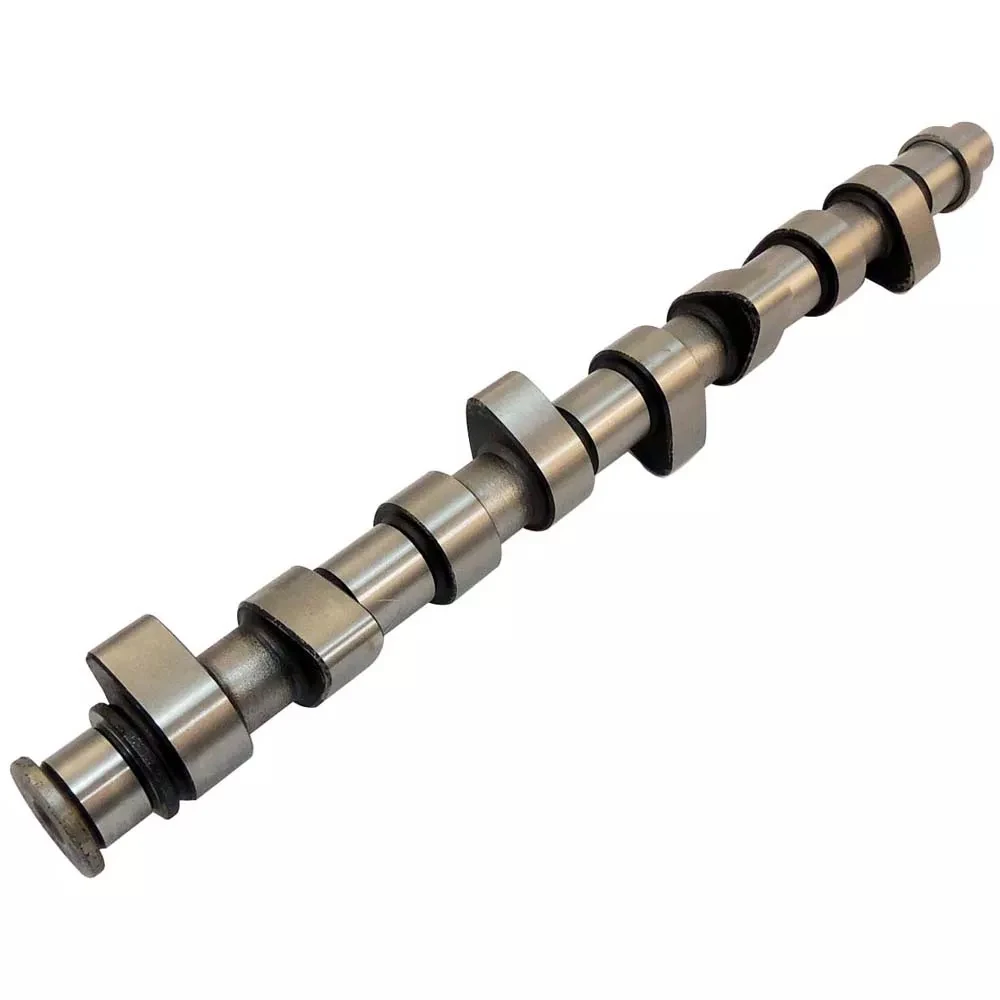

Performance camshaft for VW 8V engines

VW Golf Mk2 GTI, Golf G60, Corrado G60, Golf MKIV 2.0L, Audi 80, 100, 5000, quattro, VW Corrado, Golf, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro 1.6L, 1.8L - 2.0L 8v 1986 on Audi 80,100,5000,quattro

EA 827 engines Capacities 1781-1847-1984cc

From 1986
8v Engines with Hydraulic Followers

Application: high street - forced induction

part number: EVCVSW10

duration intake: 276 degrees

duration exhaust: 288 degrees

Exhaust valve lift: 11.70mm

lobe centers: 110 degrees

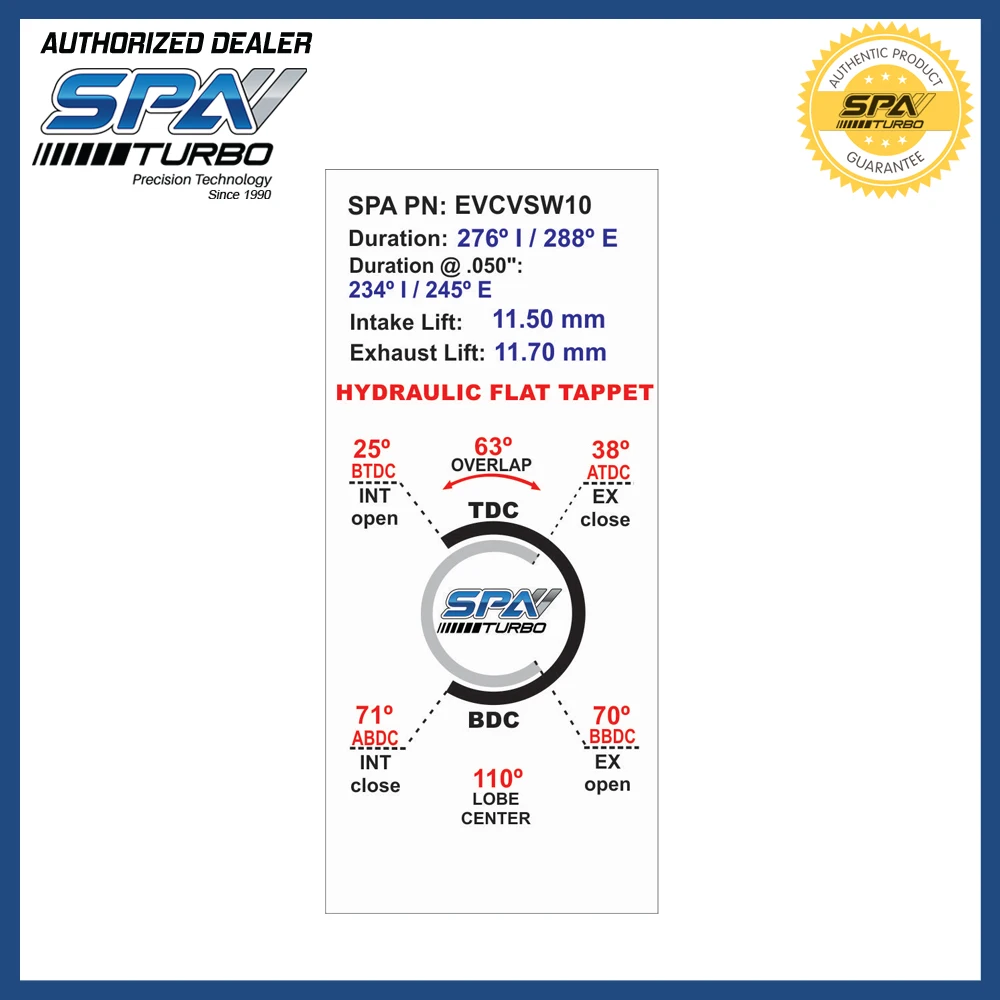

valve timing

intake open: 25 degrees

intake closes: 71 degrees

Exhaust open: 70 degrees

exhaust close: 38 degrees

Valve clearance: hydraulic lifters

Base circle: 34mm

made of 1045 quenched steel

billet machined

52-58 HRC

IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included
