For LG01-S LoRa Gateway Lora gateway with terminal external sensor | Компьютеры и офис

Характеристики

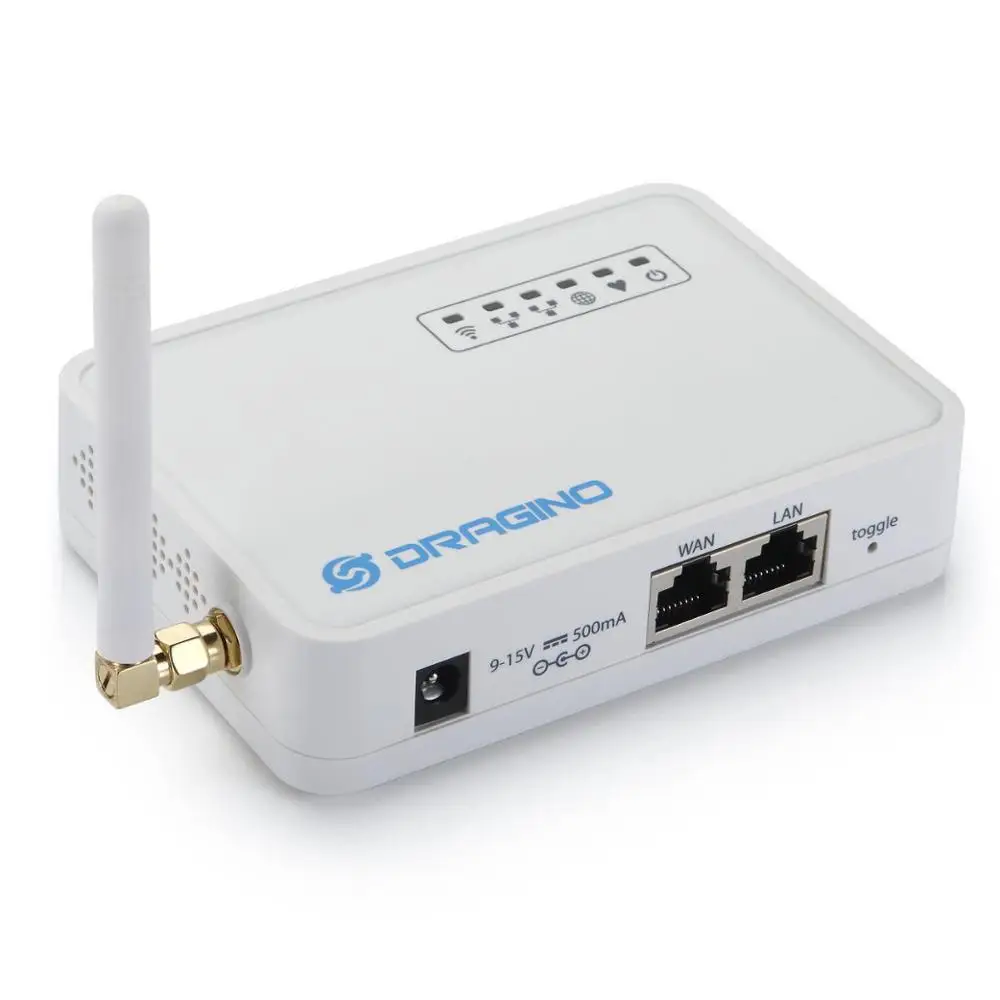

The LG01-S is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular.The LoRa wireless allows users to send data immunity. and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference

LG01-S has WiFi interface, Ethernet port and USB host port. These Interfaces Internet. provide flexible methods for users to connect their sensor networks to

LG01-S runs Open Source OpenWrt system, user are free to modify the source applications. file or compile the system to support their customized

Features:

• Open Source OpenWrt system
• Low power consumption
• Firmware upgrade via Web
• Software upgradable via network
• Auto-Provisioning
• Built-in web server
• Managed by Web GUI, SSH via LAN or WiFi
• Support WiFi AP, Client or Ad-Hoc (Mesh) mode
• Internet connection via LAN, WiFi, 3G or 4G
• Failsafe design provides robustly system
• Arduino IDE compatible. Easy to program.
• LoRa band available at 433/868/915/920 Mhz
• Max range in LoRa: 5 ~ 10km

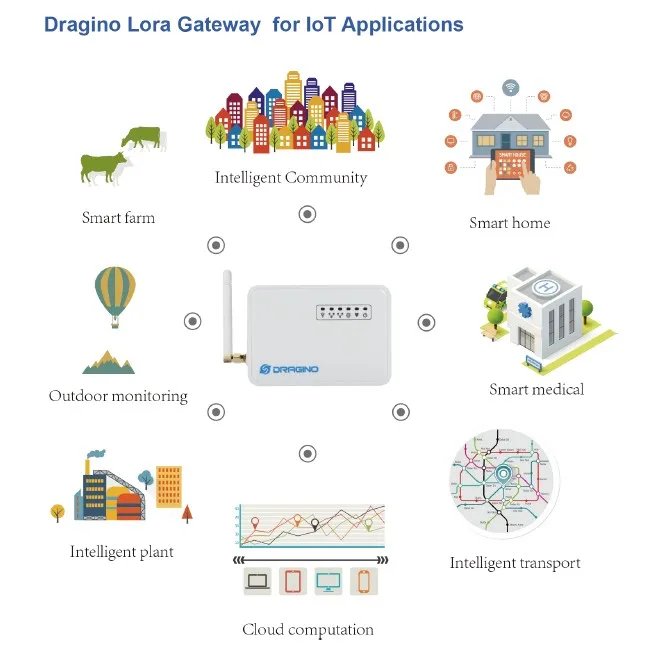

• Applications:

• Wireless Alarm and Security Systems
• Home and Building Automation
• Automated Meter Reading
• Industrial Monitoring and Control
• Long range Irrigation Systems
• GPS tracker, etc

Specifications:

Linux Side:

• Processor: 400MHz, 24K MIPS
• Flash: 16MB; RAM: 64MB
• MCU/LoRa Side:

• MCU: ATMega328P
• Flash:32KB, RAM:2KB
• LoRa Chip: SX2176/78

Interfaces:

• 10M/100M RJ45 Ports x 2
• WiFi: 802.11 b/g/n
• LoRa Wireless
• Power Input: 12V DC
• USB 2 host connector x 1
• USB 2 host internal interface x 1
• 14 position screw terminal
• Video Introduction
• Datasheet
• User Manual
• Firmware
• Examples
• LG01-P 868: LoRa Gateway, best tuned at 868M frenquency
• LG01-P915:LoRa Gateway, best tuned at 915M frenquency
• LG01-P433:LoRa Gateway, best tuned at 433M frenquency
