Specification:
--------------------------------------------------------------------------------------

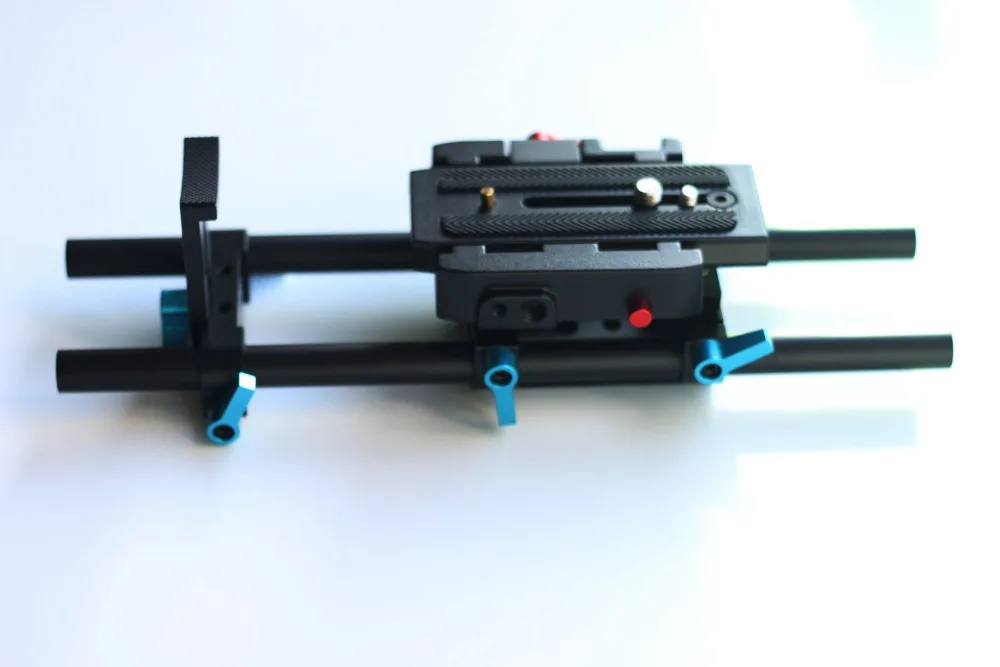

This is assembly unit, it can assembly with 15mm rod system and tripod

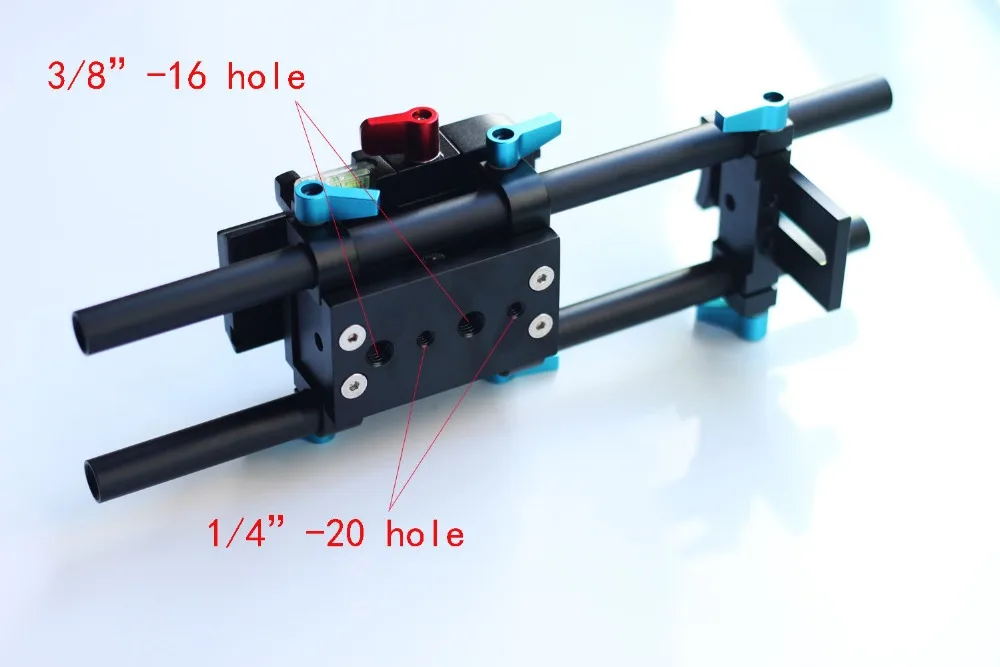

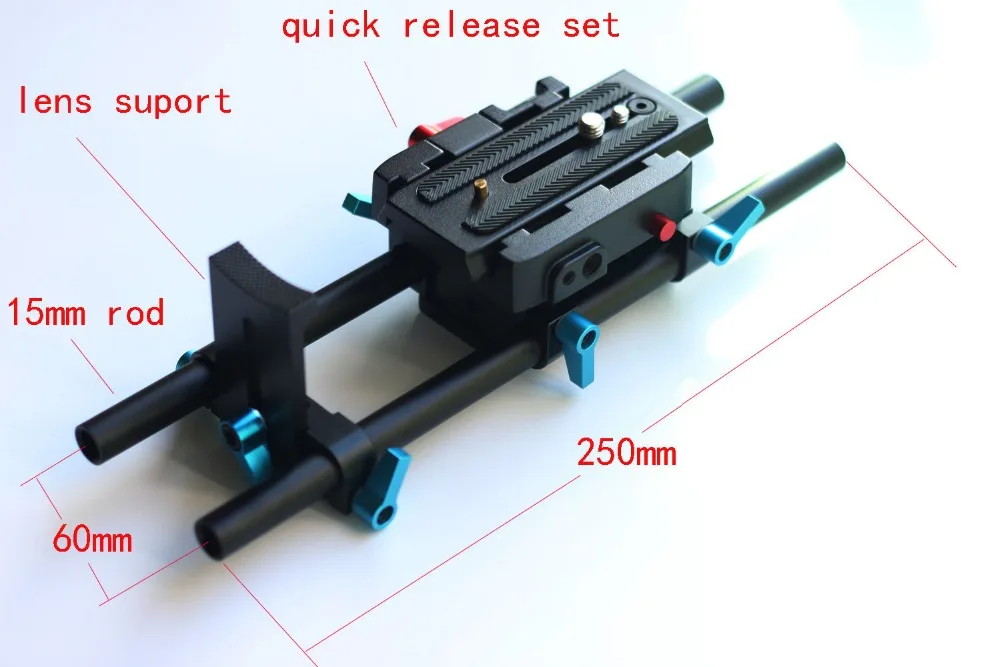

• Complete rail system is made of Metal Color : knobs is blue and all other is black Rails length : 25cm Rails dia : 15mm Rails center-to-center distance : 60mm Camera height riser adapters legth : 85mm Thickness of height riser adapters : 8mm Lens support length : 65mm Tripod mounting plate length : 120mm Tripod mounting plate thickness : 20mm, standard Screws thread hole : 1/4" & 3/8"

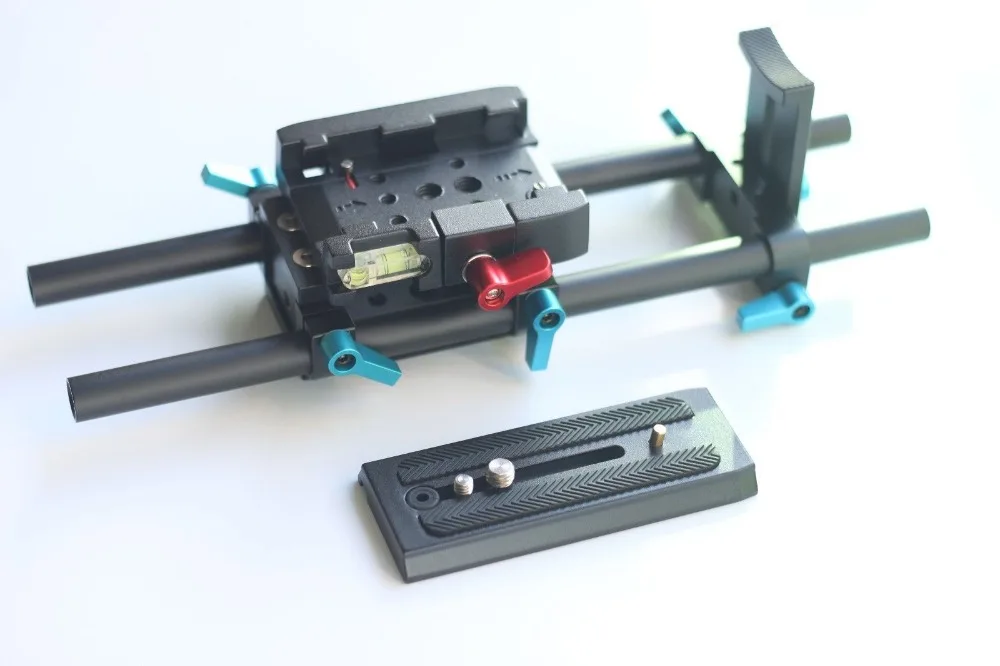

• this new assembly set for camera tripod, It becomes much more appliable and usable. This 15mm rod rail camera support is made of metal,very sturdy for your heavy cameras. Besides,it is consisting of a quick-release plate which makes it easily to attach or detach the device. What's more,it's special design make it comaptible with Arca series and 120mm quick-plate. It is composed of 2 height riser, a sliding rail block and two 15mm rods. This Rail System has a central Tripod Mounting plate that makes a perfect balance between the camera and the front mount accessories (35mm Adapter/Mattebox/Follow Focus). This rail system also has built-in Lens Support which is very useful accessory to support any lens. This Rail System is strong enough and it can support the large variety of smaller cameras and bigger cameras as well. This Rail System has a Quick Release plate that enables the camera easily to attach or detach. The Quick Release plate comes with 1/4" camera mounting screw and 3/8" camera mounting screw.

•

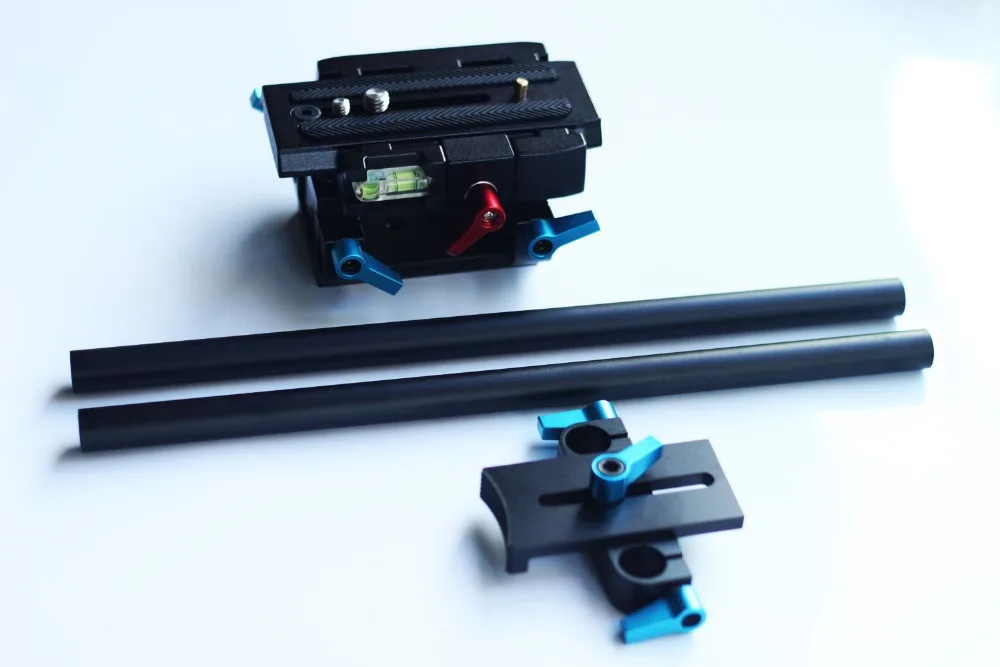

• Package include:

  1x 15mm rod clamp assembly unit

• 2x 250mm rods

• 1x 15mm rod clamps with lens support
