Характеристики

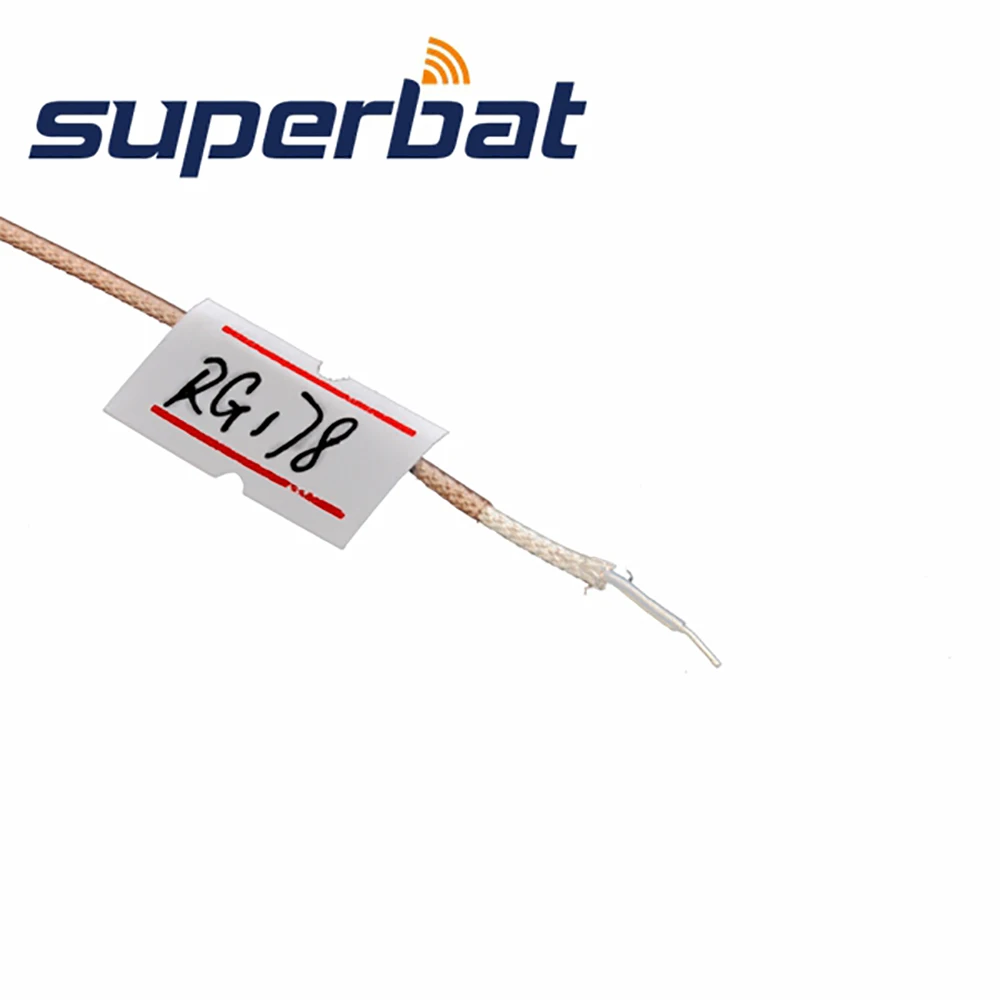

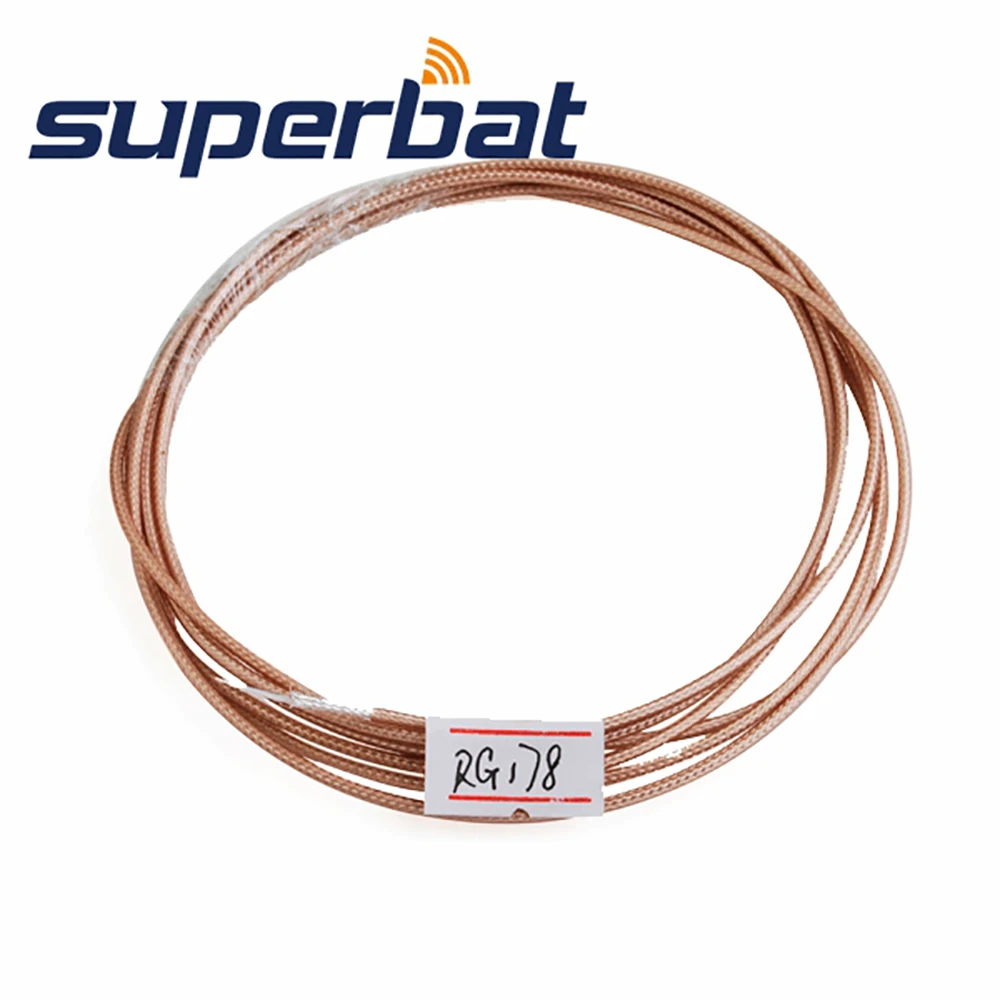

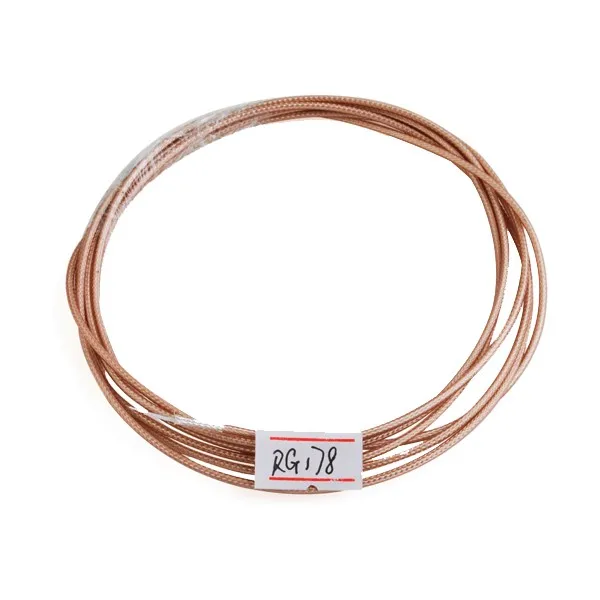

Superbat RF Coaxial Cable RG178 / 5M
M17 Part No.: M17/60-RG142
PHYSICAL PROPERTIES
Material | Diameter | |
1. Inner conductor | SCCS | 7multiplied 0.102 |
2. Insulation | PTFE | 0.86 |
3. Outer conductor | SC | 1.30 |
4. Jacket | Fiber Glass Braid | 1.83 |
ELECTRICAL PROPERTIES
Nom. Capacitance Conductor to Shield | 96.45 |
Nom. Characteristic Impedance | 50 |
Nom. Velocity of Propagation | 70 |
Min. Bend Radius Install | 10 |
Voltage Rating | 750 |
Max. Operating Frequency | 3000 |
Operating Temperature Rating | negetive 55to positive 200 |
Nom. Attenuation
Frequency | Nom. Attenuation |
100 | 0.453 |
400 | 0.912 |
1000 | 1.457 |
3000 | 2.572 |
5000 | 3.687 |
