Характеристики
Linear degree:0.05 (%F.S.)
Hysteresis:0.05 (%F.S.)
Repeatability:0.05 (%F.S.)
product details
technical parameterKTCBar series parameter table (Table 1)
| Nominal stroke size | Mm | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 |
| Resistance stroke(A.E) | Mm | 75.5 | 101 | 126 | 151 | 176.5 | 201.5 | 226.5 | 252 | 277 | 302 | 327.5 | 352.5 |
| Mechanical stroke(M.T) | Mm | 82.5 | 108 | 133 | 158 | 183.5 | 208.5 | 233.5 | 259 | 284 | 309 | 334.5 | 359.5 |
| Relative linear precision(FS) | .% | 0.15 | 0.08 | 0.05 | |||||||||
| Resistance value+ 10% | KOmega | 5 | |||||||||||
| Resolution/resolving power | simulation | InfiniteInfinite resolution | |||||||||||
| Repeatability accuracy | Mm | 0.01 | |||||||||||
| Maximum operating speed | M/s | 10 | |||||||||||
| Proposed output loop current | MuA | 1 | |||||||||||
| Using temperature environment | C | -40C to +120 | |||||||||||
| Output signal type | Vdc | 0100% a given input voltage (proportional to the change of displacement), note: as an indication of use, can not be loaded | |||||||||||
| sizeA | Mm | 141 | 166 | 192 | 217 | 242 | 268 | 293 | 319 | 344 | 370 | 395 | 420 |

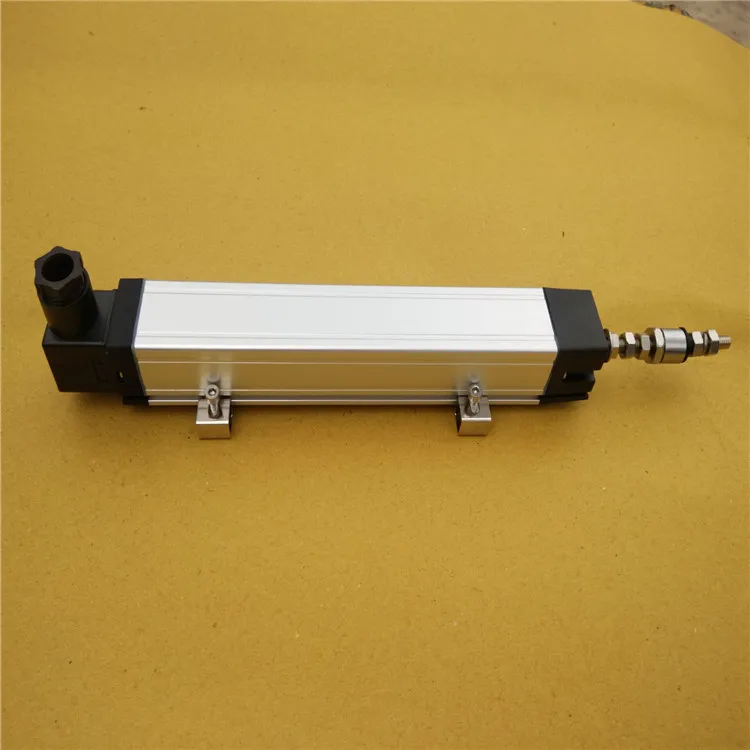

currencyKTCThe rod series linear displacement sensor is used to measure the displacement or length accurately. Measuring stroke75mm~1250mm, both ends of the4mmReturn stroke, linear precision0.1%~0.04%FS, repeated precision+ 0.013mm. The structure of the sensor is designed to ensure that the installation is convenient and firm and reliable. The shell is made of anodic treatment, beautiful appearance, corrosion resistance, built-in conductive plastic measuring unit, no temperature drift, long life, to ensure smooth running.
drawing
Packing list

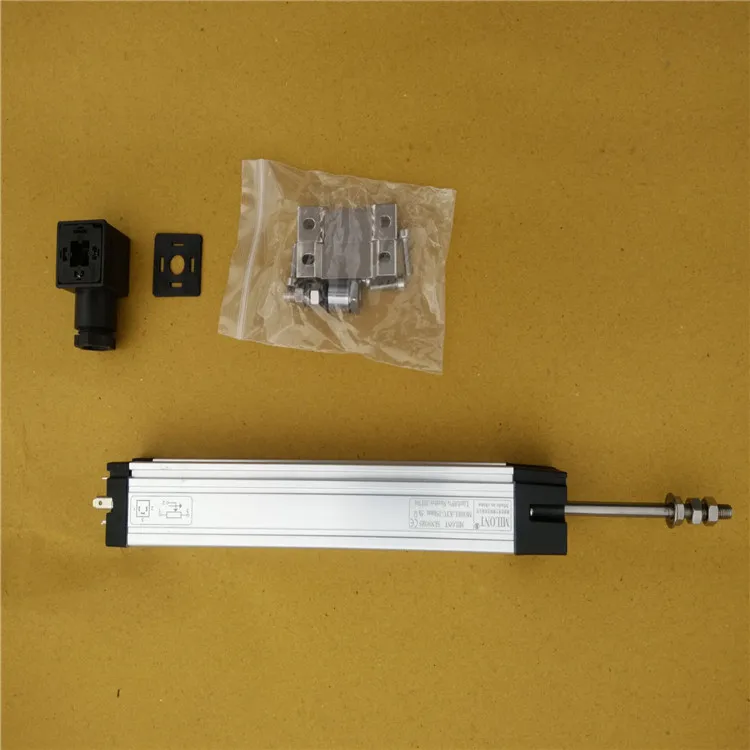

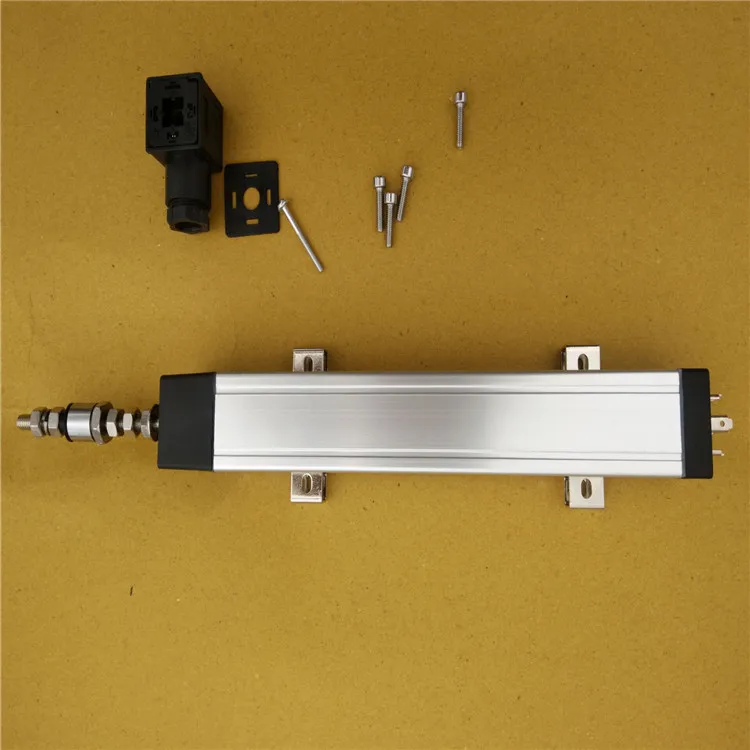

Included in delivery:1Free socketGDM3009
1Seal gasketGDM3-16
2A fixed bracket and4A screw
Uses / applications
