Product Description

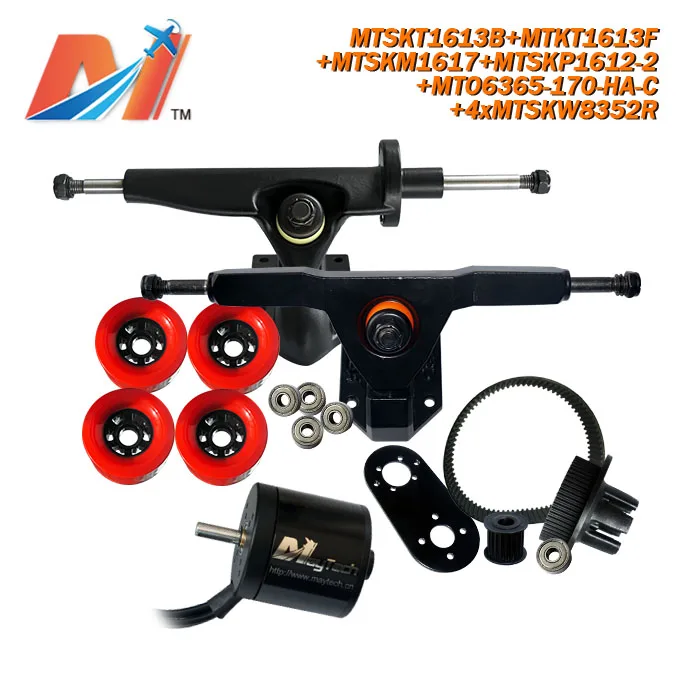

Maytech FREE SHIPPING for hoverboard barato 6365 170kv longboard brushless kit motor and skateboard mounts gear and belts



Your parcel will be included in:

1pcs MTO6365-170-HA-C closed cover waterproof hall sensor brushless motor for electric skateboard

1pcs MTSKT1613B back truck for electric skateboard

1pcs MTSKM1617 high strength steel mount  for electric skateboard

1set MTSKP1612-2 pulley system with bearing for electric skateboard

4pcs MTSKW8352 PU wheels for electric skateboard

1pcs MTSKT1613F front truck for electric skateboard

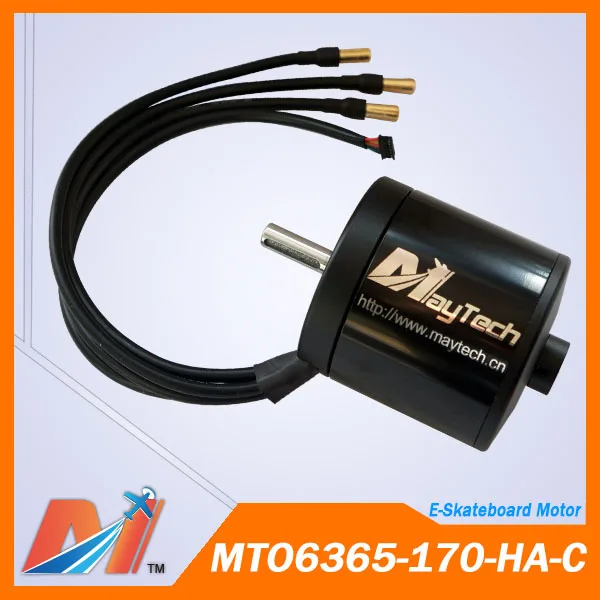

Part 1.: 1 pcs MTO6365-170-HA-C Closed cover outrunner motor for electric skateboard

Maytech brushless closed cover outrunner motors are specially designed for electric skateboard. The motors come with low KV, high torque and efficiency.  All parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.   The closed cover enable motors have dust-proof and water-proof function   The hall-effect sensors inside tracks the motor's position. This information permits the controller to alternate power with the right timing and in the right sequence and, voila, it spins. Better efficiency means you get more mechanical energy per unit of power,   After a lot of development we have put together what we know works best for an electric skateboard or ebike motor and made it small and compact.

Product Name	Maytech FREE SHIPPING for hoverboard barato 6365 170kv longboard brushless kit motor and skateboard mounts gear and belts
Company Name	Maytech
Idle Current	1.0A
Max. Current	65A
Input Volt	2-12S Lipos
Shaft	8mm
Max. Output Watt	3510W
Color	Black closed cover waterproof and dustproof
Rated Current	55A
Internal Resistance	0.0441
Net Weight	684g
Motor Dimension	62.5(+-1)x57.5(+-1)mm
Certificate	CE ROHS

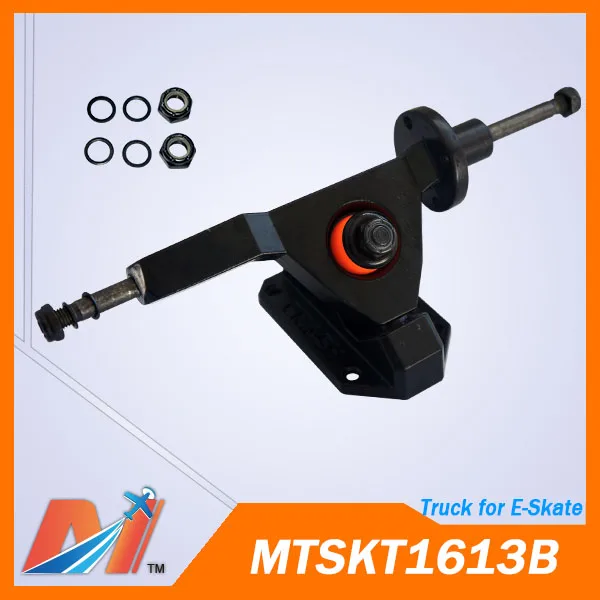

Part 2.: 1 set MTSKT1613B Back truck for electric skateboard

Maytech FREE SHIPPING for hoverboard barato 6365 170kv longboard brushless kit motor and skateboard mounts gear and belts







High quality electric skateboard downhill style long board trucks to build a stable high performance speed eboard.

Precision engineered TRUCK.

They are designed to offer maximum stability at high speeds whilst providing superior cornering & carving qualities.

MTSKT1613F

Skateboard Truck  (Backside)

Frame materials: 356-T6 alloy aluminum alloy

Suitable for 9-10inch decks

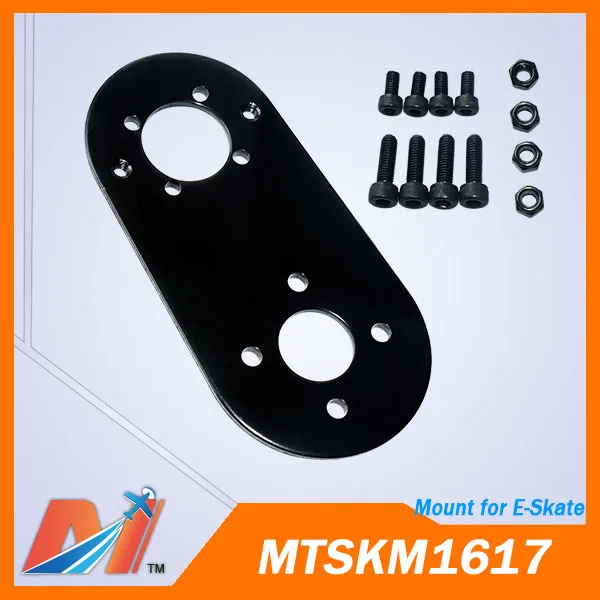

Part 3.: 1 set MTSKM1617 Mount for electric skateboard

Maytech FREE SHIPPING for hoverboard barato 6365 170kv longboard brushless kit motor and skateboard mounts gear and belts





Carbon fiber & aluminium motor mounts & build a durable, reliable, high performance e-SKATEBOARD.

MTSKM1617

Weight: 162g/pcs

Compatible with Maytech MTO50, MTO63 series or motors with same drawing.

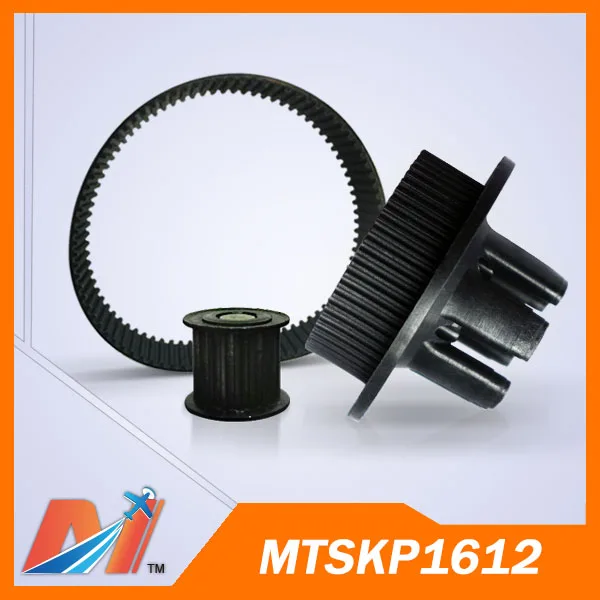

Part 4.: 1 set MTSKP1612-2 Pulley & belt system with bearing for electric skateboard

Maytech FREE SHIPPING for hoverboard barato 6365 170kv longboard brushless kit motor and skateboard mounts gear and belts



For Belt: 16mm wide belt for 33% extra torque transfer on singal drive system.

The pulley is made from hardened steel, this 20 teeth HTD5 motor pulley is the perfect match for any motor with an 8mm drive shaft.



High quality neoprene & fiberglass compound with a max 3000psi tensile strength to ensure your power ends up in the wheels for unsurpassed acceleration. It is a critical part for anyone building a high performance eboard

MTSKB1615 Belt for pulley

Width: 16mm

R: 255mm

teeth pitch: 3mm

weight: 9g/pcs



This wheel pulley is made from glass fibre reinforced nylon, offering maximum strength and minimal weight. The drive hub's unique design holds and centers the pulley securely in place allowing you to drive maximum torque through your custom made electric skateboard into the wheels. It has the feature of light weight, super fast, fool proof installation. The weight is just half of aluminium pulley. Also, no no screwing bolts or Tools needed when use it.

Pulley with 16mm tooth

60 teeth

With Ball Bearing NSK f608zz

Weight: 59g/pcs

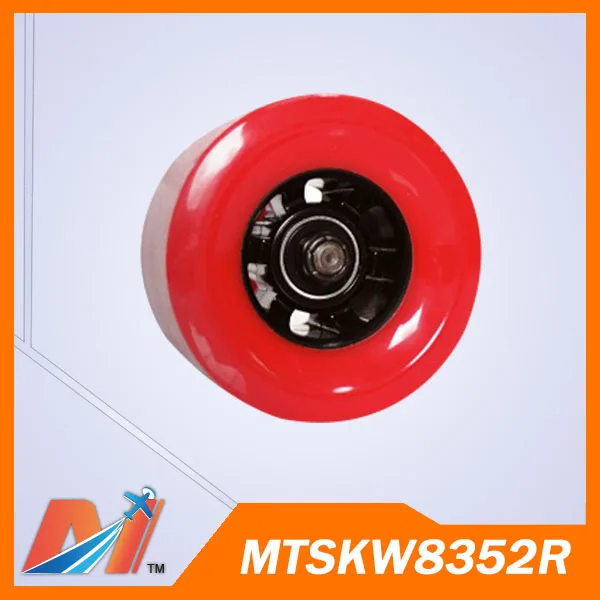

Part 5/6/7/8.: 4pcs MTSKW8352 PU wheels for electric skateboard

Maytech FREE SHIPPING for hoverboard barato 6365 170kv longboard brushless kit motor and skateboard mounts gear and belts



Skateboard Wheels Dimension: 83x52mm Hardness: 78A Wheel Materials: 85% rebound PU wheels ensure the best trafficability and shock absorption. Cental Part: PP materials Optional color: Blue, white, green red With 2pcs ball bearing NSK f608zz

Part 9.: 1pcs MTSKT1613F front truck for electric skateboard

Maytech FREE SHIPPING for hoverboard barato 6365 170kv longboard brushless kit motor and skateboard mounts gear and belts





High quality electric skateboard downhill style long board trucks to build a stable high performance speed eboard.

Precision engineered TRUCK.

They are designed to offer maximum stability at high speeds whilst providing superior cornering & carving qualities.

MTSKT1613F

Skateboard Truck  (Backside)

Frame materials: 356-T6 alloy aluminum alloy

Suitable for 9-10inch decks



















Recommended wireless remote control For Electric Skateboard

Maytech FREE SHIPPING for hoverboard barato 6365 170kv longboard brushless kit motor and skateboard mounts gear and belts

Model No.	MTSKR1512 Wireless Remote Control For Electric Skateboard
Company Name	Maytech
Application	For Electric Skateboard
Frequency	2400M-2483MHZ
Frequance Channal	32 Channals
Channe	4 Channals TDM
Direction	Bidirectional Communication
Battery	ER10280 3.6V 450mah
Transmitting Distance	3-10M
Output Signal of REceiver	PWM
Pulse Width	1-2ms
MIdpoint Pulse Width	1.5ms
Other Function	Brake/Cruise Control
Certificate	CE Rohs







Recommended 50A 12S VESCs for electric skateboard:

Maytech FREE SHIPPING for hoverboard barato 6365 170kv longboard brushless kit motor and skateboard mounts gear and belts

Model No.	MTVESC50A VESC For Electric Skateboard
Company Name	Maytech
Continuous Amp	50A
Burst Amp	240A 10S
Input Voltage	3-12S lipos
SBEC	5V/2A
Motor Supported	Sensor&Sensorless Brushless Motor
Hadware	Version 4.12(open source)
Firmware	Version2.18(open source)
Capacitance	3x680uf 63V
New Weight	300g
Size(mm)	70x50x5mm
Certificate	CE&Rohs









THE MAIN PARTS FOR PULLEY SYSTEM ELECTRIC SKATEBOARD
