Product Description

Please Notice:



There are 2.18 version and 3.3 version firmware VESC, please remark which one do you need when put your orders.

The VESC50A speed controller is only recommended for e-skateboard application.

We do not cover any warranty for following cases:

1. remove shrinkable tube,
2. change cable
3. change firmware,
4. for other applications



Your Parcel will included:

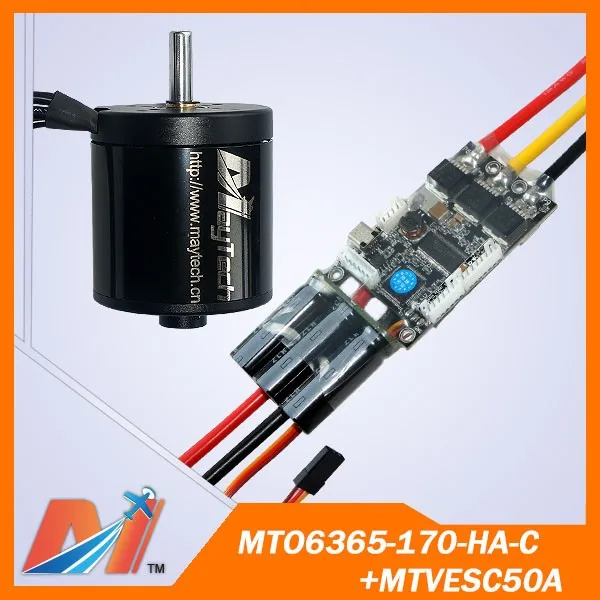

1pc MTO6365-170-HA-C Closed Cover Brushless Outrunner Motor For Electric Skateboard

1pc MTVESC50A 50A 12S HV SuperEsc based on VESC For Electric Skateboard



Item 1--- 6365 170kv electric longboard hall sensors motor:

Maytech 6365 170kv outboard motor 4 stroke and mountain board SuperEsc based on vesc controller for motor mount skateboard FREE SHIPPING(2PCS)

Maytech brushless closed cover outrunner motors are specially designed for electric skateboard. The motors come with low KV, high torque and efficiency.  All parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.   The closed cover enable motors have dust-proof and water-proof function   The hall-effect sensors inside tracks the motor's position. This information permits the controller to alternate power with the right timing and in the right sequence and, voila, it spins. Better efficiency means you get more mechanical energy per unit of power,   After a lot of development we have put together what we know works best for an electric skateboard or ebike motor and made it small and compact.   Model NO.: MTO6365-170-HA-C Motor KV …………………………………170(RPM/V)  Shaft…………………………………………8mm Motor Size……………………………………Φ63x64.5 Max. Current…………………………………65A Input Volt. ……………………………………2-12S Lipo cell NET Weight …………………………………668g Max. Output Watt …………………………………2000W Internal Resistance ………………………………0.0402 With black closed cover

MOdel No.	Maytech 6365 170kv outboard motor 4 stroke and mountain board SuperEsc based on vesc controller for motor mount skateboard FREE SHIPPING(2PCS)
Company Name	Maytech
Idle Current	0.8A
Max. Current	65A
Input Volt	2-12S Lipos
Shaft	8mm
Max. Output Watt	2000W
Color	Black closed cover waterproof and dustproof
Rated Current	65A
Internal Resistance	0.0402
Net Weight	668g
Motor Dimension	63x44.5mm
Certificate	CE ROHS











Item 2--- MTVESC50A 12S high voltage electric longboard VESC:

Maytech 6365 170kv outboard motor 4 stroke and mountain board SuperEsc based on vesc controller for motor mount skateboard FREE SHIPPING(2PCS)

Model No.	MTVESC50A SuperEsc based on VESC For Electric Skateboard
Company Name	Maytech
Continuous Amp	50A
Burst Amp	240A 10S
Input Voltage	3-12S lipos
SBEC	5V/2A
Motor Supported	Sensor&Sensorless Brushless Motor
Hadware	Version 4.12(open source)
Firmware	Version2.18(open source)
Capacitance	3x680uf 63V
New Weight	300g
Size(mm)	70x50x5mm
Certificate	CE&Rohs







Recommended Wireless Remote Control for electric skateboard:

Maytech 6365 170kv outboard motor 4 stroke and mountain board SuperEsc based on vesc controller for motor mount skateboard FREE SHIPPING(2PCS)

Model No.	MTSKR1512 Wireless Remote Control For Electric Skateboard
Company Name	Maytech
Application	For Electric Skateboard
Frequency	2400M-2483MHZ
Frequance Channal	32 Channals
Channe	4 Channals TDM
Direction	Bidirectional Communication
Battery	ER10280 3.6V 450mah
Transmitting Distance	3-10M
Output Signal of REceiver	PWM
Pulse Width	1-2ms
MIdpoint Pulse Width	1.5ms
Other Function	Brake/Cruise Control
Certificate	CE Rohs



THE MAIN KITS FOR YOUR ELECTRIC SKATEBOARDS









Maytech Electronics Co., Ltd. is devoted in designing and manufacturing Brushless ESCs, Brushless motors, Propellers, Analog and Digital Servos for RC models, such as RC aircrafts, Helicopters, Boats, Cars and Truggies.



Special design requirement, OEM and ODM orders welcome!
