Характеристики

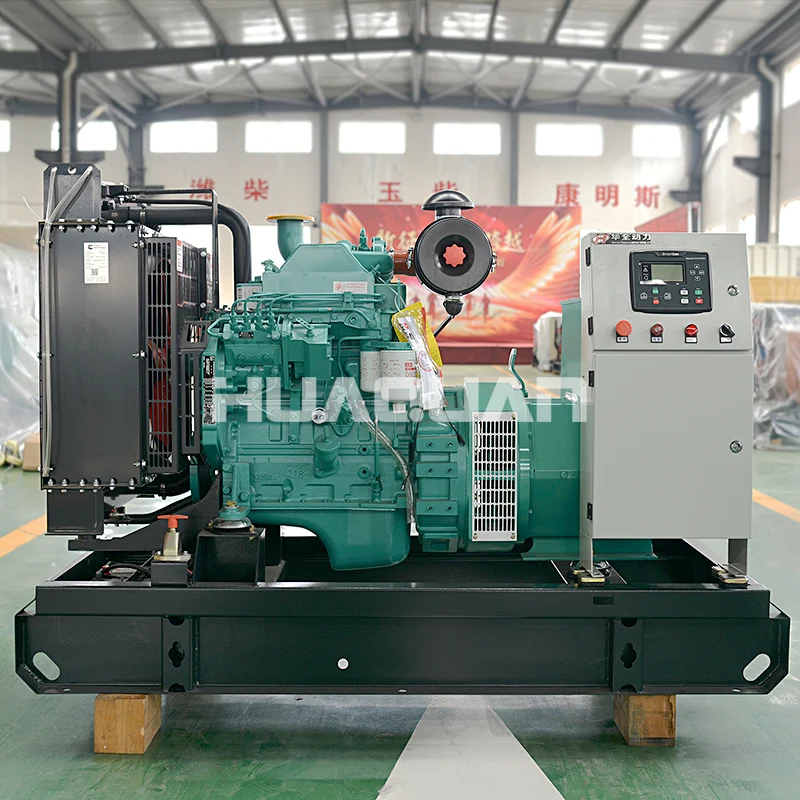

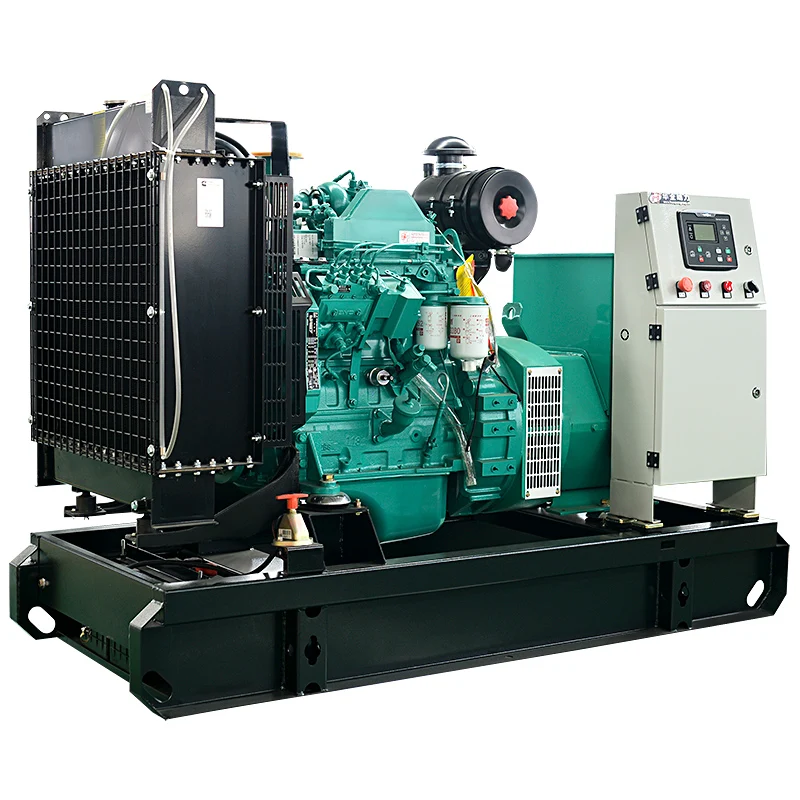

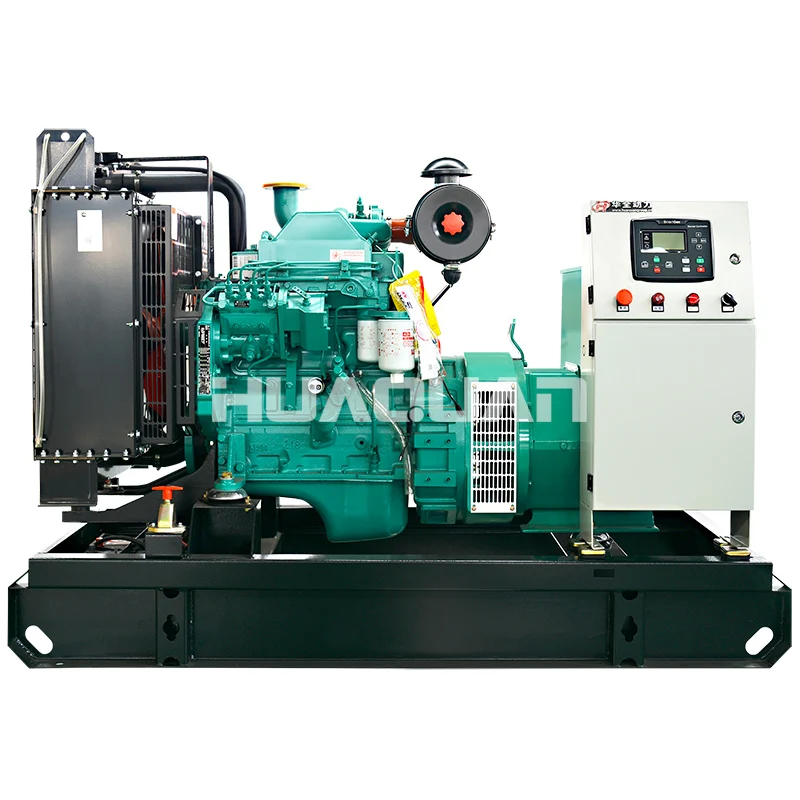

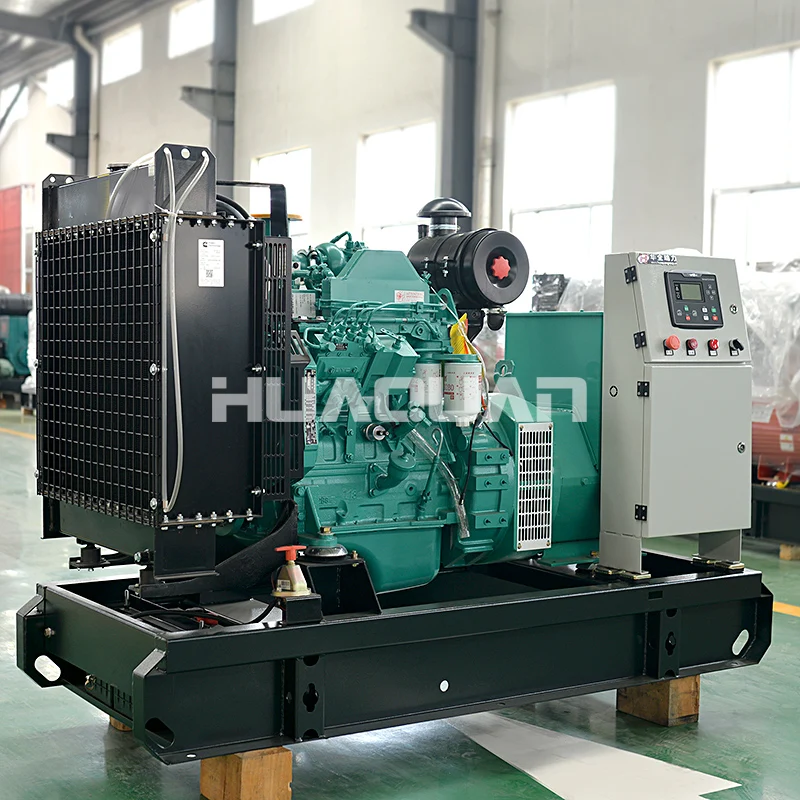

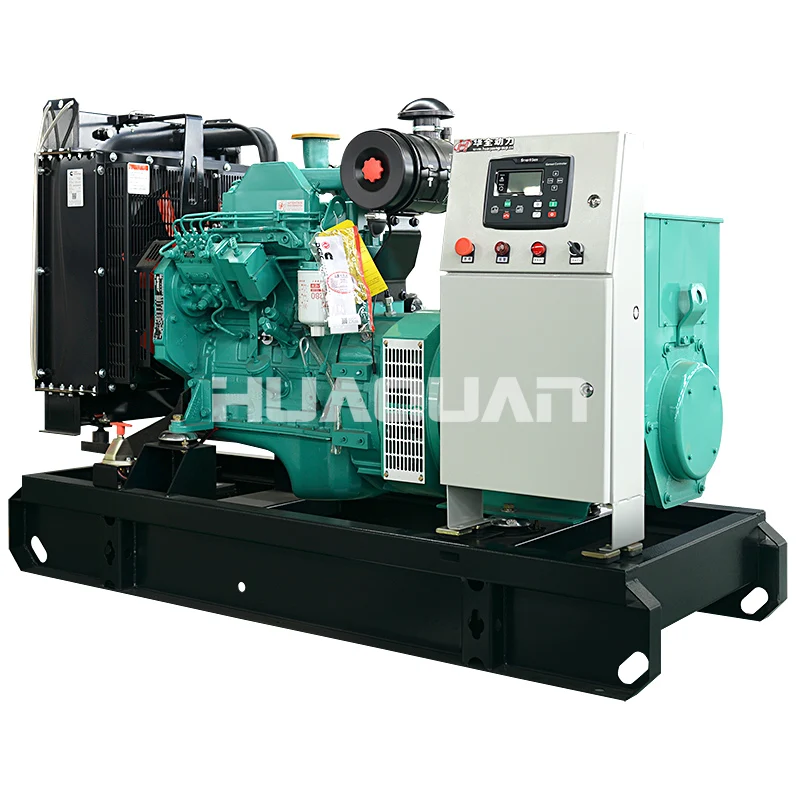

1、Huaquan diesel generator set is 50 kilowatts, the unit size is 1850×850×1700 (L×W×H mm), and the unit weight is 850kg. Low noise and easy placement.

2、Using DC24V electric start and electronic speed regulation, the unit has good transient speed regulation performance and strong loading capacity.

3、The AC synchronous generator is matched with the direct injection internal combustion engine to ensure the safe and stable operation of the unit and protect your production and life.

4、The unit has strong adaptability. It is equipped with a radiator water tank suitable for the environment of 40℃-50℃, a belt-driven cooling fan, a fan safety shield, etc. to ensure the safe operation of the unit.

5、The steel base of the unit is shared to improve the versatility of the parts and expand the performance of the unit.

Genearal

Unit model:	HQ50GF	Steady state voltage adjustment rate (%):	≤± 1
Output power:	50KW	Voltage fluctuation rate (%):	≤ ± 0.5
Power factor:	COSΦ = 0.8 (lagging)	Transient voltage adjustment rate (%):	＋20 ～－15
Output voltage:	400V / 230V	Voltage stabilization time (s):	≤1
Output current:	90A	Steady state frequency adjustment rate (%):	≤ ± 1
Rated frequency:	50Hz	Frequency fluctuation rate (%):	≤ ± 0.5
Rated speed:	1500rpm	Transient frequency adjustment rate (%):	+ 10 ~ -7
Fuel grade:	(standard) 0 # light diesel (normal temperature)	Frequency stabilization time (S):	≤3
Dimensions:	1850×850×1700（L×W×H mm）	Fuel consumption (100% load):	224g/kW·h
Start mode:	850kg	Acoustic noise (LP7m):	95dB（A）

Technical parameters of diesel engine

Brand/origin：	DCEC engine	Cooling method:	Closed water-cooling
Model:	4BTA3.9-G2	Oil supply method:	direct injection
Number of cylinders / Dare to mention structure:	4 / L Type	Speed regulation method:	Electric
Bore stroke:	102×120 mm	Intake method:	Turbo
Compression ratio:	16.5：1	Overload capacity:	110%
Weight：	DC 24V Electric start	Speed:	1500rpm

Technical parameters of generator

Brand：	Huaquan Brushless Generator	Protection level：	IP22
Model：	HQF-50	Wiring mode：	Three-phase four-wire, Y-connection
Rated power:	50kW	Adjustment method:	AVR (Automatic Voltage Regulator)
Rated voltage:	400V / 230V	Output frequency:	50Hz
Insulation class:	H class	Output factor:	COSΦ = 0.8 (lag)
